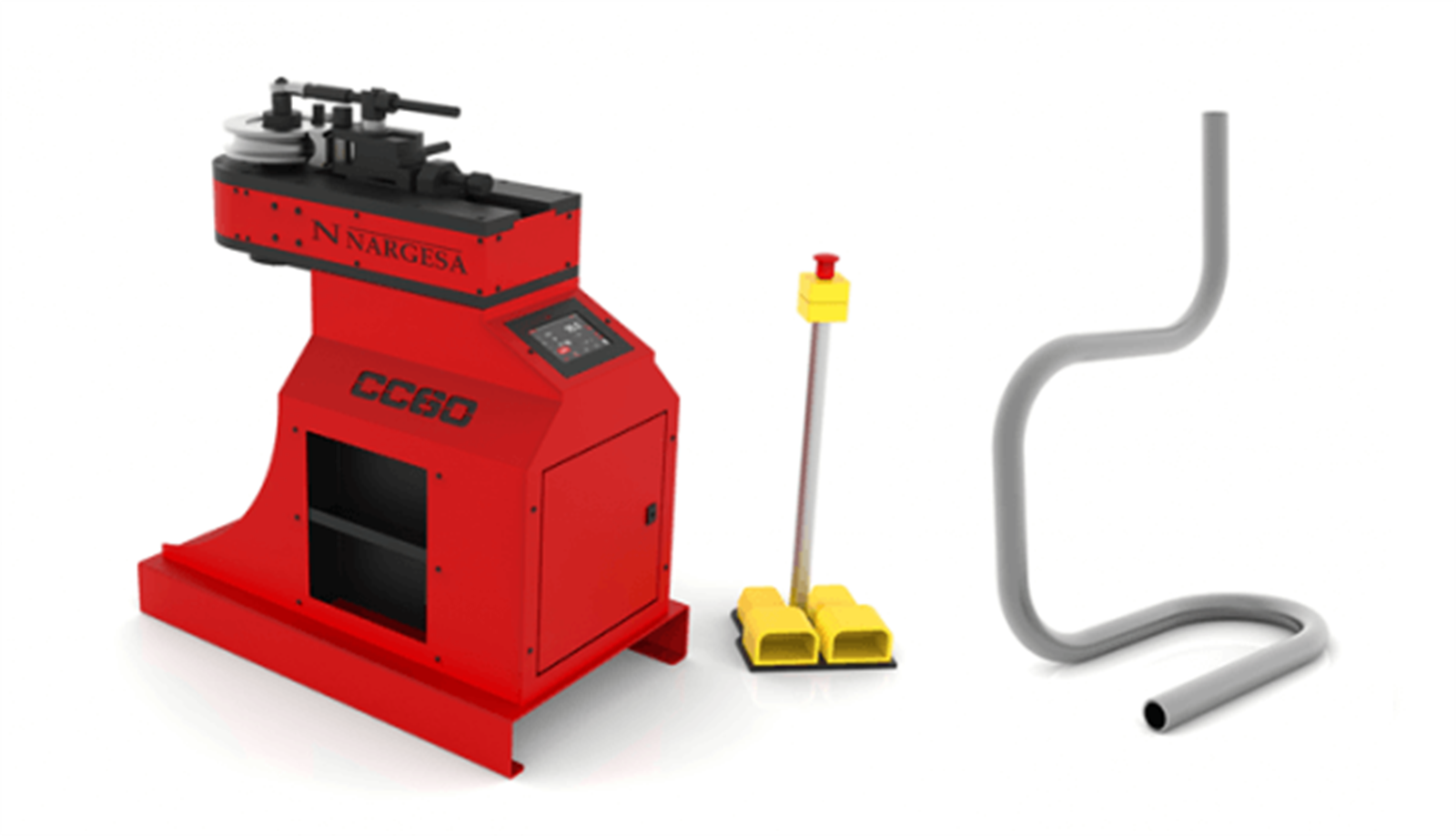

Nargesa Non-mandrel tube and pipe bender CC60 CNC (Nargesa Non-mandrel tube and pipe bender CC60 CNC)

Standard rollers MC150B/MC200/MC200H

4.0 Technology: Whenever a customer agrees, the manufacturer may remotely connect to their machine to do any software updates completely free of cost and detect any anomalies in the machine without needing to travel to the machine site.

Robustness and speed: The weight of the machine in comparison to other brands provides an idea of how it’s built. Some models can double the others in weight. These are not DIY machines; they’re pipe benders that can work 24 hours a day.

Curve thicknesses and finishes: The original counter-shape designed by Nargesa guarantee a good finish even with a thin-walled pipe.

Offset head and two-directional bending: The offset head design allows for complex curves as the pipe goes below it.

Enhanced energy efficiency: The consumption per machine working stroke has been significantly reduced to save energy.

Automatic unlock: The bending carriage moves automatically to the right or to the left depending on the direction of the curve to more easily release the piece without needing to re-adjust the grip.

Reinforcement strap included: The CNC pipe bender comes standard with a reinforcement arm. It’s used to prevent machine chassis deformations.

Bend 8 Lubricant included: With the purchase of the CC60 CNC pipe bender, you’ll receive a 400 ml bottle of special bending lubricant.

Cc60 2-axis positioning gauge

The gauge of the CC60 allows to make mass produced parts, much faster, more accurate and repetitively.

• Adjustable longitudinal positioning with 6 positions
• Angular head rotation every 5 degrees
• Four-clamp plate adjustable to round and square tube
• Longitudinal movement with high precision linear guides
• Automatic anti-collision control
• Easy handling and preparation for difficult parts

REF: 140-17-01-50000
Gauge length: 3000mm
Maximum capacity: 60,3mm, 2” Schedule
Weight: 110Kg

CHARACTERISTICS OF THE PACKAGING

Nº Pallets: 1.

Width: 3130 mm.

Length: 980 mm.

Height: 660 mm.

Volume: 2,03 m3

Nett weight: 110 Kg.

Gross Weight: 160 Kg.



Otras características​:

• The stopper of the CC60 pipe bender is shipped fully assembled, it will only be necessary to place the legs and fix it to the ground.
• Wooden pallet and 3-layer wooden and cardboard box suitable for sea transport.
• Optional: Complete wooden packaging NIMF15.

VIDEO - Positioning gauge instructions book

CC60 Positioning gauge Instructions book
Download (12.3 MB)

Accessories for round pipes in millimeters · 12 to 60 mm

Rollers made of treated Steel. Units suitable for bending all types of round pipes 12 to 60 millimeters.
The following is supplied with the unit: A main roller, a counter-shape, a clamp with a fastener.

Customers must equip their pipe bender with a specific die to get the desired curving.

The diameter and thickness of the pipe as well as the radius of curvature must be taken into account when choosing a roller.

Check with the manufacturer for other dimensions

Accessories for round pipes in Schedule inches · 3/8” to 2” Schedule

Rollers made of treated Steel. Units suitable for bending all types of round pipes 3/8” to 2” Schedule.
The following is supplied with the unit: A main roller, a counter-shape, a clamp with a fastener.

Customers must equip their pipe bender with a specific die to get the desired curving.

The diameter and thickness of the pipe as well as the radius of curvature must be taken into account when choosing a roller.

Check with the manufacturer for other dimensions

Accessories for round tubes in inches · 1/2” to 2” 1/4 inches

Rollers made of treated Steel. Units suitable for bending all types of round pipes 1/2” to 2”1/4 inches.
The following is supplied with the unit: A main roller, a counter-shape, a clamp with a fastener.

Customers must equip their pipe bender with a specific die to get the desired curving.

The diameter and thickness of the pipe as well as the radius of curvature must be taken into account when choosing a roller.

Check with the manufacturer for other dimensions

Accessories for square pipes CC60

Rollers made of treated Steel. Units suitable for bending all types of square pipes 20 to 40 millimeters and 3/4” to 1” 1/2 inches.
The following is supplied with the unit: A main roller, a counter-shape, a clamp with a fastener.

Customers must equip their pipe bender with a specific die to get the desired curving.

The dimensions and thickness of the pipe as well as the radius of curvature must be taken into account when choosing a roller.

Check with the manufacturer for other dimensions

Supporting roller kit CC60

REF: 140-17-01-00002

The CC60 Supporting Roller Kit is used to bend pipes with a diameter equal to or more than 60 mm, 2” 1/4 or 2” Schedule x 3 mm. This unit is comprised of:

A roller holder: The roller holder is made up of three highly resistant steel pieces that are precision mechanized and treated on the surface. They’re fixed and centered with rectified bolts to ensure proper operation.

The coupling axis: The coupling axis is made up of a chrome Ø20 mm Matera axis

Weight: 9.856 kg

Nargesa Bend8 aerosol lubricant

The CC60 pipe bender comes with a 400 ml bottle of BEND8 lubricant.

Formats available for this product:
REF. 060-SPR-00003 400 ml bottle.
REF. 060-SPR-00004 Box of 12 400 ml bottles.

Tariff Item Code: 27101999

This is a high-additive and low-viscosity aerosol oil. Contains PTFE. Does not contain silicone.

• Enables the finish on the outer bend
• Inhibits roughness and inner marks
• Reduces wear of the tooling
• Especially designed for tubes of small thickness
• Lubricates to reduce friction
• Avoids and disolves corrosion
• Gives shine and protects
• Cleans up and removes dirt

CC60 Catalog
Download (1.3 MB)

Specifications of tubes
Download (750.28 KB)

Instructions book CC60
Download (13.05 MB)

+ Info for Non-mandrel tube and pipe bender CC60 CNC

ESA S625 CONTROL PANEL

Nargesa tube and pipes benders are controlled with a very intuitive and easy-to-use 7” color touchscreen with the latest 4.0 technology. Just enter the pipe dimensions, thickness, angle of the curve or curves and choose a die from the library and the control programs the rest of the parameters automatically; elastic recovery correction (springback), recommended rotation speed, whether a tool post support is necessary or not, and if the intended curve is possible... All of this may be modified by the end user based on their own needs. These are some of the most relevant features of this control system.

• Stores up to 10,000 programs.
• Up to 50 different angles on the same piece can be programmed.
• Dimensions may be programmed in inches or millimeters.
• A library of available dies with the possibility of programming new ones.
• A library of differently shaped pipes with varying thicknesses.
• The CNC can be supplied in more than 20 different languages.
• Automatic or manual rotation speed adjustment from 0.7 to 4.5 rpm.
• Manual or automatic operation.
• Automatic elastic recovery correction (springback).
• Piece counter.
• Independent correction of the programmable final curve degree.
• 4.0 Technology
• On-screen alarm diagnostics.
• Preventive maintenance warning.
• Can be remotely connected by the manufacturer without having to travel to the machine site.
• Warning on screen if the tool post support needs to be used.
• 7” color touchscreen with 800 x 480 resolution
• 128 MB silicon disk
• 2 analog inputs, 12 bit resolution.
• 16 digital inputs (24 Vdc).
• 16 digital outputs (24 Vcc, 0.7 A max.) Protected against overloads and short circuits.
• 1 RS232 serial port
• 1 CAN port with 9 D-Sub F connector contacts.
• 24 Vdc power source
• 1 USB port

Dimensions of the machine Non-mandrel tube and pipe bender CC60 CNC

Dimensions of the machine: 630x1000x1150 mm.

Weight: 365 Kg.

Tariff Item Code:  84622600

Other features:

• A lower pallet bench to transport the machine to the worksite or storage.
• The CC60 pipe bender is sent completely assembled.

Characteristics of the packaging Non-mandrel tube and pipe bender CC60 CNC

Otras características:

• Palletized bench to move the machine easily to the working site or storage.
• The machine is delivered completely mounted.
• Packaging with wooden pallet and 3-layered cardboard, suitable for sea freight.
• Optional: Complete wooden packaging NIMF15.

Uses of the machine Non-mandrel tube and pipe bender CC60 CNC
