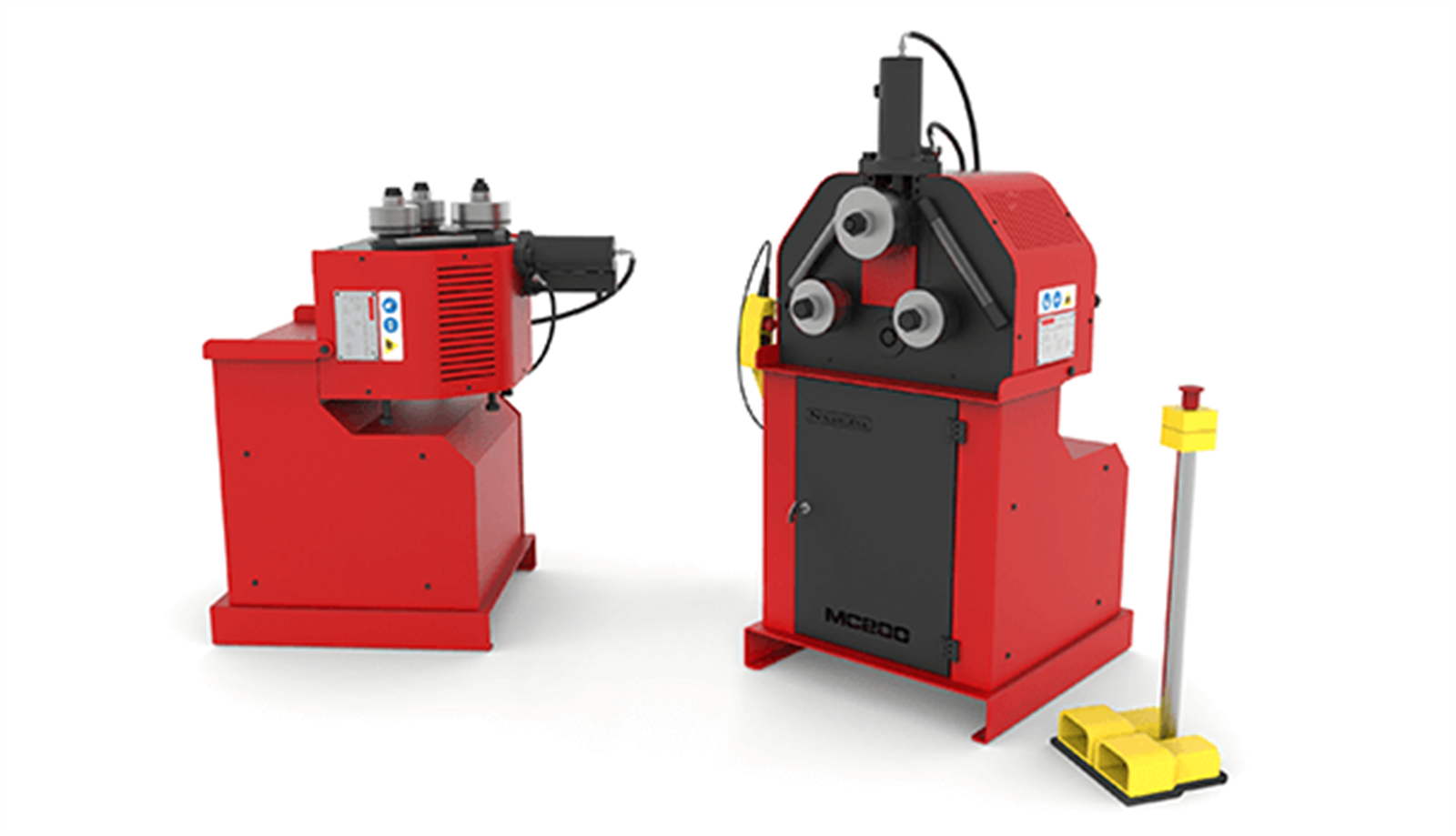

Profile Former MC200H NARGESA, made of welded and mechanized steel sheet. Unlike the others, this one is not made of cast iron. Ideal for making flanges, greenhouses, balausters, tables, chairs, doors, windows... making a great number of circular shape in all kinds of profiles. Its robustness, axis diameter, reducer capacity and other features, make it one of the best bending machines in the market, within the category of two traction rollers. All products Nargesa are according to the European directives and regulations CE regarding manufacturing of industrial machinery.
It's got two traction rollers. The two lower rollers are knurled and motorized to achieve a better traction.
Palletized lower table so it can be easily moved to the working site or storage.
The machine is sent completely mounted.
Steel pallet and 3-layered cardboard box suitable for sea freight.
Optional wooden packaging NIMF15.
Its robustness, diameter of axis, reducer capacity, fastening power by using the hydraulic piston and other features turn it into bone of the best bending machines in the market within the category of two traction rollers.
All our products are manufactured in our facilities in Spain. Hydraulic and electrical components are completely standard from the best European leading trademarks, with technical support all over the world: Rexroth, Bosch, Roquet, Schneider Electric, LG, Telemecanique, Pizzato..
In the PDF file you will see and download the bending capacity for Profile Formers. This are guidance sizes, it always depends a lot on the material hardness and quality of the pipe of profile.
Nargesa Section Bending machines capacity Download (1.48 MB)
Rollers made of Steel F155 and treated to 62 Rc. Suitable for bending all kind of round steel or stainless steel pipes. Always clean up the rollers well before using stainless steel not to get the pipe contaminated.
Measures rollers Download (685.73 KB)
Rollers made of Sustarin to bend round stainless steel pipes, aluminium and delicate materials with thickness not bigger than 2.5mm. Sustarin rollers do not danage nor get the pipe contaminated.
Measures rollers Download (699.74 KB)
Especially designed for measuring radii on profiles.
REF: 140-MED08-00001 The High precision digital radius gauge allows the user to have a direct and immediate reading of inner and outer radius in a range from 55 to 11.250 millimeters or from 2" to 443" inches. The High precision digital radius gauge measures radii in spherical objects such as tubes, profiles and pipes in a quick and accurate way. It is really fast and easy to use! It indicates the inner or outer radius of the part we are bending without removing it from the machine and without needing to previously draw and cut a guide template.
It's equipped with 9 standard pieces, by means of which the user can work all kinds of profiles. Square., rectangular pipe, solid round and square bars. U Profile, T profile, angle, flat bar, edged flat bar...
Adjustable rollers, by washers with the size of profile or pipe which allows us to make bending to different pipe or profile sizes.
Steel rollers F1140 treated and rectified.
Assembling of the rollers Download (983.52 KB)
Manufacturing process of a spiral staircase Download (2.41 MB)
Buying a bending machine Download (1.08 MB)
Specifications of tubes Download (437.96 KB)
MC200H Catalog Download (1.44 MB)
MC200H Instructions book Download (9.54 MB)
RAISING CAPACITY, INCREASE IN PRODUCTIVITY
Profile Former MC200H raises bending capacity and makes it more simple and practical the bending adjustment, which causes an increase in production and eases its handling. It's composed by a piston, a hydraulic group and a positioning detection system. It's ideal for the repetition of pieces thanks to its position sensor.
Dimensions of the machine: 790x810x1540 mm.
Weight: 360 Kg. Tariff Item Code: 84622900 Other Features:
