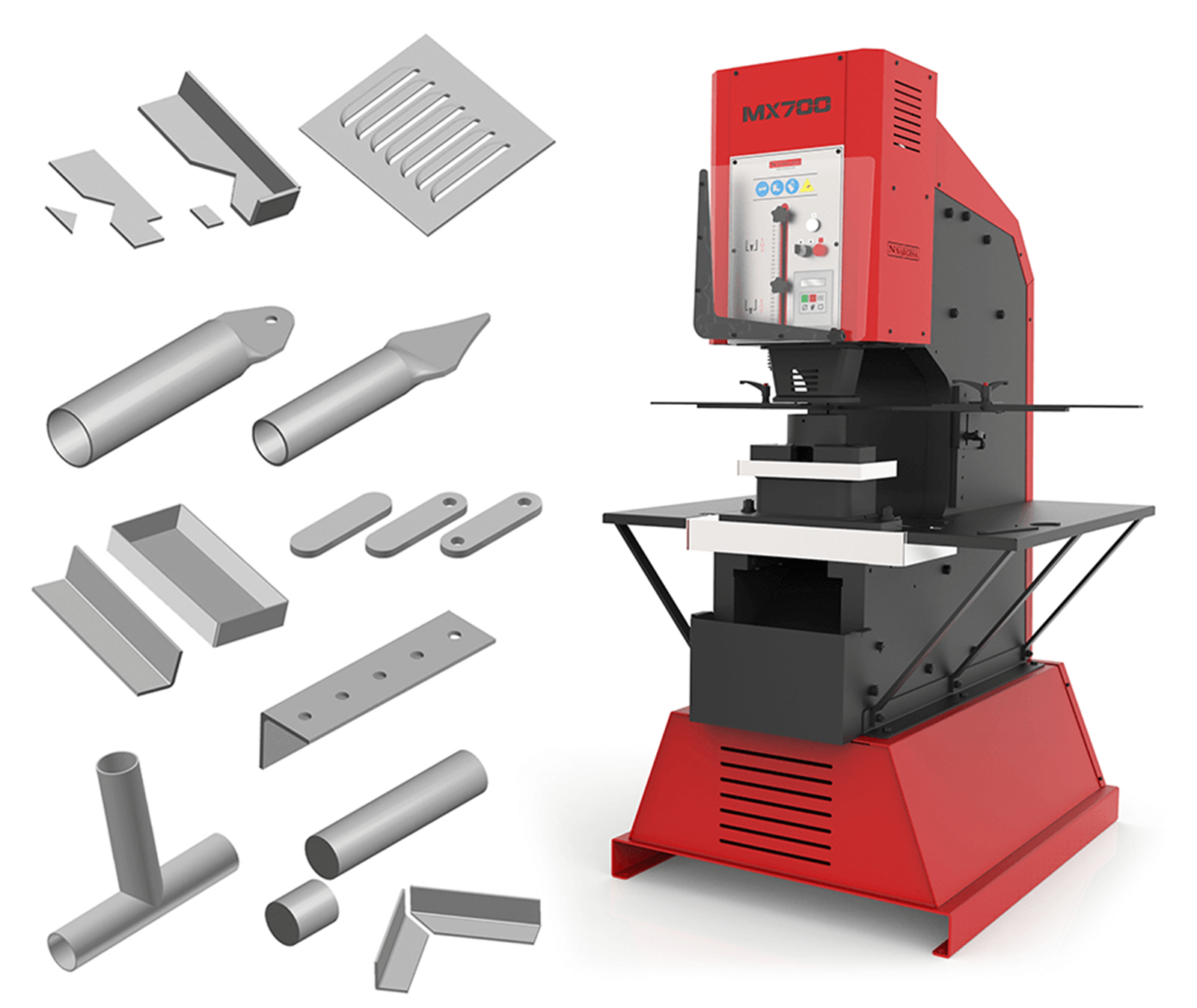

The Hydraulic Punching machine MX700 NARGESA, is characterized by its versatility, it can make several working functions like punching in metal sheet, flat bar, pipe, angle, U profile, T profile, UPN, IPN... Bending, Cutting, inlaying, punching, pipe notching tube, embossing... it can be adapted any kind of tooling, even one made by the customer himself. Its versatility and easy use, makes it an essential item for a metal working workshop.
All products Nargesa are according to the European CE normatives and regulations for the manufacturing of industrial machinery.
In the PDF file we will show you how to calculate the punching capacity for the different thicknesses, materials and shapes... What thicknesses can be punched and with which punch diameter. Ideas and suggestions to improve jobs performance and increase punching capacity.
Compute tonnage for punching Download (1.77 MB)
All Nargesa Hydraulic Punching Machines are equipped with the punching tool that includes the fitting nut for punches and the base holder for dies. The rest of accesories are optional, which means each customer equips his machine as desired. In Optional Accessories, at the bottom of the page, he'll find the list of all possible standard punches and dies.
Fitting nut for punches and base holder for dies MX700 Download (526.36 KB)
In Nargesa we have a wide catalog of punches and dies of all kinds. If the size the customer needs is not on this list, we make it. In the PDF file you will see all kinds and sizes we have.
Punches and dies for Nargesa MX700 Download (1.05 MB)
Stripper die 90º adjustable 150x150 MX700
Folding tooling 350mm MX700 Download (2.07 MB)
Tooling to notch pipes from Ø16 to Ø60mm. It means to cut off the end of a pipe so it can be perpendicularly joined to another pipe . In the PDF file you will see all kinds and sizes we have.
Pipe notching tooling MX700 Download (478.58 KB)
Tooling to round off the corners in metals sheets of different radius. In the PDF file you will be able to see all kinds we have.
Tooling to round off corners MX700 Download (478.58 KB)
Tooling to make all kinds of flat bars with round ends, with or without hole, straight, round... Very used as handles, stands, etc... Starting from a metal strip, a piece with the desired length comes out of it with every stroke. In the PDF file you will see all kinds of shapes and sizes we have.
Flat bar round end tooling MX700 Download (491.75 KB)
Hydraulic Punching Machine MX700 is different from the other ones because of its long displacement and working gooseneck that allows it to be adapted a number of dies and tooling. Its versatility and features makes it a fast payback machine. It carries out the same functions of 5 different machines.
Dimensions of the machine: 1130x1370x2060 mm.
Weight: 2000 Kg. Tariff Item Code: 84624900 Other features:
PUNCHING:
All kinds of punches can be supplied: round ones, square, oval, locks punches... Punching can be also made in a pipe.
OTHER APPLICATIONS:
There are a lot more applications for it. More than 40 standard tooling to make different jobs. (See OPTIONAL TOOLING, at the bottom of the page).
NO STANDARD APPLICATIONS:
If the customer requires it we can manufacture under-request tooling to make all kinds of parts.
ADVANTAGES:
STANDARD EQUIPEMENT PROVIDED WITH THE MACHINE:
All Nargesa Hydraulic Punching Machines are equipped with the punching tool that include the fitting nut for punches and the base holder for dies. The rest of accesories are optional, which means each customer equips his machine as desired.
All our products are manufactured in our facilities in Spain. Hydraulic and electrical components are all standard from the best leading European trademarks with technical support all over the world: Rexroth, Bosch, Roquet, Schneider Electric, LG, Telemecanique, Pizzato etc...
MX700 Catalog Download (1.76 MB)
MX700 Instructions book Download (11.03 MB)
