Nargesa Hydraulic Punching and Shearing Machine MX340G

Nargesa Hydraulic Punching and Shearing Machine MX340G (Nargesa Hydraulic Punching and Shearing Machine MX)

Brand : Nargesa

Stock Amount : 0

Delivery Time Ready In Stock

Shipment Place Turkiye

Payment Terms % 100 T/T On Order Confirmation

Made In Spain

Min. Order Qty.1 Pcs.

Warranty1 year

Notify me when the price goes down

Notify me when it is in stock

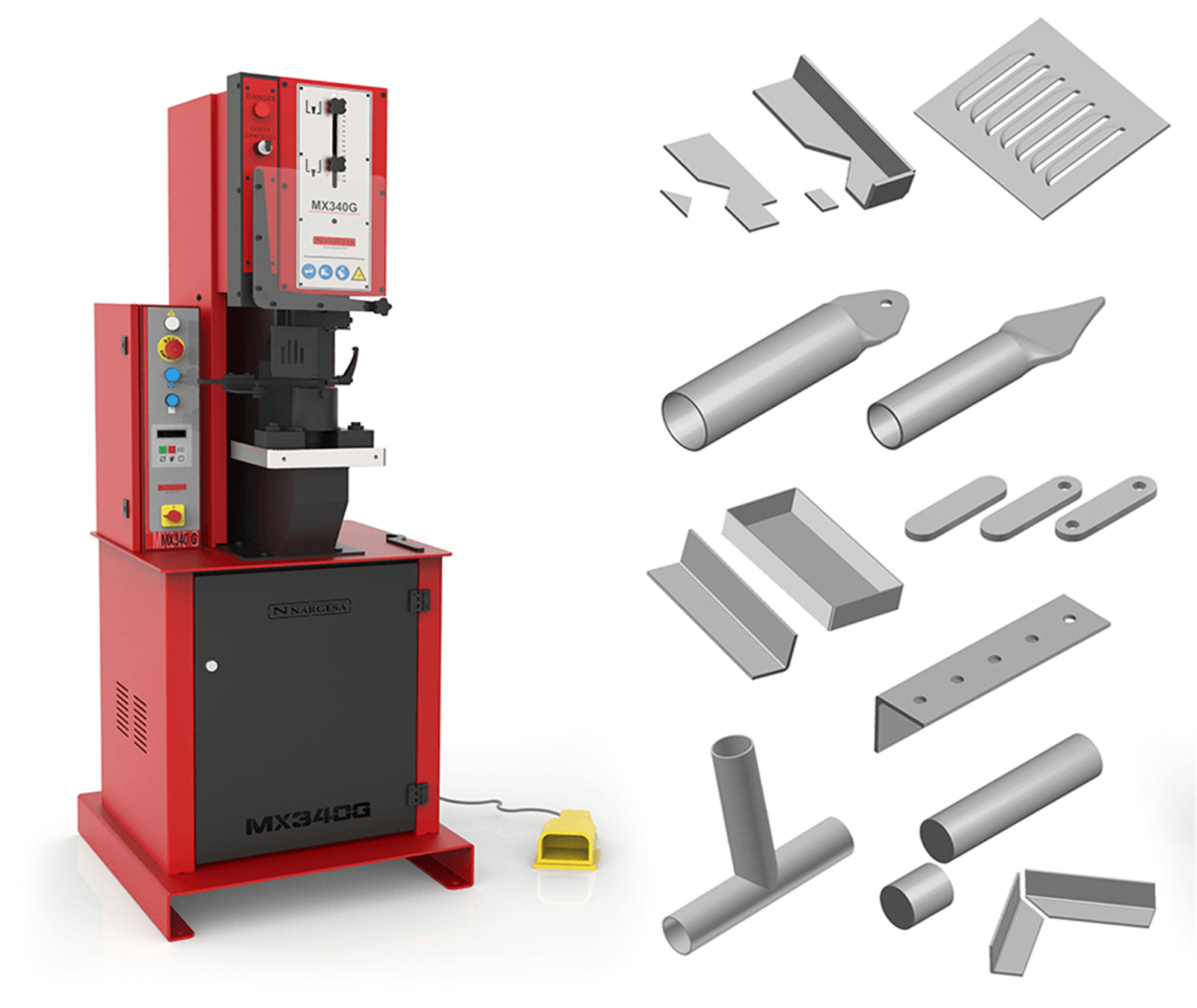

All purpose ironworker machine MX340G NARGESA more than 40 tons. Its neck, displacement and wide working table turn it into a very versatile tooling: It pierces, folds, cuts, inlays, etc...

The Hydraulic Punching machine MX340G NARGESA, is characterized by its versatility, it can make several working functions like punching in metal sheet, flat bar, pipe, angle, U profile, T profile, UPN, IPN... Bending, Cutting, inlaying, punching, pipe notching tube, embossing... it can be adapted any kind of tooling, even one made by the customer himself. Its versatility and easy use, makes it an essential item for a metal working workshop.

All products Nargesa are according to the European CE normatives and regulations for the manufacturing of industrial machinery.

Hydraulic power: 40 Tn.
Working speed: 7,1 mm/sec.
Return speed: 9,3 mm/sec.
Punch displacement: 100 mm.
Neck: 180 mm.
Table Dimensions 245x265 mm.
Swinging front safety protection.
Activation with safety pedal.
Digital display.
Parts and strokes counter.
Alarm diagnose.
Motor power: 2,2 KW/ 3 HP.
Tension 3 phase: 230/400 V.
For other tensions or single-phased machines ask the manufacturer.
Palletized lower bench to move it easily to the working site or storage.
The machine is delivered completely mounted.
Packaging with steel pallet and 3-layered cardboard box suitable for sea freight.
Optional: Complete fumigated wooden packaging NIMF15.

PUNCHING:

All kinds of punches can be supplied: round ones, square, oval, locks punches... Punching can be also made in a pipe.

OTHER APPLICATIONS:

There are a lot more applications for it. More than 40 standard tooling to make different jobs. (See OPTIONAL TOOLING, at the bottom of the page).

NO STANDARD APPLICATIONS:

If the customer requires it we can manufacture under-request tooling to make all kinds of parts.

ADVANTAGES:

It is different from the rest of the other multifunctional universal punching machines because of its 180mm gooseneck, 100mm displacement and wide working table that allows to fit any kind of tooling. Many of our customers make their own tooling.
Fast change of tooling, max. 30 seconds.
Displacement adjustment allows an increase on productivity.
There is no maximum dimension for punching.

STANDARD EQUIPEMENT PROVIDED WITH THE MACHINE:

All Nargesa Hydraulic Punching Machines are equipped with the punching tool that include the fitting nut for punches and the base holder for dies. The rest of accesories are optional, which means each customer equips his machine as desired.

All our products are manufactured in our facilities in Spain. Hydraulic and electrical components are all standard from the best leading European trademarks with technical support all over the world: Rexroth, Bosch, Roquet, Schneider Electric, LG, Telemecanique, Pizzato etc...

Calculation of punching capacity
	In the PDF file we will show you how to calculate the punching capacity for the different thicknesses, materials and shapes... What thicknesses can be punched and with which punch diameter. Ideas and suggestions to improve jobs performance and increase punching capacity. Compute tonnage for punching Download (1.77 MB)

Round, square, rectangular, oval punches and diesfor Nargesa MX700

In Nargesa we have a wide catalog of punches and dies of all kinds. If the size the customer needs is not on this list, we make it. In the PDF file you will see all kinds and sizes we have.

Punches and dies for Nargesa MX340
Download (877.94 KB

Stripper tooling 90º adjustable 100x100
	Sheet stripping tooling, angle etc. adjustable up to 100x100mm to 90º fix. REF: 140-02-01-00005 MAX. CUTTING CAPACITY: 100x100x4mm WEIGHT: 35 Kg. *Optional Tooling.*

Ventilation grill tooling
	Tooling to make ventilation grill in metal sheet. With adjustable punching operations since they're made one by one. REF: 140-02-01-00010 PUNCHING SIZES: 100X20mm. MAX. THICKNESS: 2mm. WEIGHT:20 Kg. Optional Tooling.

Folding tooling 100mm.
	Tooling to fold steel sheet and flat bar up to 100mm. Punch 88º. Die with 56mm and 26mm V's. REF: 140-02-01-00003 MAX. FOLDING LENGTH: 100mm. MAX. THICKNESS: 8 to 12mm. WEIGHT: 8 Kg. Optional tooling.

Folding tooling 170mm.
	Tooling to fold steel sheet and flat bar up to 170mm. Punch 88º. Die with 56mm and V 26mm V's. REF: 140-02-01-00004 MAX. FOLDING LENGTH: 170mm. MAX. FOLDING THICKNESS: 8 to 12mm. WEIGHT: 12 Kg. Optional tooling.

Flat bar cutting tooling 100x10mm.
	Tooling to cut metal sheet or flat bar from 0.8mm up to 10mm thickness. REF: 140-02-01-00002 MAX. CUTTING CAPACITY: 100x10mm. WEIGHT: 28 Kg. Optional Tooling.

Tooling to round off corners
	Tooling to round off the corners in metals sheets of different radius. In the PDF file you will be able to see all kinds we have. Tooling to round off corners MX340 Download (597.81 KB)

Flattening extractor
	Extractor that acts like flattening flat bars while punching so they cannot be distorted during that process. REF: 140-02-01-00039 MAX. THICKNESS FOR FLAT BAR OR SOLID BAR: 15mm. WEIGHT:15 Kg. Optional Tooling

Angle cutting tooling
	Tooling to cut angle to 90º and 45º. REF: 140-02-01-00001 MAX STRAIGHT CUTTING CAPACITY: 60x60mm MAX.MITRE CUTTING CAPACITY: 50x50 WEIGHT: 32Kg. Optional tooling

Arrow tooling for metal sheet
	Tooling to punch steel sheet in arrow shape for fencing. REF: 140-02-01-00006 MAX. SHEET THICKNESS: 3mm WEIGHT:21 Kg. Optional Tooling.

Arrows tooling for pipes
	Tooling to flatten and cut pipe in arrow shape. Suitable to different diameters. REF: 140-02-01-00007 MAX. PIPE DIAMETER: 30x2mm MIN. PIPE DIAMETER: 10x2mm WEIGHT:19 Kg. Optional Tooling.

Round bar cutting tooling
	Tooling to cut round solid bar from 3mm up to 35mm. REF: 140-02-01-00035 MAX. CUTTING DIAMETER: 35mm. MIN. CUTTING DIAMETER: 3mm. WEIGHT:15 Kg. Optional Tooling

Punch and die for locks
	Punch and die to make locks holes in metal sheet. Necessary complements: CAB60 and TAP40 REF: 140-02-01-00036 MAX. THICKNESS: 6mm WEIGHT:1 Kg. Optional tooling.

Pipe ends fencing tooling
	Tooling to flatten and punch the extreme of pipes for fencing. Admits different pipes diameters. The hole size is exchangeable. REF: 140-02-01-00040 MAX PIPE DIAMETER: 50mm MIN. PIPE DIAMETER: 10mm HOLE DIAMETER: Intercambiable. WEIGHT: 23 Kg. Optional Tooling

Pipe notching tooling
	Pipe notching tooling from Ø16 to Ø60mm. It consists of cutting the extreme of a pipe so it can be joined to another one perpendicularly. In the PDF file you will be able to see all kinds and sizes we have. Pipe notching tooling MX340 Download (597.81 KB)

Flat bar round end tooling
	Tooling to make all kinds of flat bars with round ends, with or without hole, straight, round...Very used as handles, stands, etc... Starting from a metal strip, a piece with the desired length comes out of it with every stroke. In the PDF file you will see all kinds of shapes and sizes we have. Flat bar round end tooling MX340 Download (534.46 KB)

Tooling for punching angle and U profile
	Tooling to punch angles. Exchangeable punches and dies of different sizes. REF: 140-02-01-00031 MAX. HOLE DIAMETER: 28mm MIN. HOLE DIAMETER: 2mm. WEIGHT: 9 Kg. Optional Tooling.

Fitting nut for punches and base holder for dies MX340

Fitting nut for punches and base holder for dies MX700

All Nargesa Hydraulic Punching Machines are equipped with the punching tool that includes the fitting nut for punches and the base holder for dies. The rest of accesories are optional, which means each customer equips his machine as desired. In Optional Accessories, at the bottom of the page, he'll find the list of all possible standard punches and dies.

Fitting nut for punches and base holder for dies MX340
Download (558.69 KB)

Download (526.36 KB)

MX340G Catalog
Download (1017.98 KB)

MX340G Instructions Book
Download (6.65 MB)

+ Info for Hydraulic Punching and Shearing Machine MX340G

+ Info for Hydraulic Punching Machine MX340G

Hydraulic Punching Machine MX340G is different from the other ones because of its long displacement and working gooseneck that allows it to be adapted a number of dies and tooling. Its versatility and features makes it a fast payback machine. It carries out the same functions of 5 different machines.

Gooseneck (Neck): 180 mm.

Piston displacement: 100 mm.

Mx. Height. : 220 mm.

Dimensions of the machine Hydraulic Punching and Shearing Machine MX340G

Dimensions of the machine Hydraulic Punching Machine MX340G

Dimensions of the machine: 690x 870x1780 mm.

Weight: 615 Kg.

Tariff Item Code: 84624900

Other features:

Palletized base to move it easily to the working site or storage.
The machine is delivered completely mounted.

Characteristics of the packaging Hydraulic Punching and Shearing Machine MX700

	nº Pallets:	1.
	Width:	700 mm.
	Length:	800 mm.
	Height:	1800 mm.
	Volume:	1 m3
	Nett weight:	615 Kg.
	Gross Weight:	635 Kg.
	Tariff Item Code:	84624900
Other features: Palletized bench to move the machine easily to the working site or storage. The machine is delivered completely mounted. Packaging with steel pallet and 3-layered cardboard, suitable for sea freight. Optional: Complete wooden packaging NIMF15.

Uses of the machine Hydraulic Punching and Shearing Machine MX340G
The Hydraulic Punching Machine Nargesa MX340G can punch any kind of profile: Flat bar, steel sheet, Pipe, angle, UPN, U profile, T profile, IPN, etc... They can be fit different tooling for tube notching, stripping metal sheet, fabricate arrow ending in steel sheet and pipes, roud up steel sheet corners. They can be fitted any kind of tooling made by the customer himself or bought from any other manufacturers.
