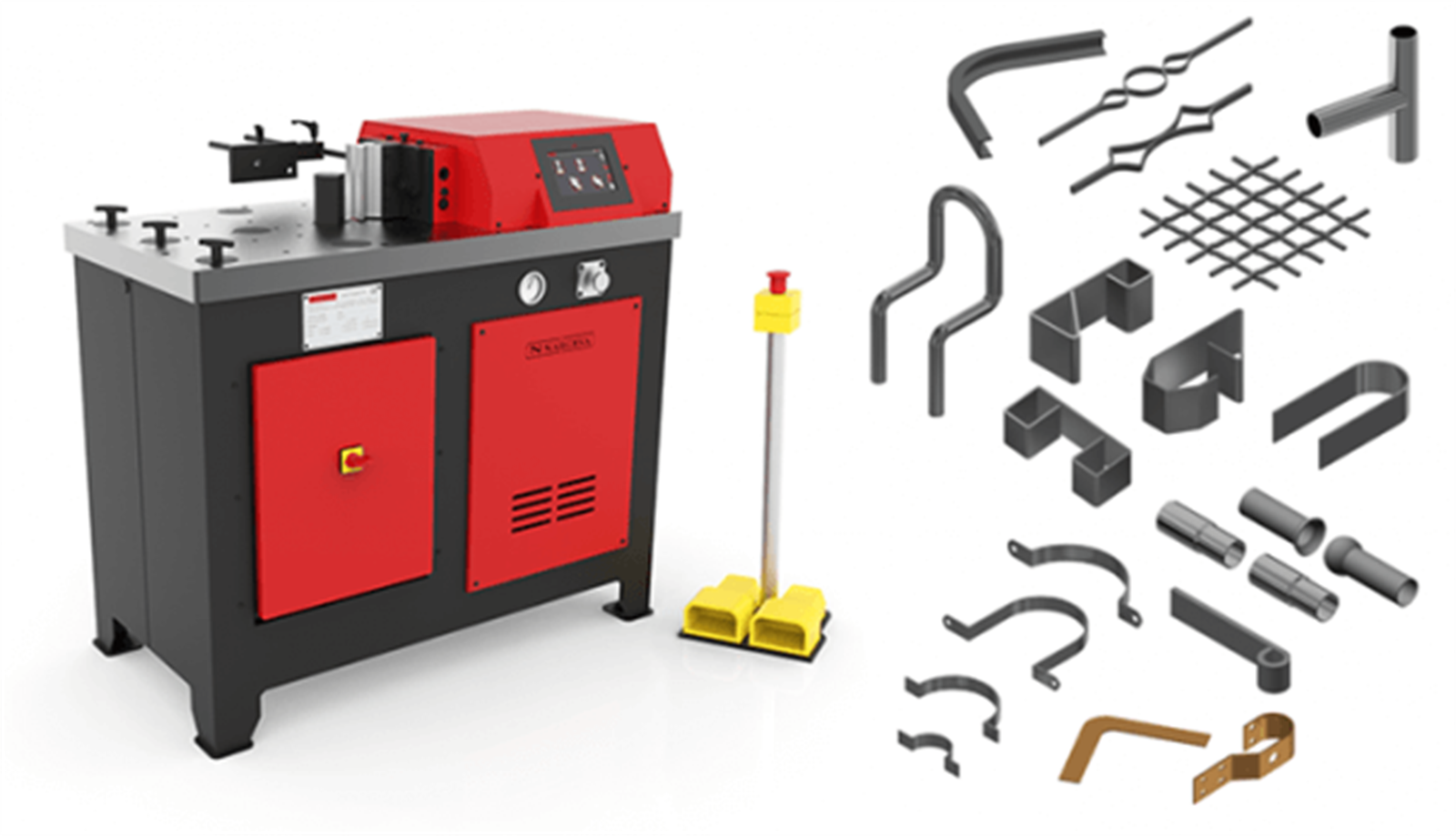

The versatility of the best Horizontal Hydraulic Press Machine Nargesa PP200CNC makes it possible for us to make a great deal of forging parts and all kinds of operations in all kinds of materials: pipe, flat bar, several profiles, rods... Folding operations with wrought iron machines permit to completely bend the parts or pieces unlike conventional flat bar section bending machines. Pipe bending at fixed radius up to 150º could be considered one of the other good features of these presses. Stretching and reducing pipes on the ends in order to make parts that fit or weld later. Cutting, piercing and punching flat bars or metal sheets turn this horizontal bending press into a punching shears machine. Many workshops use these presses to stretch and form different kinds of profiles. It is also a solution to bend different profiles at different radius and keeping the ends straight, like when manufacturing handles and flanges. Pipe notching to assemble to another one at 90º. Cold forge uses horizontal presses to make and form different shapes of balosters...
Its robustness, versatility, easy handling and 4.0 Technology are just four of the best features our hydraulic horizontal bending machine hasworking processes.
All Nargesa’s Products are according to CE regulations for the manufacturing of industrial machinery.
Horizontal Bending Press Brake PP200CNC has been manufactured in a 60mm thick welded steel monoblock, stabilized and mechanized. Its robustness, versatility and easy handling are just three of the best features our hydraulic horizontal bending machine has.
ADVANTAGES
STANDARD TOOLING: Horizontal press brake PP200 includes the complete 4V’s folding die. (See bottom of the page in standard accessories).
Technical Features of the Horizontal Hydraulic Press Machine
All our products are manufactured in our facilities in Spain. Hydraulic and electrical components are all standard from the best leading European trademarks with technical support all over the world: Rexroth, Bosch, Roquet, Schneider Electric, LG, Telemecanique, Pizzato, etc...
Flat bar and metal sheet cutting die up to 100mm through a maximum thickness of 10mm in mild steel.
REF:140-16-01-00014 MAX. CUTTING LENGTH: 100mm MAX. CUTTING THICKNESS: 10mm WEIGHT: 23 Kg
Optional tooling.
Punch holder for all kind of punches for Promecam bending or folding press.
REF:140-16-01-00023 MAX. FOLDING LENGTH: 161mm Compatible with any Promecam punch.
WEIGHT: 14Kg
Optional tooling
Technical features Download (1.17 MB)
Punch holder for all kind of punches for Promecam bending or folding press with inverted position.
REF: 140-16-01-00039 MAX. FOLDING LENGTH: 161mm Compatible with any Promecam punch.
WEIGHT: 19,8 Kg.
Promecam punches of different shapes to bend and manufacture complex part. There are a lot more shapes, please consult the manufacturer.
Nº1 Punch Promecam PS.135.85.R08 PP200 REF: 140-16-01-00030 FOLDING LENGTH: 161mm WEIGHT: 3,2 Kg.
Nº2 Punch Promecam PS.134.30.R08 PP200 REF: 140-16-01-00032 FOLDING LENGTH: 161mm WEIGHT: 2,7Kg.
Nº3 Punch Promecam P.95.35.R5 PP200 REF: 140-16-01-00031 FOLDING LENGTH: 161mm WEIGHT: 2,3Kg.
Nº4 Punch Promecam PK.135.85.R08 PP200 REF:140-16-01-00038 FOLDING LENGTH: 161mm WEIGHT: 4,4Kg.
Folding punches to bend special pieces of small sizes or folded up to 30º.
Nº1 Folding Punch D70 30º PP200 REF: 140-16-01-00025 MAX FOLDING LENGTH: 100mm PUNCH DEGREES: 30º PUNCH DIAMETER: 70mm
Nº2 Folding Punch D40 80º PP200 REF: 140-16-01-00026 MAX. FOLDING LENGTH: 60mm PUNCH DEGREES: 80º PUNCH DIAMETER: 40mm
Nº3 Folding Punch D22 80º PP200 REF: 140-16-01-00027 MAX. FOLDING LENGTH: 60mm PUNCH DEGREES: 80º PUNCH DIAMETER: 22mm
WEIGHT: 3Kg each unit approximately.
Promecam dies of diferent openings to fold sheets, flat bars or thicker plate sections up to 15mm. in order to fold even thicker sizes, ask the manufacture.
Nº1 Folding die T80.25.35 PP200 REF: 140-16-01-00036 FOLDING LENGTH: 161mm THICKNESS: From 1,5 to 5mm WEIGHT: 4Kg.
Nº2 Folding die M75-85-63 PP200 REF: 140-16-01-00033 FOLDING LENGTH: 161mm THICKNESS: From 5 to 10mm WEIGHT: 5Kg.
Nº3 Folding die M80-85-80 PP200 REF: 140-16-01-00034 FOLDING LENGTH: 161mm THICKNESS: From 6 to 12mm WEIGHT: 6Kg.
Nº4 Folding die M95-80-100 PP200 REF: 140-16-01-00035 FOLDING LENGTN: 161mm THICKNESS: From 8 to 15mm WEIGHT: 9Kg.
Die to form cold forging balusters for grills, gates, fences, handrails, etc... For other shapes or capacities, request the manufacturer.
REF: 140-16-01-00001 MAX WIDTH: 20mm THICKNESS: 4,5,6,8 mm DIE LENGTH: 656mm WEIGHT: 21 Kg
REF:140-16-01-00004 SQUARE SIZES: 5,6,8,10,12,14,16,18mm DIE LENGTH: 600mm WEIGHT: 20,5 Kg
REF:140-16-01-00008 MAX. WIDTH: 20mm THICKNESS: 4,5,6,8mm DIE LENGTH: 650mm WEIGHT: 19,5 kg
Optional tooling.
REF:140-16-01-00009 SQUARE SIZES: 5,6,8,10,12mm DIE LENGTH: 522mm WEIGHT: 22 Kg
Die to form cold forging balusters shaped parts for grills, so called “belly top railing”. For other shapes or capacities, please cosult the manufacturer.
REF:140-16-01-00010 SQUARE SIZES: 12mm DIE LENGTH: 1165mm WEIGHT: 50Kg
REF:140-16-01-00011 SQUARE SIZES: 6, 8, 10, 12mm DIE LENGTH: 760mm WEIGHT: 32,5 Kg
REF:140-16-01-00020 SQUARE SIZES: 12x12mm CIRCUMFERENCE SIZE: 90mm WEIGHT: 11 Kg
It is an exchangeable fitting device for the forming dies, suitable for each of the different baluster forming tools. It is advisable to get one in order to work with the specified dies.
REF: 140-16-01-00029 WEIGHT: 3,1kg
Optional tooling suitable for all forming dies.
Clamp forming die, used to manufacture the clamps used to join different forging bars with no need to get them welded.
REF:140-16-01-00028 MAX. CAPACITY: 25x5mm WEIGHT: 9 Kg
Technical features Download (1.55 MB)
Die to bend metal plate, flat bar or square bar to obtain a nice braid twisted effect. It’s very used to make fences and grills
For flat bars from to 6, 12 and 14mm. (For different sizes, please ask the manufacturer)
REF:140-16-01-00013 MAX CAPACITY: Square 14mm MIN. CAPACITY: 2x40mm metal sheet WEIGHT: 18 Kg
Optional Tooling
Technical features Download (1.59 MB)
Die to form rings or English banister railing, used as ornamental piece in forging railings, gates, fences, etc ... for bars bonding. For other sizes and applications consult the manufacturer.
REF:140-16-01-00003 MAX. WIDTH: 50mm THICKNESS: 6mm OUTER SIZES: 90mm WEIGHT: 9.3 Kg
For different sizes, please ask the manufacturer
Technical features Download (1.57 MB)
Punch-holder die, compatible with our NARGESA brand punches.
REF:140-16-01-00022 GOOSENECK: 54mm DISTANCE FREE FOR USE: 95mm MAXIMUM ROUND PUNCHING CAPACITY: 43mm MAXIMUM SQUARE PUNCHING CAPACITY: 35mm MAXIMUM RECTANGULAR PUNCHING CAPACITY: 20X34mm MAXIMUM OVAL PUNCHING CAPACITY: 21X40mm It will always depend on the thickness to be pierced.
WEIGHT: 52Kg
At Nargesa we own a wide catalog for punches and dies of all kinds. If the size the cuetomer needs is not in the list, we manufacture it. In the PDF file you will be able to see all kinds and sizes we have.
Punches and dies PP200 Download (888.51 KB)
Dies for notching pipes from Ø16 to a Ø50mm. It crops the pipe end so it could be joined perpendicularly to another pipe. In the PDF file you will be able to see all kinds and sizes we have
Pipe notching tooling PP200 Download (508.27 KB)
Die to get metal sheet corners rounded at different radius. In the PDF file you will be able to see all kinds and sizes we have
Rounding corner tool PP200 Download (403.02 KB)
Tool to fabricate all kinds of tabs, with or without perforation, straight or rounded... they are very used as clamps, handles etc. Starting from a metal strip, there will be obtained one piece of the desired length at every stroke. In the PDF file you will be able to see all kinds and sizes we have
Metal tabs forming tool PP200 Download (485.83 KB)
Die to form all kinds of clamps. This tooling is manufactured according to the user’s needs thus it is required to have a technical drawing or a sample piece.
REF:140-16-01-00024 MAX. CAPACITY: 100x4mm
Non-standard optional tooling.
Basic die to modify the ends of the tubes for their assembly. You can make all kinds of shapes and flaps accoprding to the customer needs. For special forms consult the manufacturer.
REF: 140-16-01-00016 WEIGHT: 110 Kg approx.
Composed by the Reduction cone, Reducing clamp holder to reduce tube and the reduction clamp.
This accessory is adapted to the Tooling to shape pipe ends, to perform the operation of reducing the ends of the tubes, for its coupling.
We can find the different sizes in the following PDF file:
Diameter reduction tools Download (481.14 KB)
Composed by the Clamp Holder to Expand, Expansion Mandrel and the Expander Clamp.
This accessory is adapted to the Tooling to shape pipe ends, to perform the operation of expanding the ends of the tubes, for its coupling
Diameter expansion tools Download (385.09 KB)
Die to form curves in flat bars, pipes, bars or profiles at big radius. It’s perfect for bending small series or special parts without requiring a specific custom mold.
REF: 140-16-01-00006 MAXIMUM BAR CAPACITY: 40mm or 1 1/2" MAXIMUM PIPE CAPACITY: 80x80 mm or 3" MINIMUM DIEMETER: 300mm. MAXIMUM DIAMETER: there is no maximum.
Tool used to bend straight profiles or parts. It is adjustable to different capacities according to the profiles.
REF:140-16-01-00017 MAXIMUM CAPACITY: H 150mm WEIGHT: 72Kg.
Tool to bend square pipe or bar at given or specific degrees. Technical drawing or sample pieces are required.
REF: 140-16-01-00003 MAXIMUM CAPACITY: 30mm or 1' 1/4 x 3mm thickness MAXIMUM BENDING: 120º - 150º
Non standard optional tooling.
Folding or bending die up to 161mm with 4 openings (16, 22, 35, 50mm) and a punch of 80º. This multi-V die allows 1mm up to 8mm sheet to be folded. The 70mm outer die ameter punch allows to make completely closed shapes to a minimum of 75mm inner wing.
V 16: Sheet from 1 to 3mm V 22: Sheet from 2 to 4mm V 35: Sheet from 3 to 6mm V 50: Sheet from 4 to 8mm MAX. FOLDING LENGTH: 161mm MAX. FOLDING THICKNESS: 8mm
Standard tooling provided along with the machine.
Folding chart Download (424.88 KB)
Technical features Download (1.82 MB)
PP200CNC Catalog Download (2.4 MB)
PP200CNC Instructions book Download (18.81 MB)
ESA S625 CONTROL PANEL
Nargesa horizontal press brakes have a 7” color touch screen control, very intuitive and easy to handle, with the latest 4.0 technology and a more comfortable and accurate regulation. We only have to introduce the material, the thickness, the bending angle, choose the punch and the die from the library and the control will program the rest of the parameters automatically. These are some of the most relevant features of this control system.
Dimensions of the machine: 660x1180x1130 mm.
Weight: 665 Kg.
Tariff Item Code: 84622210
Other features:
Nº Pallets: 1.
Width: 930 mm.
Length: 1300 mm.
Height: 1500 mm.
Volume: 1,81 m3
Nett weight: 665 Kg.
Gross Weight: 712 Kg.
Tariff Item Code: 84622210
