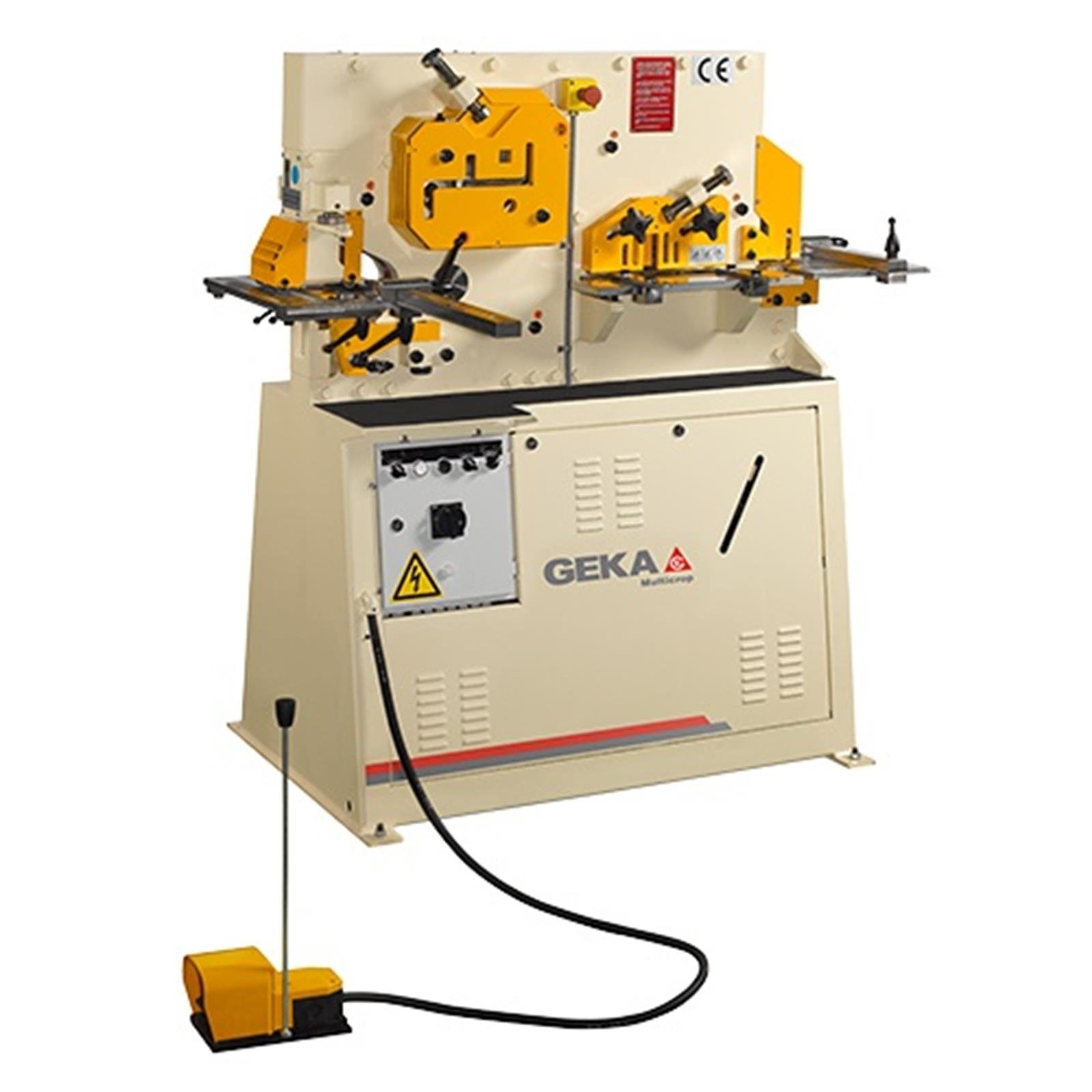

Multicrop 45 Single Cylinder Punching Machines (Multicrop 45 Single Cylinder Punching Machines )

Multicrop is one-cylinder punching machine, equipped with 4 workstations for the following tasks: punching, notching, shearing flat bars and angle shearing station.

• Punching: The punching workstation within Multicrop has a punching power of 45 tons and a maximum punching capacity of Ø 28×10 mm. It is provided with a goose neck die-holder. The Multicrop can also punch U and L profiles in leg and on the web. It also has the option to do F punching tasks, leg down with its accurate positioning table. Other features that this workstation has are:
  • Monoblock body and sandwich structure
  • Blade-holder Adjustment and adjustable stripper
  • Adjustable Stripper
  • Quick change punch with a series of off-set punches available for small angles
  • Security protection
• Shearing flat bars: This workstation can do its shearing tasks at a maximum surface of 300 x 10 mm or 200 x 13 mm. It cuts flat bars with minimum deformation with its blade specially designed and provided with a unique radial geometry. Its material clamping guide keeps the flat bars fixed. Some other features of the shearing flat bars workstation are:
  • End switches
  • Adjustable play between flat bar blades
• Shearing angles: This workstation can shear at 45º and 90º angles at 80 x 80 x 8 mm.
• Notching: This rectangular notching equipment it is provided with a machined worktable and scaled stops.

The features of the Multicrop are described in the following table:

FEATURES	MULTICROP
Punching Power	45 Tons
Maximum capacity	Ø 28×10 mm
Shearing of Flat Bars	300 x 10 mm 200 x 13 mm
Angle Shearing at 90º	80 x 80 x 8 mm
Angle Shearing at 45º	80 x 80 x 8 mm
Notching	60 x 50 x 7 mm

• Capacities based on a material resistance of 45 Kg/mm2.
• GEKA may change technical specifications, equipment and photographs of models, as well as any other information contained herein.
• Technical characteristics valid except for typographical errors or omissions.
