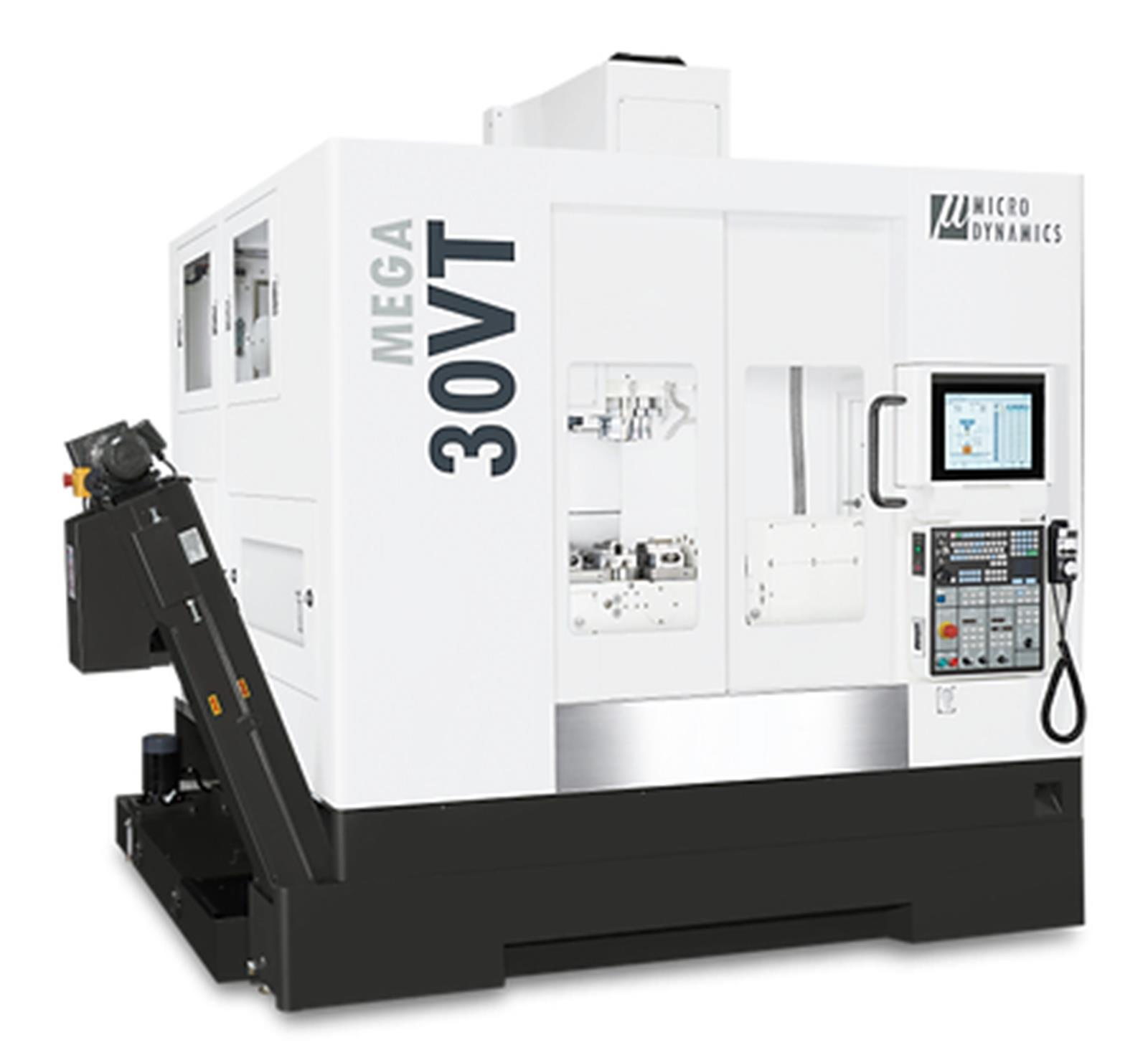

Micro Dynamics MEGA 30VT Vertical Machining Center

Micro Dynamics MEGA 30VT Vertical Machining Center (MEGA 30VT)

Brand : Micro Dynamics

Stock Amount : 0

Est. Delivery Time60-75 Days After Order

Shipment Place Turkiye

Payment Terms% 30 T/T On Order Confirmation, % 70 T/T Before Shipment

Made InTaiwan

Min. Order Qty.1 Pcs.

Warranty1 Year

Ask For Offer

Add to Favorites

Add to My Wish List

Compare

Notify me when the price goes down

Notify me when it is in stock

Machining Centers

Vertical Machining Centers

BUILT-IN SPINDLE (Upgrade)
15,000 rpm	Standard
ACCURACY
DYPEC® - Thermal Compensation	Standard
CONTROL
Micro Dynamics HMI	Standard
15' Touchscreen Display	Standard
Mitsubishi M830W CNC Control	Standard
Ether Net l/P Networked 1/0	Standard
M30 Automatic Power Off	Standard
8 M·Codes (M20 -M27)	Standard
TOOLS (Factory Order)
40 Tools Magazine	Standard
Tool Magazine LED	Standard
ATC Magazine Panel	Standard
COOLANT & CHIP MANAGEMENT
CTS Preparation (without Rotary Union)	Standard
Coolant System with Base Wash	Standard
Coolant Gun	Standard
Air Gun	Standard
Twin Chip Augers	Standard
Scraper Type Chip Conveyor	Standard
OTHERS
FC300 Meehanite® Casting	Standard
Full Chip Enclosure	Standard
Safety Door	Standard
Manuals / Tool Kit / Foundat ion Kit	Standard

BUILT-IN SPINDLE (Upgrade)
18,000 rpm	Optional
20,000 rpm (Includes CTS Rotary Union)	Optional
ACCURACY
X / Y / Z Axis Linear Scale (Fagor)	Optional
A / C Axis Rotary Encoder (Fagor)	Optional
X /Y / Z Axis Linear Scale (Heidenhain)	Optional
A / C Axis Rotary Encoder (Heidenhain)	Optional
CONTROL
Additional 8 M-Codes (M130- M137)	Optional
PROBING
Renishaw Precision Measurement	Optional
TOOLS (Factory Order)
60 Tools Magazine	Optional
90 Tools Magazine	Optional
Tool Magazine Auto Door	Optional
Servo Tool Magazine	Optional
FACE PLATE (Factory order)
Ø320 mm (12.6") Trunnion Face Plate	Optional
Ø350 mm (13.8") Trunnion Face Plate	Optional
FIXTURING
4-Port Pneumatic Piping for Fixture	Optional
4-Port Hydraulic Piping for Fixture	Optional
COOLANT & CHIP MANAGEMENT
20-Bar (290 psi) CTS + ATS (Deublin Pop-Off Type)	Optional
40-Bar (58psi) CTS (Deublin Pop-Off Type)	Optional
70-Bar (1.000 psi) CTS (Deublin Pop-Off Type)	Optional
Metal Coolant Ring	Optional
MQL - Minimum Quantity Lubrication (3 Valves)	Optional
Coolant Gun (High Pressure)	Optional
Chain Type Chip Conveyor (Upgrade)	Optional
Drum Type Chip Conveyor (Upgrade)	Optional
Rear Type Chip Conveyor (Upgrade)	Optional
Chip Cart (110 L)	Optional
Disc Type Oil Skimmer	Optional
Spinning Window	Optional
Oil Mist Collector Pre-Wiring	Optional
Oil Mist Collector JW-002-R	Optional
COLUMN RISER (upgrnde)
l00 mm (3.9") - Column Riser	Optional
150 mm (5.9") - Column Riser	Optional
SAFETY & POWER
CE Conformity Package	Optional
Transfomer for 380V / 415V / 440V Power Source	Optional
AUTOMATION
Automatic Servo Door / Side Window	Optional
Automatic Pneumatic Door / Side Window	Optional

TRAVEL
X Axis	780 mm (30')
Y Axis	510 mm (20')
Z Axis	442 mm (17.4")
A Axis (Tilt ing Axis)	40° --120°
C Ax is (Rotary Axis)	360°
Spindle Nose to Table Surface	50 - 492 mm (2" - 19.3")
Spindle Center to Column Front	550 mm (21.7')
TABLE

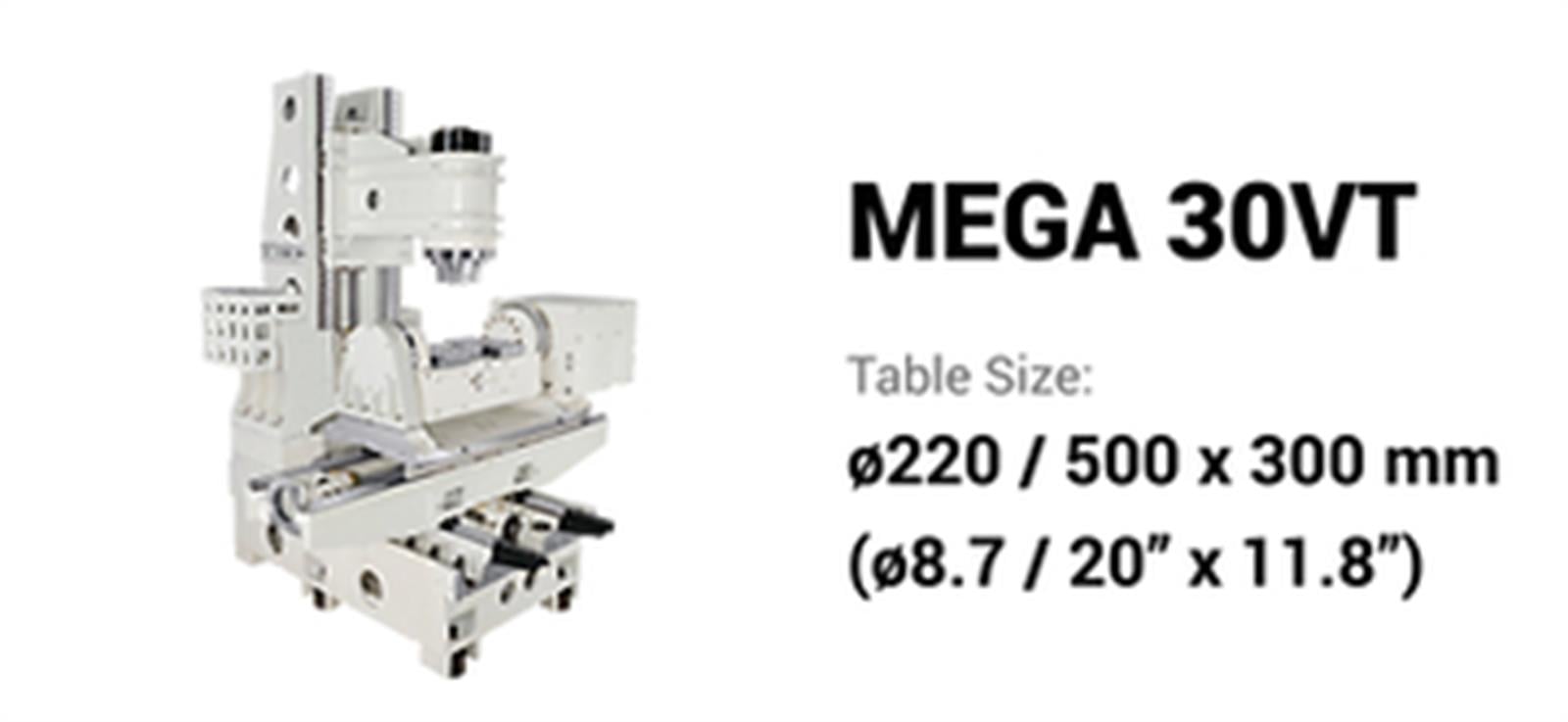

Table Size	Ø220 mm: 500 x 300 mm (Ø8.7': 34" x 20")
Min. Table Index Unit	0.001°
Max. Table Load	l50 kg (330 lb): o° - 45° I 85 kg (190 lb):45° - 90° l,108 mm(43")
Table Height (from the Ground)	1,108 mm(43")
SPINDLE
Spindle Taper	40 Taper Dual Contact
l.D. of Spindle Bearing	Ø70 mm (Ø2.75')
Max. Cutting Torque	141 Nm (104 ft- lb)
Spindle Speed	50 - 15,000 rpm
Max. Speed for Rigid Tapping	6,000 rpm
FEEDRATE
Rapid Feedrate - X Axis	48 m/min (1,889 ipm)
Rapid Feedrate - Y Axis	48 m/min (1,889 ipm)
Rapid Feedrate - Z Axis	48 m/min (1,889 ipm)
Rapid Feedrate - A (Tilting) Axis	25 rpm
Rapid Feedrate - C (Rotary) Axis	35 rpm
Cutting Feedrate	O - 20 m/min (0 - 787 ipm)
ATC
Magazine Capacity	40
Tool Selection	Bi-Direction I Random
Tool Shank Type	BT40 / CAT40 / DIN40
Pull Stud Type	BT40 / CAT40 / DIN40
Max. Tool (Dia. x L)	Ø75 x 300 mm (Ø3' x 12')
Without Adjacent Tool	Ø150 mm (Ø6")
Max. Tool Weight	7 kg (16 lb)
PERIPHERAL
Power Consumption (220V/3PH)	30 KVA
Pneumatic Supply	300 (0.6 MPa) L/min (ANR)
Cutting Coolant Pump Motor	1.1 kW (l.5 HP)
Base wash Pump Motor	1.1 kW (l.5 HP)
CTS Pump Motor (Opt.)	3 kW (4 HP)
Coolant Tank Capacity	300 L (79 ga l)
Foot Print Size (W x D)	3,039 x 2,293 mm (119.6" x 90.3")
Machine Height (H)	2,975 mm (l 17.1')
Packing Size (W x D x H)	3,300 x 2,310 x 2,550 mm(130 x 91' x 100.4")
Machine Net Weight	6,070 kg (13,390 lb)
Machine Gross Weight	6,300 kg (13,890 lb)
Positioning Accuracy / Full Stroke	0.005 mm (0.0002') (VDI 3441)
Repeatability Accuracy	0.003 mm (0.0001')
