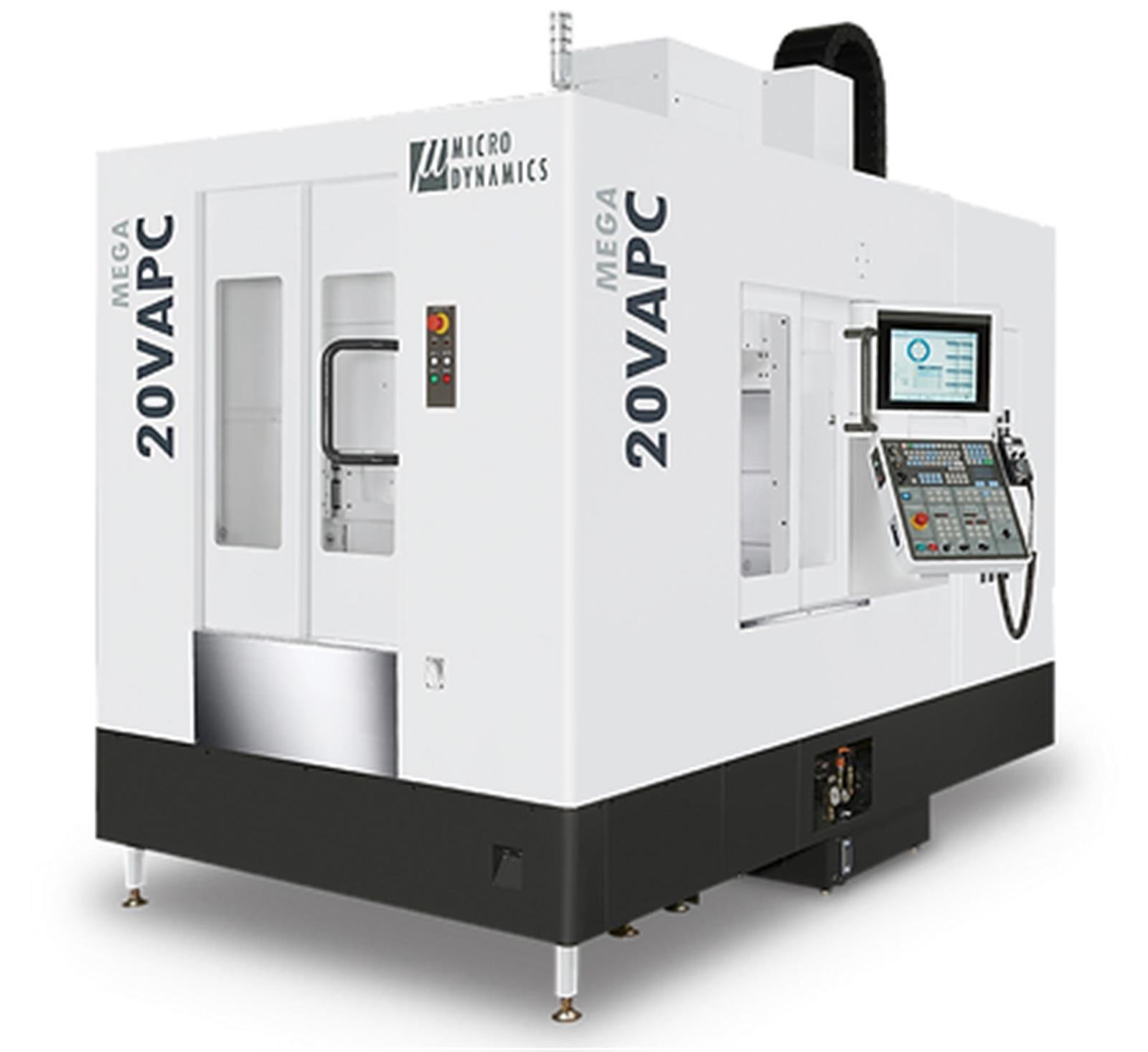

Micro Dynamics MEGA 20VAPC Vertical Machining Center (MEGA 20VAPC)

Brand : Micro Dynamics

Stock Amount : 0

Est. Delivery Time60-75 Days After Order

Shipment Place Turkiye

Payment Terms% 30 T/T On Order Confirmation, % 70 T/T Before Shipment

Made InTaiwan

Min. Order Qty.1 Pcs.

Warranty1 Year

Machining Centers

Vertical Machining Centers

BUILT-IN SPINDLE (Upgrade)
15,000 rpm	Standard
ACCURACY
DYPEC® - Thermal Compensation	Standard
CONTROL
Micro Dynamics HMI	Standard
15' Touchscreen Display	Standard
Mitsubishi M830W CNC Control	Standard
Ether Net l/P Networked 1/0	Standard
M30 Automatic Power Off	Standard
8 M·Codes (M20 -M27)	Standard
TOOLS (Factory Order)
40 Tools Magazine	Standard
Tool Magazine LED	Standard
ATC Magazine Panel	Standard
COOLANT & CHIP MANAGEMENT
CTS Preparation (without Rotary Union)	Standard
Coolant System with Base Wash	Standard
Coolant Gun	Standard
Air Gun	Standard
Twin Chip Augers	Standard
Scraper Type Chip Conveyor	Standard
OTHERS
FC300 Meehanite® Casting	Standard
Full Chip Enclosure	Standard
Safety Door	Standard
Manuals / Tool Kit / Foundation Kit	Standard

BUILT-IN SPINDLE (Upgrade)
18,000 rpm	Optional
20,000 rpm (Includes CTS Rotary Union)	Optional
ACCURACY
X / Y / Z Axis Linear Scale (Fagor)	Optional
X /Y / Z Axis Linear Scale (Heidenhain)	Optional
CONTROL
Additional 8 M-Codes (M130- M137)	Optional
PROBING
Renishaw Precision Measurement	Optional
TOOLS (Factory Order)
60 Tools Magazine	Optional
90 Tools Magazine	Optional
Tool Magazine Auto Door	Optional
Servo Tool Magazine	Optional
4th I 5th AXIS PREPARATION
4th Axis Pre-Wiring (Chip Enclosure - Cabinet)	Optional
COOLANT & CHIP MANAGEMENT
20-Bar (290 psi) CTS + ATS (Deublin Pop-Off Type)	Optional
40-Bar (580 psi) CTS (Deublin Pop-Off Type)	Optional
70-Bar (1,000 psi) CTS (Deublin Pop-Off Type)	Optional
Metal Coolant Ring	Optional
MQL - Minimum Quantity Lubrication (3 Valves)	Optional
Coolant Gun (High Pressure)	Optional
Chain Type Chip Conveyor (Upgrade)	Optional
Drum Type Chip Conveyor (Upgrade)	Optional
Rear Type Chip Conveyor (Upgrade)	Optional
Chip Cart (110 L.)	Optional
Disc Type Oil Skimmer	Optional
Spinning Window	Optional
Oil Mist Collector Pre-Wiring	Optional
Oil Mist Collector JW-002-R	Optional
COLUMN RISER (Upgrade)
100 mm (3.9") - Column Riser	Optional
150 mm (5.9") - Column Riser	Optional
SAFETY & POWER
CE Conformity Package	Optional
Transfomer for 380V / 415V / 440V Power Source	Optional
AUTOMATION
Automatic Servo Door / Side Window	Optional
Automatic Pneumatic Door / Side Window	Optional

TRAVEL
X Axis	600 mm (24")
Y Axis	51O mm (20")
Z Axis	510 mm (20")
Spindle Nose to Table Surface	90 - 600 mm (3.5" - 23.5")
Spindle Center to Column Front	550 mm (21.7")
TABLE

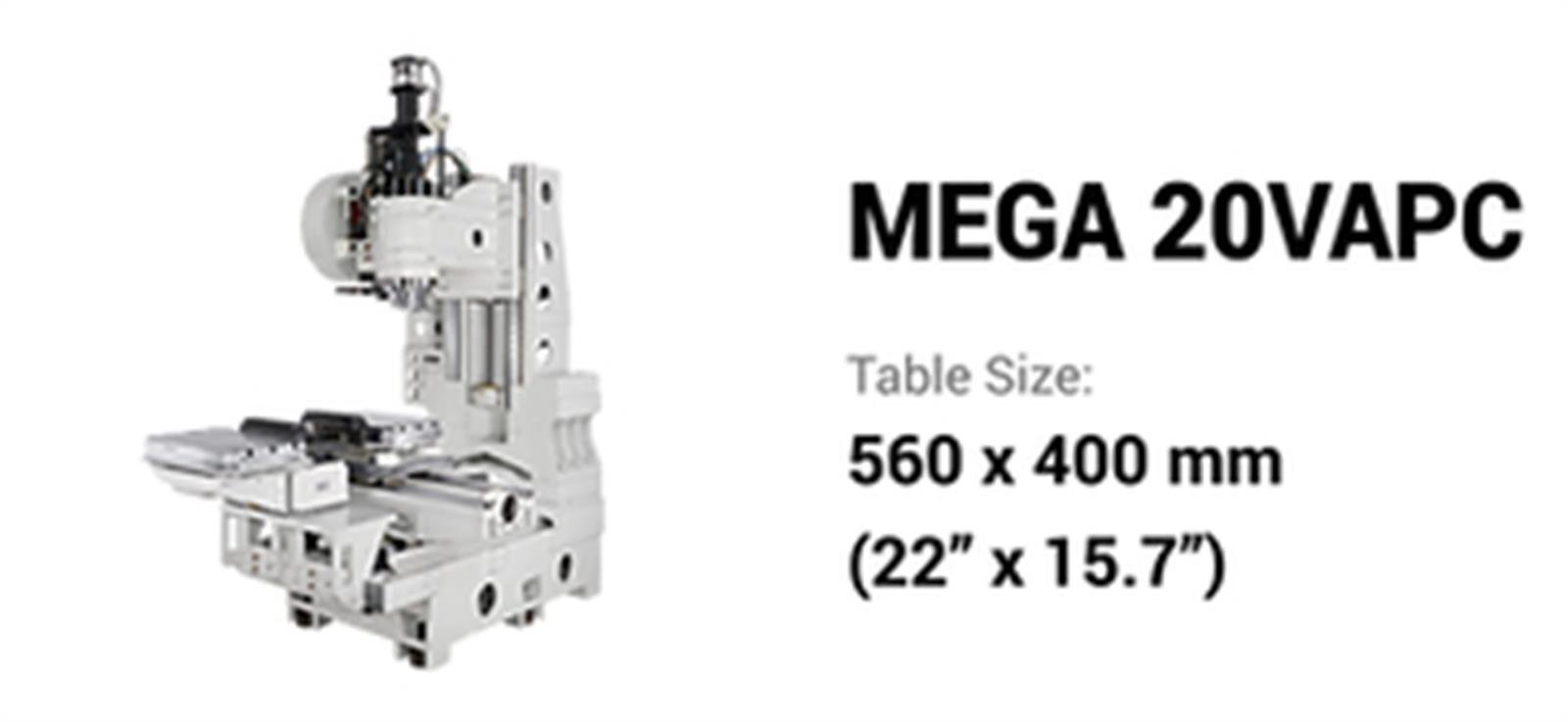

Table Size	560 x 400 mm (22" x 15.7")
Max. Table Load	200 kg x 2 (4,400 lb x 2)
Table Height (from the Ground)	950 mm (37")
SPINDLE
Spindle Taper	40 Taper Dual Contact
l.D. of Spindle Bearing	Ø 70 mm (Ø 2.75")
Max. Cutting Torque	141 Nm (104 ft-lb)
Spindle Speed	50 - l5,000 rpm
Max. Speed for Rigid Tapping	6,000 rpm
FEEDRATE
Rapid Feedrate - X Axis	52 m/min (2,047 ipm)
Rapid Feedrate - Y Axis	52 m/min (2,047 ipm)
Rapid Feedrate - Z Axis	48 m/min (1,889 ipm)
Cutting Feedrate	0 - 20 m/min (0 - 787 ipm)
ATC
Magazine Capacity	40
Tool Selection	Bi-Direction I Random
Tool Shank Type	BT40 / CAT40 / DIN40
Pull Stud Type	BT40 / CAT40 / DIN40
Max. Tool (Dia. x L)	Ø75 x 250 mm (Ø3" x 9.8")
Without Adjacent Tool	Ø150 mm (Ø6")
Max. Tool Weight	7 kg (16 lb)
PERIPHERAL
Power Consumption (220V/3PH)	30 KVA
Pneumatic Supply	300 (0.6 MPa) L/min (ANR)
Cutting Coolant Pump Motor	1.1 kW (1.5 HP)
Base Wash Pump Motor	1 .1 kW (1.5 HP)
CTS Pump Motor (Opt.)	3 kW (4 HP)
Coolant Tank Capacity	300 L (79 gal)
Foot Print Size (W x D)	2,561 x 2,972 mm (100.8" x 117")
Machine Height (H)	2,921 mm (115")
Packing Size (W x D x H)	3,200 x 2,200 x 2,550 mm (126" x 86.6" x l00.4")
Machine Net Weight	6,460 kg (14,240 lb)
Machine Gross Weight	6,780 kg (14,950 lb)
Positioning Accuracy / Full Stroke	0.005 mm (0.0002") (VDI 3441)
Repeatability Accuracy	0.003 mm (0.000+A7:B431")
