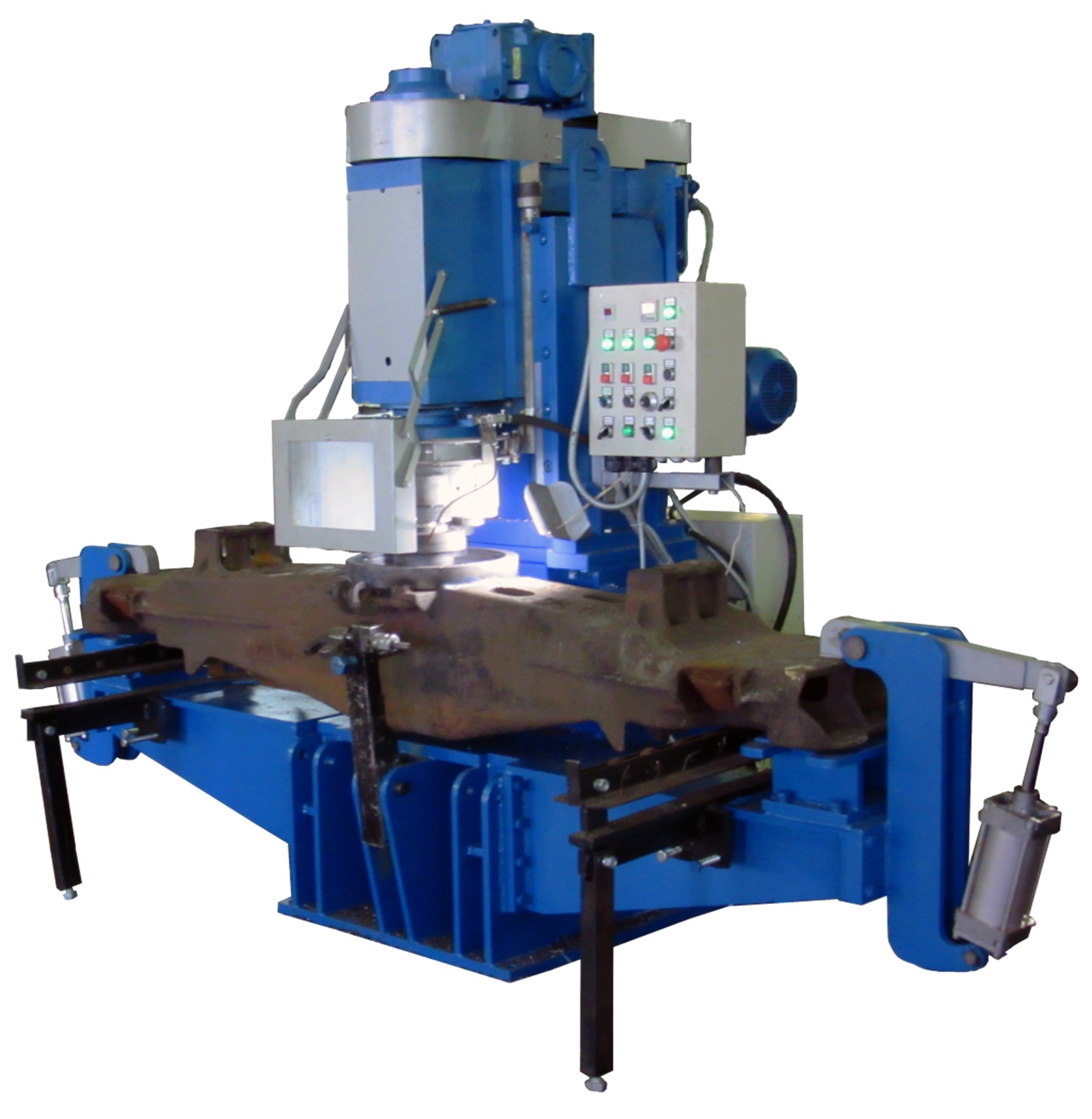

The MCFB01VP milling machine is a professional equipment designed for depot repair of the thrust bearing profile and the pivot hole of the bolsters of bogies of railway freight cars 18-100.
The working tools are cutters and countersinks of a special shape, equipped with quick-change carbide inserts. The cutters produce high-quality processing of the thrust and bearing surfaces of the thrust bearing with simultaneous chamfering. Countersinks bore a hole for a kingpin or bushing. The movement of the tool is provided by a servo drive and a ball screw, and for the convenience of installing and fixing the bolster, "MCFB01VP" is equipped with a loading device and a pneumatic clamp.
The machine is easy to operate and does not require high qualification of the operator, since the milling of the bearing profile takes place in one cycle in a semi-automatic mode.
When equipped with an additional milling unit and a 4-spindle nozzle, the machine can process beams 18-194 and 18-578.
