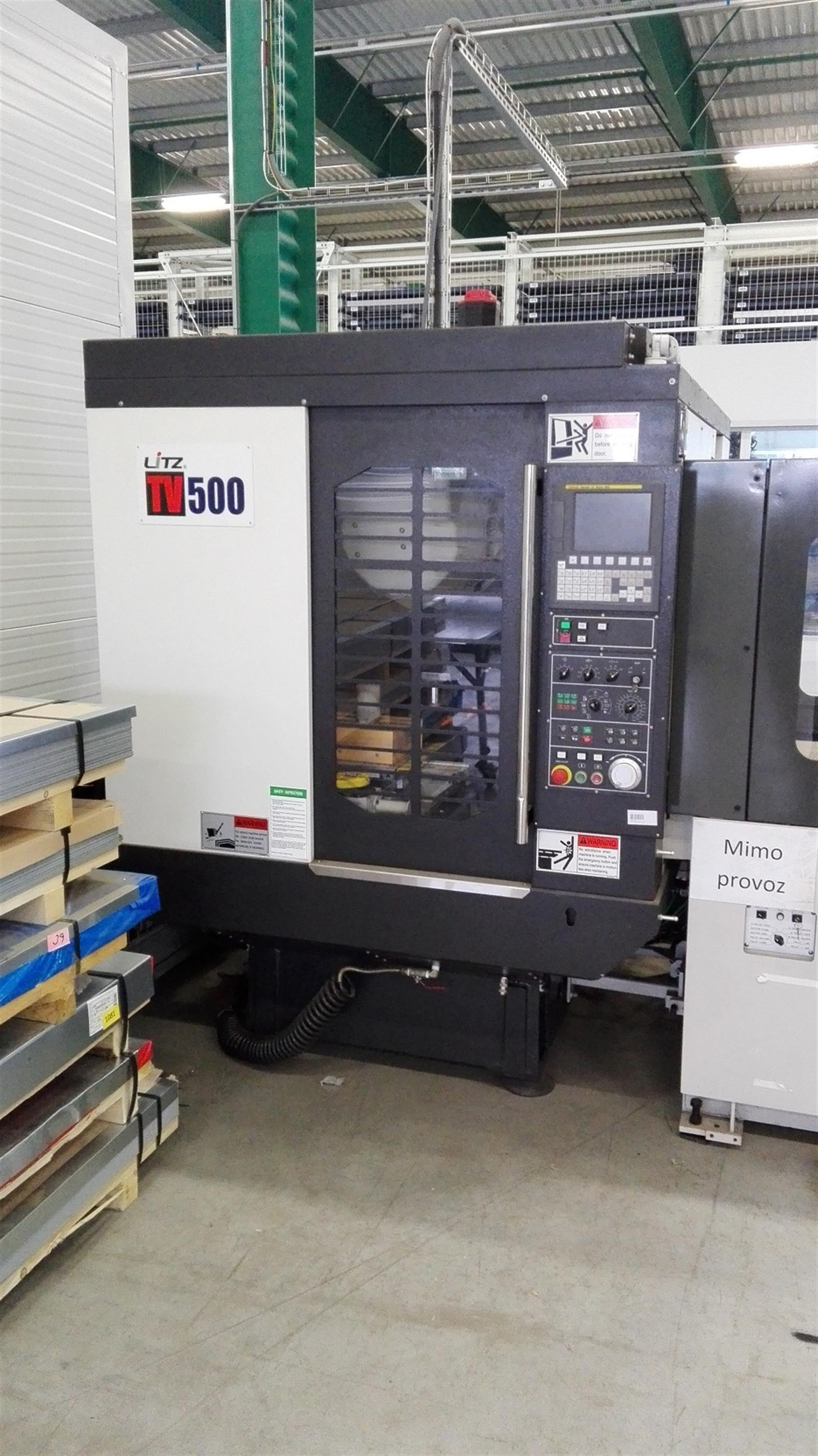

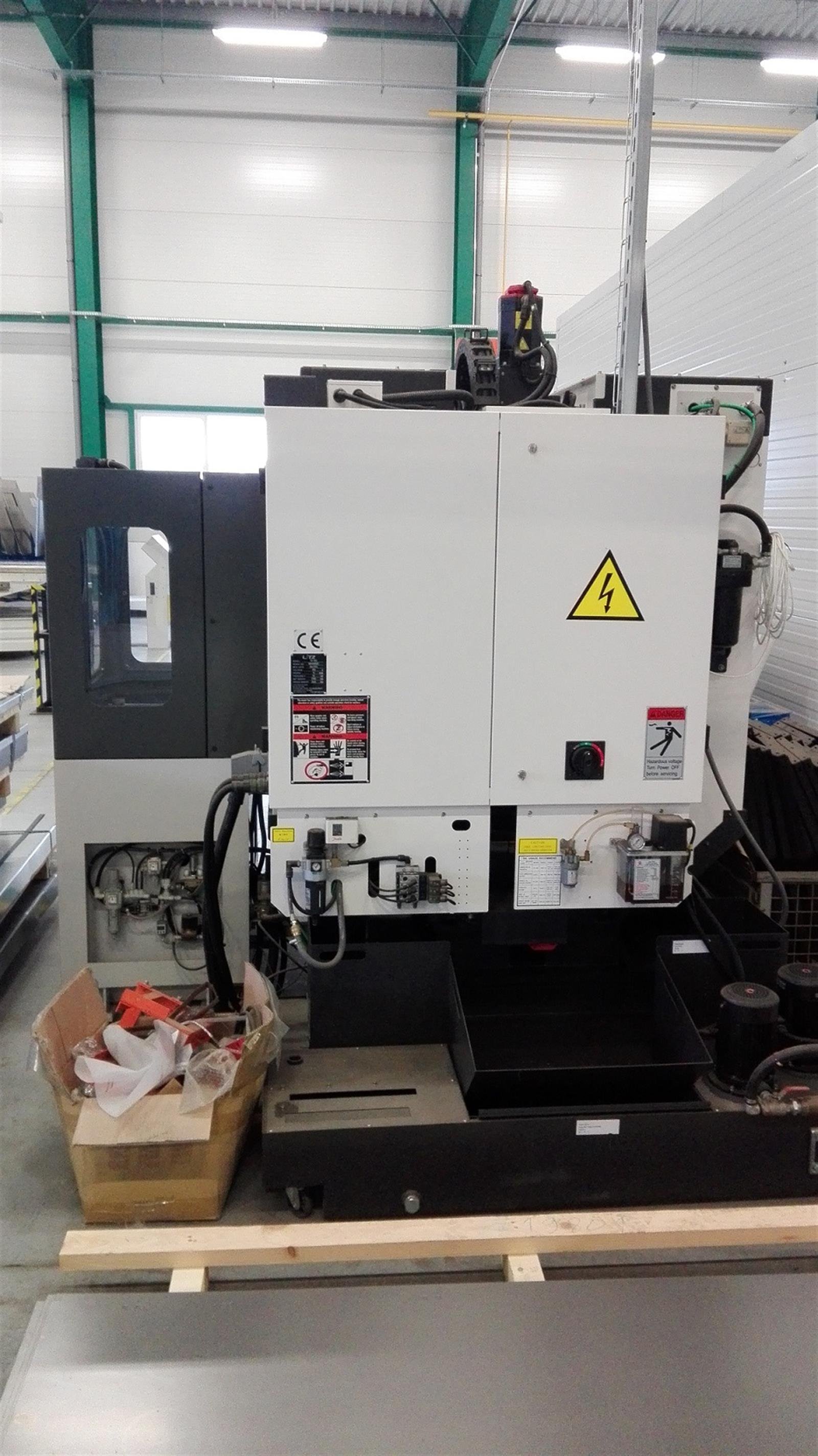

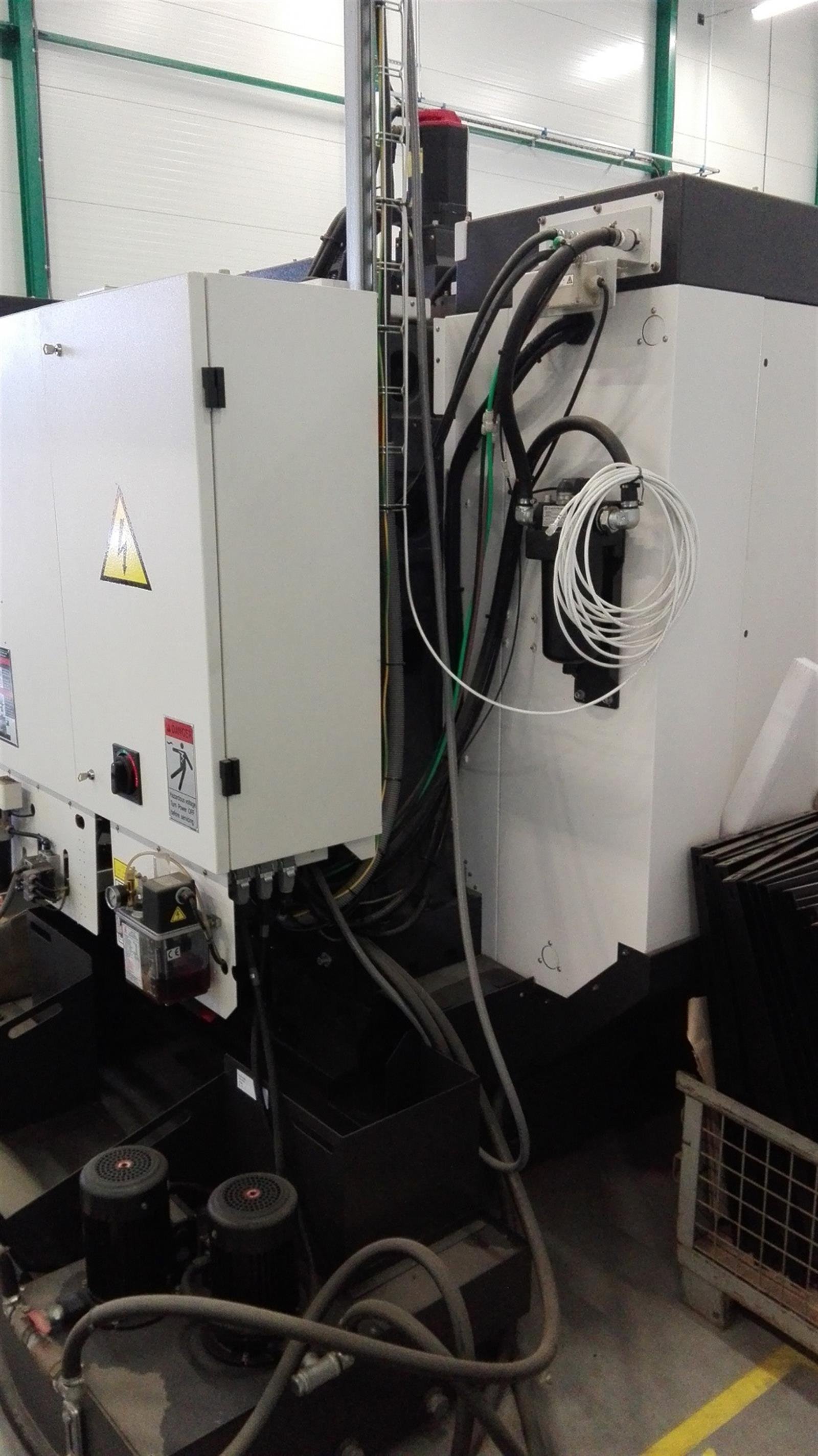

Litz TV-500 Machining center - vertical (Litz TV-500 Machining center - vertical)

Type: TV-500
Producer: LITZ
Made in: 2015
Characteristic:
Control system: FANUC OIM-MD
Cutting Hours: 0 h
Length of the working table: 650 mm
Width of the working table: 400 mm
Number of tools in the magazine: 16 pcs
Maximum rotary speed of the vertical spindle: 12000 1/min
X-Axis travels: 500 mm
Y-Axis travels: 400 mm
Z-Axis travels: 330 mm
Maximum lenght of the workpiece: 250 mm
Maximum tool weight: 3 kg
Workpiece diameter: 60/80 mm
Rapid traverse X/Y/Z: 60/60/60 m/min
Main motor power: 3.7/5.5 kW
Maximum lifting capacity: 250 kg
Cutting feed rate: 1-20000 mm/min
Coolant capacity: 200 l
Power supply: 15 kVA
Machine weight: 2800 kg
Equipment:
Collets

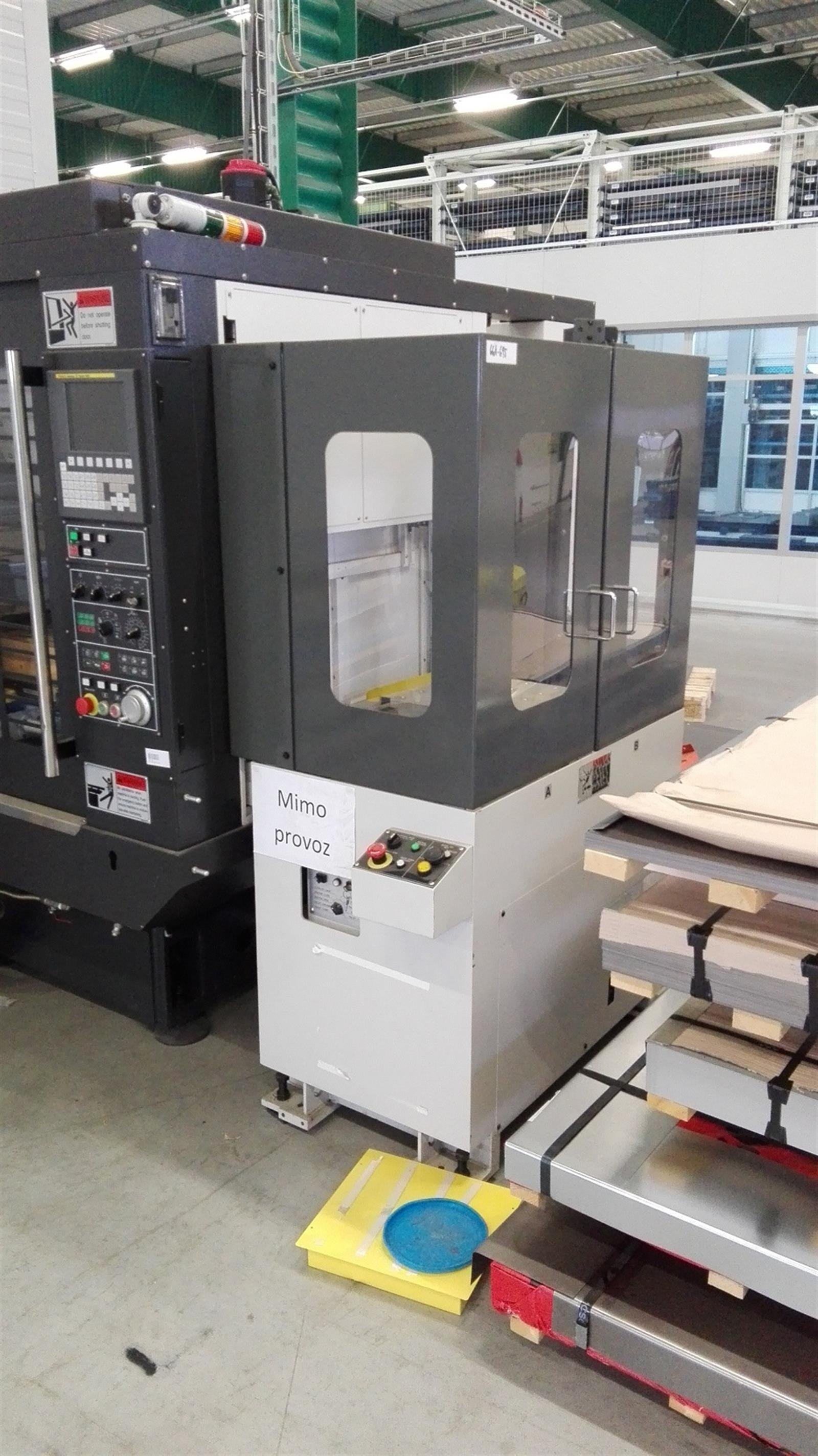

Pallet exchange system

Axis X	500 mm
Axis Y	400 mm
Axis Z	330 mm
Rotary table (4th axis)	no
Type of CNC	FANUC OIM-MD
Table length	650 mm
Table width	400 mm
Max. part weight	250 kg
Spindle taper
Max. spindle speed	12000 rpm
-------------------
Weight	2800 kg
Worked hours	0 hours
Hours under power
State	good
At local norms	---------
Status
