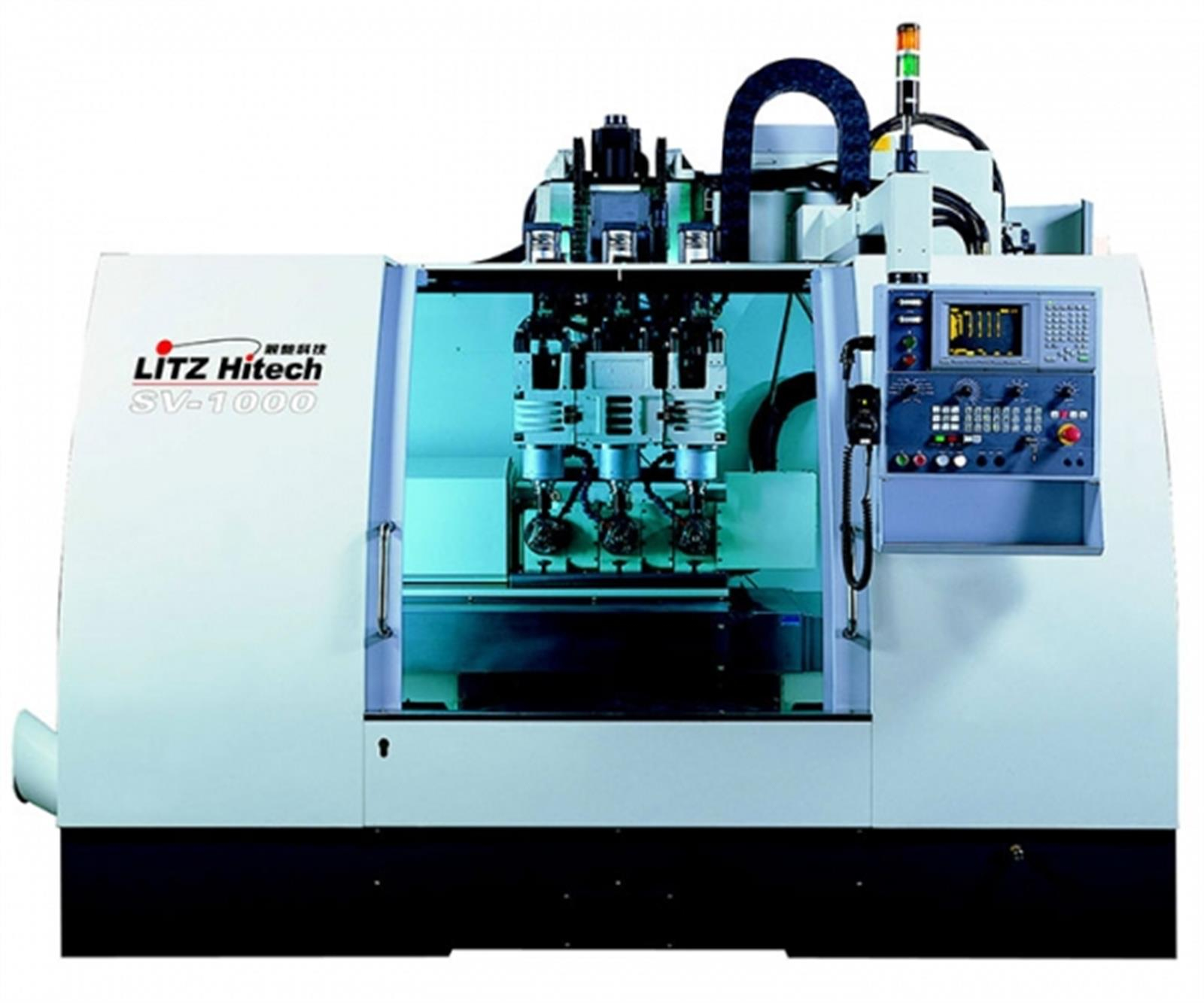

Litz SV-1000 Three- Vertical Machining Center (SV-1000)

Brand : Litz

Stock Amount : 0

Est. Delivery Time60-75 Days After Order

Shipment Place Turkiye

Payment Terms% 30 T/T On Order Confirmation, % 70 T/T Before Shipment

Made InTaiwan

Min. Order Qty.1 Pcs.

Warranty1 Year

Machining Centers

Vertical Machining Centers

Standard
Chip Auger Inside The Machine	Standard
Fully-Covered Sheet Metal	Standard
Automatic Lubrication System	Standard
Leveling Bolts And Blocks	Standard
Tool Box	Standard
Work Light	Standard
Alarm Indicator	Standard
M30 Automatic Power Off System	Standard
Chip Cart	Standard
Air Gun For Machine Cleaning	Standard
Spindle Dust-Proof Air-Sealing System	Standard
Coolant Gun For Machine Cleaning	Standard
Machine, Electrics Operational Manual	Standard
Rigid Tapping	Standard
Heater Exchanger For Electrical Cabinet	Standard
Machine Oil/Coolant Separation System	Standard
Automatic Tool Changer Mechanism	Standard
Hood For The Top Of The Machine	Standard

Options
Spindle External Programmable Air Blow System	Optional
FANUC/Mitsubishi	Optional
Chip Removal System	Optional
Rotating Table (Forth Axis)	Optional
3-Axes Linear Scale	Optional
Tool Length Measurement System	Optional
Disc Type Oil/Coolant Separator	Optional
3-Axes Coolant Thru Ballscrew	Optional
Z-Axis Brake Motor System	Optional
Chip Conveyor	Optional

Travel For 3-Axes
X-Axis Travel	mm	1020
Y-Axis Travel	mm	600
Z-Axis Travel	mm	635
Spindle Nose To Workable Surface	mm	95~730
Spindle
Spindle Speed	rpm	6000
Automatic Tool Changing System
Number of Tools	one of a pair	6
Max. Tool Diameter	mm	60
Max. Tool Length	mm	160
Max. Tool Weight	kg	4
Tool Changing Method		2 Sets For Inter-Changing (Arm)
Tool Specifications		BT-40
Motor
Spindle Motor (Continuous/30min. Rated)	kw (HP)	7.5/11 (10/15)
Motors On X/Y/Z-Axis	kw	2 /2 /3.5
Worktable
Worktable Area	mm	1200 x 560
Worktable Max. Load Capacity	kg	1000
T-Slot (Number X Width X Distance From The Center)	mm	5 x 18 x 100
Rapid Speed
X-Axis Rapid Speed	M/min	18
Y-Axis Rapid Speed	M/min	18
Z-Axis Rapid Speed	M/min	18
Cutting Feed Rate	mm/min	1-8000
Controller
Mitsubishi		M70
Miscellaneous
Machine Weight	kg	7000
Power Consumption	KVA	25
Coolant Tank Capacity	L	290
Compressed Air Source	kg/cm²	6
