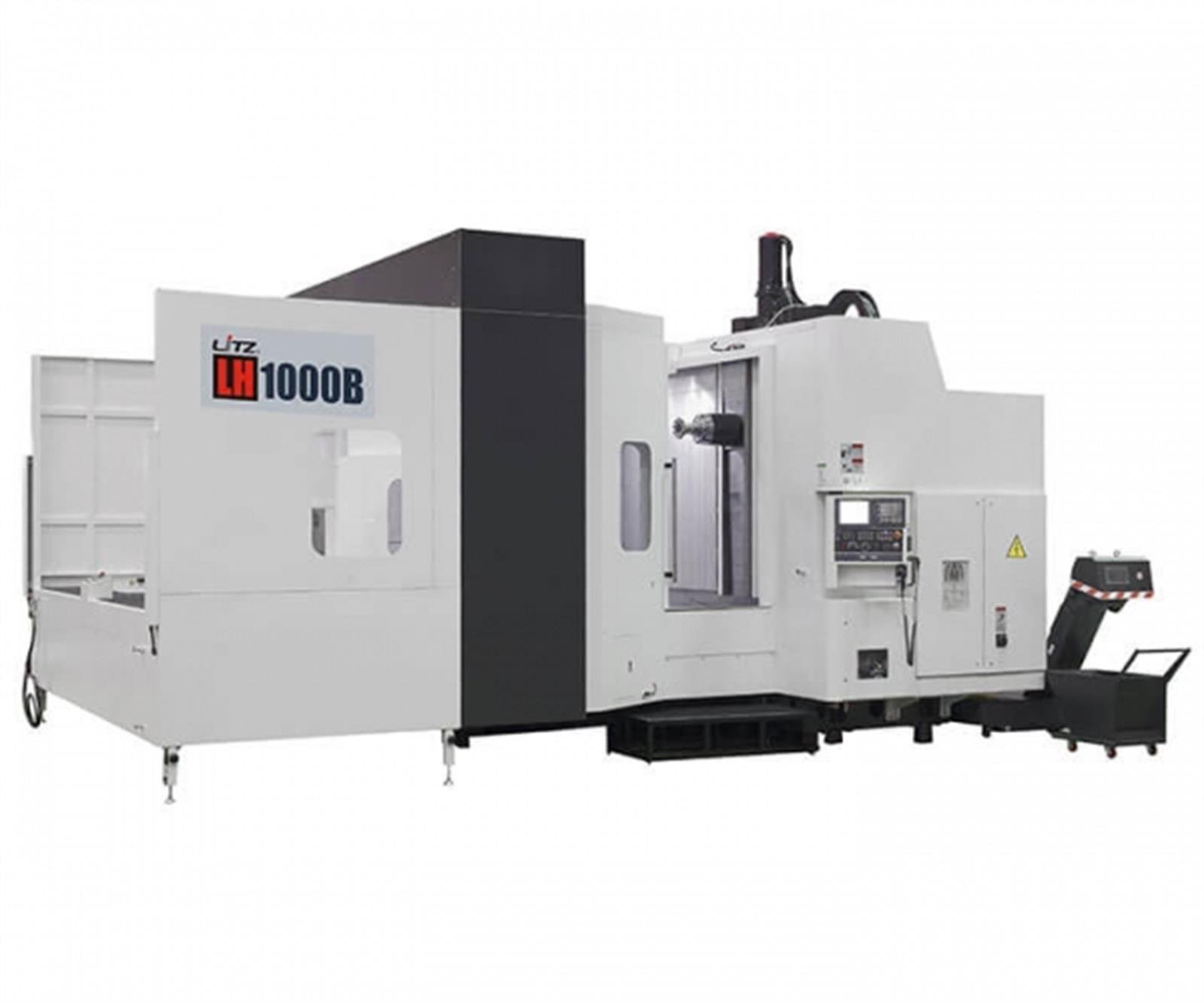

Litz LH-1000 Horizontal Machining Center (LH-1000)

Brand : Litz

Stock Amount : 0

Est. Delivery Time60-75 Days After Order

Shipment Place Turkiye

Payment Terms% 30 T/T On Order Confirmation, % 70 T/T Before Shipment

Made InChina

Min. Order Qty.1 Pcs.

Warranty1 Year

Machining Centers

Horizontal Machining Center

Spindle
Spindle Speed 6000RPM	Standard
Spindle Oil Cooling System	Standard
Spindle Air Seal System	Standard
Spindle Belt Transmission + ZF Gear	Standard
3-Axis Transmission System
3-Axis Roller Linear Rail	Standard
3-Axis Hollow Ballscrew Cooling System	Standard
Pallet Unit
Pallet 1 ˚division	Standard
Pallet M20 Fixing Holes	Standard
Cooling System
Splash Ring	Standard
Chip Removal System
Track Type Chip Conveyer System	Standard
Chip Cart	Standard
Indoor Chip Auger	Standard
Mechanical Oil-Coolant Separator	Standard
Overhead Chip Wash-Down System	Standard
Safety System
Front Door/Side Door Safety Switch	Standard
ATC And Magazine System
Tool Storage Capacity 60T	Standard
Tool Specification BBT	Standard
Tool Specification NO.50	Standard
Electrical
M30 Automatic Power-Off System	Standard
Working Light (Lighting)	Standard
Warming Light	Standard
Electrical Cabin Heat Exchange System	Standard

Spindle
Spindle Speed 8000RPM	Optional
Spindle Speed 10000RPM	Optional
Spindle Direct Transmission	Optional
3-Axis Transmission System
3-Axis Linear Scale System	Optional
4th Axis Encoder	Optional
Pallet Unit
Pallet 0.001 ˚ Division	Optional
Pallet T-Slot	Optional
Cooling System
Spindle Air Blow System	Optional
Coolant Through Spindle (CTS)	Optional
Chip Removal System
Disc-Type Coolant Separator	Optional
Safety System
CE Safety Specifications	Optional
Safety Light Grid	Optional
Measuring System
Tool Length Measuring System TS - 27R	Optional
Workpiece Measuring System RMP - 60	Optional
Tool Breakage Detection (Magazine)	Optional
ATC And Magazine System
Tool Specification CAT	Optional
Tool Specification NO.40	Optional
Electrical
M30 Automatic Power-Off System	Optional
Working Light (Lighting)	Optional
Warming Light	Optional
Electrical Cabin Heat Exchange System	Optional
Controller
FANUC 0iMD	Optional
Others
Oil Mist Collector Unit	Optional
Rotary Window	Optional

Travel
Travel, X/Y/Z	mm	2100/1235/1235
Spindle Center To Pallet Face	mm	100-1335
Spindle Nose To Pallet Center	mm	280-1515
Pallet
Pallet Size	mm	1000 x 1000
Maximum Workpiece	mm	¢2000
Maximum Pallet Load	kg	3500
Maximum Workpiece Height	mm	1500
Pallet Surface Configuration	mm	80-M20 tapped holes Pitch 100
Pallet Indexing		1°
Spindle
Spindle Max. Speed	RPM	6000
Low/Hight Gear Variation	RPM	1500
Spindle Max. Torque	N-m	660
Spindle Taper		7/24 Taper,NO.50
Spindle Bearing Id	mm	100
Spindle Transmission		ZF Gear Box + Belt Transmission
Feed Rate
Max. X/Y/Z Rapid Speed	mm/min	24000
Cutting Feed Rate	mm/min	1-10000
Job Feed Rate	mm/min	1260
Automatic Tool Change (ATC)
Type Of Tool Shank		ISO 50 or BBT-50
Tool Capacity	one of a pair	60
Max. Tool Diameter (Without Adjacent Tool)	mm	125(250)
Max. Tool Length	mm	600
Max. Tool Weight	kg	30
ATC Changing Time (T To T)	sec.	8
Tool Selection Method		Fixed Address
Automatic Pallet Changer (APC)
Number of Pallets	one of a pair	2
Pallet Changing Type		Inclined Shuttle-Type
Time For Apc	sec.	26
Controller System
FANUC		0i
Motor
Spindle Motor, Power	KW	22/26
X/Y/Z/B Axis Motor	KW	7/6/7/4
Motor, Hydraulic System	KW	3.7
Motor, Coolant Pump System	KW	1.6
Power Supply
Power Requirement	KVA	65
Capacity Of Oil/Coolant Tank
Capacity, Hydraulic System	L	60
Capacity, Lubrication System	L	4
Capacity, Coolant System	L	840
Mechanical Specifications
Height	mm	4013
Floor Area	mm	8110 x 5850
Weight	kg	32000
