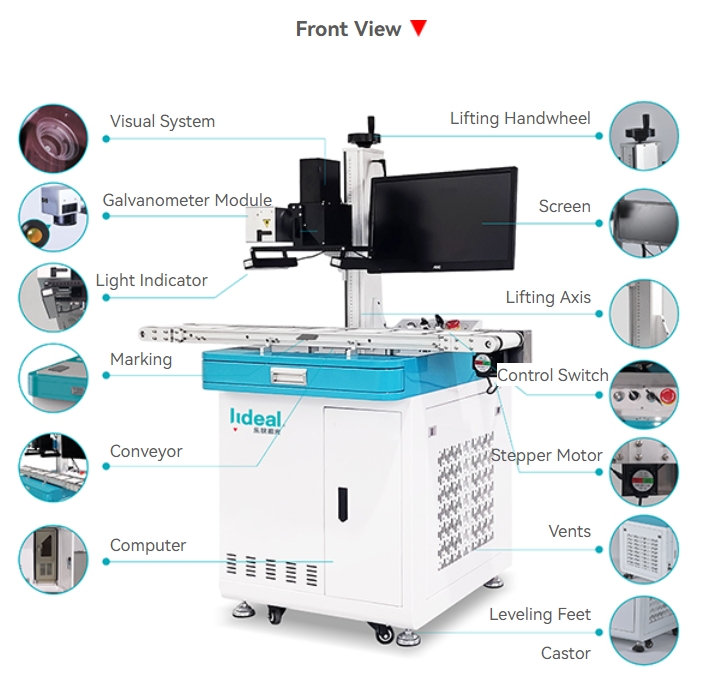

Visual Positioning System
1. One-click automatic calibration to associate laser and visual coordinates;
2. One-click distortion correction to correct the workpiece coordinates with visual lens;
3. Support diversified marking target:single mode/single target, single mode/multi-target/multi-mode multi-target;
4. The marking content can be fixed or variable(communication access, ASCII conversion, binary and hexadecimal etc.);
5. Communication support: IO, TCP/IP, RS232, RS485 and other protocols;
6. Multi-template product management makes it easy to switch between different products;
7. The camera has a large imaging field of view, suitable for marking any flat product;
8. The camera automatically identifies the product at any angle and in any quantity then marks it;
9. Can be integrated with various wavelengths lasers such as fiber, CO2, UV, etc.;
10. Can achieve splicing and large format marking through motion guide rail control;
11. Occupies small space and does not occupy any space on the work platform. The existing laser installation space can be upgraded;
12. XYZ axes can be added according to actual product characteristics to achieve fully automated visual positioning and marking.
Visual Marking System
1. Supports CO2, fiber, UV, green light lasers etc.;
2. Supports automatic marking of static, large format, conveyor lines and assembly lines.
3. Users can set the interface according to their own needs and support multi-languages;
4. Experienced hardware and software engineers can select camera lenses and secondary development of software based on materials and needs;
5. Camera positioning accuracy is 0.02mm; one-click automatic calibration; multi-mode and multi-target marking at the same time; marking content can be fixed or variable.
|
