300*2500mm strip: one-time seamless marking; 280*1300mm round: one-time circumferential seamless marking.
Fast marking, fast engraving, fast drilling,seamless splicing marking, etc.

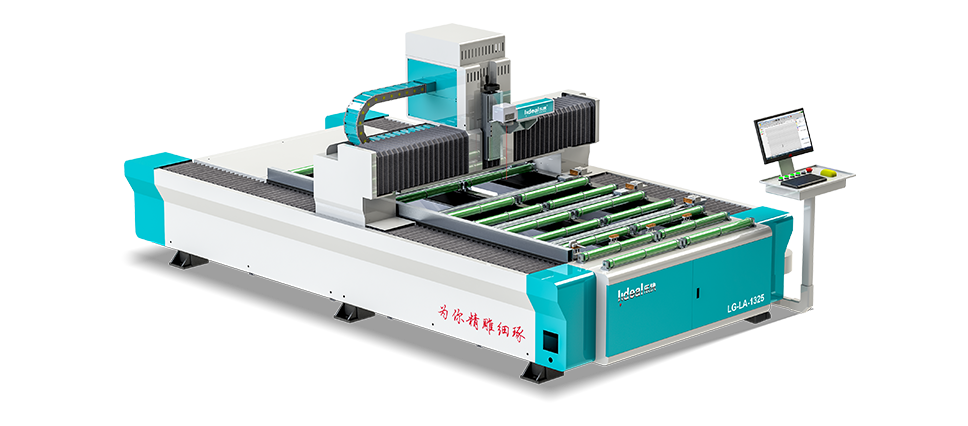

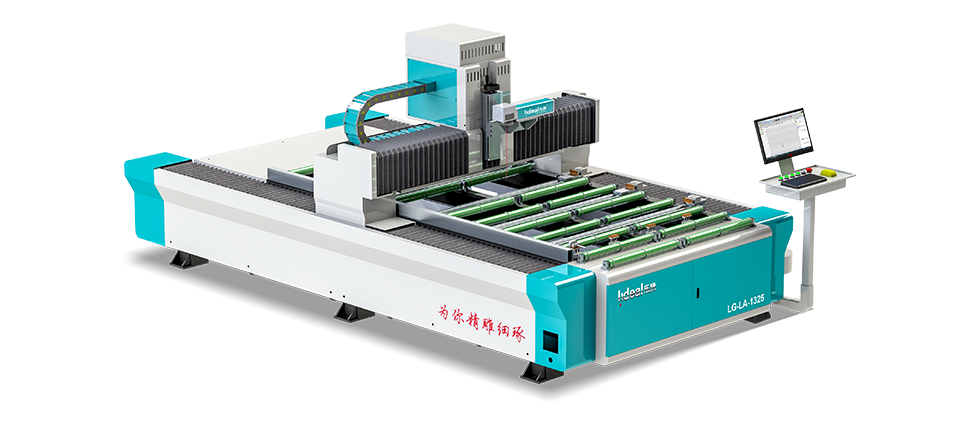

Gantry Structure
Gantry moves with the marking head, marking---move---marking--move. The oversized marking seams are difficult to distinguish with naked eyes.
Bus Control System
Taiwan bus control system supports one-button autofocus function independently developed by Ledi.
Customized Laser Source
Industrial-grade customized laser, can realize: whitening, blackening and darkening of metals; mirror paint stripping, mirror paint stripping and frosting can be completed at one time.
High-Precision Motion Module
High-precision linear modules and heavy-duty machine tools, flatness ≤ 0.2 mm, repeatability = 0.02 mm.
Integrate multiple functions: control system, galvanometer system, laser system,
dual-axis or three-axis motion system and high-precision machine tool system.
The above system is controlled uniformly by the splicing marking system, the synchronous movement of the expansion axis is used to compensate the marking format of the galvanometer, that is, in addition to the XY axis of the galvanometer, an external XY axis motion mechanism is added. During the marking process, the galvanometer can mark 300 x 300mm range, and the expansion axis moves at the same time together with the galvanometer, and can achieve continuous one-time marking of 300 x 2500 mm rectangular filling, achieving 3 meters seamless marking.
Thus realized: fast marking, fast engraving, seamless splicing marking, fast punching of large format.
Use customized laser source, combined with a high-speed swing galvanometer and a quartz lens,
to ensure even distribution of high-quality light spots and better marking results.
Use high-precision linear modules and heavy-duty machine tools, the marking seams are difficult to distinguish with naked eyes.
The gantry moves with the marking head during marking.
The platform use unpowered rubber-coated rollers, easy to load and unload materials without damaging the bottom side.
10 mm steel plate, welded and tempered.
The movement mounting surface and workbench are all precision milled, flatness ≤ 0.2 mm.
Taiwan bus control system, supports one-click lifting autofocus function independently developed by Ledi,
Supports automated control and stable connection of multiple expansion axes and various industrial sites.
Use aerospace standard aluminum profiles, the beams are extruded by 4,300 ton press.
Corrosion-resistant, lightweight, highly rigid, good dynamic performance, and high splicing accuracy.
1. Large-format patterns that exceed marking range of the 2D galvo or 3D dynamic galvo;
2. Extra large patterns that require high-precision marking effects;
3. Marking range not limited by galvo range, reducing splicing problem.

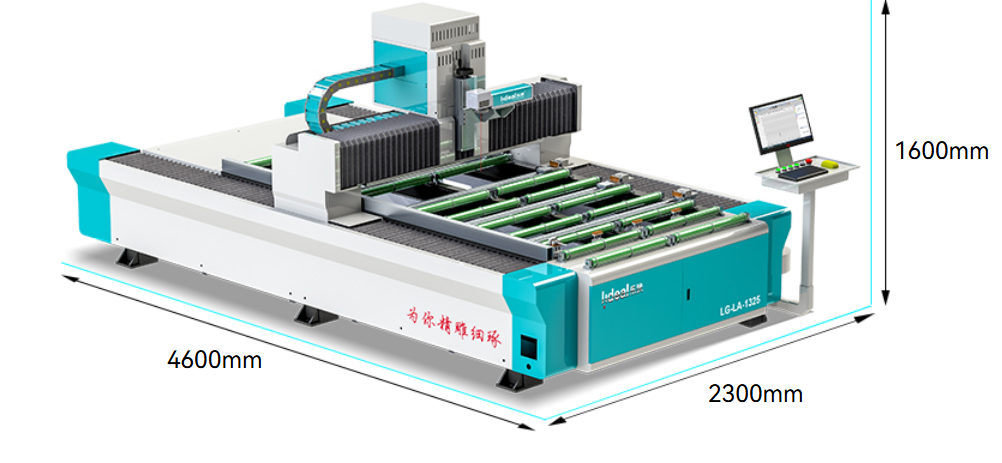

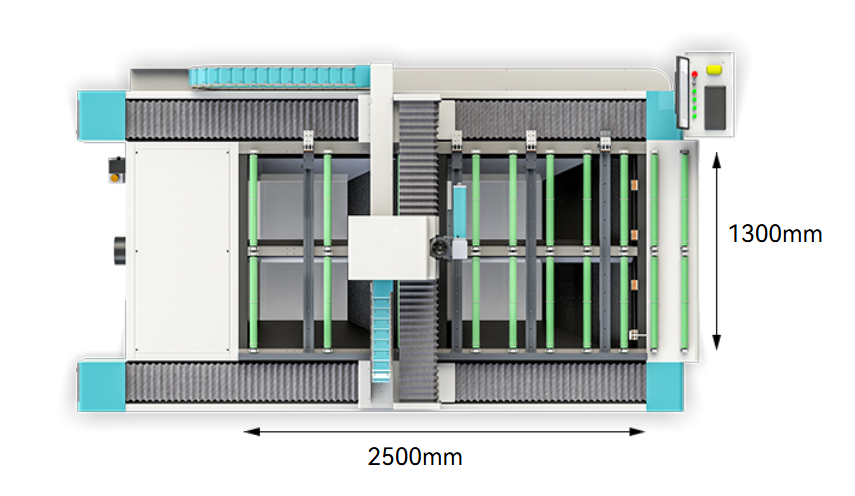

LG-LA-1325 Machine Size:

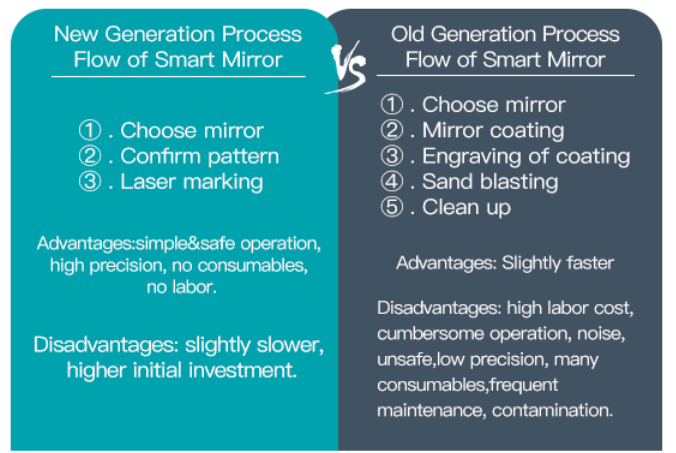

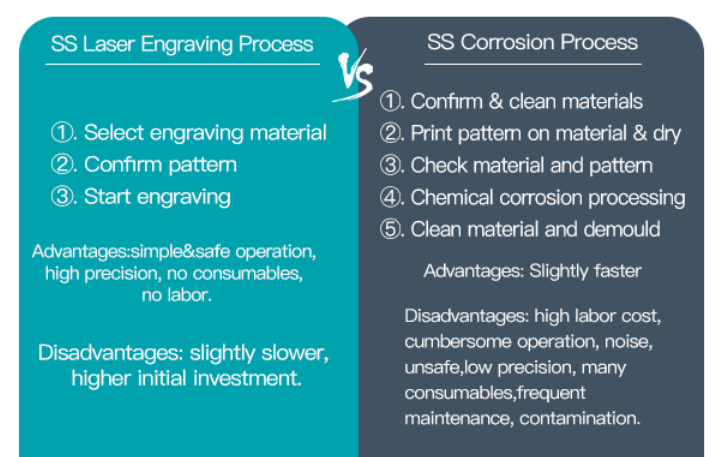

Smart mirrors, stainless steel, large signs, yoga mats, wooden boards, glass, plastic, acrylic, etc.
