Long Lifespan
Use pulsed fiber laser source, lifespan up to 100,000 hours.
High Working Efficiency
High speed digital galvanometer, repeatability accuracy 0.01mm, assembly line coding speed up to 100m.
Low Power Consumption
Air cooling, no consumables, low running cost.
Stable System
Original JCZ control board, windows system.
Multi Functions
Optional function: rotary, 3D curving, 3D large area, conveyor, auto focusing, automation, super long text, CCD camera etc.
Multi Results
Black marking, white marking, color marking for SS, deep engraving etc.

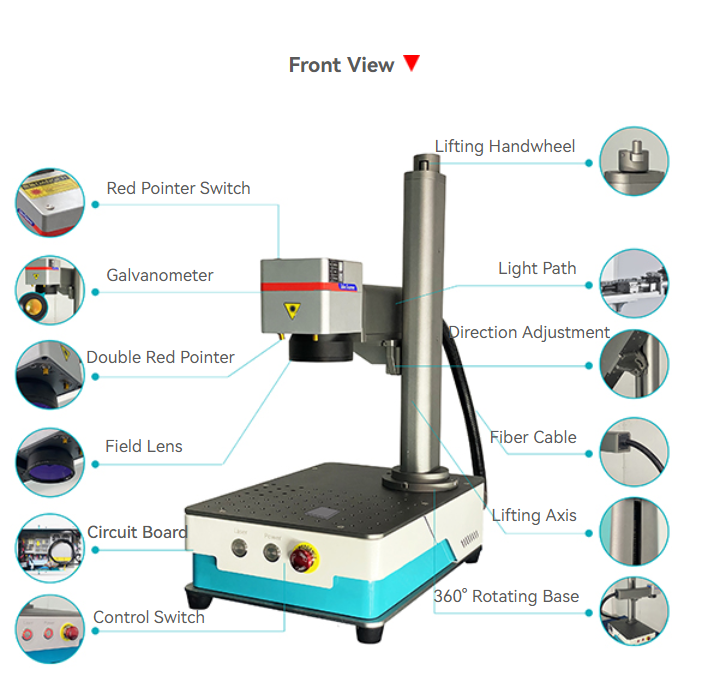

Digital Galvanometer
Use high speed swing motor,
minimum character size 0.05mm.
Field Lens
Quartz made F-Theta lens, lifespan up to 5 years,
make sure high quality uniform facula distribution.
Double Red Pointer
Double red light indicator lights, brighter, can adjust the thickness, easier to adjust the focus, make the marking effect better.
Lifting Axis
Linear guide rail, ball screw,
adjust focus accurately,
can be adjusted 180 degrees,
electrical up and down optional.

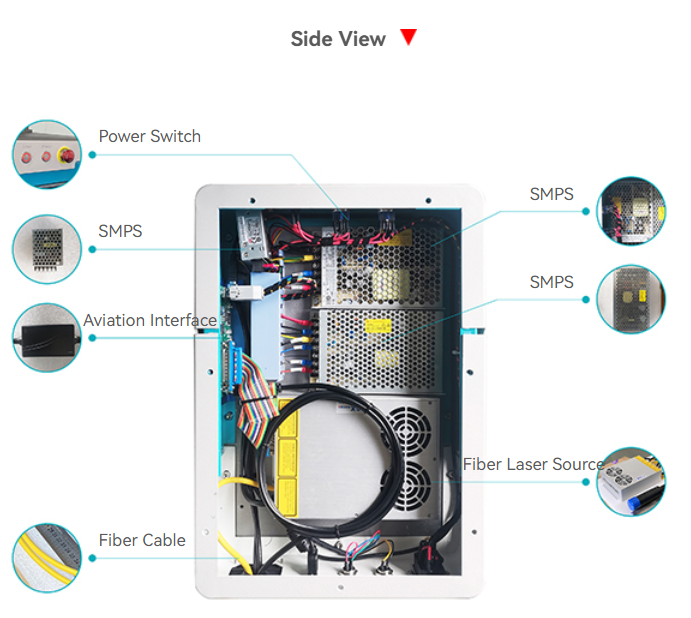

Standardized Circuit
Standardized circuit, compliant with safety standards, stable and reliable.
Aerial plug, easy & quick connection,
low impedance, precise signal output.
Workbench
Aluminum alloy workbench, hole spacing 25/50 mm, with right-angle positioning strips, optional 2D workbench, easy to adjust the marking position front and back.
Marking Control System
JCZ marking control system,
easy operation,
secondary development available
Suitable for metals and various types of non-metal materials; alloy, oxide, coating, electroplate, ABS, Epoxy, engineering plastic, etc.
