Long Lifespan
Use pulsed fiber laser source, lifespan up to 100,000 hours.
High Working Efficiency
High speed digital galvanometer, repeatability accuracy 0.01mm, assembly line coding speed up to 100m.
Low Power Consumption
Air cooling, no consumables, low running cost.
Stable System
Original JCZ control board, windows system.
Multi Functions
Optional function: rotary, 3D curving, 3D large area, conveyor, auto focusing, automation, super long text, CCD camera etc.
Multi Results
Black marking, white marking, color marking for SS, deep engraving etc.

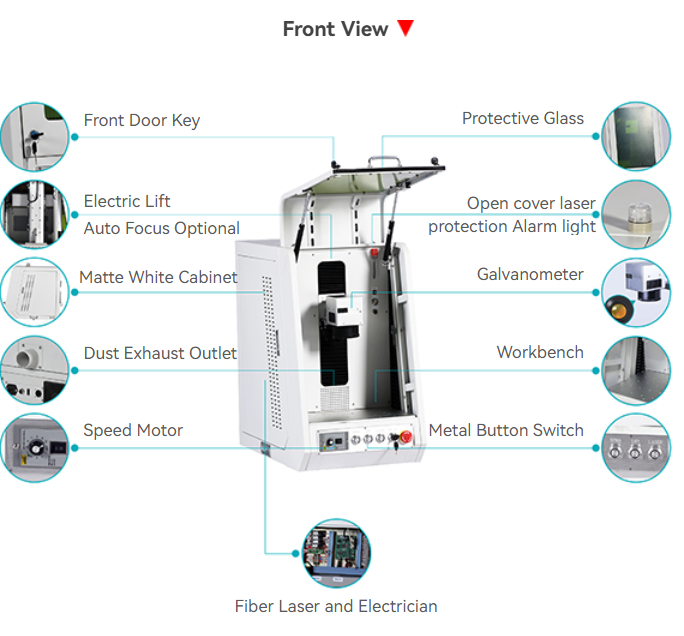

Digital Galvanometer
Use high speed swing motor(CTI motor & driver optional),
support assembly line, flying marking speed up to 100m/min.
Field Lens
Quartz made F-Theta lens, lifespan up to 5 years,
make sure high quality uniform facula distribution.

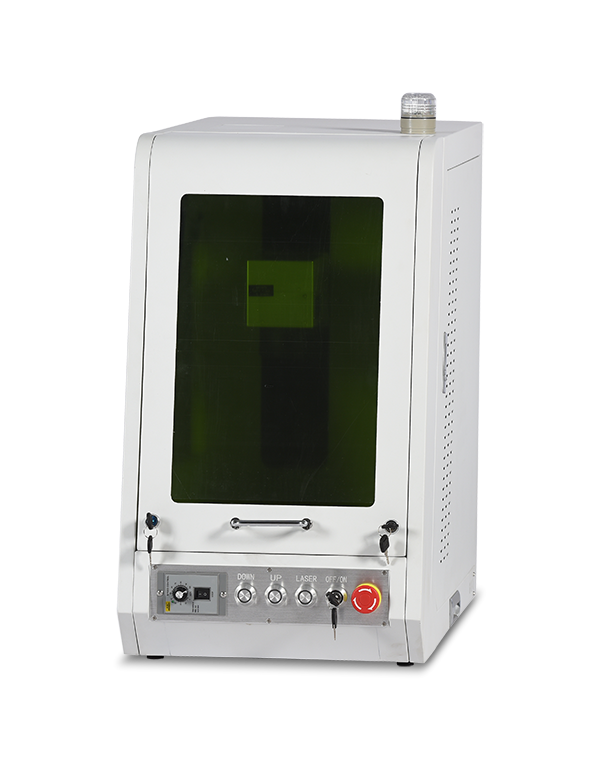

For safety reasons, it can be closed during marking, protecting the user from the laser beam, and the machine is small enough to be placed on a tabletop or carried into any other environment.
Onpow Button Switch
Silver-plated contacts, corrosion-resistant,
temperature-resistant, flame-retardant, long life.
Linear guide rail, ball screw,
adjust focus accurately,
electrical up and down.

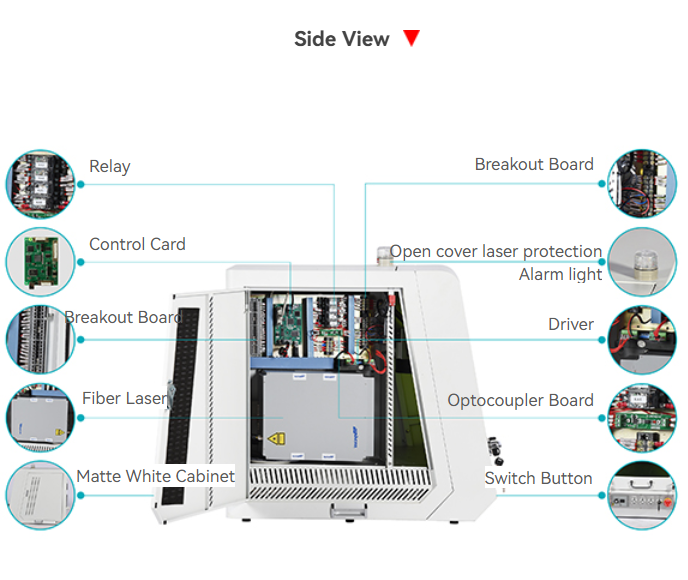

Circuit Board
Well organized wiring, each line marked with line number.
The overall appearance is beautiful and safe.

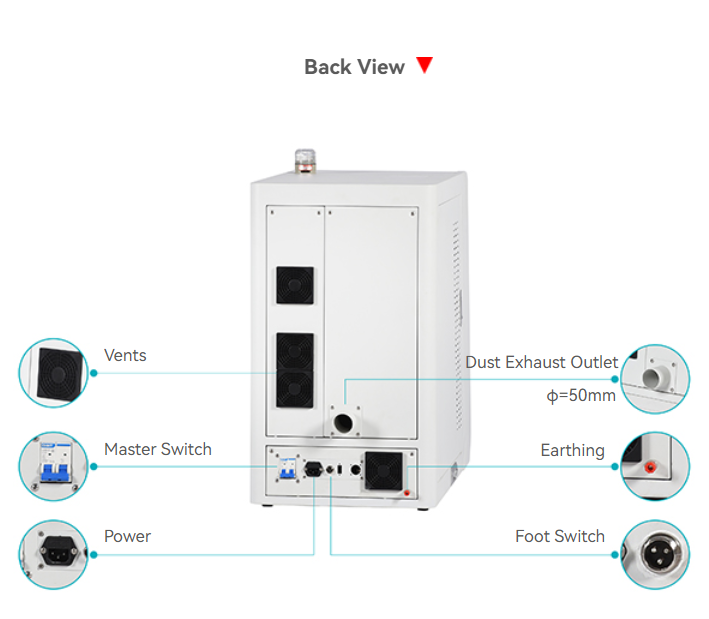

Safety Socket
Aerial plug, easy & quick connection,
low impedance, precise signal output.
Fiber Laser Source
Each laser been tested for 8 hours of continuous light output, obtain stable performance for long term work.
Marking Control System
JCZ marking control system,
easy operation,
secondary development available
Suitable for metals and various types of non-metal materials; alloy, oxide, coating, electroplate, ABS, Epoxy, engineering plastic, etc.
