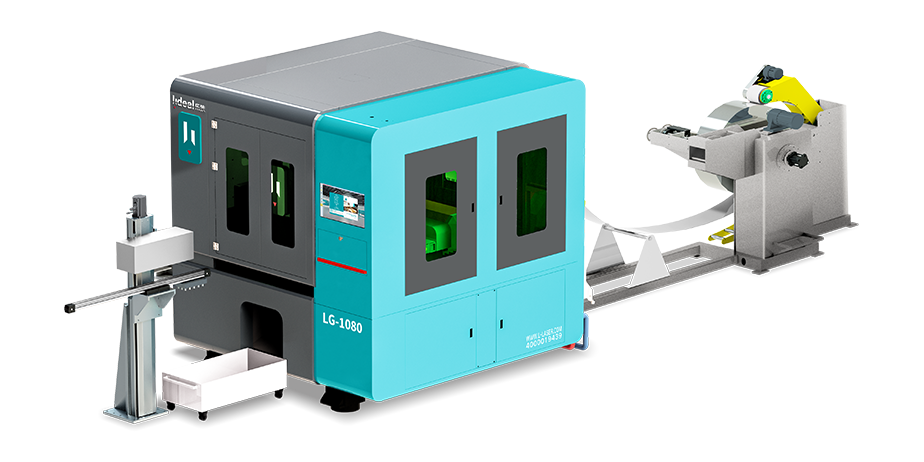

Linyi Ledi Laser 1000W Steel Strip Laser Cutting Production Line (Linyi Ledi Laser 1000W LG-1080)

Automation Solutions

Upgrading from single cutting to  one-stop processing, one machine can handle multiple procedures, optimize layout to eliminate waste, no need molds simple and fast, auto-palletizing to make unloading more organized.

Accurate Feeding & Precise Cutting

Uncoiling and leveling + accurate fixed-length feeding, feeding accuracy≤0.5mm; the cutting repeatability is 0.02mm, the cutting acceleration is 1G

High-strength Bed & Beam

High Power High Precision

Use fiber laser, intelligent cutting head, and high-precision displacement module to achieve high-speed, high-precision cutting and stable performance.

BUS Control System

Friendly interface and convenient operation. Products with different needs can be produced by importing processing drawings to meet the needs of different shapes and changeable requirements.

Non-standard Customization, Full Protection

Depending on the cutting workpiece and working environment, options include: fully enclosed design, dust purifier, rewinding, and palletizing etc.

With leveling function

Avoid the occurrence of loose materials during feeding process

Use the correction mechanism independently developed by Ledi (mechanical correction device or electric real-time correction device).

Provide customers with a variety of choices based on materials and products, with a mechanism accuracy of 0.2 mm;

While feeding, laser marking is performed with marking accuracy 0.01mm. Support text marking and flying marking.

Meet higher demands for safety and environmental protection

The whole machine is annealed at high temperature to ensure rigidity and stability

Use large gantry milling machine for finishing, the frame will not deform for 20 years

Use aerospace standard aluminum profiles, the beams are extruded by a 4,300-ton press and are corrosion-resistant.

Lightweight, high rigidity, perfect dynamic performance, higher cutting accuracy

Customized bus control system, feeding and cutting at the same time (can also be fed online and cut at the same time)

Computer typesetting, intelligent and automated one-stop solution for the entire production process.

Suitable for kitchen utensils, fire doors, tube well doors, medical doors, trash cans, barbecue grills, tool box cabinets, distribution box cabinets, file cabinets, express cabinets, stainless steel coffee pots, saw blades, garden saws, trowels, bricklaying knives, putty knives, knives, kitchen knives, steel midsoles, auto parts etc., which are directly rolled and laser cut and blanked.
