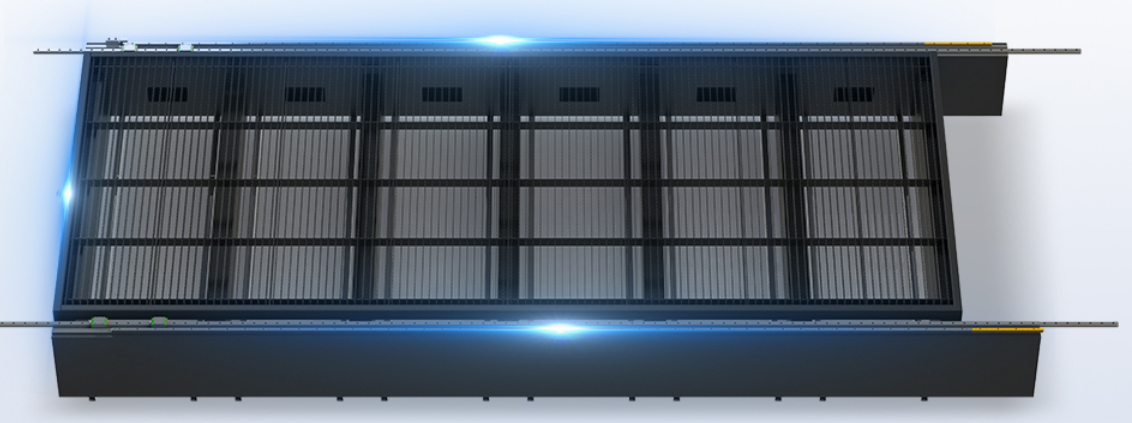

Gantry frame machine tool structure , precision milled using imported milling machines, with high precision and no deformation for 20 years. The whole machine is tempered and aged to ensure stable rigidity.

High Power High Precision

Use fiber laser, intelligent cutting head, and high-precision displacement module to achieve high-speed, high-precision cutting and stable performance.

T6 Hardness Grade

Aerospace standard aviation aluminum alloy, hardness reaches T6, good elasticity, light weight, corrosion resistance, oxidation resistance, low density, which greatly improves cutting speed.

Long Working Life

Motion system uses Taiwan Hiwin linear guides and grinding grade precision racks to ensure cutting accuracy; repeatability 0.02mm, cutting acceleration 1G; working life exceeds 10,000 hours.

Full Protection Work

Can be equipped with: dust removal purifier, fully enclosed cabinet, exchange workbench.

Wide Applications

Suitable to cut galvanized sheets, carbon steel, stainless steel, copper, aluminum and other metal sheets.

Use stress relief annealing technology to achieve high mechanical strength and eliminate residual stress on the machine bed.

Ensure the long-term stability of the machine tool, and the strength ensures the bed not easily deformed for many years

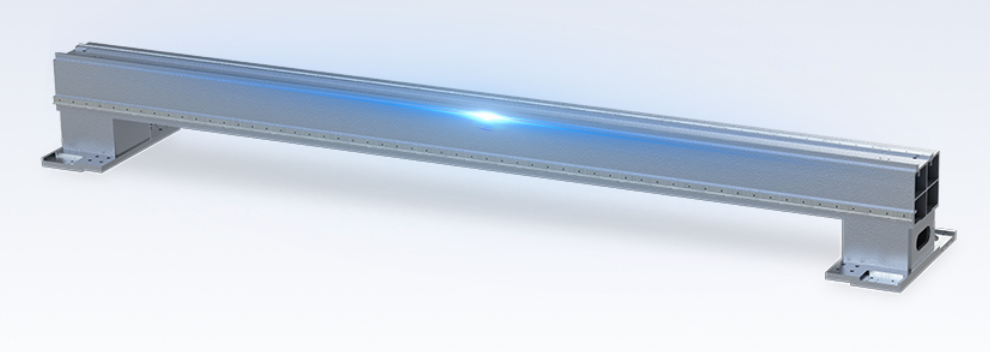

Aerospace standard aluminum profiles, beams extruded by 4300-ton press, corrosion-resistant,

Lightweight, high rigidity, perfect dynamic performance, and higher cutting accuracy.

Hard Precision

High hardness, can reach T6 after aging treatment Good toughness and ductility, good rigidity and high precision.

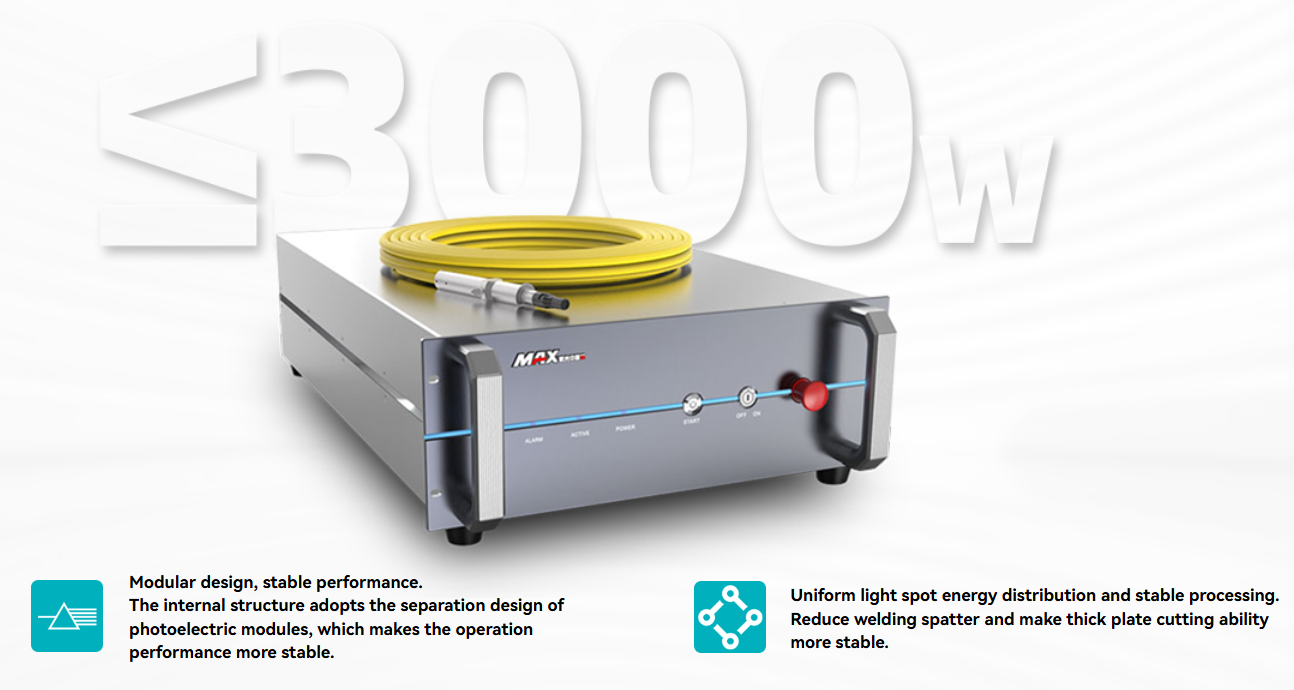

Using IPG/Max high-power continuous fiber laser, with strong cutting ability and material cutting thickness can reach 40mm.

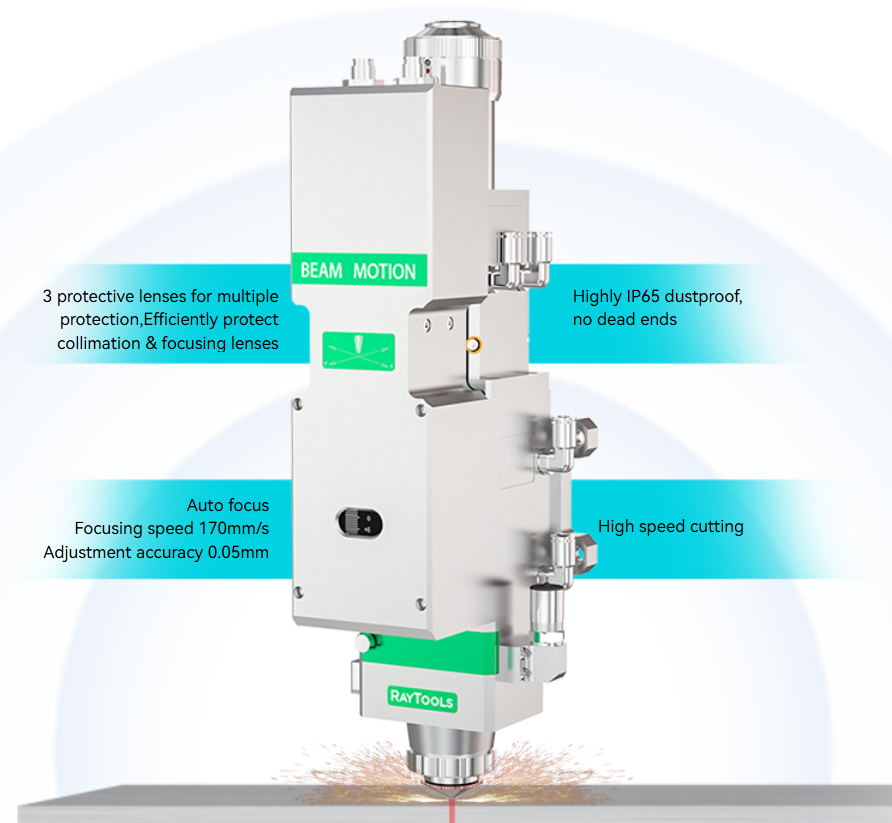

Intelligent focusing, precise focusing, smart operation,

acceleration ≤10m/s2, fast and stable cutting, cutting accuracy ≤0.05mm

Dust Proof

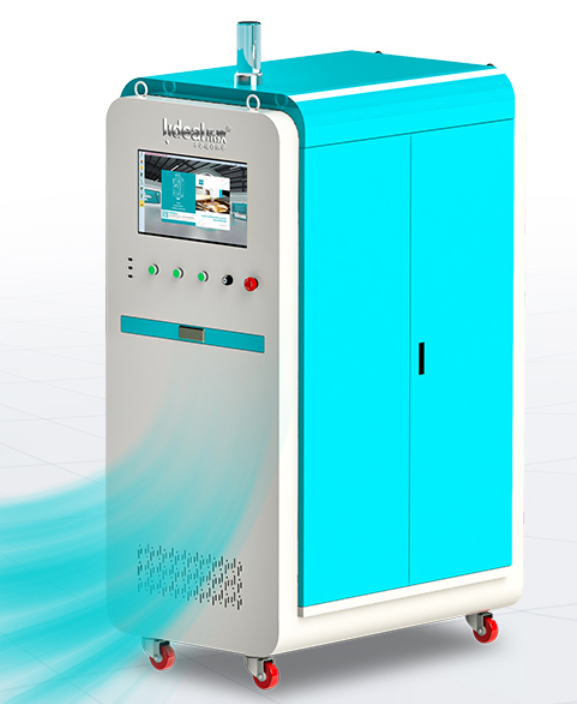

All electrical components and lasers are built in independent control cabinets with dust-proof design to extend the service life of electrical components.

Constant Temperature

(optional)

All electrical components and lasers are built in an independent control cabinet. The outside of the control cabinet is equipped with an air conditioner and automatic constant temperature to prevent damage to components due to excessive temperature in summer.

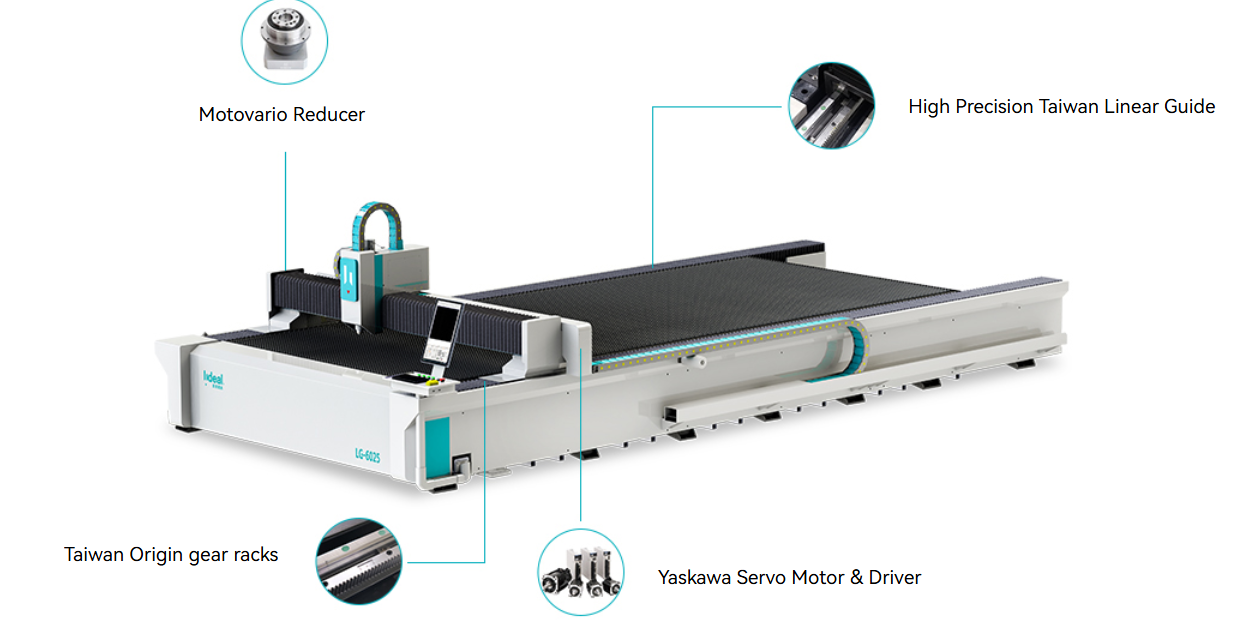

Japanese Yaskawa servo motors and drivers, French Motovario reducers, and Taiwan-origin gear racks, the bed positioning accuracy can reach 0.02mm.

Japan Yaskawa Servo

Motors and Drives

All three axes use Japanese Yaskawa servo motors. The high-precision reducer has been carefully adjusted by engineers. Linear acceleration and precision strictly comply with factory standards.

High Precision Taiwan Linear Guide

High-precision linear guide rail, good rigidity, high precision, operating accuracy 0.02mm. Use top quality dust covers and drag chains, which are dust-proof and easy to maintain.

Grinding Grade Taiwan Rack and Gear

The teeth are smooth and consistent in shape; they run smoothly without deviation or skipping.

A constant transmission ratio can be guaranteed.

Top Quality Dust Cover High-flexible Cable drag chain

All three axes use high-quality fireproof dustproof covers and high-flexible cable drag chains, to ensure the guide rail rack is clean and lubricated.

French Motovario Reducer

High-performance series are suitable for harsh working conditions.

MAF precision planets provide high rigidity, large torque and high precision.

Precise Cutting

The cutting edge is smooth and burr-free,

the cutting size error is ≤0.03 mm, can cut 1mm graphics.

Laser Source	IPG/Max	Cutting Thickness	1000W≤8mm 3000W≤20mm 6000W≤28mm
Work Mode	Single laser cutting(exchange table)	Repeatability	±0.02mm
Laser Power	10000W	Working Power	380V 50Hz/60Hz/60A
Work Area	2500*6000mm	Cooling	Intelligent constant temperature cooling and protection system
Max Running Speed	80m/min	Total Power	10KW
Max. Acceleration	1G	Running Temerature	0℃-40℃

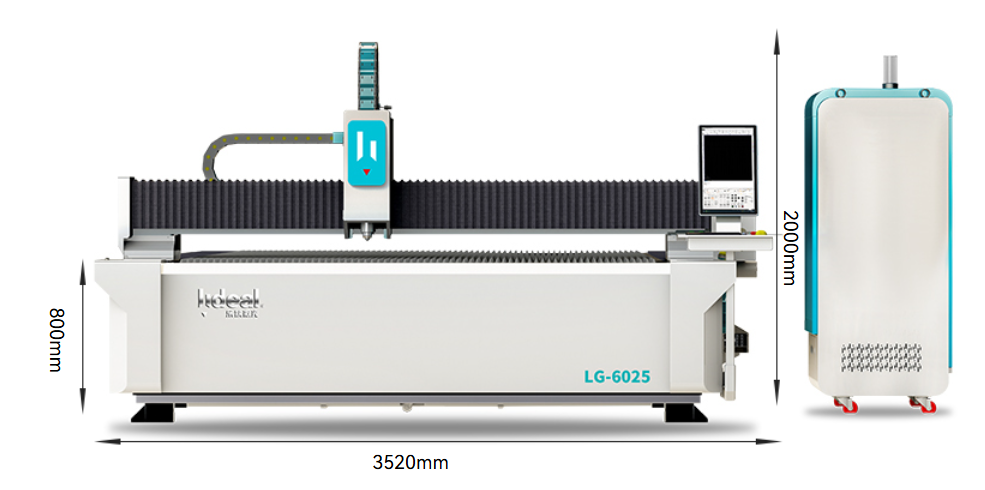

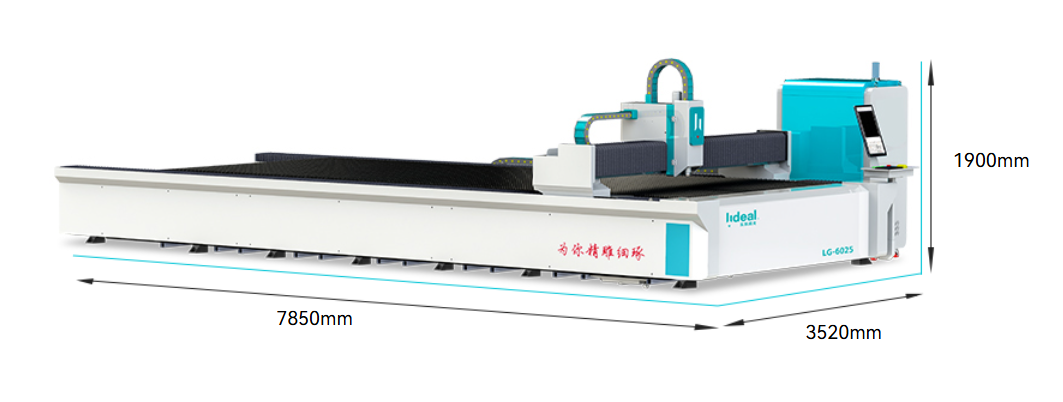

Cutting Line Width	0.1-1mm	Machine Size	352078501900

LG-3015 Exchange Table Machine Size：

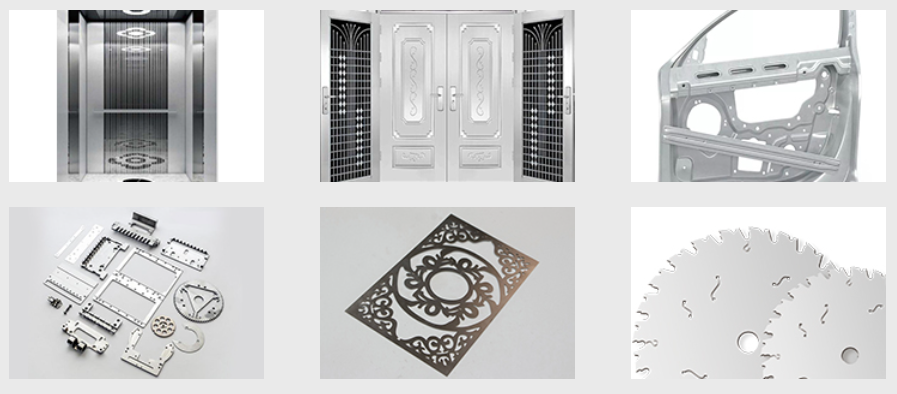

Suitable for cutting galvanized sheets, carbon steel, stainless steel, copper, aluminum and other metal sheets.

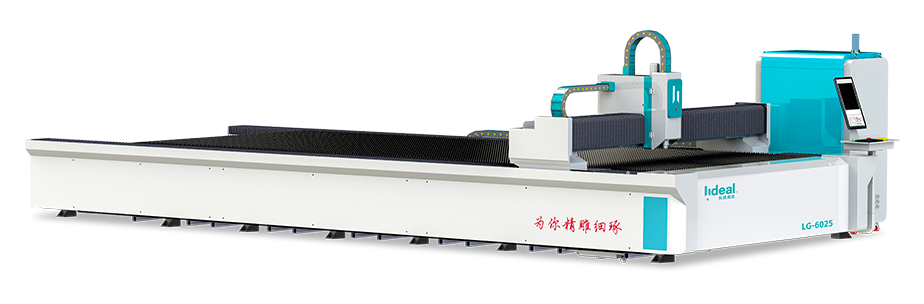

Linyi Ledi Laser 10000W Fiber Laser Cutting Machine LG-6025 (Linyi Ledi Laser 10000W LG-6025)
