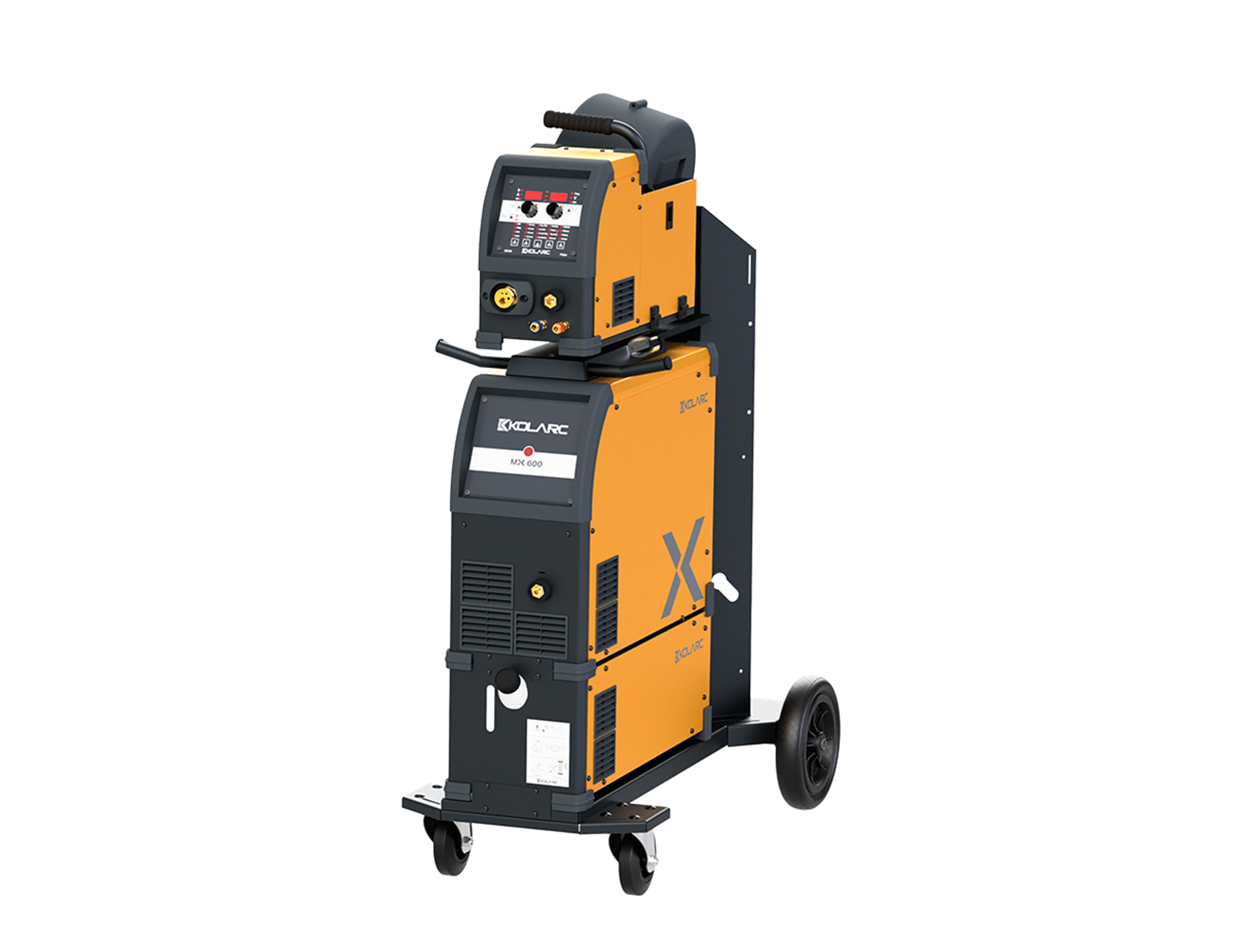

Kolarc MX 600 W Shipyard “You can obtain high quality welding outputs with optimized welding characteristics. Kolarc MX 600 W Shipyard reduces spatter by 30% and post-weld cleaning by 70% thanks to its highly stable arc control.
With its unique equipment, the MX600 Shipyard is easily and easily commissioned in just 10 minutes. The ergonomic buttons of the wire feeder can be operated effortlessly, even with welding gloves on.
Thanks to its effortless and easy-to-use steps, it saves your “valuable” working time in every field it is used.
In Kolarc MX 600 W Shipyard power units, the wire contacts the workpiece with a lower wire speed than the set one. Optimum ignition parameters are applied according to wire type, diameter and gas type. Provides an excellent arc start that reduces contact head waste and prevents spatter.
Kolarc MX 600 W Shipyard chamfer angle MX power supplies prevent caking at the wire end of the weld. The digital welding process arrangement ensures constant arc length penetration at different free wire distances. The wire actively adjusts the supply to keep the welding current constant in all situations.
Weld high quality with Kolarc MX 600 W Shipyard's stable arc control and precision ignition. Available as standard on all models. Minimizes spatter, reducing your need for finishing. Arc control can be optimized with optional welding programs.
Input Voltage
400 V
Mains Voltage Tolerance
-10 /+15 %
Minimum Welding Current
5 A
Maximum Welding Current
600 A
Duty Cycle, 40°C
600A / %60 MIG, 600A / %60 TIG, 600A / %60 MMA
500A / %100 MIG, 500A / %100 TIG, 500A / %100 MMA
Open – Circuit Voltage
75 V
Factory Delivered Roller Diameter
1.0 + 1.2 mm / Steel
Spool
D300
Dimentions (L, B, H)
Water Cold, W
532 mm x 1039 mm x 1346 mm
Weight
119 kg
