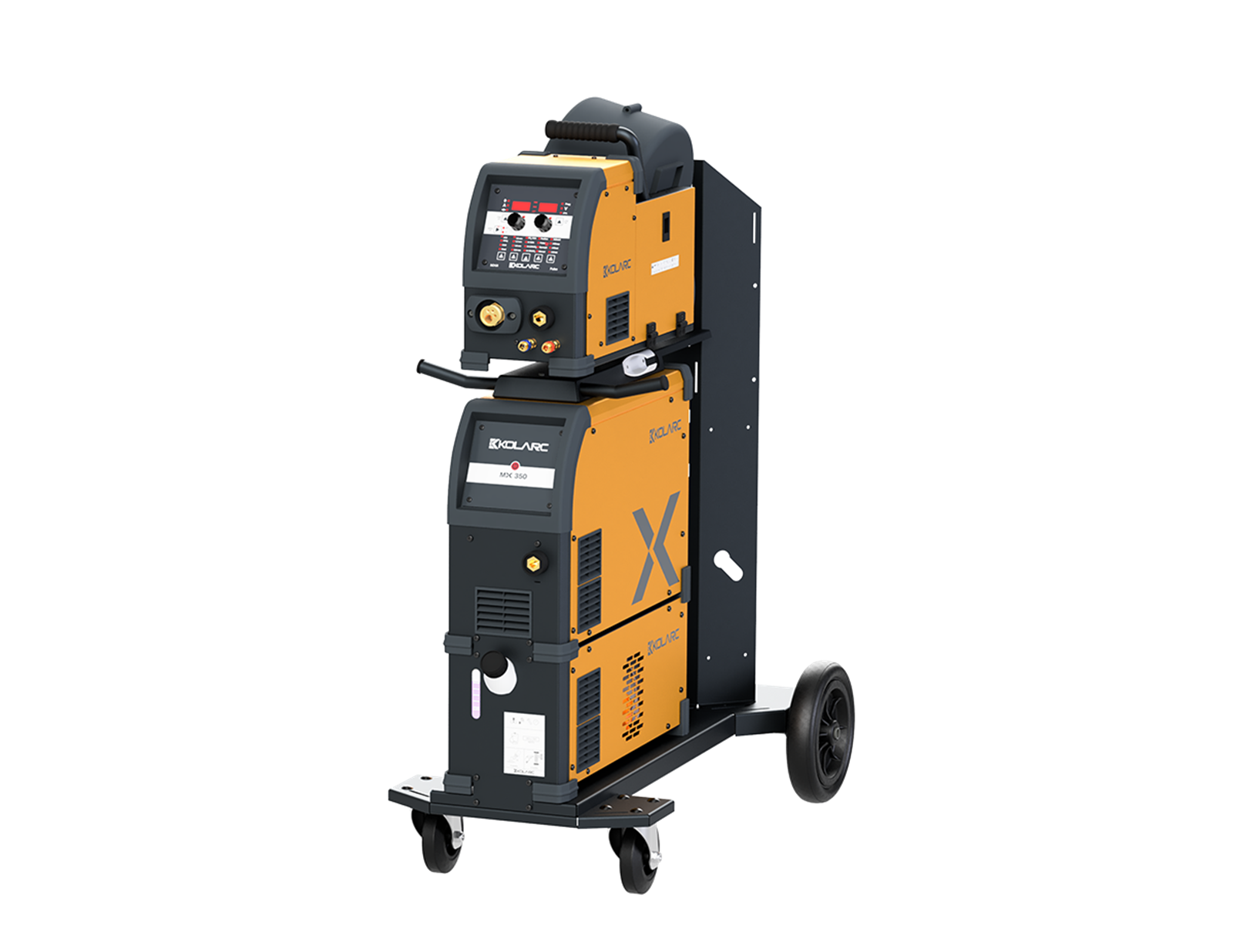

With Kolarc MX 350 W Pulse technology you can obtain high quality welding outputs without needing a transition arc that is difficult to control and causes burrs. At the same time, it eliminates spatter and perform cleaning after welding with its smart welding solutions.
Kolarc MX 350 W Pulse is easy and to adopt with its unique hardware within just 10 minutes The ergonomic buttons of the wire feeder can be operated effortlessly even with welding gloves on.
Thanks to its effortless and easy-to-use steps, which provides savings in your “valuable” working time in every area where it is used.
In Kolarc MX 350 W Pulse power units, the wire touches the workpiece with a lower wire speed than it is set. Optimum ignition parameters are applied according to wire type, diameter and gas type. It provides a perfect arc start that reduces contact nozzle wastage, preventing spatter.
Kolarc MX 350 W Pulse chamfer angle MX power sources prevent lumps at the wire end of the weld. Digital welding process regulation ensures constant arc length penetration at different free wire distance. The wire actively adjusts the feed to keep the source current constant in all cases.
Make high-quality welding with Kolarc MX 350 Pulse’s stable arc control and precision ignition. Available as standard in all models. Minimizes the spatter, reducing your need for finishing. Arc control can be optimized with optional source programs.
Input Voltage
400 V
Mains Voltage Tolerance
-10 /+15 %
Minimum Welding Current
5 A
Maximum Welding Current
350 A
Duty Cycle, 40°C
350A / %60 MIG, 350A / %60 TIG, 350A / %60 MMA
300A / %100 MIG, 300A / %100 TIG, 300A / %100 MMA
Open – Circuit Voltage
75 V
Factory Delivered Roller Diameter
1.0 + 1.2 mm / Steel
Spool
D300
Dimentions (L, B, H)
Water Cold, W
532 mm x 1040 mm x 1250 mm
Weight
67.35 kg
