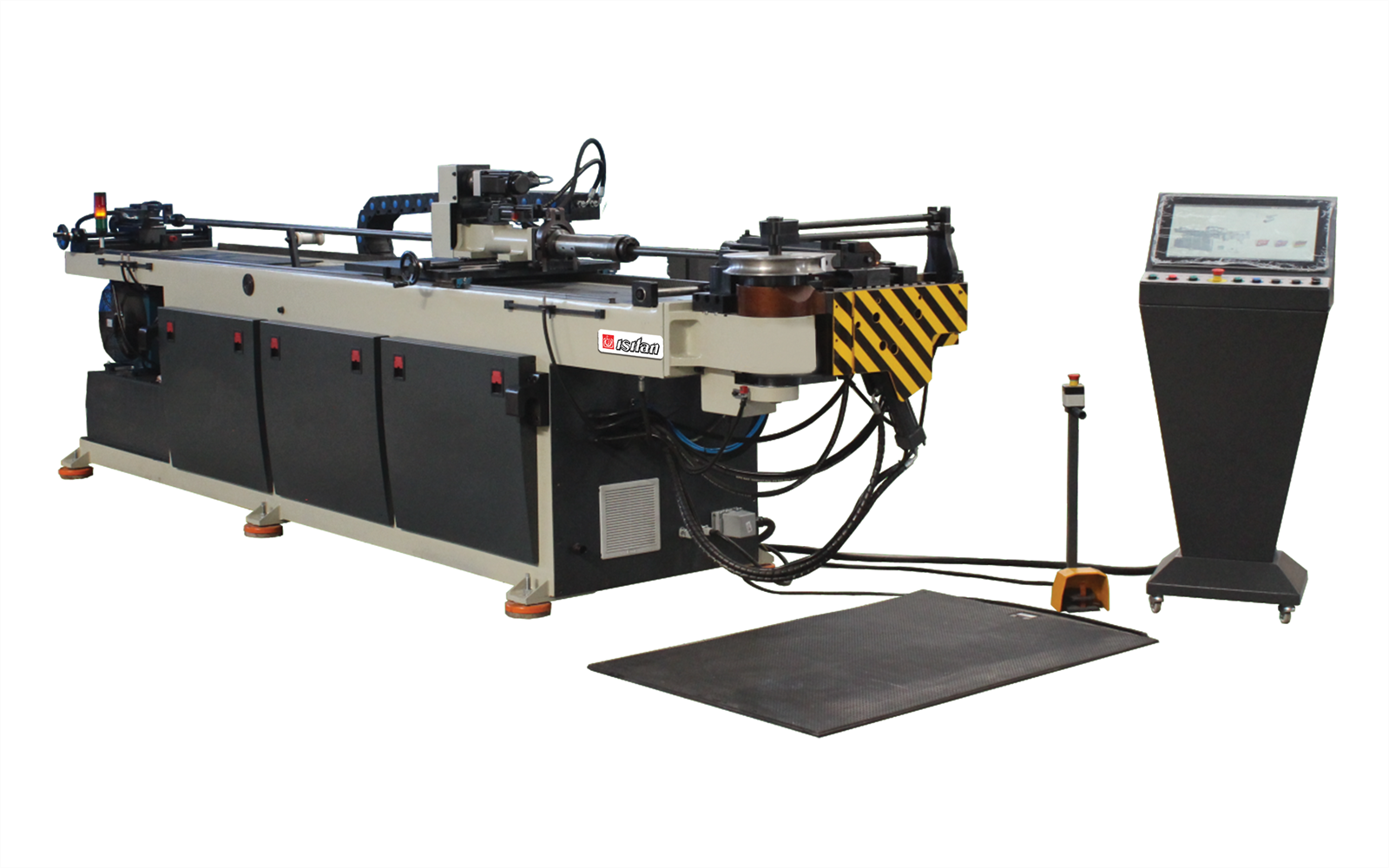

Isitan SFB CNC 65 R1 Cnc Controlled Pipe Bending Machines With Mandrel (SFB CNC 65 R1)

1 Set Bending Die in requested size
CNC Control Unit
Mobile Control Panel and Foot Pedal with Emergency Stop Button
17" Touchscreen
Convertable from X,Y,Z and R values to Y,B,C
3D Bending Simulation
Calculating the necessary estimated pipe length
Bending time is shown on screen for each part
Daily/Weekly/Monthly Total Working Status Reports
Online Support and Remote Control
Servo Motorized Feeding Axis
Servo Motorized Rotation Axis
Electric Motorized Bending Axis with Reducer
Manual (step by step) and Automatic Bending Mode Features
Mandrel and Non-mandrel Bending Mode Features
Limitless Bending Feature on Non-mandrel Bending Mode
Automatic Mandrel Lubrication System
5 Hydraulic Piston
Hydraulic Clamping
Hydraulic Support
Hydraulic Slider
Hydraulic Mandrel
Hydraulic Collet
Hydraulic Oil Cooler
Electric Panel Cooler Fan
Safety plate on front and back of bending arm
Electrical panel safety lock and panel lock with key
Overload Protection System
CE Certificated


Extra Die Set in requested size
Servo Motorized Bending Axis
Safety Mat (750 x 1000mm)
Safety Mat (1000 x 1500mm)
Centralized Lubrication System
Hydraulic Oil Heater
Extra Mandrel Length (for each mt.)
Flexiable Mandrel
Wiper attachment

MODEL	SFB CNC 65 R1
Max. Capacity	Ø65x4mm	mm
Maximum Bending Radius	250	mm
Degree of Bend	190	°
Max. operating pressure	50-220	bar
Working Length	3000	mm
Rotation Tolerance	0.1	+/-
Bending Speed	D / V	(mm/s)
Motor power	15,5	kw
Machine dimensions LxWxH	4950x1250x1600	mm
