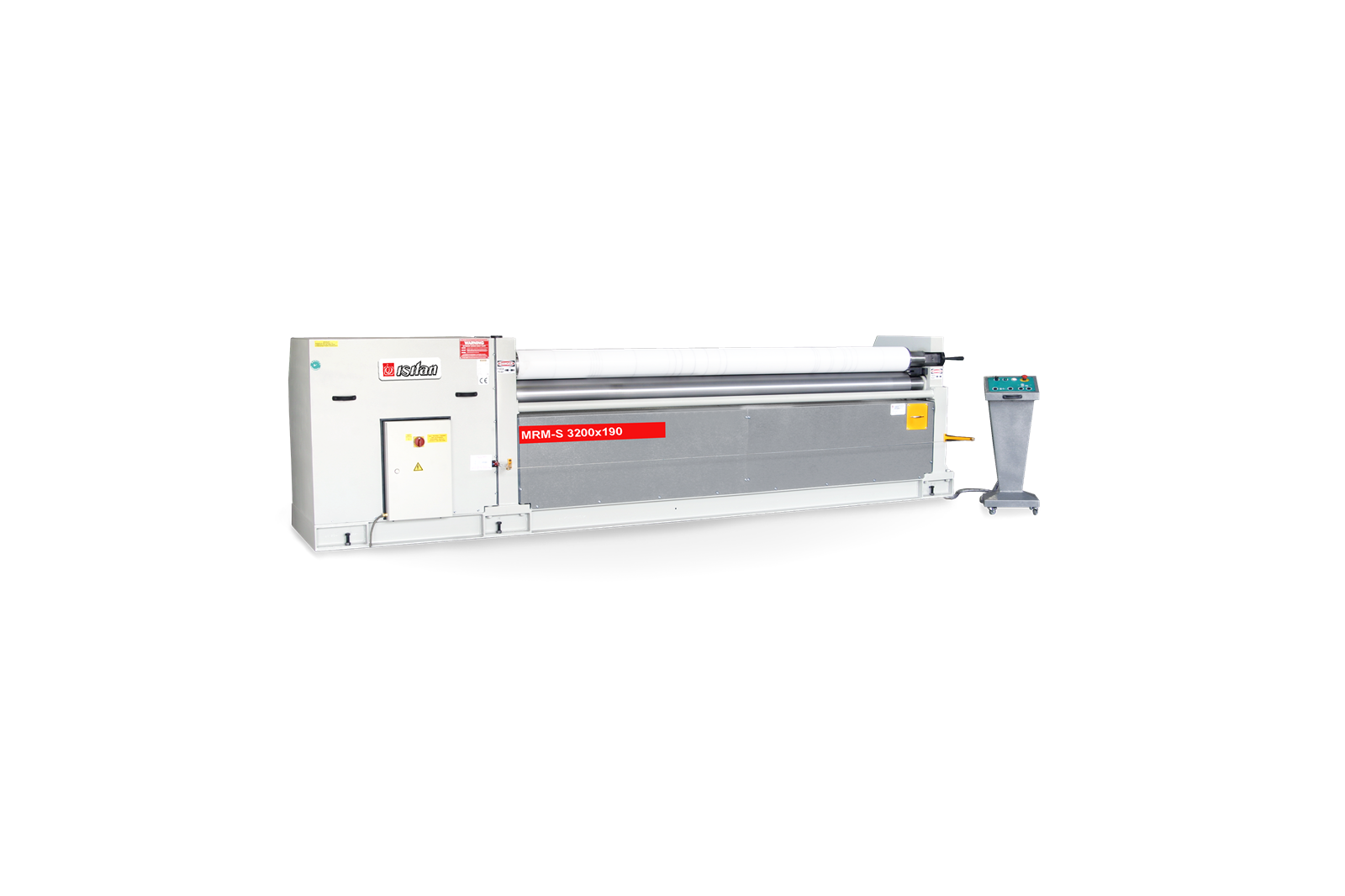

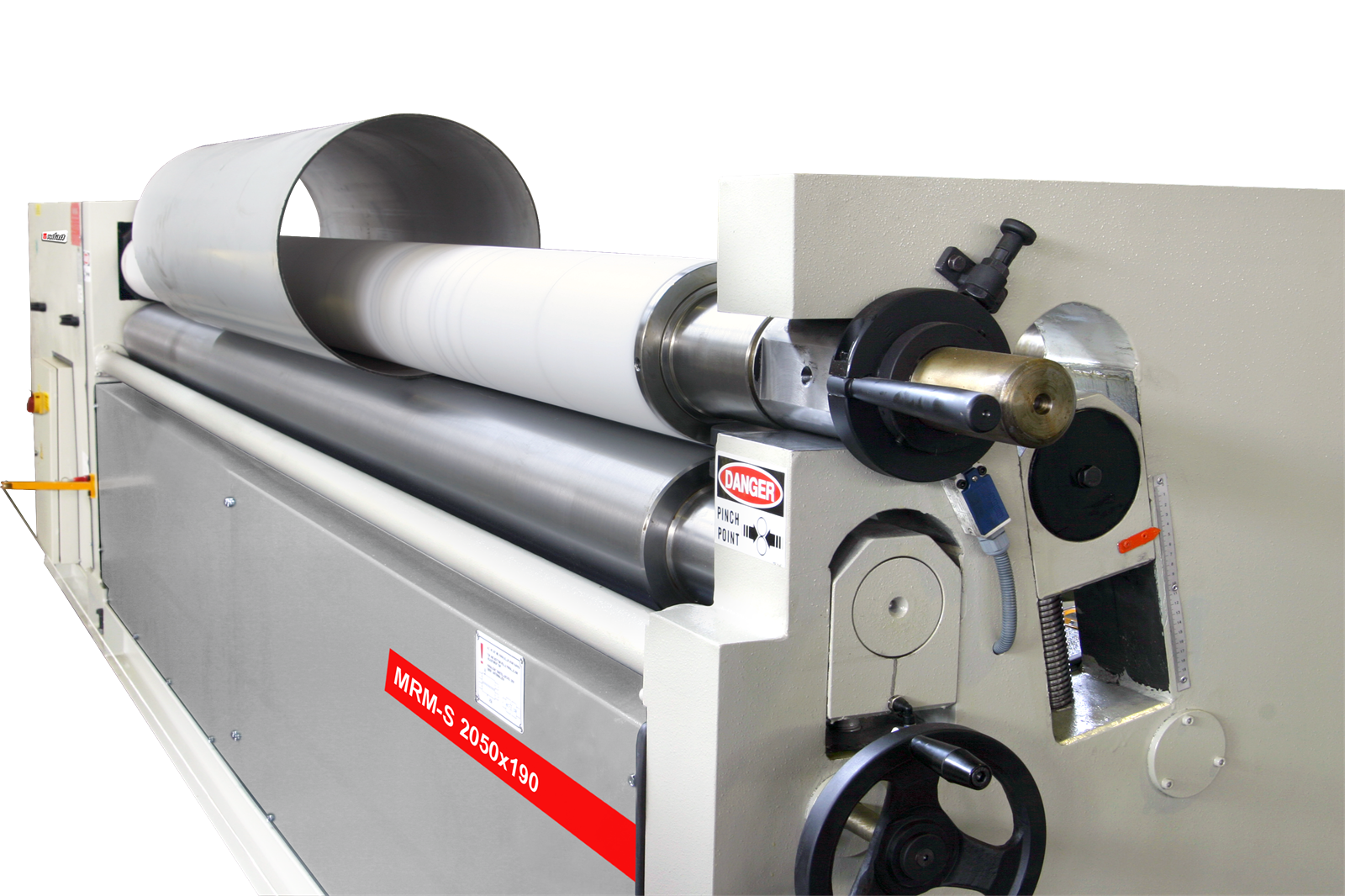

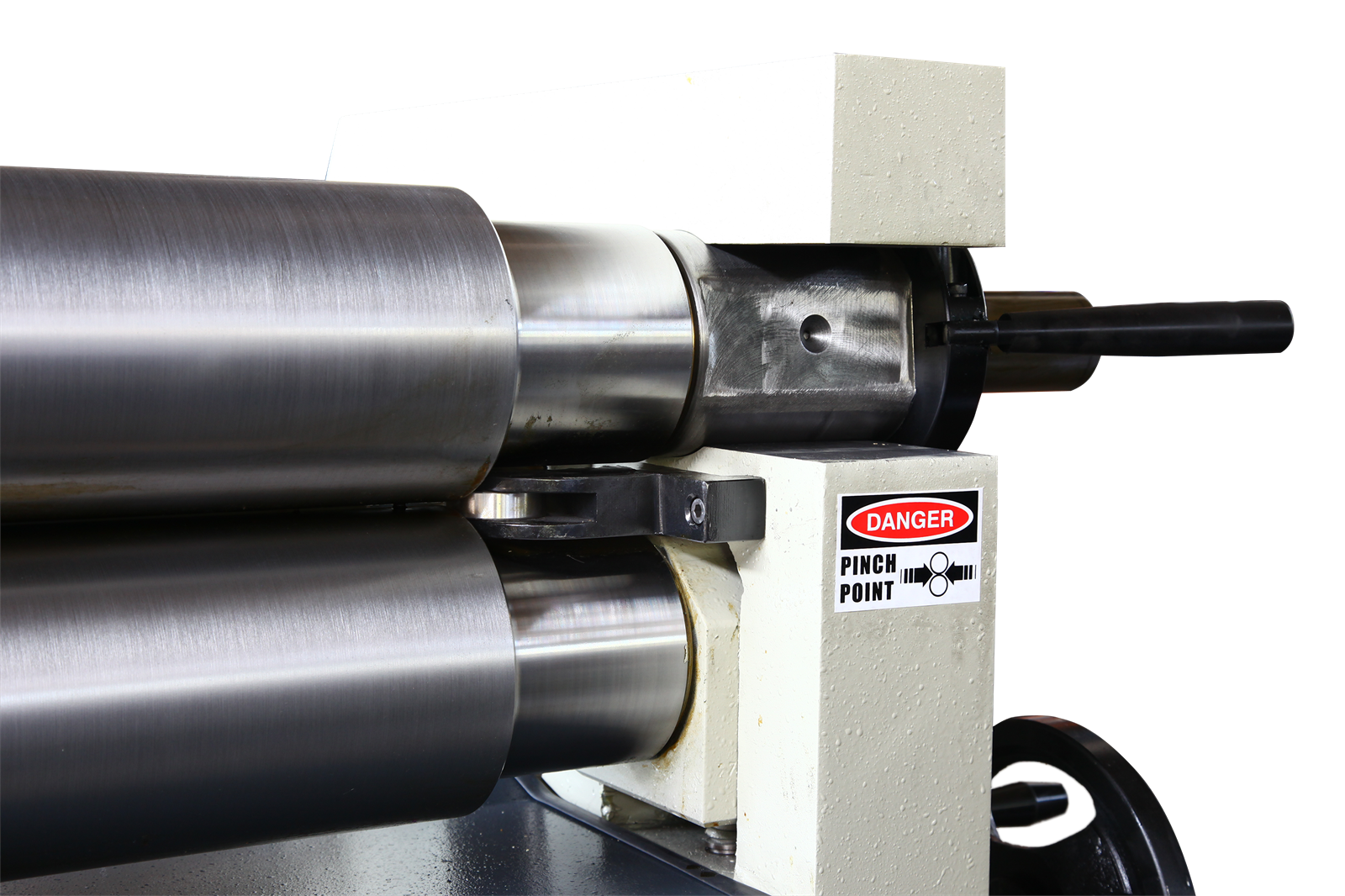

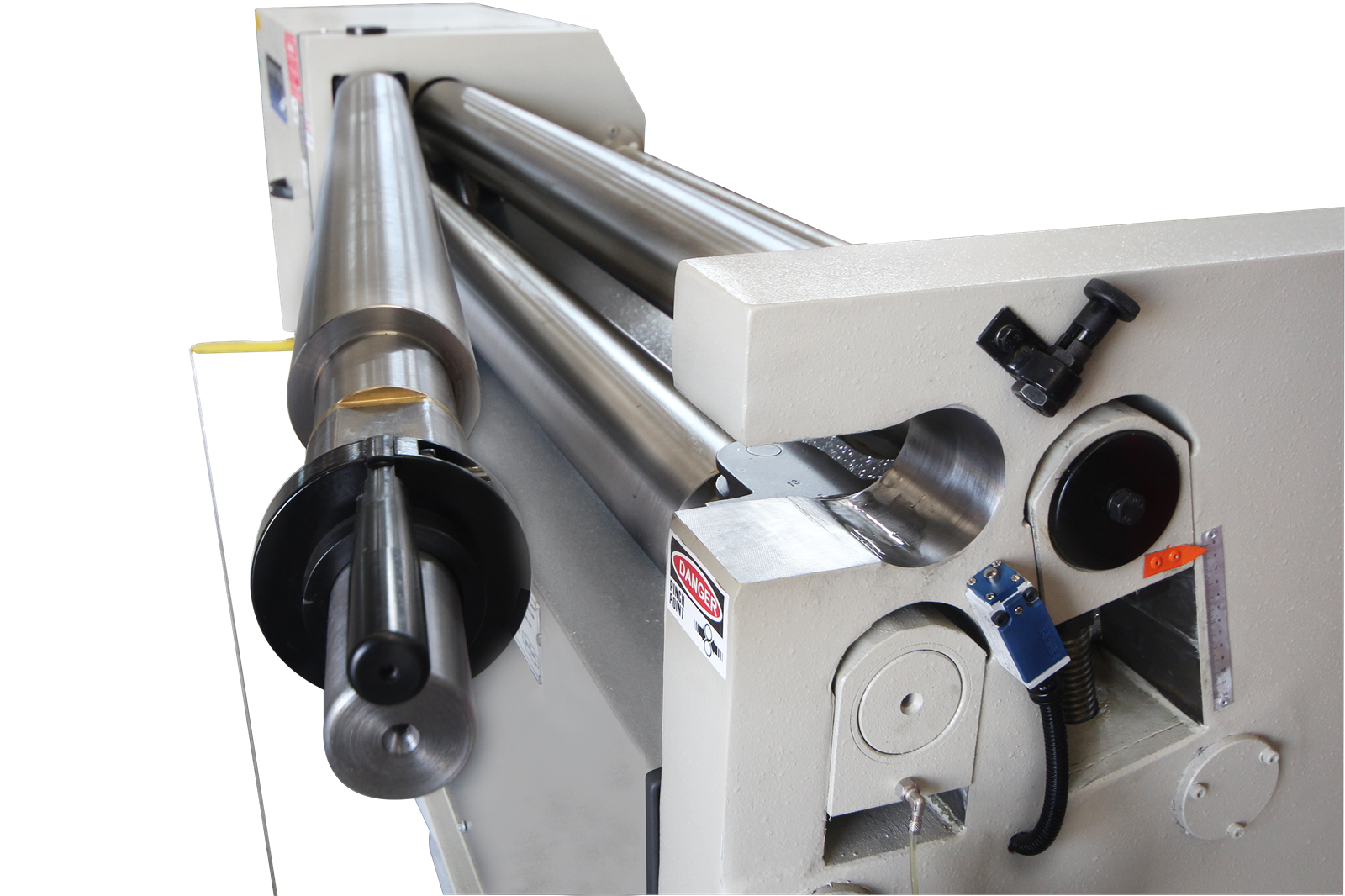

Isitan MRM-S 3050x220 Motorized 3Rolls Plate Bending Machine (MRM-S 3050x220)

Overload Protection

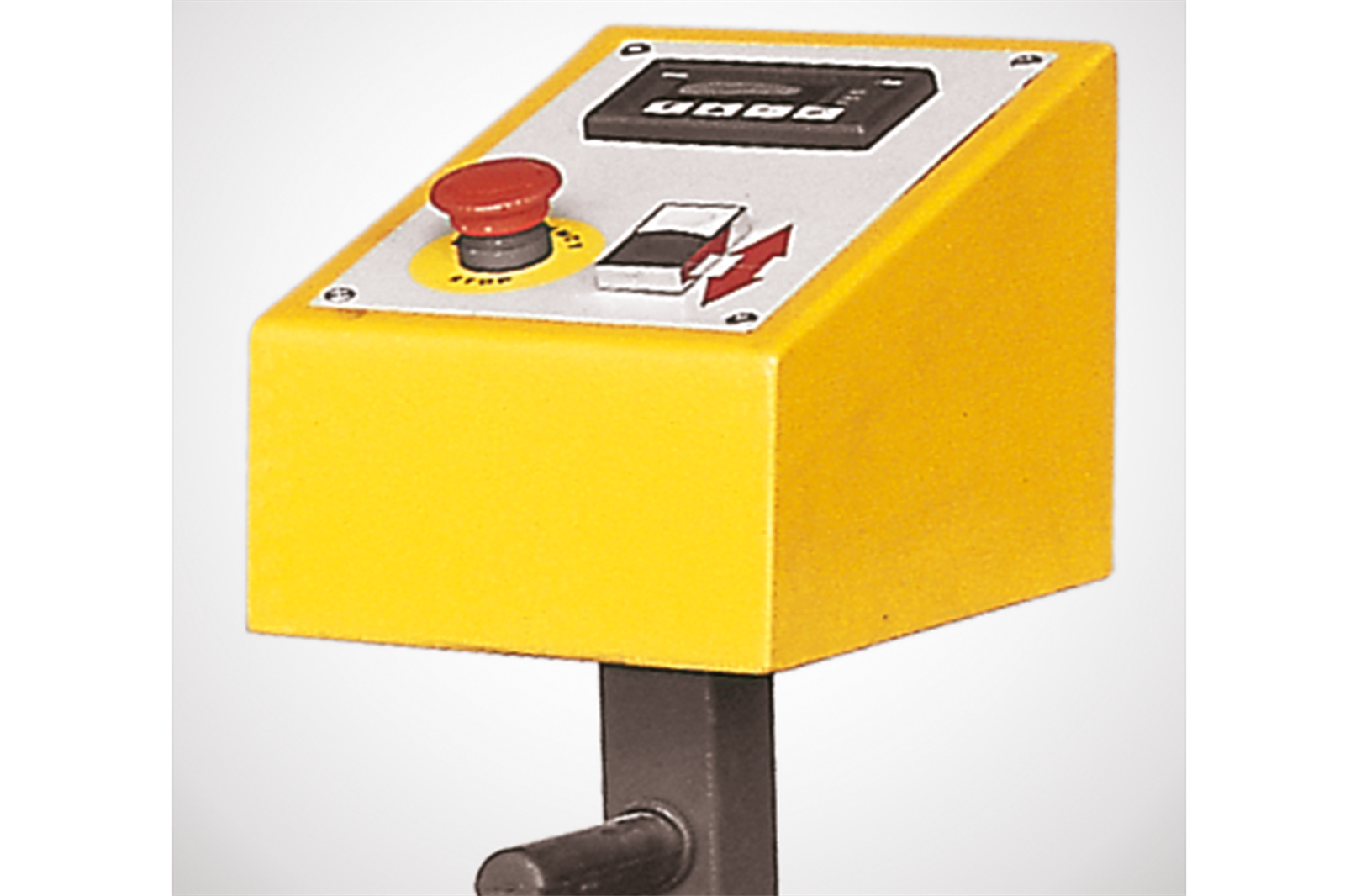

Easy operation with mobile control panel with push buttons
Welded steel frames
Conical bending device
Very suitable for light and medium plates, aluminum or stainless steel
Built according to EC Safety Directives and has CE Mark
Manual Drop-End for easy removal of finished ferrule
Hot rolled SAE 1050 (CK 45) Steel Rolls
Central lubrication system
Main motor with Brake System
On 170-220mm Roll Models Two rolls powered by Planetary reducer and on others with a single chain and belt driven Helical Type Gearbox and gear system
Conical Bending Device
Precision Bending with Brake Motor
Motorised Adjustment of Back Roll
SAE 1050 Quality Certificated Steel Rolls with high tensile strength

Automation with NC Control
Induction hardened rolls (HRC58-60)

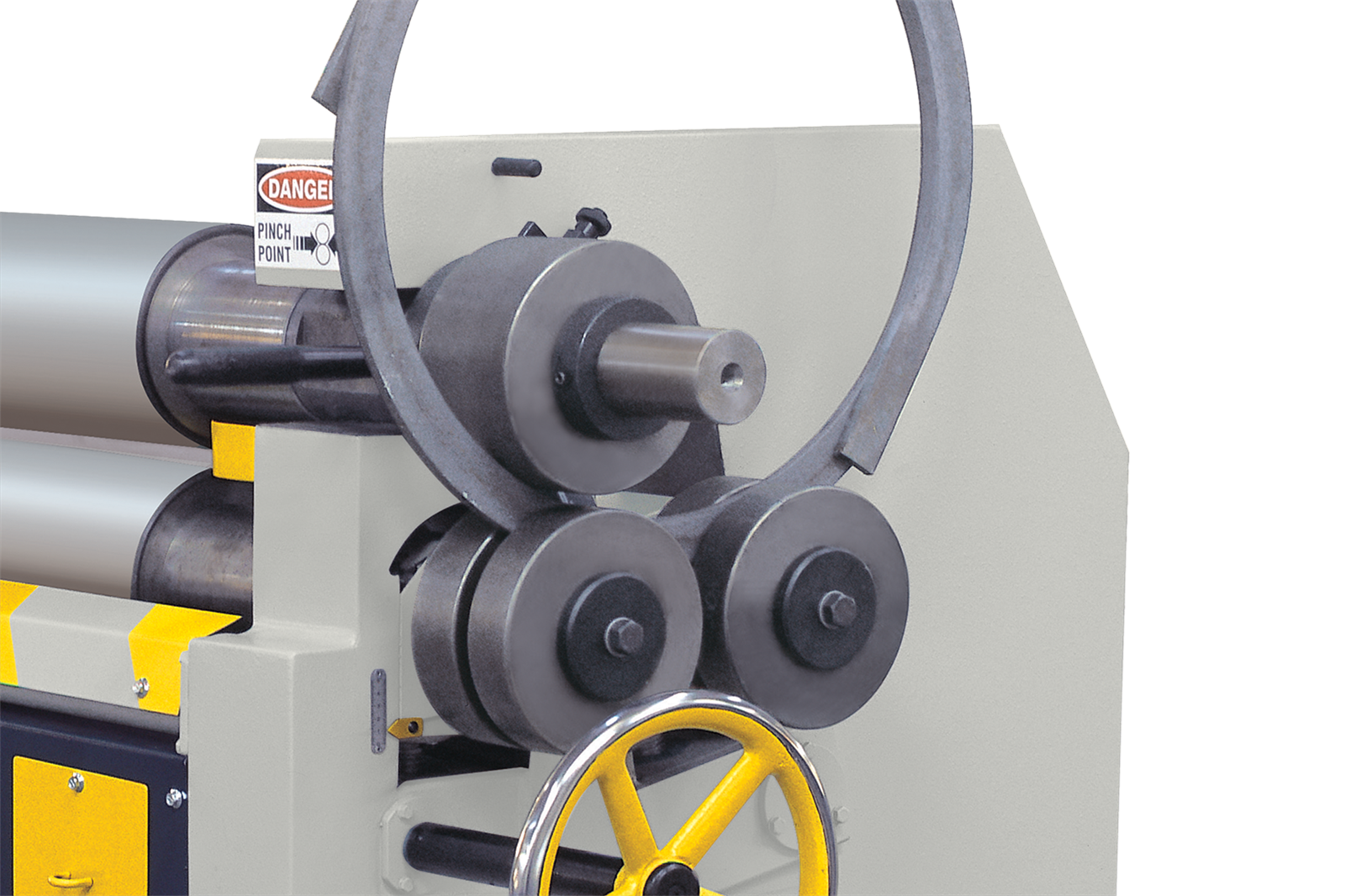

Optional Profile-Flat Bar Bending Rolls
Wire grooves on roll ends
Digital Read-Out for Rear (back) Roll
Motorised bottom roll
Plastic coated top roll for Alucobond bending
Optional extended roll and section bending rolls set
SPECIAL MODEL FOR COMPOSIT PANEL BENDING WITH SEGMENTED PLASTIC RINGS

MODEL	MRM-S 3050x220
Usefull length	3050	mm
Prebending capacity	4 / 5	mm
Bending capacity	5 / 6	mm
Top and Bottom roll dia	220	mm
Min. bending dia	330	mm
Motor power	5,5	kw
Back Roll Motor power	2,2	kw
Length	5200	mm
Width	1150	mm
Height	1400	mm
Weight	6000	kg
