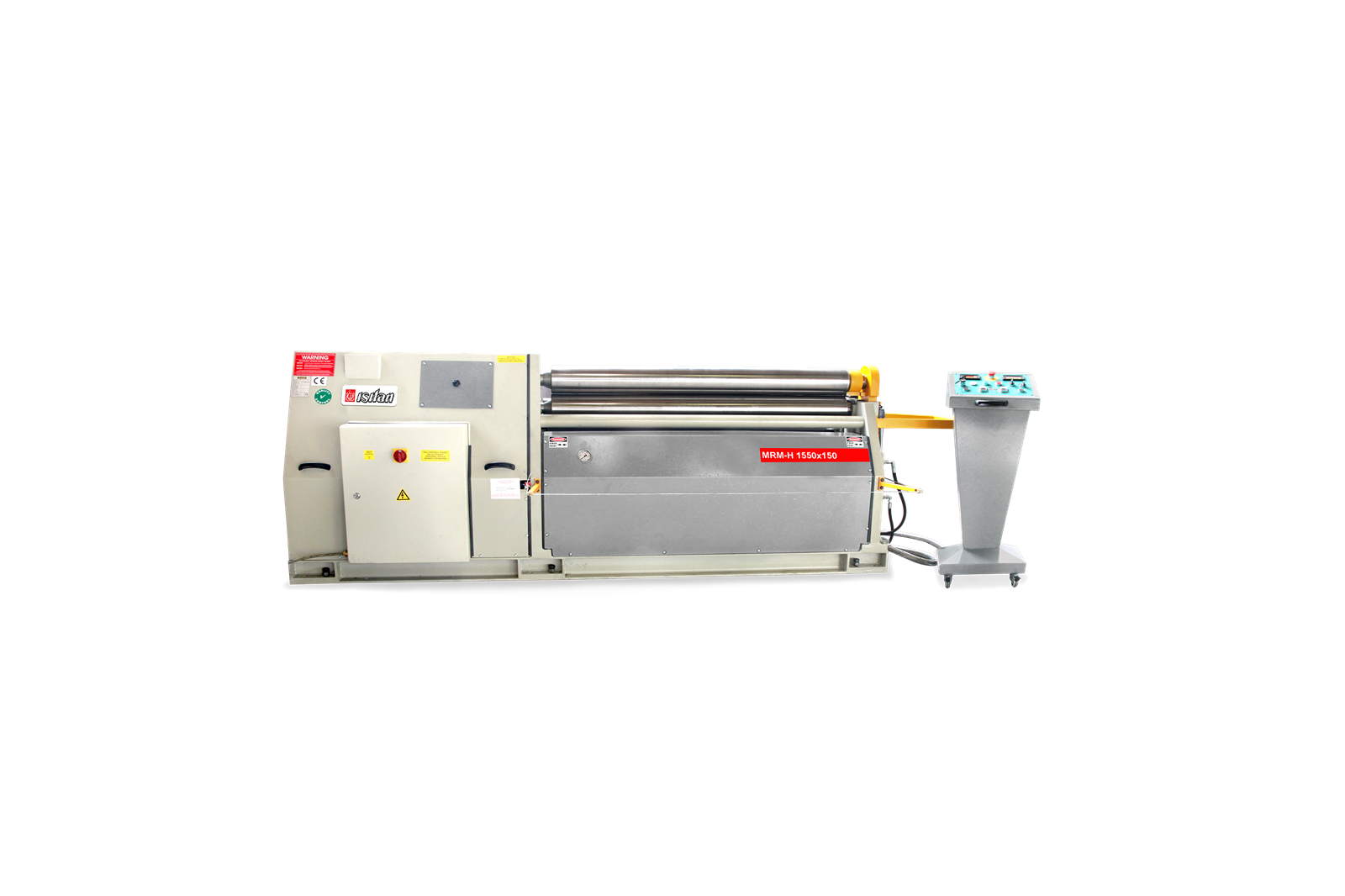

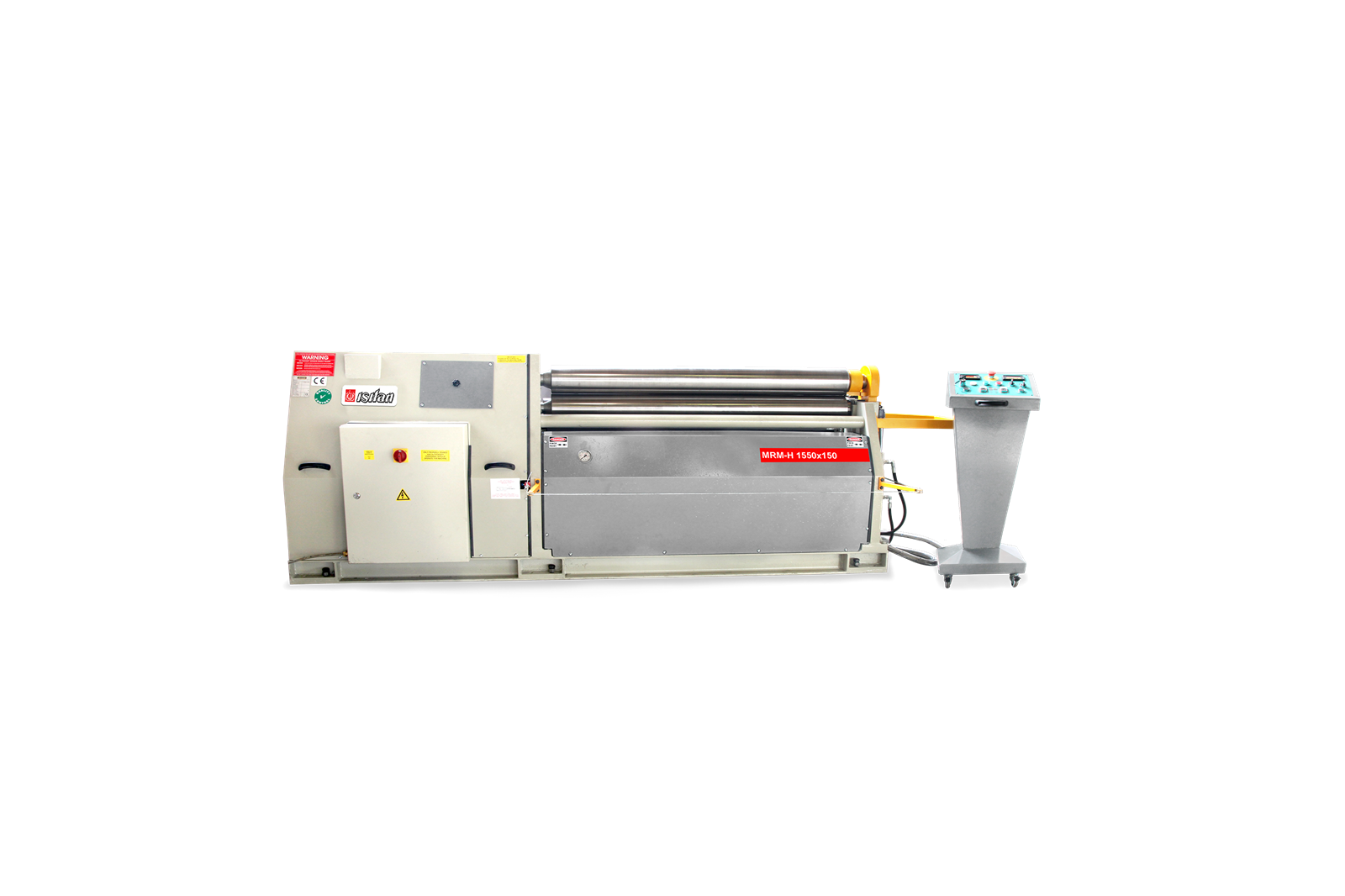

Isitan MRM-H 2050x150 Hydraulic 3 Roll Plate Rolling Machines (MRM-H 2050x150)

Overload Protection
Hydraulic Drop-End for easy removal of finished ferrule.
Easy operation with mobile control panel with push buttons
Welded steel frames
Conical bending device
Hydraulic balancing system
Very suitable for light and medium plates,aluminum or stainless steel
Top roll is powered by electrical motor and planetary gearbox. Bottom roll powered with cardan joint system.
Induction hardened forged or rolled SAE 1050 (CK 45) Steel Rolls
Built according to EC Safety Directives and has CE Mark
Hot rolled SAE 1050 (CK 45) Steel Rolls
Lateral rolls move linear way with hydraulic pistons
Conical bending device with ball bearing
Motor Powered centralised Rolls
Hydraulic movement of Back Roll and bottom roll
Main motor with Brake System
Conical Bending, PreBending available
Planetary Gearbox two rolls driven
Back Roll with Ball Bearings for thin sheet Works
SAE 1050 (CK45) certificated forget steel rolls with high tensile strength
Hardened rolls
2 pcs. Digital Read-Outs
SAE 1050 Quality Certificated Steel Rolls with high tensile strength

Automation with NC Control
Hydraulic Overhead Crane for large diameters
Hydraulic Lateral Side Supports for large diameters
Ground and polished rolls
Infinitively Variable Speed
Double speed system
Hydromotor for rotation
Wire grooves on roll ends

MODEL	MRM-H 2050x150
Usefull length	2050	mm
Prebending capacity	3/4	mm(x1.5 / x5)
Bending capacity	4/6	mm (x1.5 / x5)
Top and Bottom roll dia	150	mm
Lateral roll dia	130	mm
Min. bending dia	225 / 750	mm (x1.5 / x5)
Motor power	2,2+1,1	kw
Working speed	6	m / min. (dk.)
Length	3800	mm
Width	950	mm
Height	1110	mm
Weight	2250	kg
