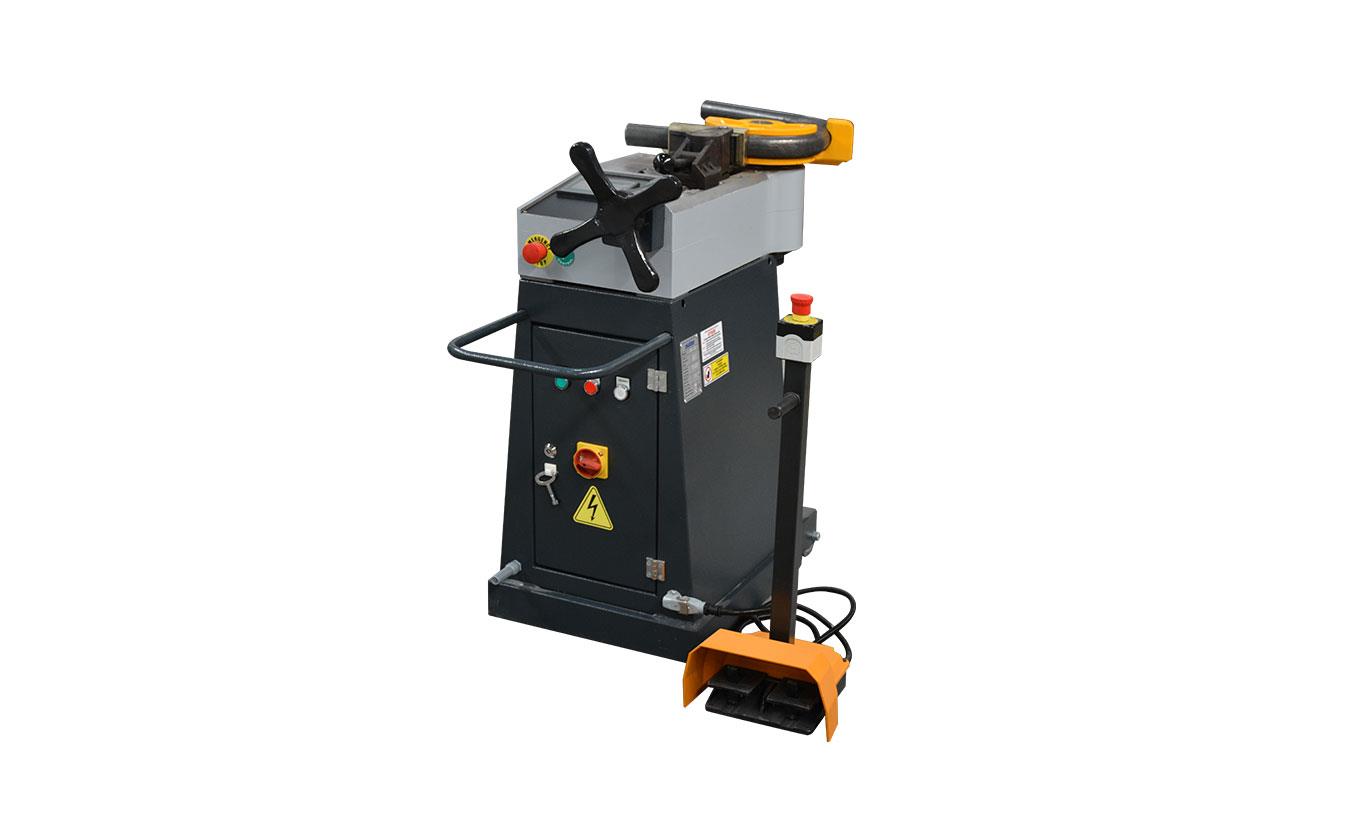

Isitan BK 030(76) Rotary Draw Bender (BK 030(76))

Mild steel tube capacity 76x5mm
Bend to CLR as small as 2xØ
Touch screen control icon menu for easy access to auto and manual operating modes, programming (inch or metric), system diagnostics and multiple language capability
Quick-change tooling system with multiple radius avaliable
Digital display of bend angle and bend speed
Bend any angle to 180° with independent material springback and speed compensation for each bend
Foot pedal control of bend and return functions
Swing away counterbending die vise for easy material handling
Counterbending die viseposition monitored electronically for accuracy and repeatability
Heavy-duty steel gear case, right or left bend capable
Silend operation

MODEL	BK 030(76)
Min-Max Tube Capacity	Ø10-76 (1/8"-2 1/2")
Min-Maks. Radius	36-380	mm
Degree of Bend	--
Bending Speed	2,2	dak-dev./rpm
Dimensions LxWxH	1-2	mm
Weight	680x900x370	kg
Power	500	kw
