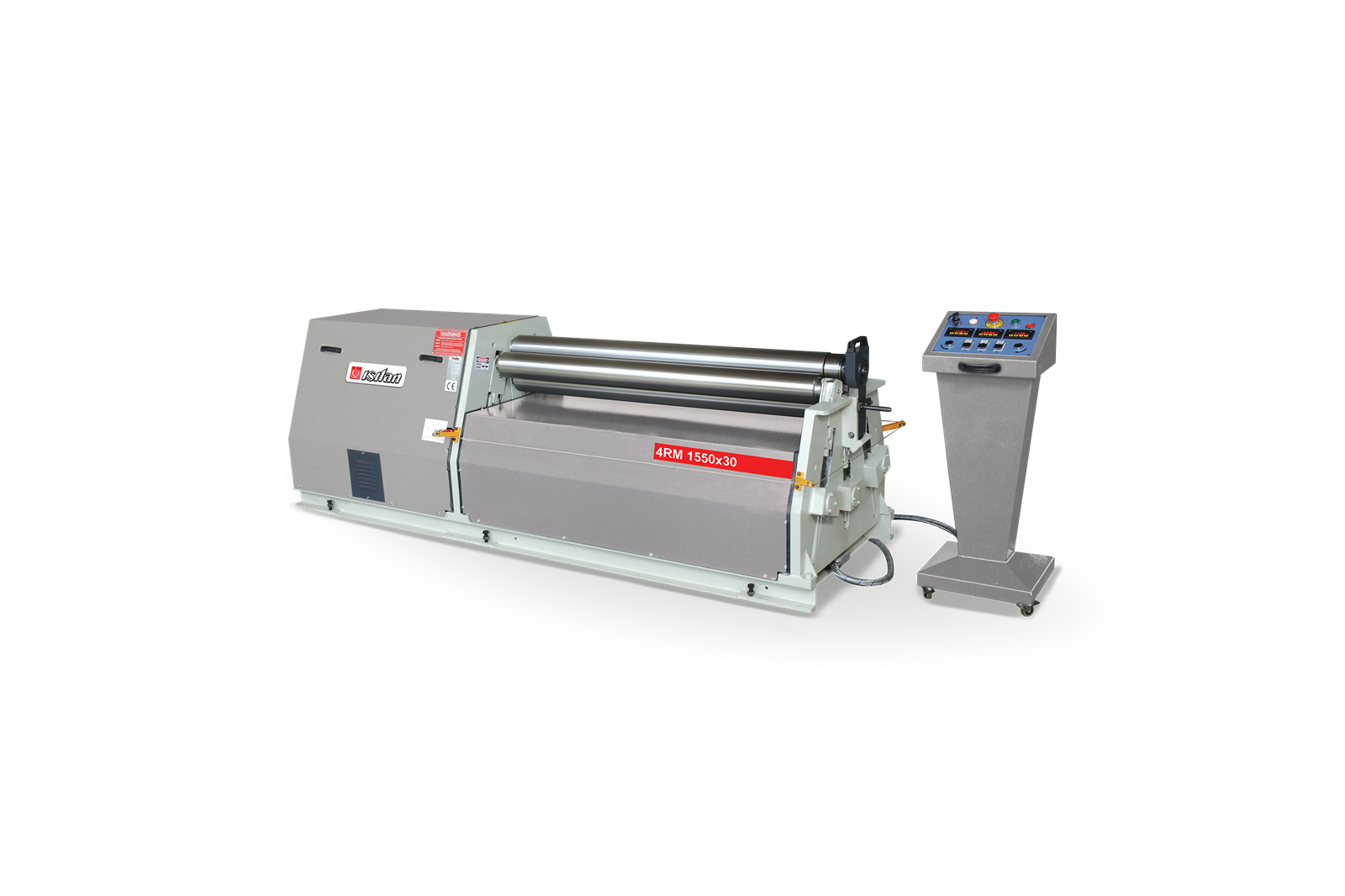

Isitan 4RM 20-130 Motorized 4 Roll Plate Rolling Machines (4RM 20-130)

Overload Protection
Hydraulic Drop-End for easy removal of finished ferrule.
Easy operation with mobile control panel with push buttons
Welded steel frames
Induction hardened forged or rolled SAE 1050 (CK 45) Steel Rolls
Built according to EC Safety Directives and has CE Mark
Very economical four roll machines
Pinch Roll and Lateral Rolls move with motor and screw jacks in linear movement
Top and bottom roll is powered by electrical motor with gearbox
Manual Drop-End for easy removal of finished ferrule
Very suitable for light plates, aluminum or stainless steel
Hot rolled SAE 1050 (CK 45) Steel Rolls
Main motor with Brake System
SAE 1050 Quality Certificated Steel Rolls with high tensile strength

Automation with NC Control
Hydraulic Overhead Crane for large diameters
Hydraulic Lateral Side Supports for large diameters
Ground and polished rolls
Infinitively Variable Speed
Double speed system
Digital ReadOuts (3 pcs.)
Induction hardened rolls (HRC58-60)

MODEL	4RM 20-130
Usefull length	2050	mm
Prebending capacity	2 / 3	mm(x1.5 / x5)
Bending capacity	3 / 4	mm (x1.5 / x5)
Top and Bottom roll dia	130	mm
Lateral roll dia	110	mm
Min. bending dia	195 / 650	mm (x1.5 / x5)
Motor power	2,2+(3x0,75)	kw
Working speed	5	m / min. (dk.)
Length	3500	mm
Width	900	mm
Height	850	mm
Weight	1900	kg
