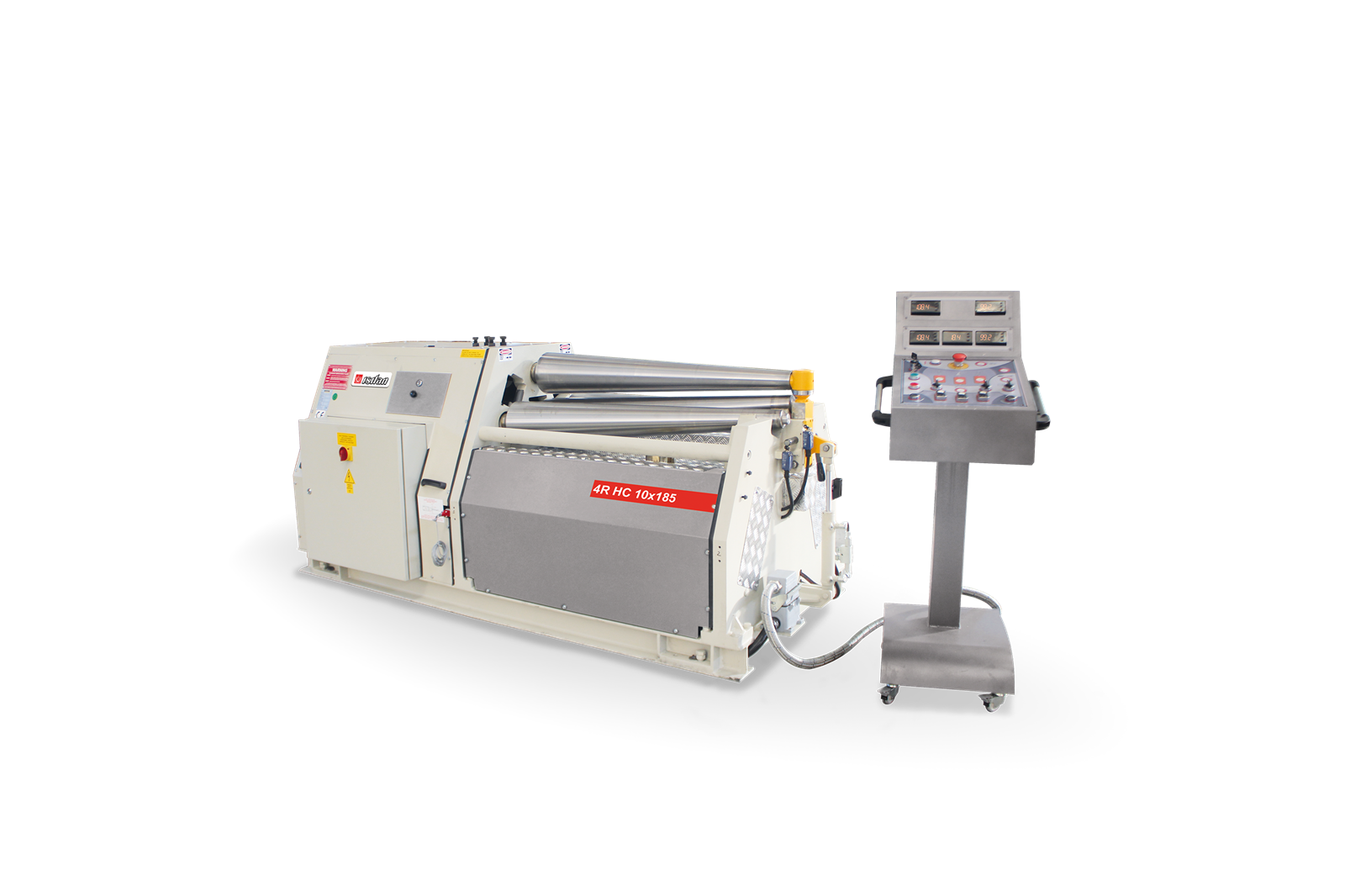

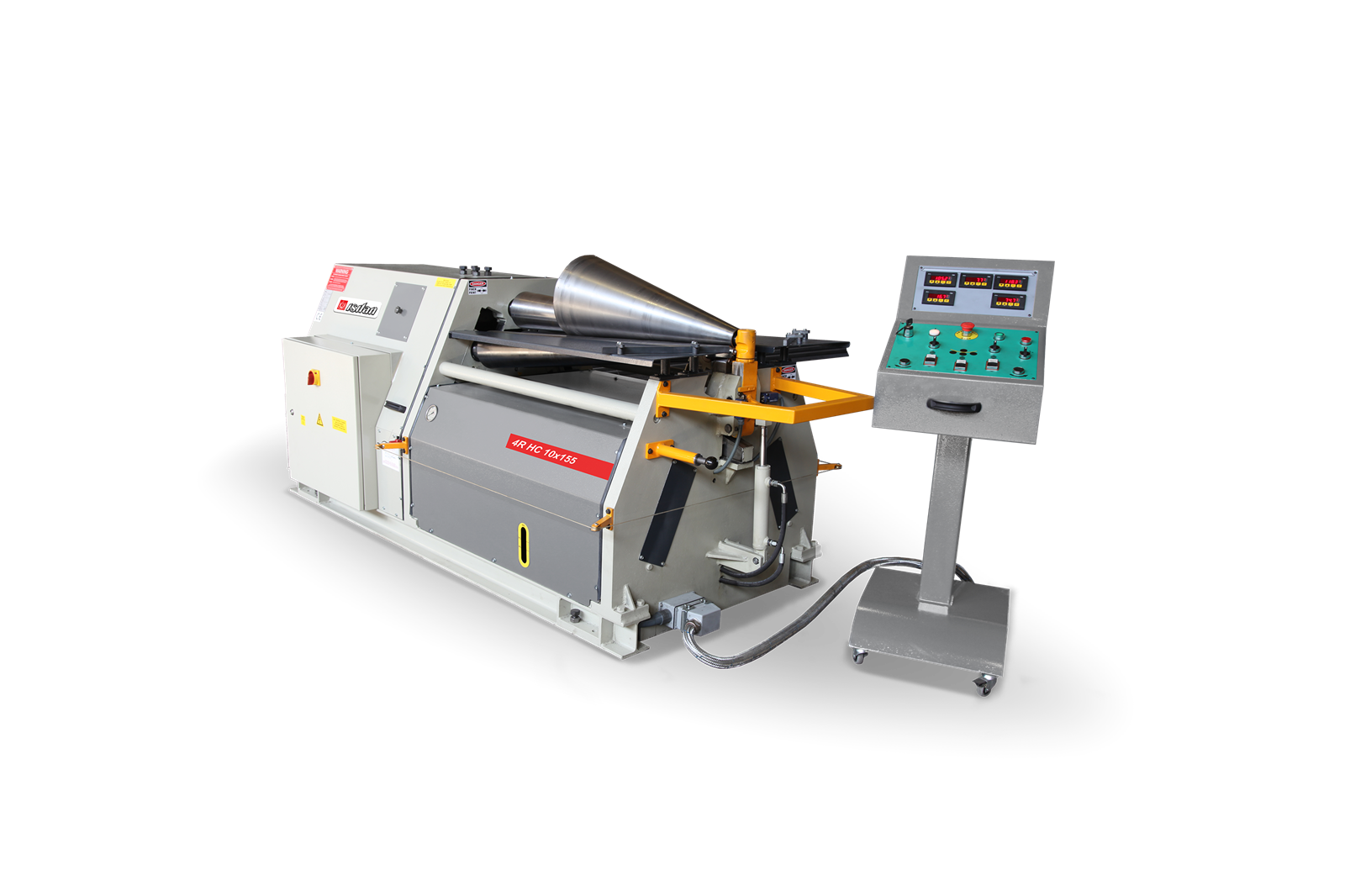

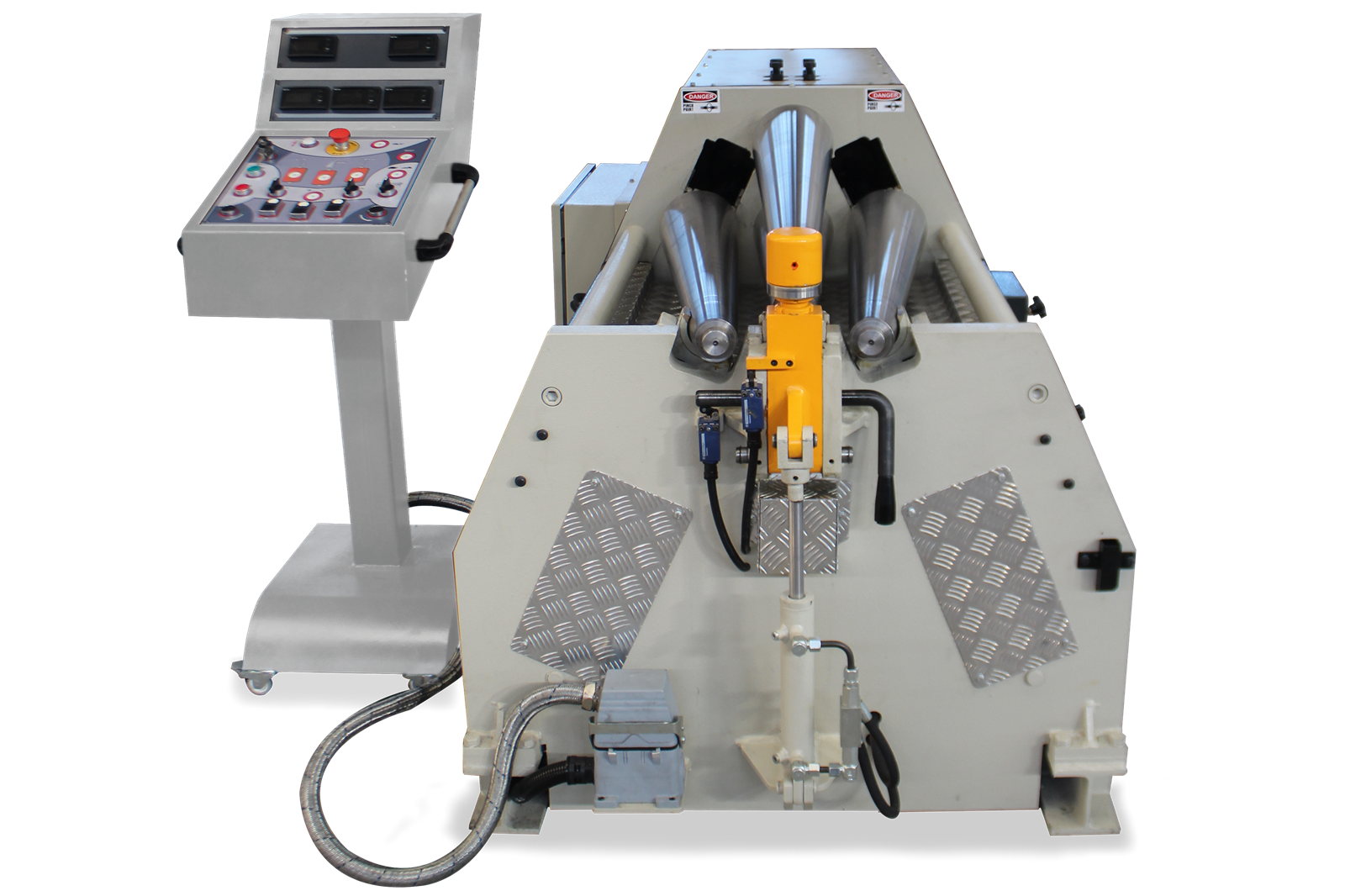

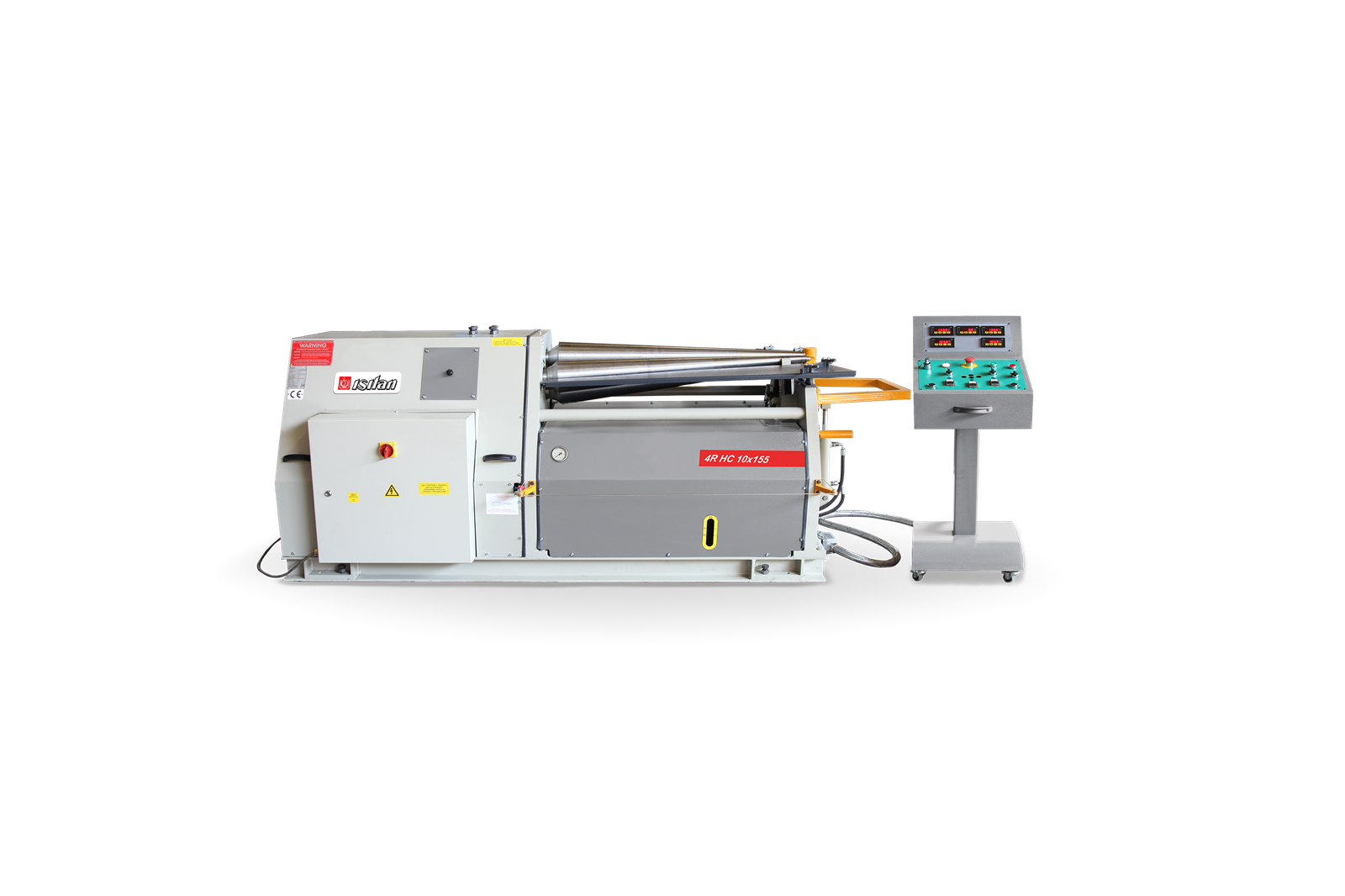

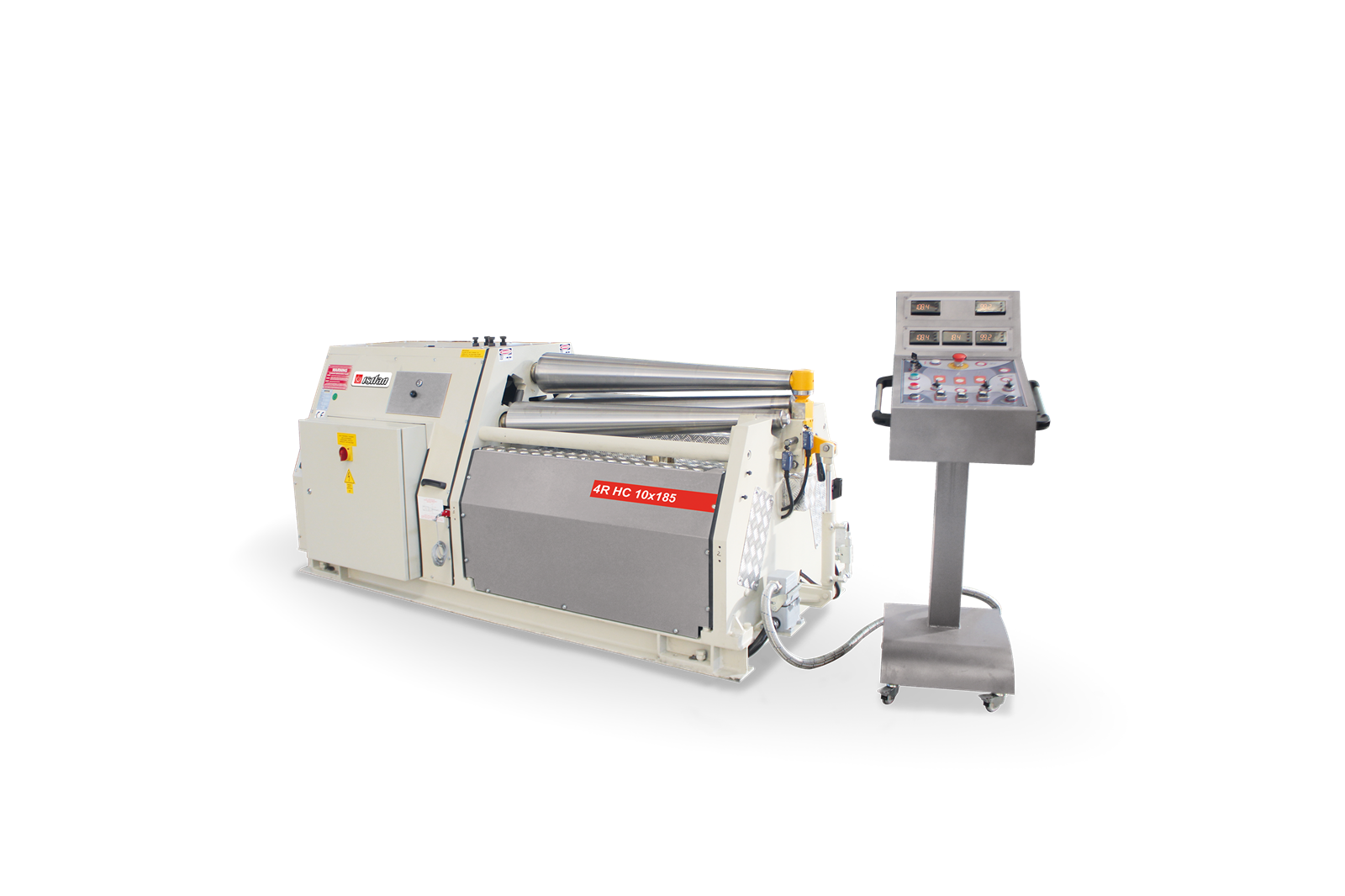

Isitan 4RHC 10-185 Hydraulic 4 Rolls Conical Bending Machines (4RHC 10-185)

Overload Protection
Hydraulic Drop-End for easy removal of finished ferrule.
Easy operation with mobile control panel with push buttons
Welded steel frames

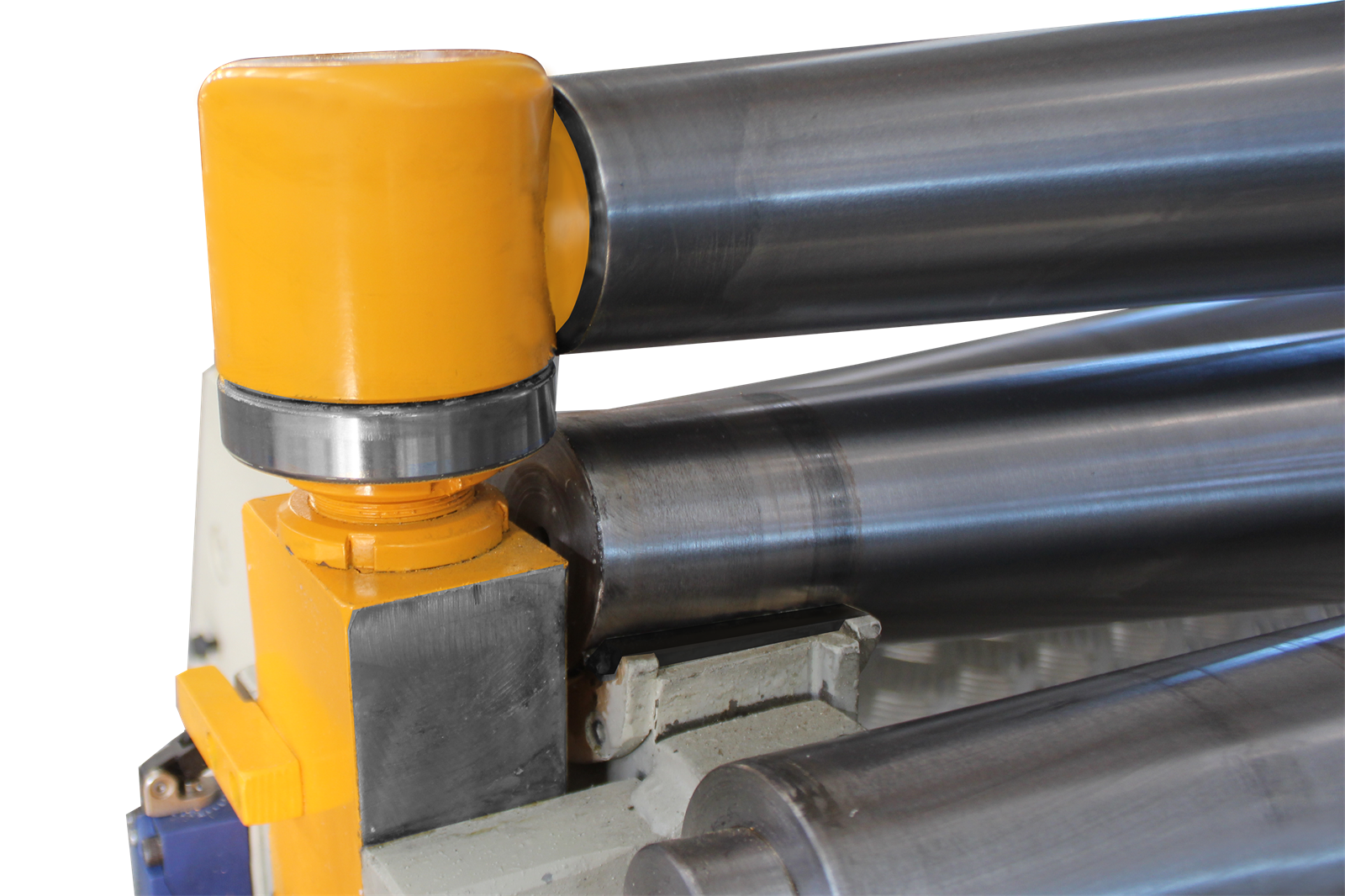

Induction hardened forged or rolled SAE 1050 (CK 45) Steel Rolls
Built according to EC Safety Directives and has CE Mark
Hot rolled SAE 1050 (CK 45) Steel Rolls
Very suitable for bending conical of light plates,aluminum or stainless steel materials
Pinch Roll and Lateral Rolls move with hydraulic pistons
All rolls is powered by electrical motor and planetary gearbox
Five digital readouts for easy roll positioning
Main motor with Brake System
SAE 1050 Quality Certificated Steel Rolls with high tensile strength

Hydraulic Lateral Side Supports for large diameters
Double speed system

MODEL	Usefull length mm	Bending capacity mm	Largest Roll Dia mm Ø	Minimum Roll Dia mm Ø	Motor power kw	Working speed m / dk m / min	Machine dimensions LxWxH mm	Weight kg
4RHC 10-185	1050	4	185	70	4,0+1,5	5	2800x1250x1170	2500
