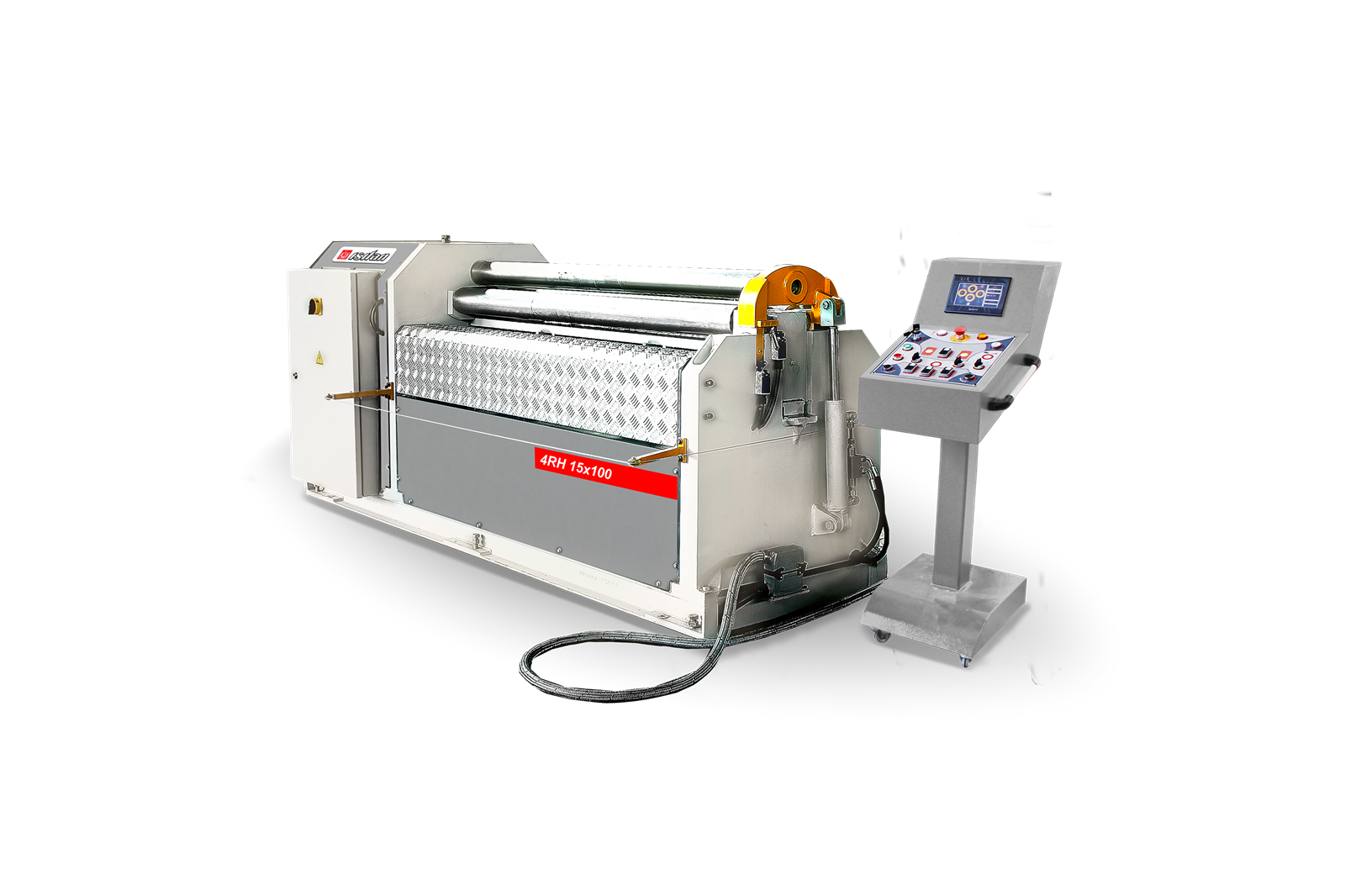

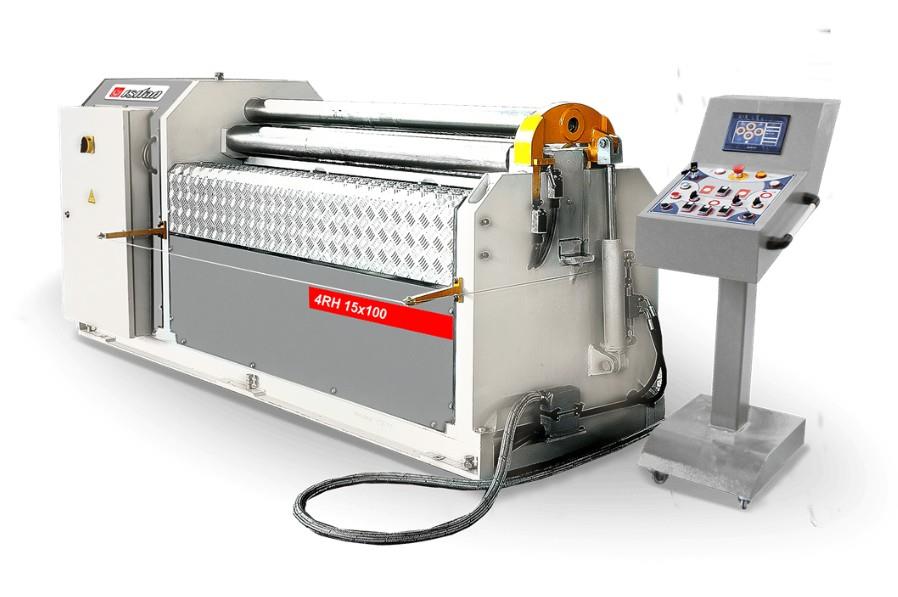

Isitan 4RH 15-100 Hydraulic 4 Roll Plate Rolling Machines (4RH 15-100)

Overload Protection
Hydraulic Drop-End for easy removal of finished ferrule.
Easy operation with mobile control panel with push buttons
Welded steel frames
Very suitable for light and medium plates,aluminum or stainless steel
Induction hardened forged or rolled SAE 1050 (CK 45) Steel Rolls
Built according to EC Safety Directives and has CE Mark
Hydraulic 4 Roll Cassette Type plate bending machines are very suitable to bend Elliptical, Square Tanks and various geometries and are very popular in automotive market.
To bend these special shapes we offer NC control Units included in our 4RH Models as standard.

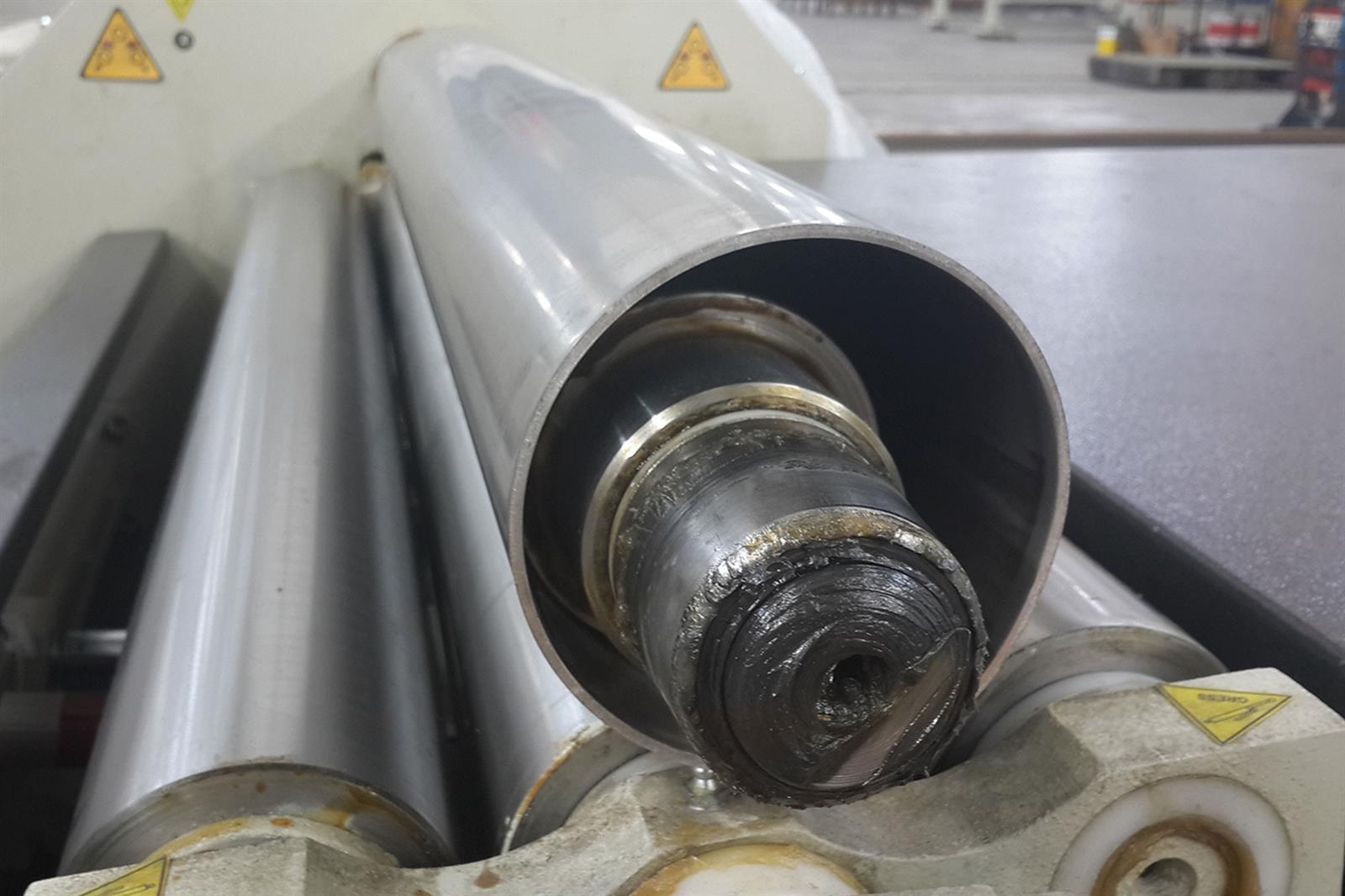

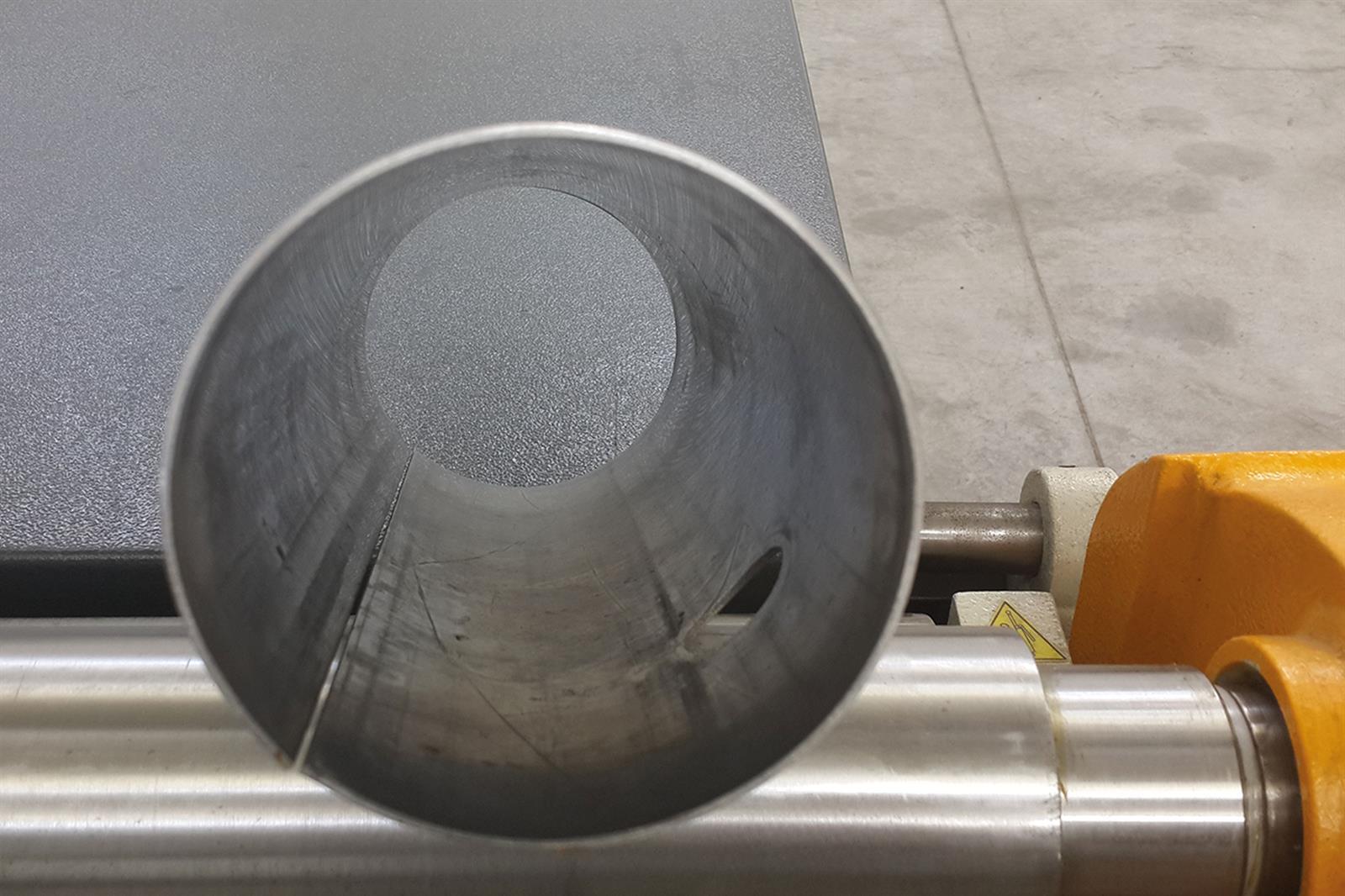

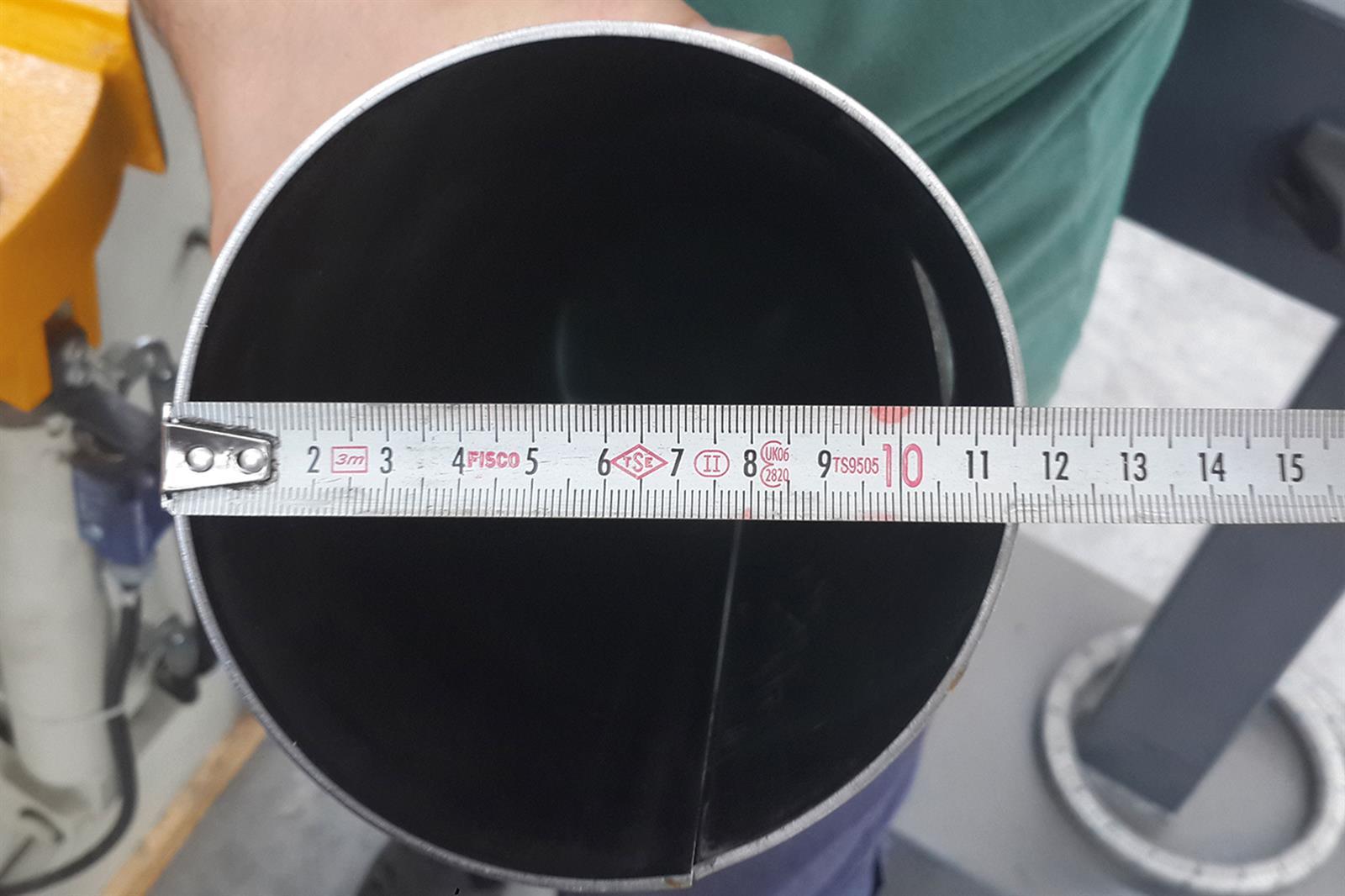

Ferrules in full circle or varying radiuses can be done easily
Top roll is powered by electrical motor with gearbox (4RHM Model)
Pinch Roll and Lateral Rolls move with motor and screw jacks in linear movement (RHM Model)
Easy operation with Mobile Control Panel
Hot rolled SAE 1050 (CK 45) Steel Rolls
NC control as Standard Equipment
Main motor with Brake System
SAE 1050 Quality Certificated Steel Rolls with high tensile strength

Automation with NC Control
Hydraulic Overhead Crane for large diameters
Hydraulic Lateral Side Supports for large diameters
Ground and polished rolls
Infinitively Variable Speed
Double speed system
Ejector system
Automatic Feeding system

MODEL	Usefull length mm	Pre-Bending Capaacity mm	Bending Capaacity mm	Rolls Ø mm	Motor Power kW	Working speed m /min. (dk.)	Machine dimensions UxGxY / LxWxH(mm)	Weight kg
4RH 15-100	1550	1. 5	2	100	2.2	4. 5	2750x1000x1500	1200
