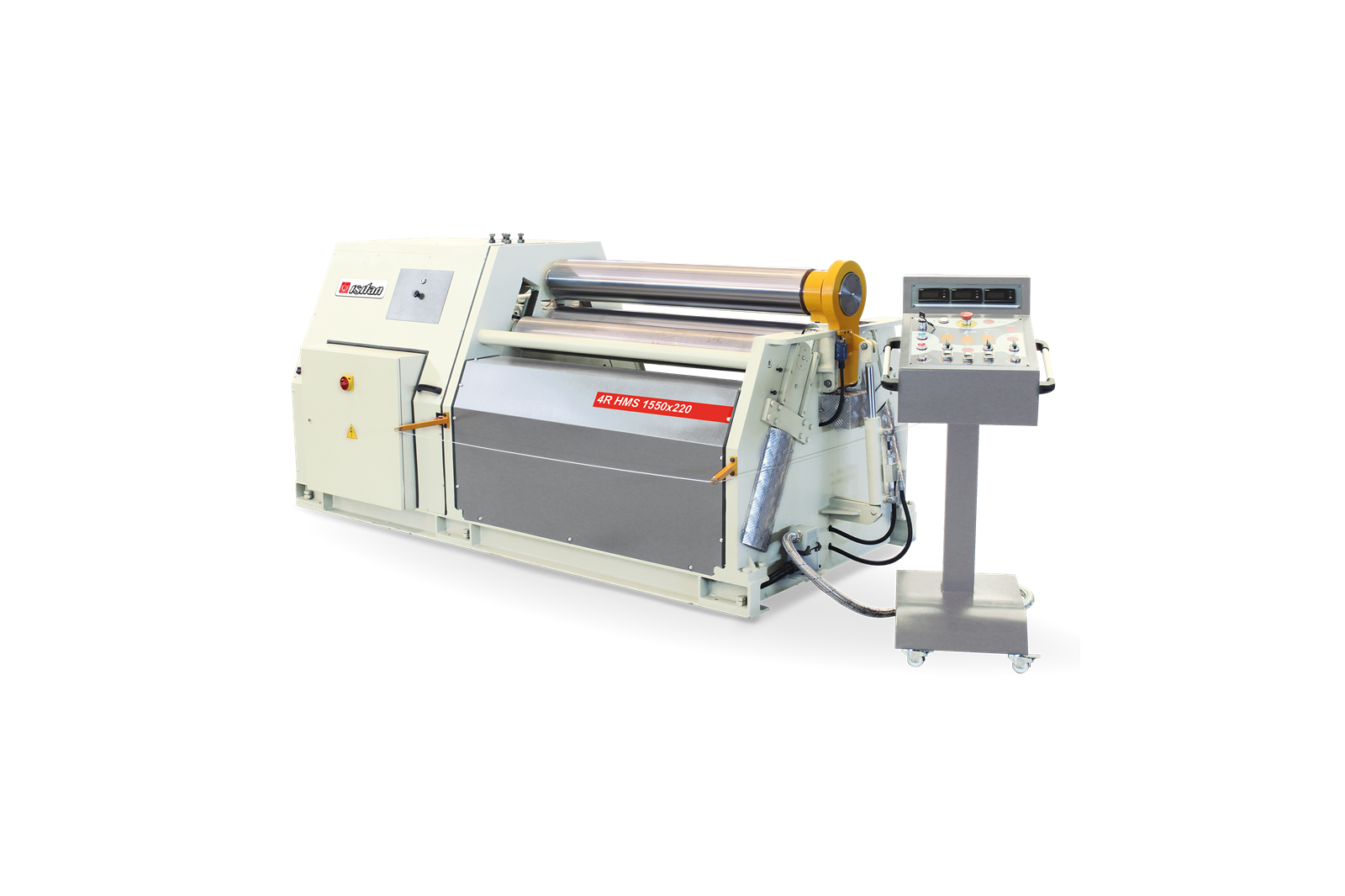

Isitan 4R HMS 1550x180 Hydraulic 4 Roll Plate Rolling Machines (4R HMS 1550x180)

Ferrules in full circle or varying radiuses or conical shapes, elliptical shapes can be done easily
Overload Protection
Three digital readouts for easy roll positioing
Easy operation with mobile control panel with push buttons
Welded steel frames

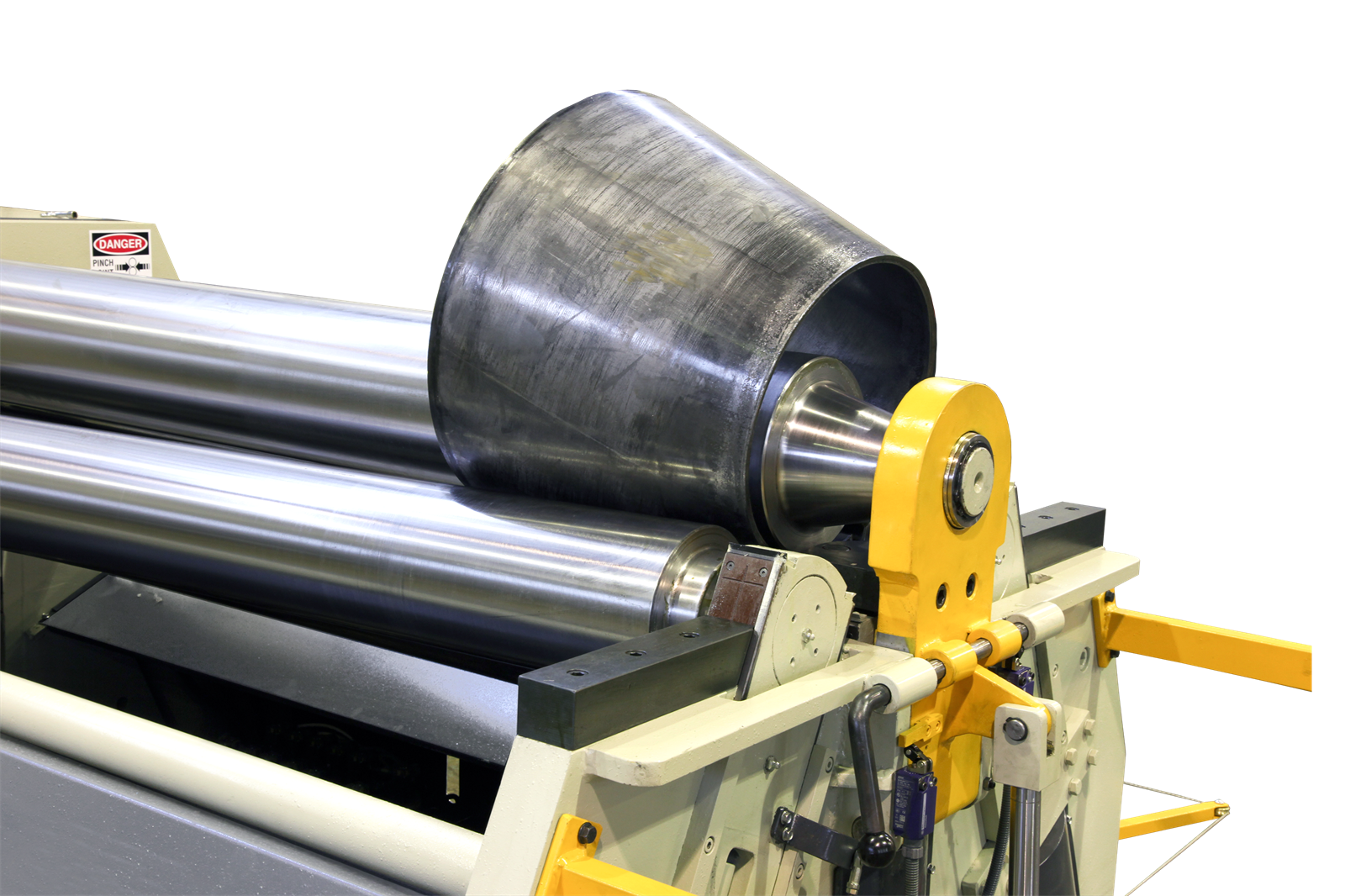

Conical bending device
Hydraulic balancing system
Very suitable for light and medium plates,aluminum or stainless steel
Top roll is powered by electrical motor and planetary gearbox. Bottom roll powered with cardan joint system.
Hydraulic DropEnd for easy removal of finished ferrule
Induction hardened forged or rolled SAE 1050 (CK 45) Steel Rolls
Built according to EC Safety Directives and has CE Mark
Lateral rolls move linear way with hydraulic pistons
Conical bending device with ball bearing
Main motor with Brake System
SAE 1050 Quality Certificated Steel Rolls with high tensile strength

Automation with NC Control
Hydraulic Overhead Crane for large diameters
Hydraulic Lateral Side Supports for large diameters
Ground and polished rolls
Infinitively Variable Speed
Double speed system
Hydromotor for rotation
Ejector system
Automatic Feeding system


MODEL	Usefull length mm	Prebending capacity mm (x1.5 / x5)	Bending capacity mm (x1.5 / x5)	Top and Bottom roll dia mm	Lateral roll dia mm	Min. bending dia mm (x1.5 / x5)	Motor power kw	Working speed m / min. (dk.)	Length mm	Width mm	Height mm	Weight kg
4R HMS 1550x180	1550	5 / 7	7 / 9	180	150	270 / 900	4,0+1,5	5	3350	1350	1290	2900
