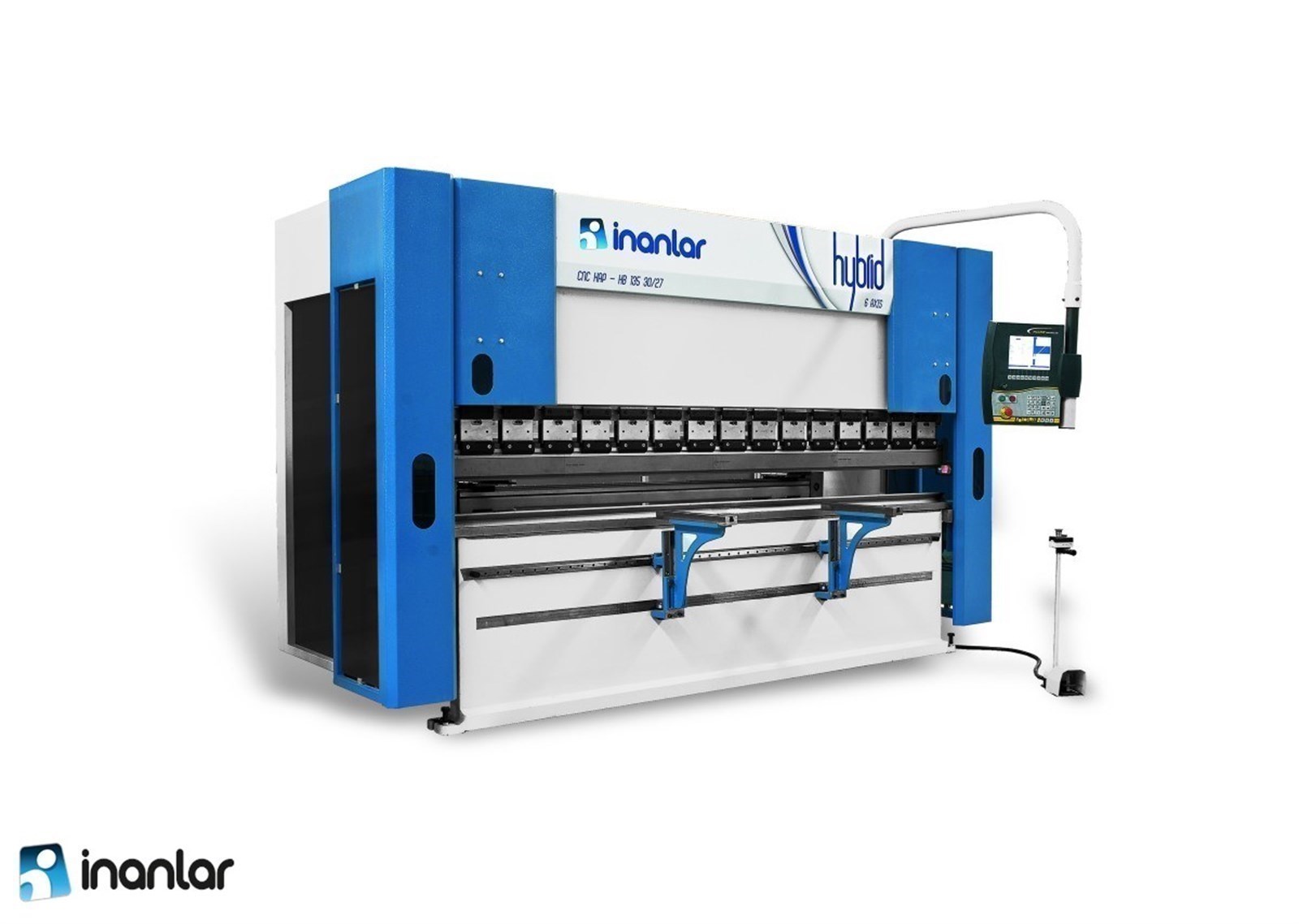

Inanlar CNC-HAP.40.15/12 Hydraulic Pressbrake Prestige

Inanlar CNC-HAP.540.30/25 Hydraulic Pressbrake Prestige (CNC-HAP.540.30/25)

Brand : Inanlar

Stock Amount : 0

Est. Delivery Time90 Days After Order

Shipment Place Turkiye

Payment Terms%30 On Order, %70 Before Shipment

Made InTurkiye

Min. Order Qty.1 Pcs.

Warranty1 Year

Ask For Offer

Add to Favorites

Add to My Wish List

Compare

Notify me when the price goes down

Notify me when it is in stock

Pressbrakes

Hydraulic Pressbrakes

• Standard 3 Axes (Y1, Y2, X) Manual R Axis
• Cybelec Cybtouch 12 2D / Step Automation SA12 2D graphical control panel
• Bosch Rexroth / Hoerbiger hydraulic system

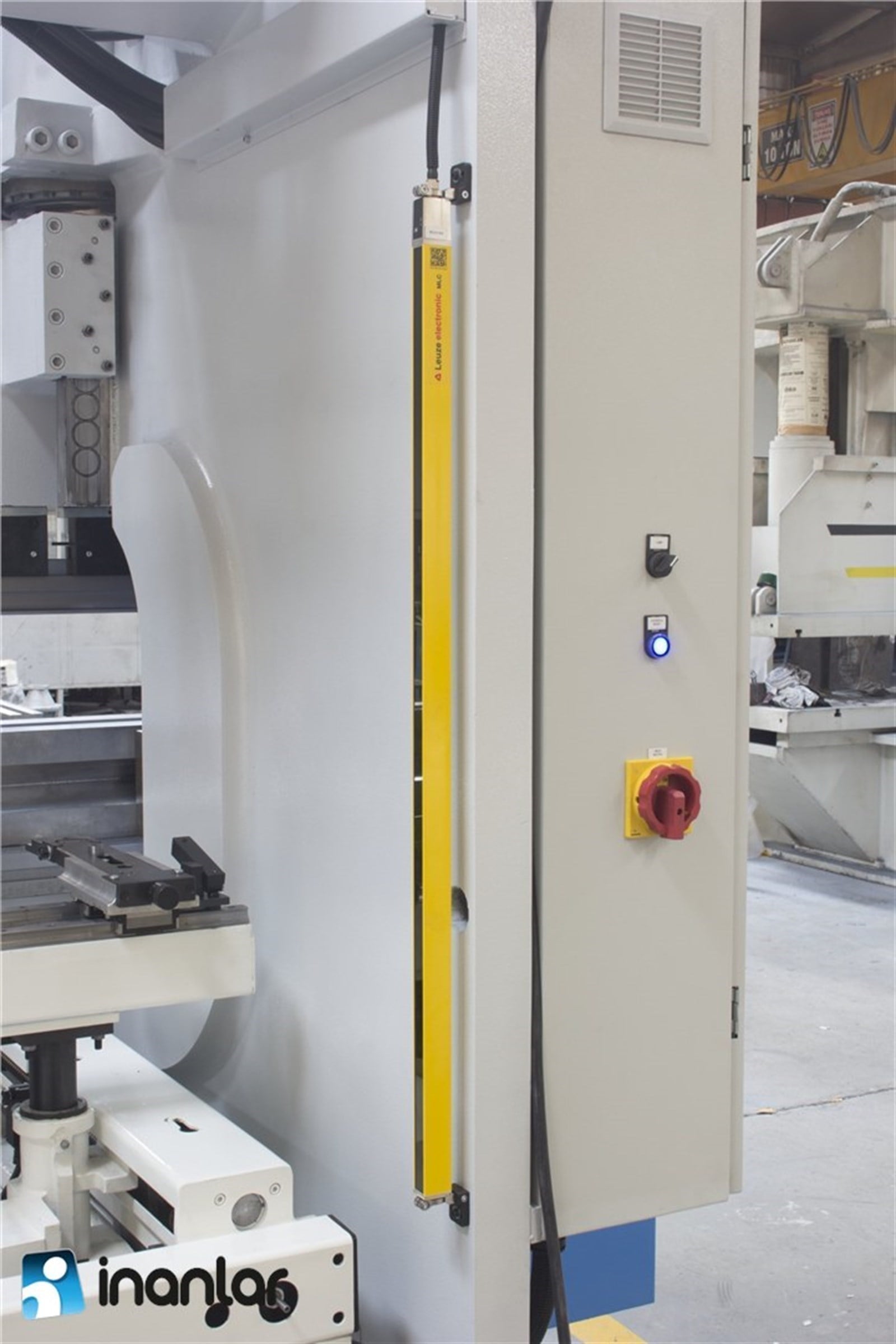

• Front light guard protection system
• Photocell (Cat.04) rear guard
• Side guards with switch
• European type segmented top and bottom tool system
• Promecam quick release clamping system
• Front sliding support system with flip stop
• Portable control panel for operator
• Foot pedal confirming EC regulation
• Emergency stops
• Electrical cabinet confirming EC regulation
• Manual crowning (300 TN machines)
• Motorized crowning (400 TN and over 6 meter machines)

PLS. CLICK TO SEE OPTIONALS 1 PLS. CLICK TO SEE OPTIONALS 2

• CYBELEC / STEPAUTOMATION / ESA / DELEM Controllers
• DSP / AKAS Laser Safety System or Light Guard System (obligatory for EC regulation)
• Promecam Type Hydraulic / Pneumatic Top and Bottom Clamping System
• WILA Type Hydraulic / Pneumatic / Mechanic Top and Bottom Clamping System
• CNC Controlled Motorized Crowning (C Axis)
• Oil Heater / Cooler
• Automatic Rear Sliding Doors
• Additional Backgauge Finger blocks and Front Support Arms
• Rear Light Guard

Bending Length (A)	3050	mm
Bending Power	540	Ton
Distance Between Coloums (B)	2550	mm
Y Rapid Speed	80	mm/s
Y Working Speed*	6,8	mm/s
Y Return Speed	70	mm/s
Crowning	Motorized
Travel In X Axis	750	mm
Speed Of X Axis	250	mm/s
Baxkgauge Finger Blocks	2	pcs.
Number Of Sheet Support (Sliding Frnt Arms)	2	pcs.
Oil Capacity	260	lt.
Motor Power	22	Kw
Stoke	265	mm
Daylight	450	mm
Throat Depth	410	mm
Table Height	880	mm
Table Height	250	mm



Machine Dimensions

Length	3520	mm
Height	3500	mm
Width	1700	mm
Weight	22500	kg
