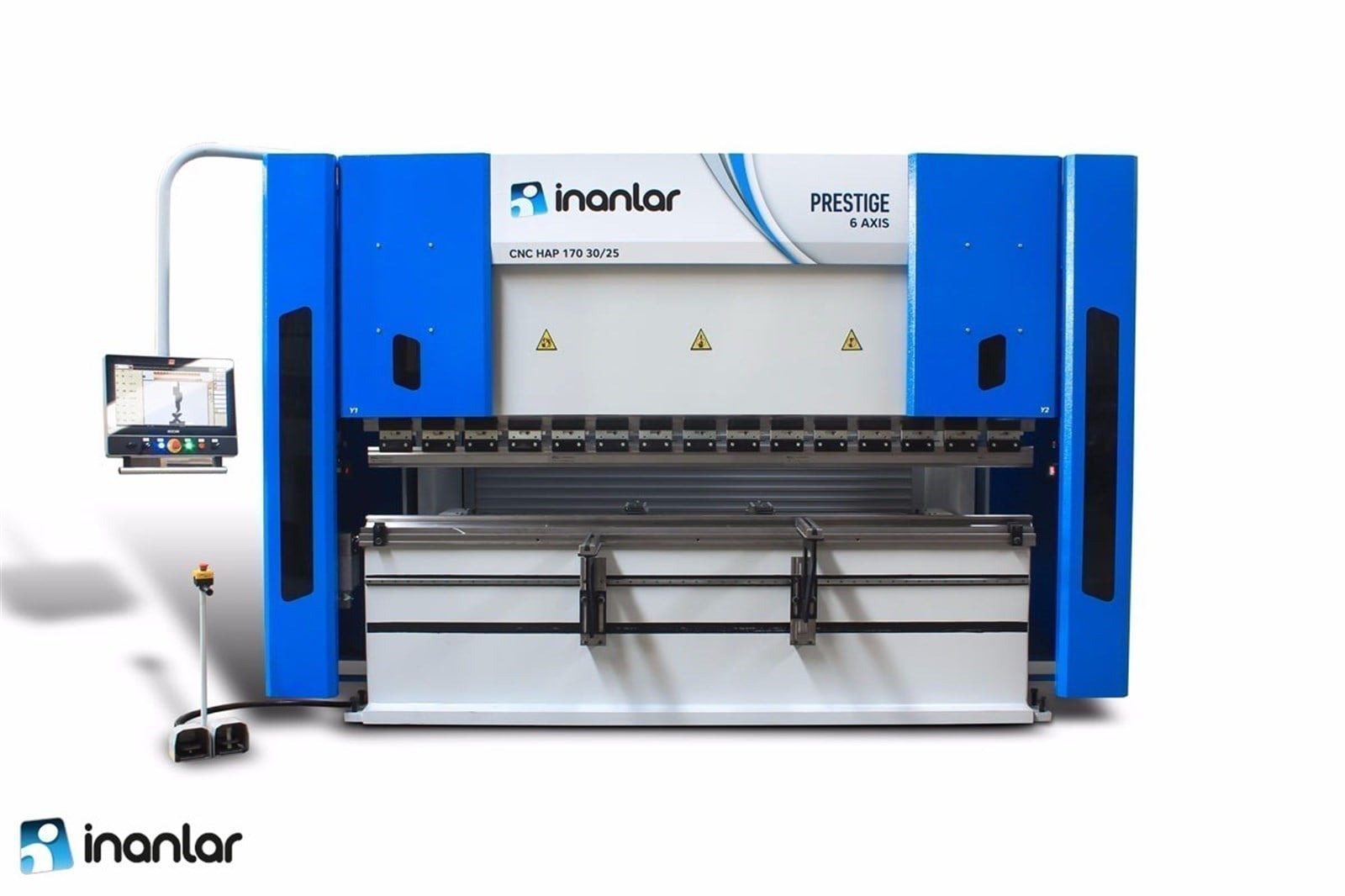

Inanlar CNC-HAP.40.15-12

Inanlar CNC-HAP.40.15-12

Inanlar CNC-HAP.40.15-12

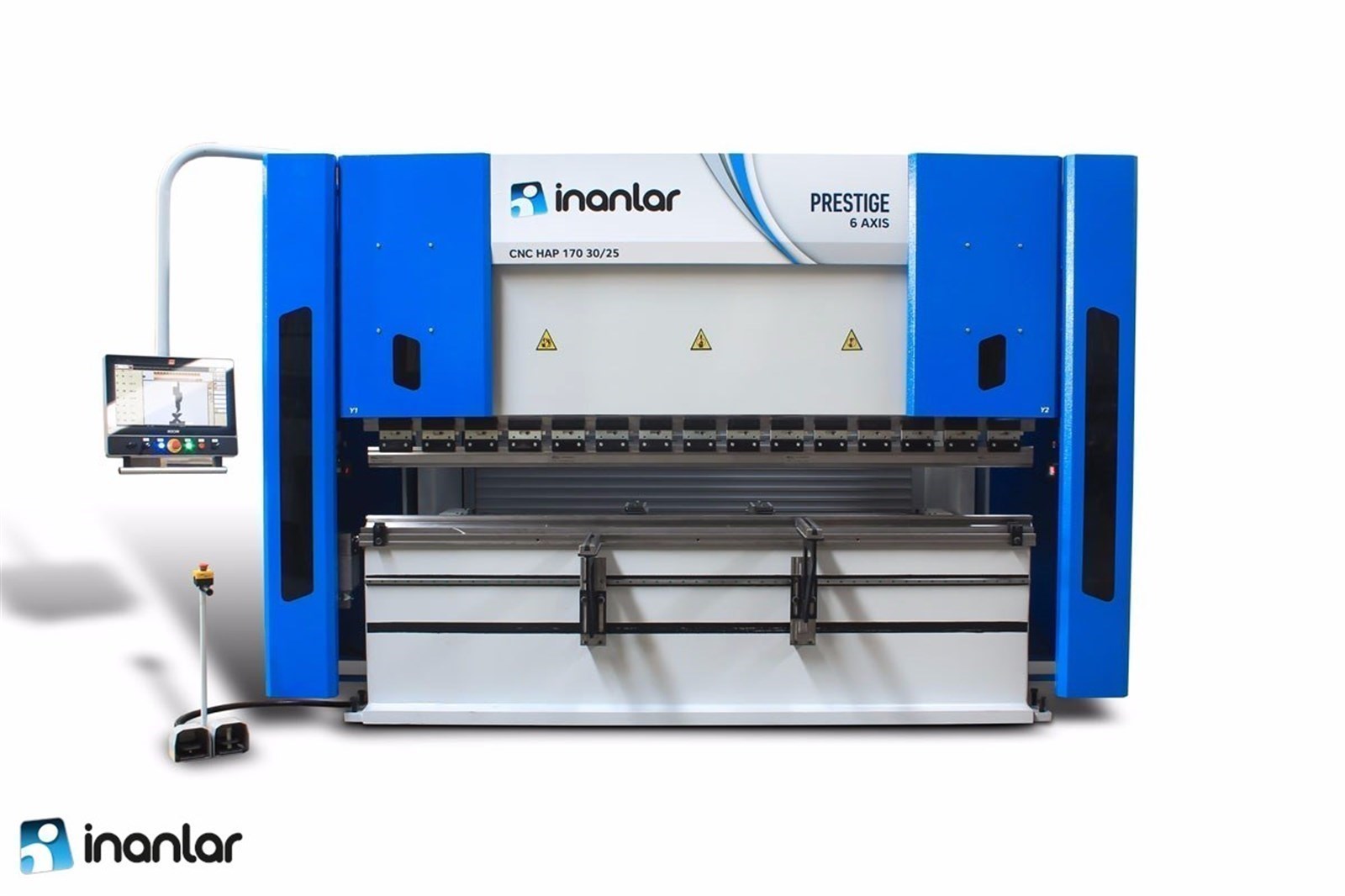

Inanlar CNC-HAP.225.30/25 Hydraulic Pressbrake Modarete (CNC-HAP.225.30/25)

Brand : Inanlar

Stock Amount : 0

Est. Delivery Time90 Days After Order

Shipment Place Turkiye

Payment Terms%30 On Order, %70 Before Shipment

Made InTurkiye

Min. Order Qty.1 Pcs.

Warranty1 Year

Add to Favorites

Add to My Wish List

Notify me when the price goes down

Notify me when it is in stock

Pressbrakes

Hydraulic Pressbrakes

Standard 3 Axes (Y1, Y2, X) Manual R axis
Cybelec CybTouch12 2D / StepAutomation SA12 2D grafical control panel
Bosch Rexroth / Hoerbiger hydraulic system
Front light guard protection system
Photocell rear guard
Side doors with switch
European type segmented top and bottom tool system
Promecam quick relase clamping system
Front sliding support system with flip flop
Portable control panel for operator
Foot pedal confirming EC regulation
Emergency stop buttons
Electrical cabinet confirming EC regulation
Manüel crowning system (300 ton machines)
Motorised crowning system (400 ton and over 6 meter machines)

CYBELEC / STEPAUTOMATION / ESA / DELEM Controllers
DSP / AKAS laser Safety System or Light Guard System
Promecam Type Hydraulic / Pneumatic Top and Bottom Clamping system
WILA Type Hydraulic / Pneumatic / Mechanical Top and Bottom Clamping system
CNC controlled Motorised Crowning (C Axis)
Oil Heater / Cooler
Automatic Rear Sliding Doors
Additional Backgauge Finger blocks and Front Support Arms
Rear Light Guard
Please contact us for more options.

Bending Length (A)	3050	mm
Bending Power	225	Ton
Distance Between Coloums (B)	2550	mm
Y Rapid Speed	90	mm/s
Y Working Speed*	8	mm/s
Y Return Speed	70	mm/s
Crowning	-
Travel In X Axis	500	mm
Speed Of X Axis	250	mm/s
Baxkgauge Finger Blocks	2	pcs.
Number Of Sheet Support (Sliding Frnt Arms)	2	pcs.
Oil Capacity	220	lt.
Motor Power	15	Kw
Stoke	185	mm
Daylight	380	mm
Throat Depth	310	mm
Table Height	870	mm
Table Height	250	mm



Machine Dimensions

Length	3520	mm
Height	2450	mm
Width	1700	mm
Weight	7200	kg
