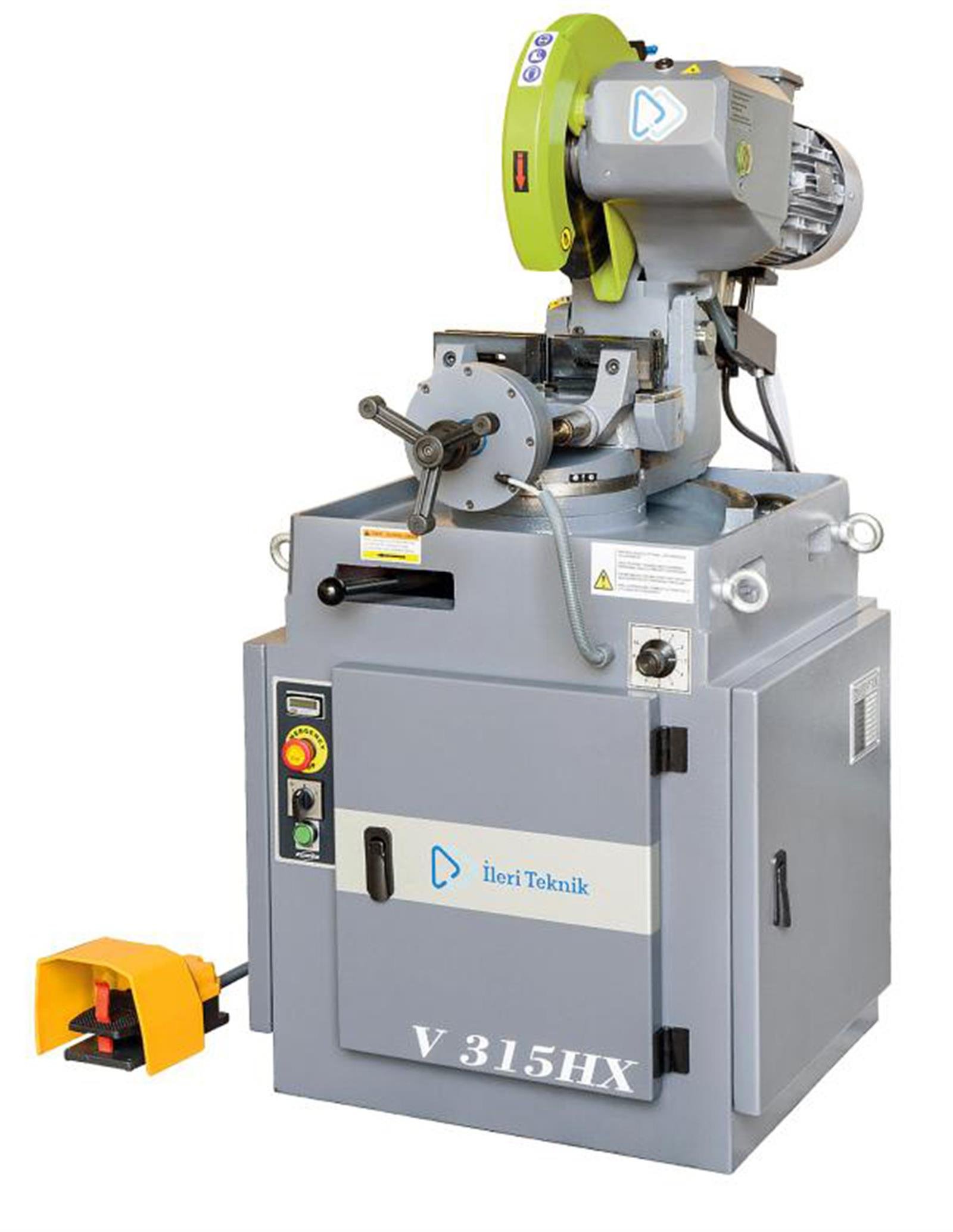

İleri Teknik V 315HX Semi Automatic Circular Saw Machine (İleri Teknik V 315HX Semi Automatic Circular Saw M)

Compact, pull down manual circular saw with powered material clamping and operated by a hand lever, offer easy mitre cutting for the workshop or toolroom

• High production rates, ideal for short batch runs,
• Foot switch actuation
• Hydro-pneumatic operation of saw head smoothes descent for optimum cut
• Adjustable head stroke according to the dimensions of the material which has to be cut
• 45° right to 45° left cutting
• Coolant tank and electric pump for blade lubrication and cooling



Cutting Capacity

Maximum Saw Diameter	315 mm
Saw Angle	90°                         +/- 45°
Round Material Diameter (max.)	105 mm                  90 mm
Square Material (max.)	85 x 85 mm           80 x 80 mm
Rectangular Material (Max.)	120 x 60 mm         90 x 60 mm

Main Voltage	400 V
Control Voltage	24 V
Installed Power	4,7  kW
Current	1, 85 A
Saw Engine	1,3 - 1,8 kW
Boron Oil Pump	0,06 kW
Air pressure	6 kg/cm2 (240 l/min)
Saw Speed	45 / 90 Dev. / Dak.
Angle Rotation	90°  / +/- 45°

Saw Diameter	315 mm
Saw Bore Diameter	32 mm
Pin Holes	2 x Çap 11
TiN Coating	Medium Hard Steel
TiCn Coating	High Stiffness Steel
TiAIN Coating	Stainless steel

Most	1000 mm
Size	600 mm
Height	1400 mm
Net weight	240 Kg
Gross weight	260 Kg
