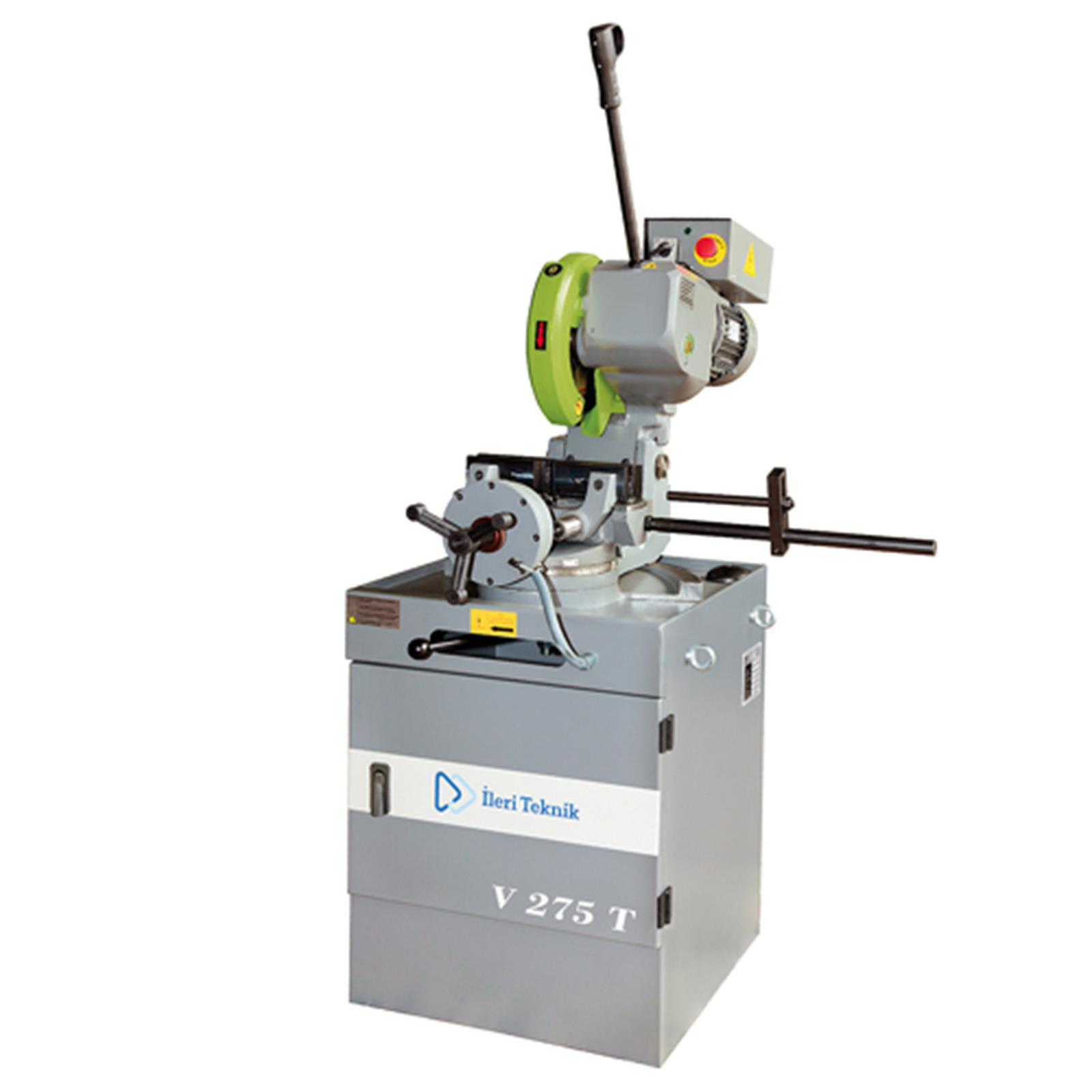

İleri Teknik V 275T Manual With Power Vice Circular Saw Machine (İleri Teknik V 275T Manual With Power Vice Circula)

Compact, pull down manual circular saw with powered material clamping and operated by a hand lever, offer easy mitre cutting for the workshop or toolroom

• Air-operated clamp for material vice
• Low voltage start/stop trigger switch within the pull down hand grip
• Miter capabilities 45 degrees left and 45 degrees right
• Double split vice to grip material on both sides of the material
• Self centering of vice optimizes cutting position
• Large base for ultra-stability.



Cutting Capacity

Maximum Saw Diameter	275 mm
Saw Angle	90°                    +/- 45°
Round Material Diameter (max.)	85 mm               70 mm
Square Material (max.)	70 x 70 mm      60 x 60 mm
Rectangular Material (Max.)	95 x 60 mm      70 x 55 mm

Main Voltage	400 V
Control Voltage	24 V
Installed Power	3,7 kW
Current	1, 35  A
Saw Engine	1 - 1,3 kW
Boron Oil Pump	0,06 kW
Saw Speed	45 / 90Dev. / Dak.
Angle Rotation	90°

Saw Diameter	275 mm
Saw Bore Diameter	32 mm
Pin Holes	2 x diameter 11
TiN Coating	Medium Hard Steel
TiCn Coating	High Hardness Steel
TiAIN Coating	Stainless steel

Most	600 mm
Size	1000 mm
Height	1400 mm
Net weight	210 Kg
Gross weight	230 Kg

Attachment	Size
V 275T.pdf	6.91 MB
