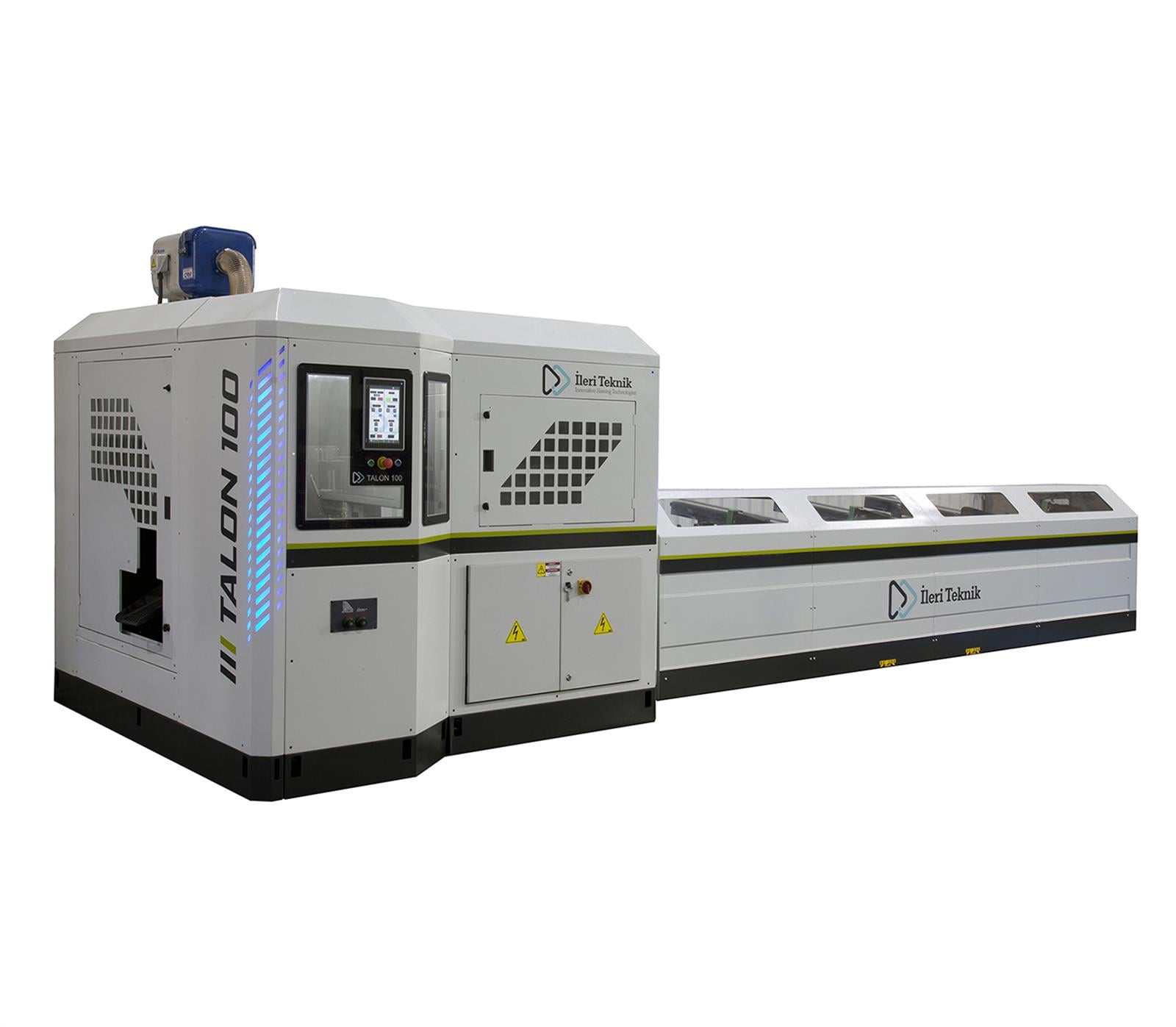

İleri Teknik TALON 100 Tube Cutting Machine (İleri Teknik TALON 100 Tube Cutting Machine)

Compact, pull down manual circular saw with powered material clamping and operated by a hand lever, offer easy mitre cutting for the workshop or toolroom

• Fully automatic tube cutting machine with automatic mitre capability
• Servo motor controlled saw head rotating system up to left and right 60°
• Servo motor controlled material feeding system with ball screw
• Servo motor controlled vertical cutting system with ball screw,
• PLC controlled colour type touch screen display
• Heavy duty, helical gear and worm gear sets in gearbox
• Head descends on hardened roller type linear guides
• 200 programs to save the all parameters for cutting again the same material
• PLC controlled touch screen panel,
• 20 rpm to 80 rpm blade speed by invertor,
• 10 different cutting length adjustment in one material
• Automatic bit cutting separation system
• Automatic chip conveyor.



Cutting Capacity

Maximum Saw Diameter	360 mm
Saw Angle	90°
Round Material Diameter (max.)	20-100 mm
Square Material (max.)	20x20 - 80 x 80 mm
Min Length of Remaining Fire	90 mm

Main Voltage	400 V
Control Voltage	24 V
Installed Power	17 kW
Saw Engine	11 kW
Hydraulic Motor	1,5 kW
Air pressure	6 kg/cm2 (240 l/min)
Saw Speed (Revolution / Min)	30 - 120 By inverter

Saw Diameter	360 mm
Saw Bore Diameter	40vmm
Pin Holes	4x Çap 21 / pivot center çap 90

Most	222 x 230 x 195
Size	487 x 211 x 115
Height	720 x 265
Net weight	4800 Kg
Gross weight	1950 Kg

Attachment	Size
TALON 100.pdf	600.72 KB
