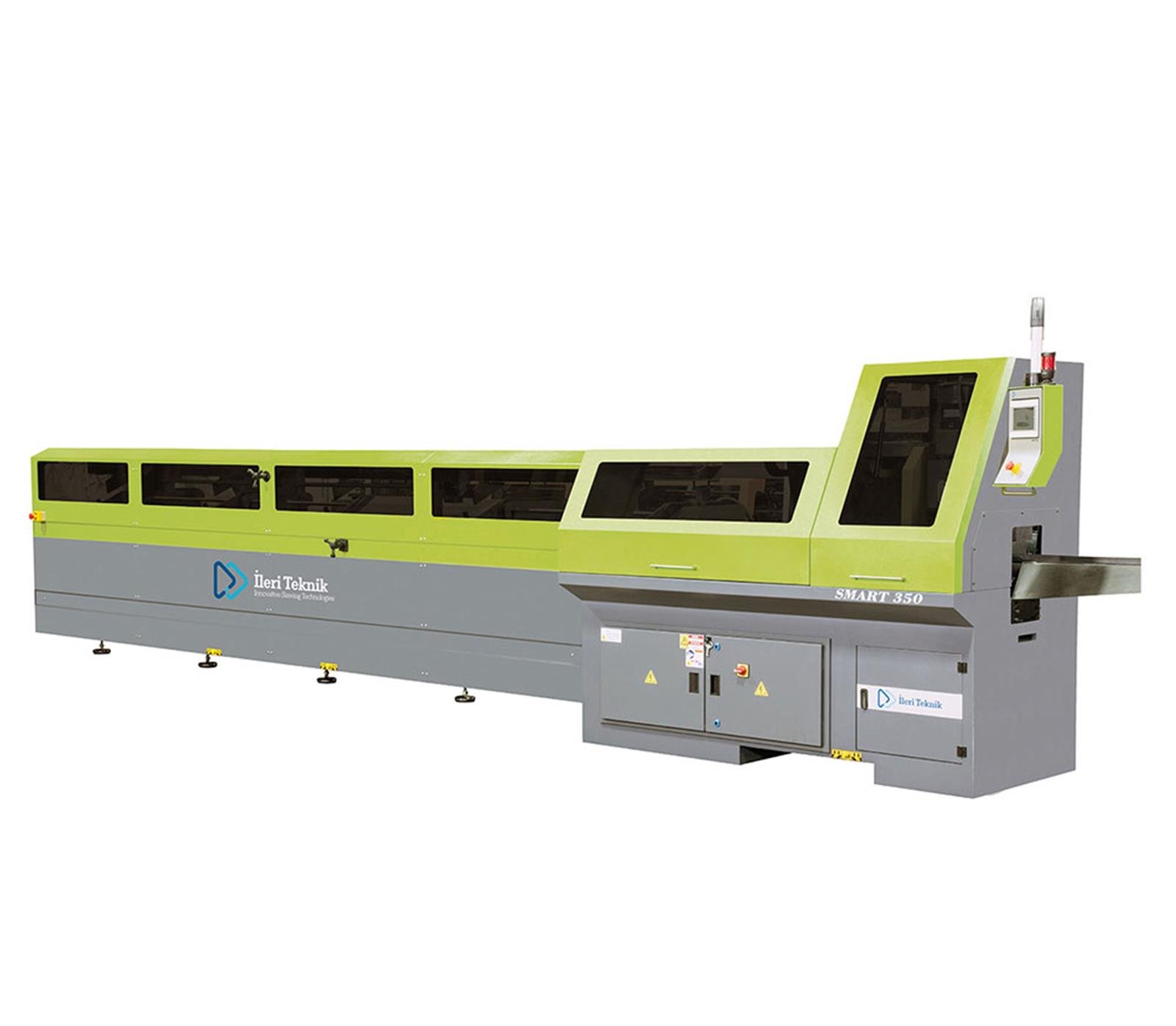

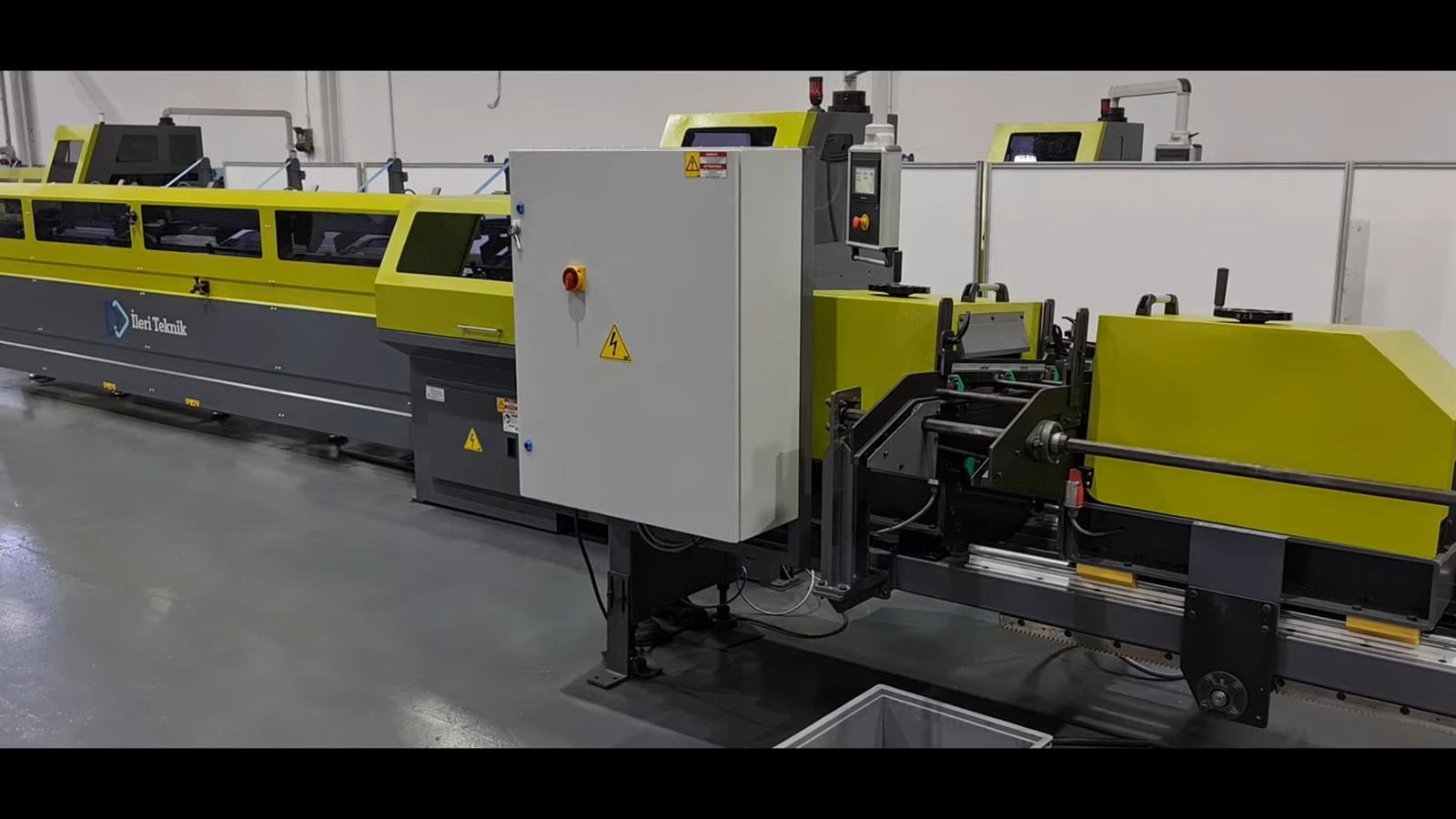

İleri Teknik Smart 350 LM 600 Fully Automatic Circular Saw Machine (Smart 350 LM 600)

Compact, pull down manual circular saw with powered material clamping and operated by a hand lever, offer easy mitre cutting for the workshop or toolroom

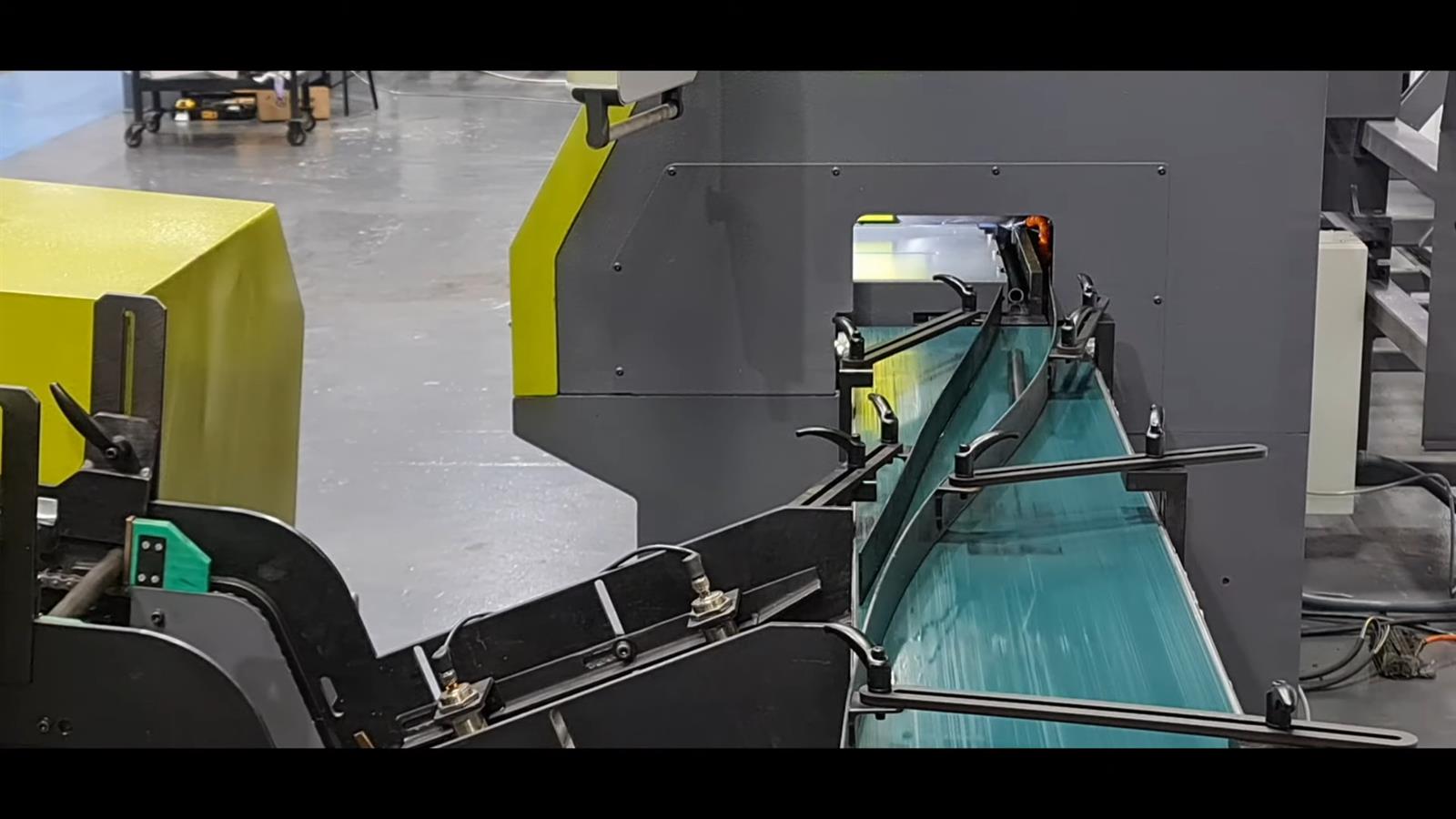

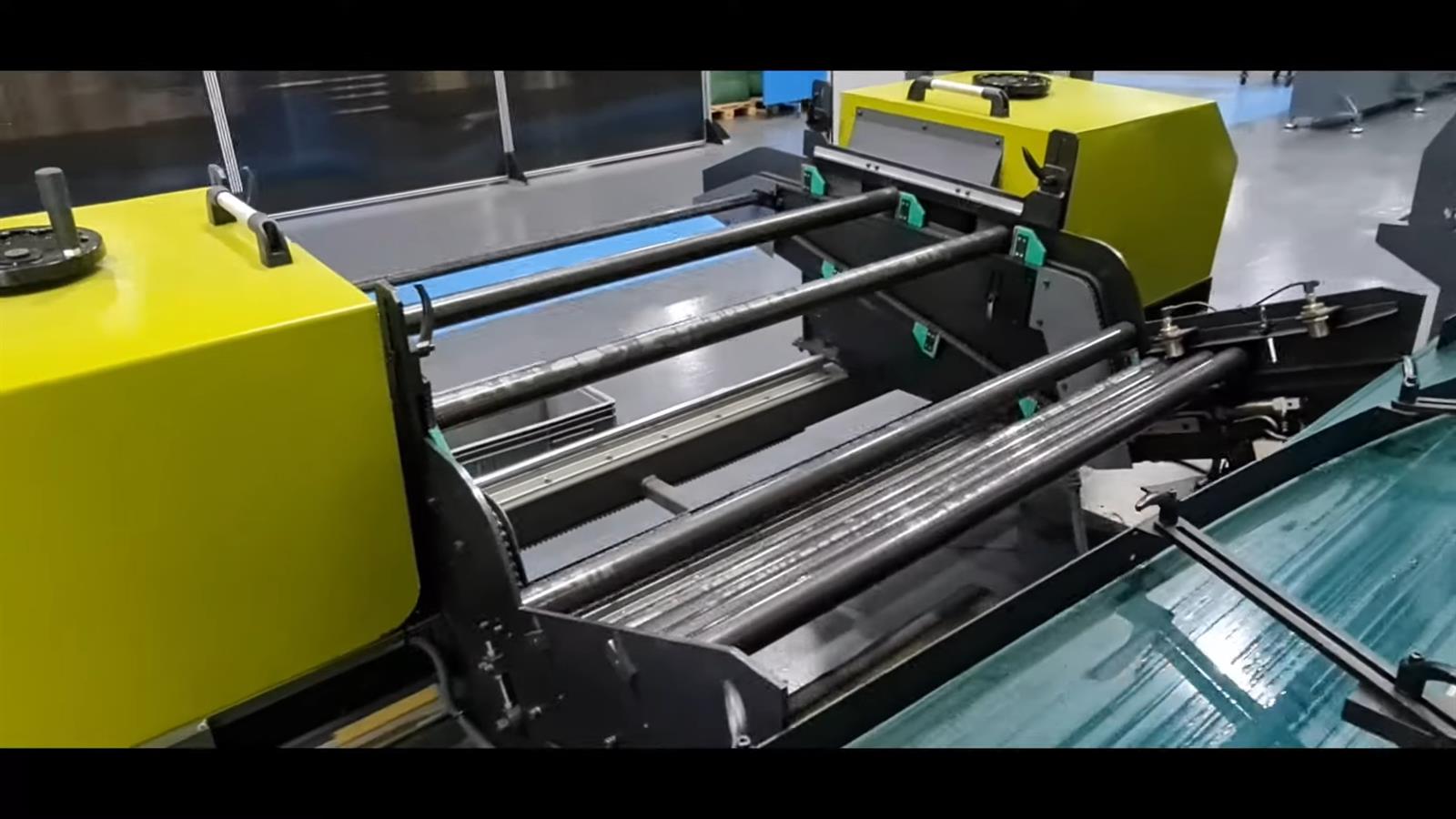

• Fully automatic machine with automatic bundle loader

• Servo motor controlled material feeding system with ball screw

• Servo motor controlled vertical cutting system with ball screw

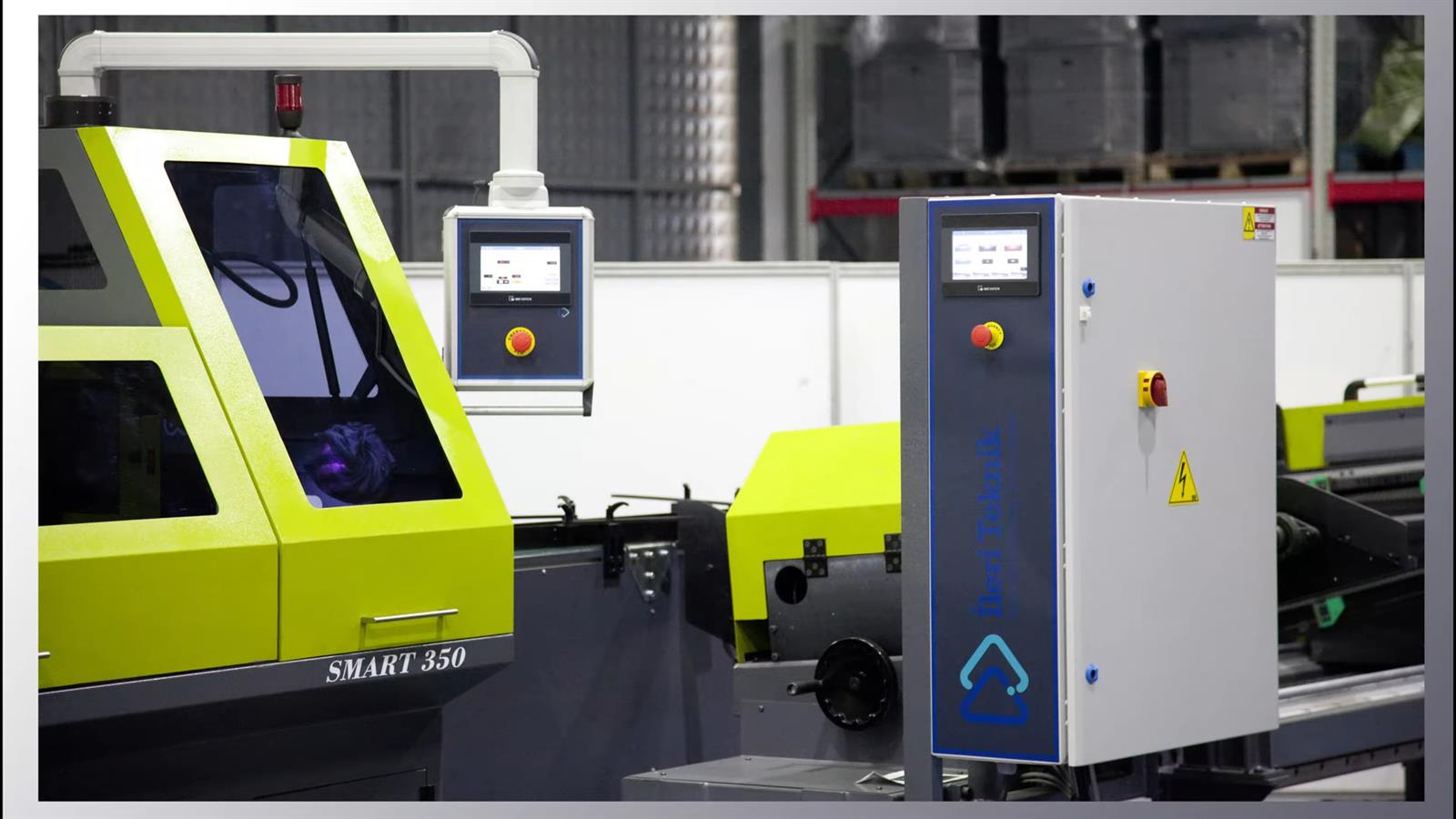

• PLC controlled colour type touch screen display

• Heavy duty, helical gear and worm gear sets in gearbox

• 200 programs to save the all parameters for cutting again the same material

• Head descends on hardened roller type linear guides

• 20 rpm to 100 rpm blade speed by invertor

• 10 different cutting length adjustment in one material

• ± 0.2 mm cutting length precision,

• ± 0,02 mm machine positioning precision

Cutting Capacity

Maximum Saw Diameter	350 mm
Saw Angle	90°
Round Material Diameter (max.)	Min 15 mm  / max 90 mm
Square Material (max.)	Min 15 x 15 / Max. 80 x 80 mm
Rectangular Material (Max.)	Min 15 x 15 / Max. 80 x 80 mm
Min Length of Remaining Fire	120 mm

Main Voltage	400 V
Control Voltage	24 V
Installed Power	7,64 kW
Current	26,6 A
Saw Engine	4 kW
Boron Oil Pump	0,09 kW
Air pressure	6 kg/cm2 (240 l/min)
Saw Speed	20 - 100 By İnverter
Angle Rotation	90°

Saw Diameter	350 mm
Saw Bore Diameter	32 mm
Pin Holes	2 x Çap 11
TiN Coating	Medium Hard Steel
TiCn Coating	High Stiffness Steel
TiAIN Coating	Stainless steel

Most	8800 mm
Size	2300 mm
Height	2020 mm
Net weight	2750 Kg
Gross weight	2790 Kg

Attachment	Size
SMART 350 LM 600.pdf	22.57 MB
