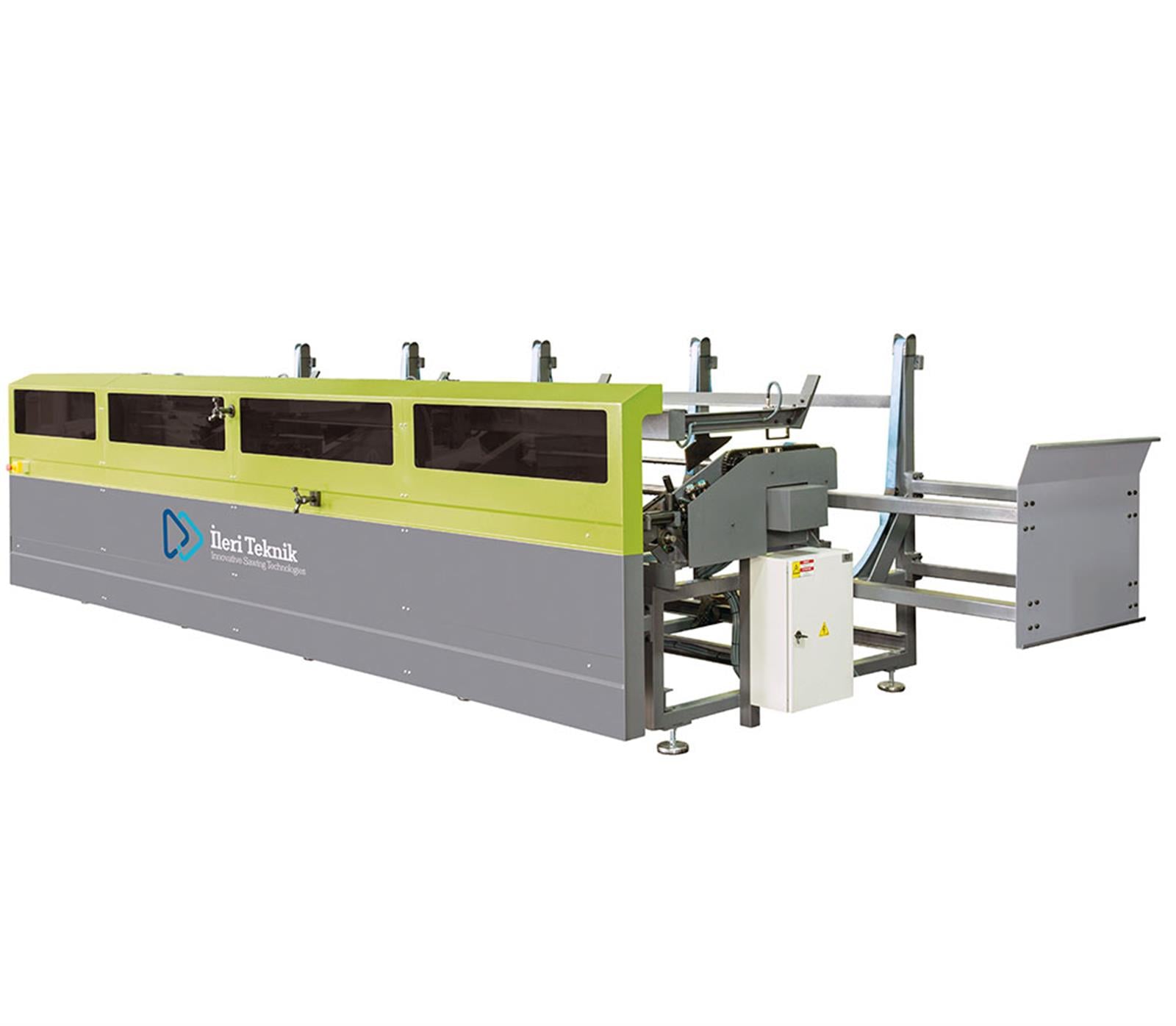

İleri Teknik LM 600 Fully Automatic Loading System (LM 600)

Fully Automatic Bundle Type Pipe And Profile Loading System Which Is Suitable For Automatic Series Machines

• Fully automatic bundle type pipe loading system
• Maximum capasity : 2.500 Kg
• Minimum loading dimension 15x15 mm / Ø 15 mm pipe
• Maximum loading dimension 70x70 mm / Ø 80 mm pipe
• Maximum loading length 6,5 mt



Main Voltage	400 V
Control Voltage	24 V
Installed Power	2 kW
Current	5 A
Maximum Loading Capacity	2.500 Kg
Maximum Loading Length	6.500 mm
Air pressure	6 kg/cm2 (240 l/min)

Most	6100 mm
Size	2100 mm
Height	1600 mm
Net weight	1380 Kg
Gross weight	1400 Kg

Attachment	Size
LM 600.pdf	28.64 MB
