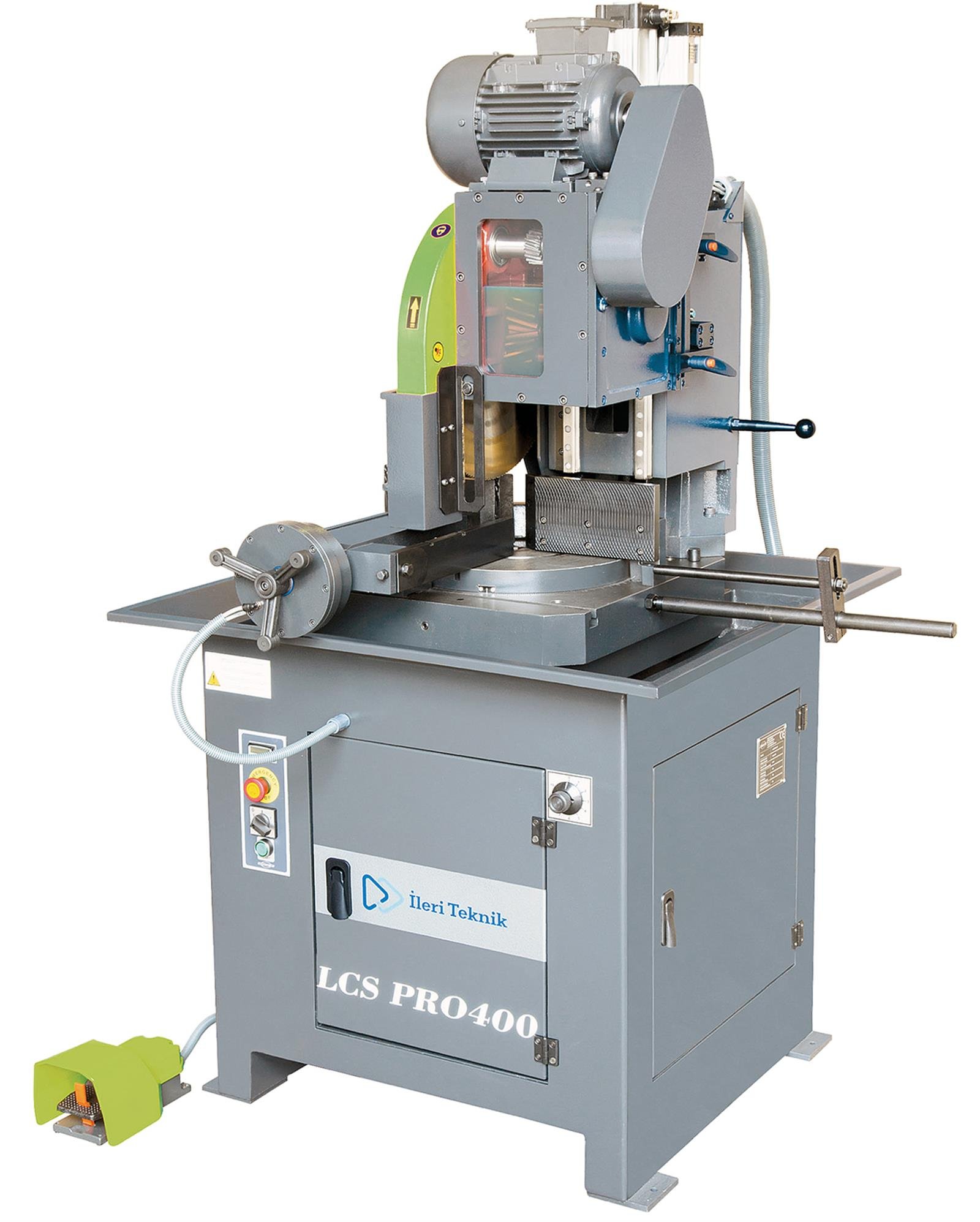

İleri Teknik LCS Pro 400 Semi-automatic Circular Saw Machine (İleri Teknik LCS Pro 400 Semi-automatic Circular S)

Compact, pull down manual circular saw with powered material clamping and operated by a hand lever, offer easy mitre cutting for the workshop or toolroom

• Foot switch actuation
• Variable blade speed with inverter (20-80 rpm)
• High performance heavy duty gear box designed with fully hardened and grinded helical gears,
• Head descends on hardened roller type linear guides
• Hydro-pneumatic operation of saw head smoothes descent for optimum cut
• Easy, positive 0-45° right and 60° deg mitre left
• Coolant tank with box to collect chips and electric pump for blade lubrication and cooling



Cutting Capacity

Maximum Saw Diameter	400 mm
Saw Angle	90°                      +/- 45°                      + 60°
Round Material Diameter (max.)	120 mm               120 mm                    110 mm
Square Material (max.)	120 x 120 mm     110 x 110 mm          90 x 90 mm
Rectangular Material (Max.)	160 x 90 mm       140 x 90 mm          90 x 90 mm

Main Voltage	400 V
Control Voltage	24 V
Installed Power	3,1 kW
Current	7 A
Saw Engine	3 kW
Boron Oil Pump	0,06 kW
Air pressure	6 kg/cm2 (240 l/min)
Saw Speed	20 - 80 By Inverter
Angle Rotation	90°   /     +/- 45°      /     + 60°



Saw Diameter	400 mm
Saw Bore Diameter	40 / 50 mm
Pin Holes	4 - 15 -80
TiN Coating	Medium Hard Steel
TiCn Coating	High Stiffness Steel
TiAIN Coating	Stainless steel

Most	1100 mm
Size	1000 mm
Height	1700 mm
Net weight	540 Kg
Gross weight	560 Kg
