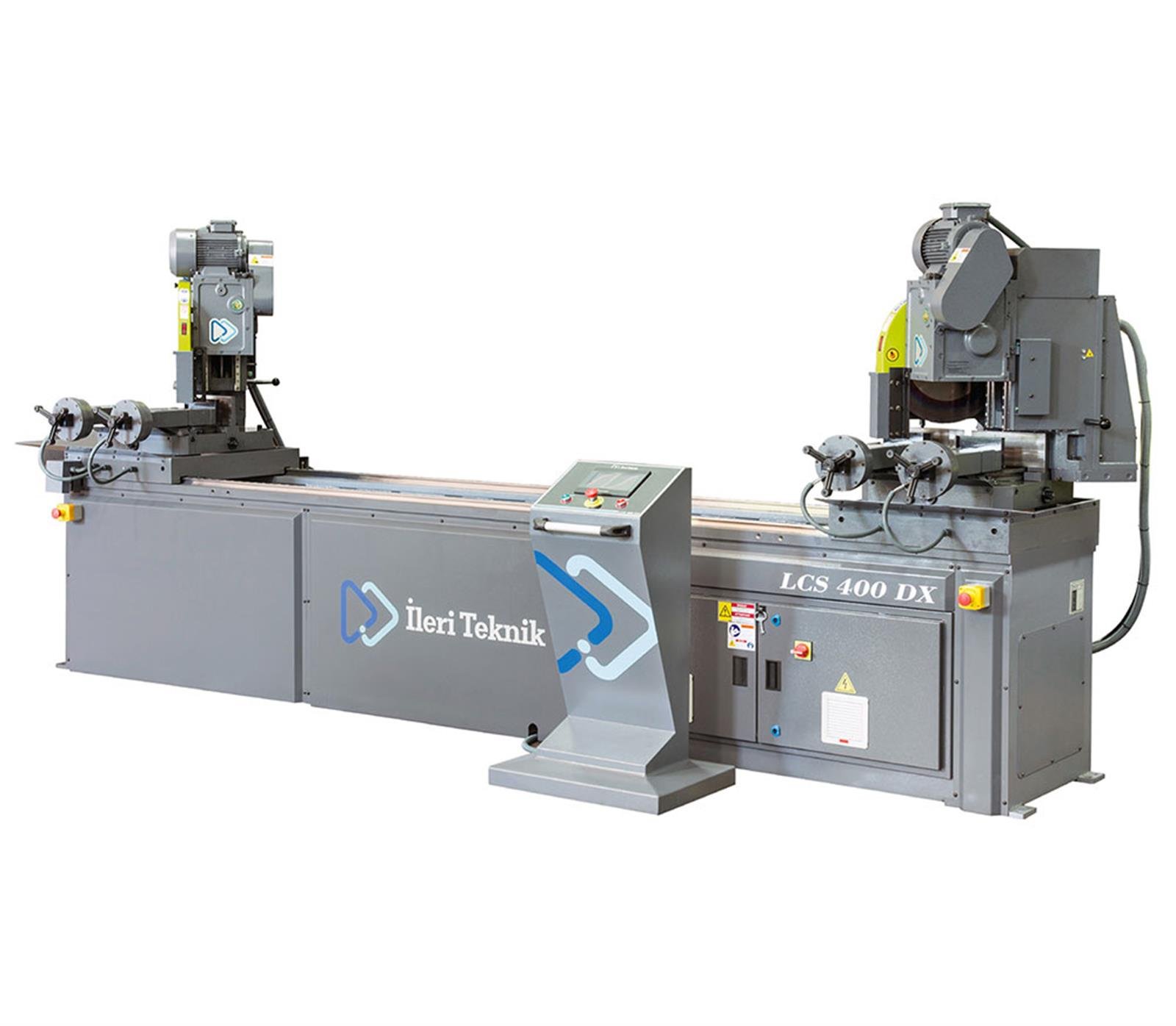

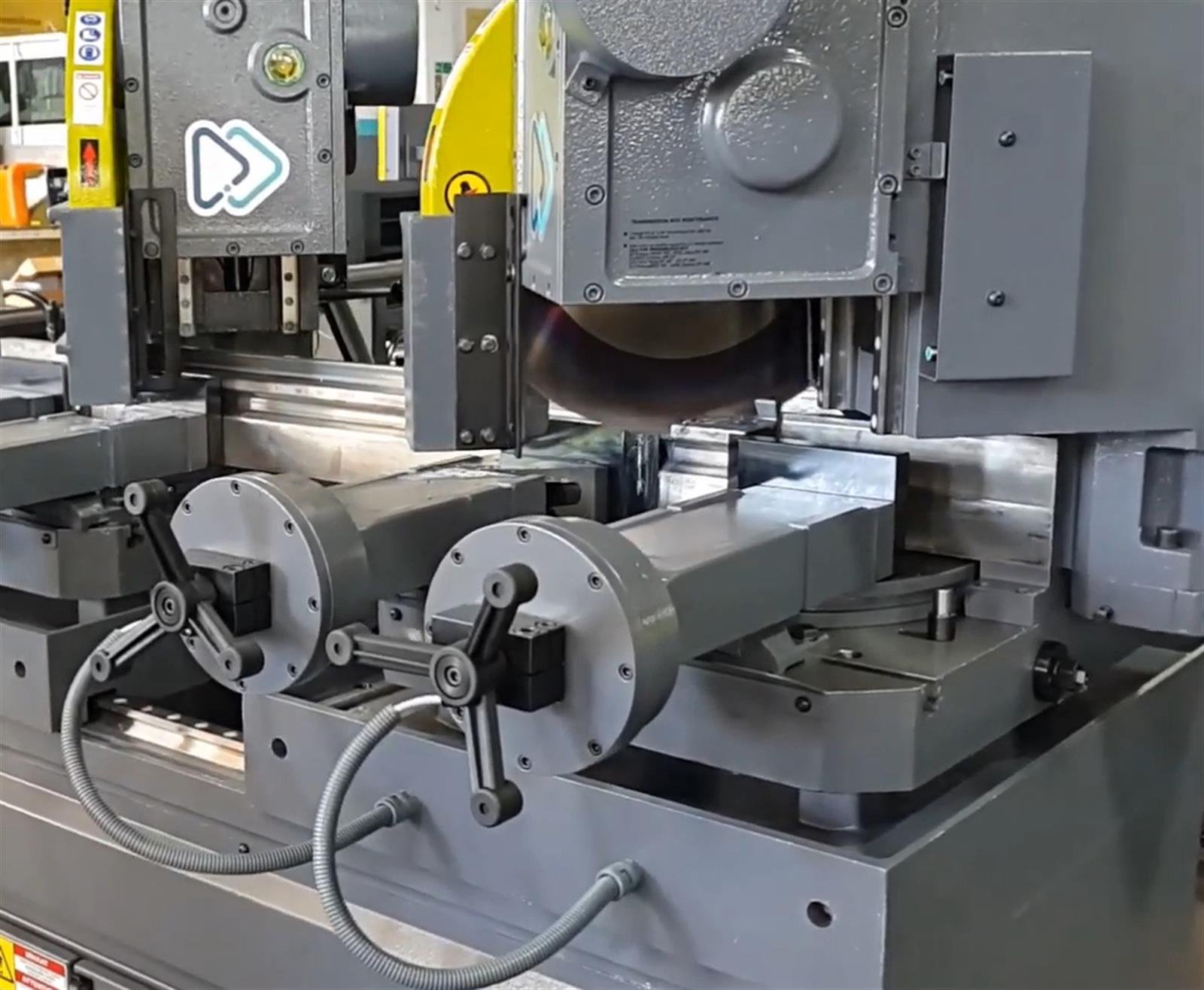

İleri Teknik LCS 400 DX Semi-automatic Circular Saw Machine (LCS 400 DX )

Compact, pull down manual circular saw with powered material clamping and operated by a hand lever, offer easy mitre cutting for the workshop or toolroom

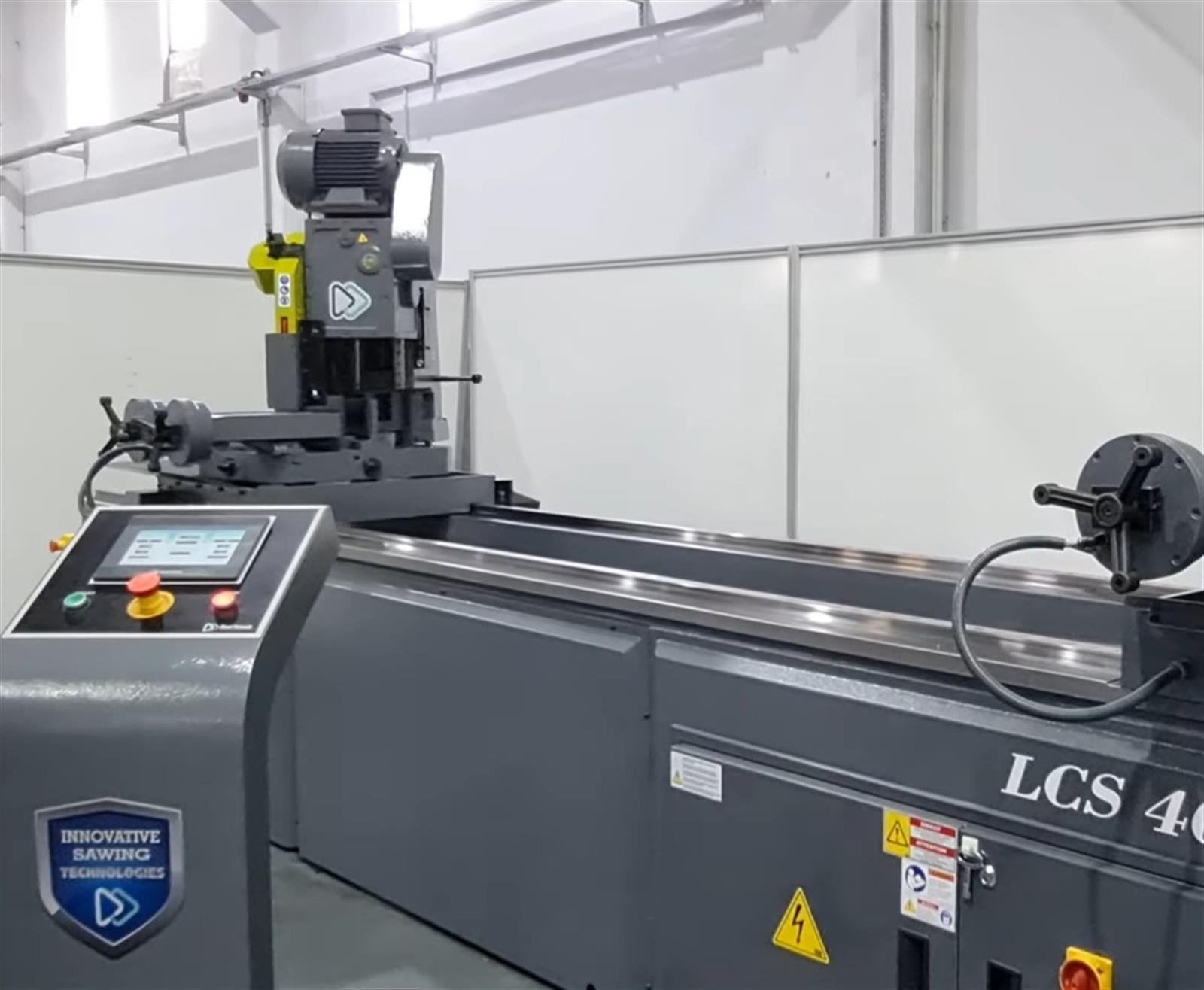

• Semi-automatic vertical action twin headed mitre saw,

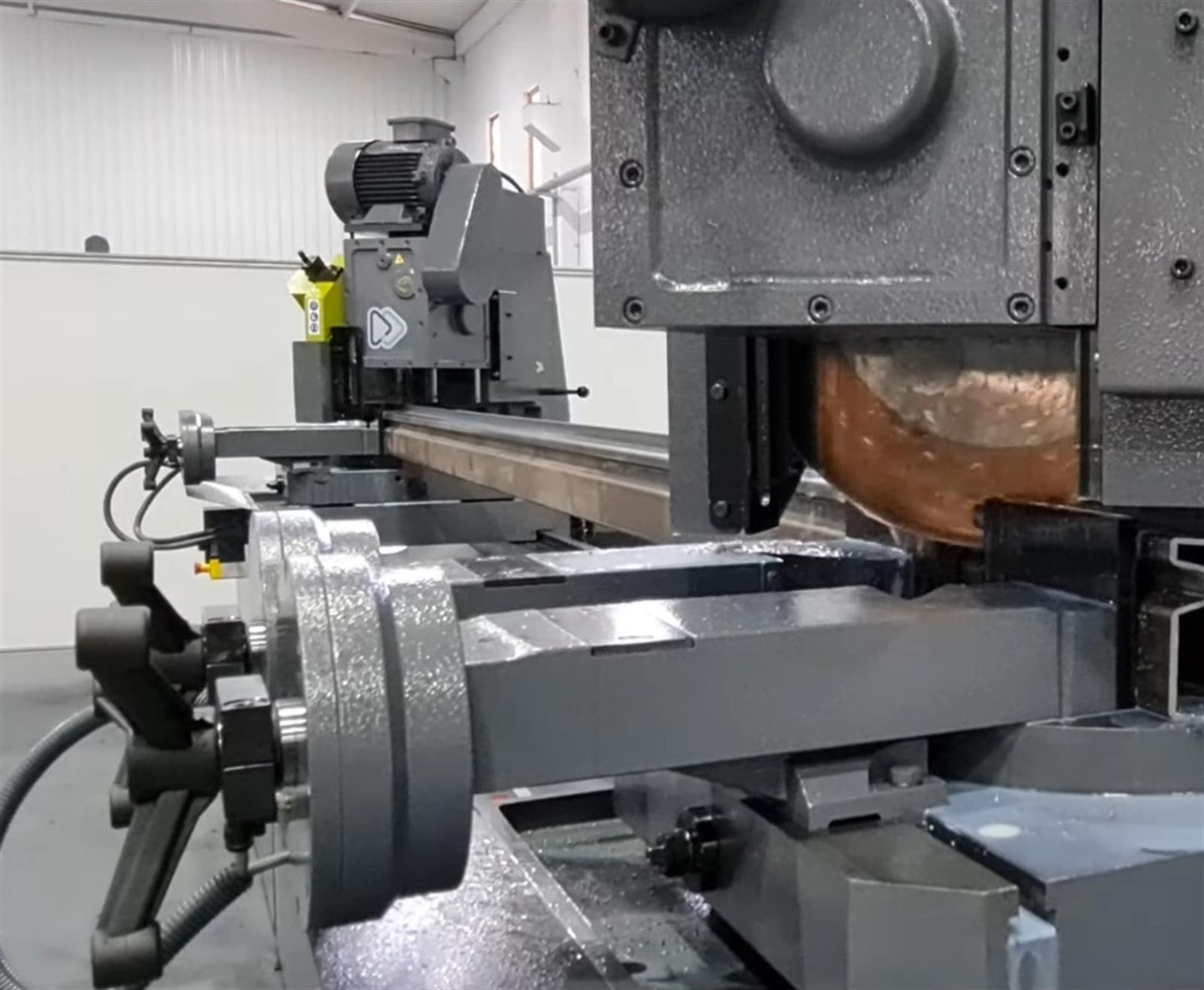

• Right hand head fixed, the left hand head positioned automatically by servo motor on roller type linear guideways.
• High performance heavy duty gear box designed with fully hardened and grinded helical gears
• Head descends on hardened roller type linear guides
• Inverter controlled sawmotors. Blade speed can set between 20-60 rpm From the control panel.

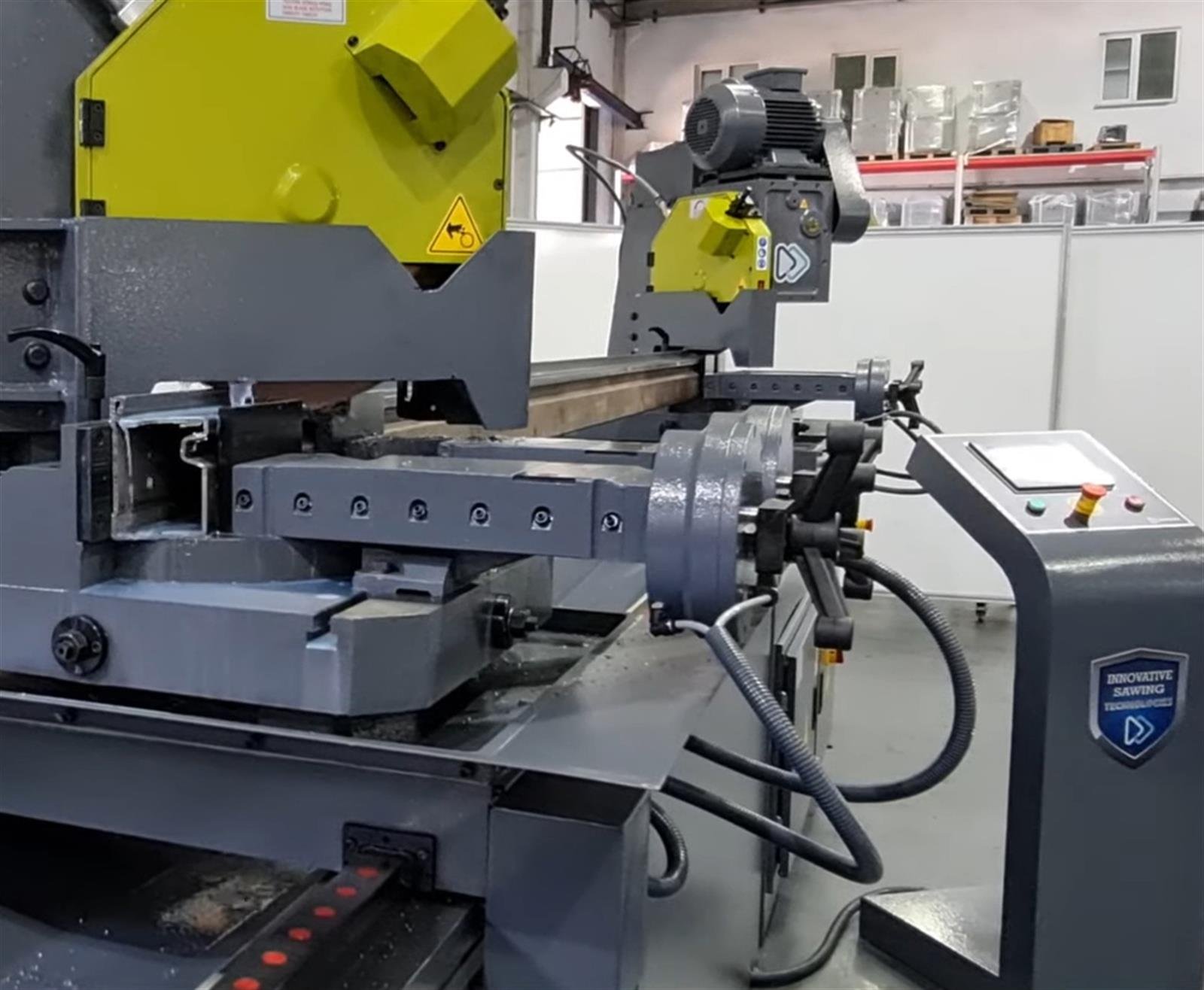

• PLC controlled, color type touch screen panel
• Servo motor and screw ball operation of saw head smoothes descent for optimum cut ; servo cutting system and program developed for special products.
• Easy saw head angle adjustment; right saw head positive 0-45° and left saw head negative 0-45° mitre
• Coolant tank with box to collect chips and electric pump for blade lubrication and cooling



Cutting Capacity

Maximum Saw Diameter	400 mm
Saw Angle	90°                      +/- 45°                      + 60°
Round Material Diameter (max.)	120 mm               120 mm                     110 mm
Square Material (max.)	120 x 120 mm     110 x 110 mm           90 x 90 mm
Rectangular Material (Max.)	160 x 90 mm       140 x 90 mm           90 x 90 mm

Main Voltage	400 V
Control Voltage	24 V
Installed Power	9,5 kW
Current	35 A
Saw Engine	3 kW
Boron Oil Pump	0,06 kW
Air pressure	6 kg/cm2 (240 l/min)
Saw Speed	20 - 60 By İnverter
Angle Rotation	90°   /     +/- 45°      /     + 60°

Saw Diameter	400 mm
Saw Bore Diameter	40 / 50 mm
Pin Holes	4 -15 - 80
TiN Coating	Medium Hard Steel
TiCn Coating	High Hardness Steel
TiAIN Coating	Stainless steel

Most	4200 mm
Size	1200 mm
Height	1800 mm
Net weight	2520 Kg
Gross weight	2540 Kg

Attachment	Size
LCS 400DX.pdf	25.35 MB
