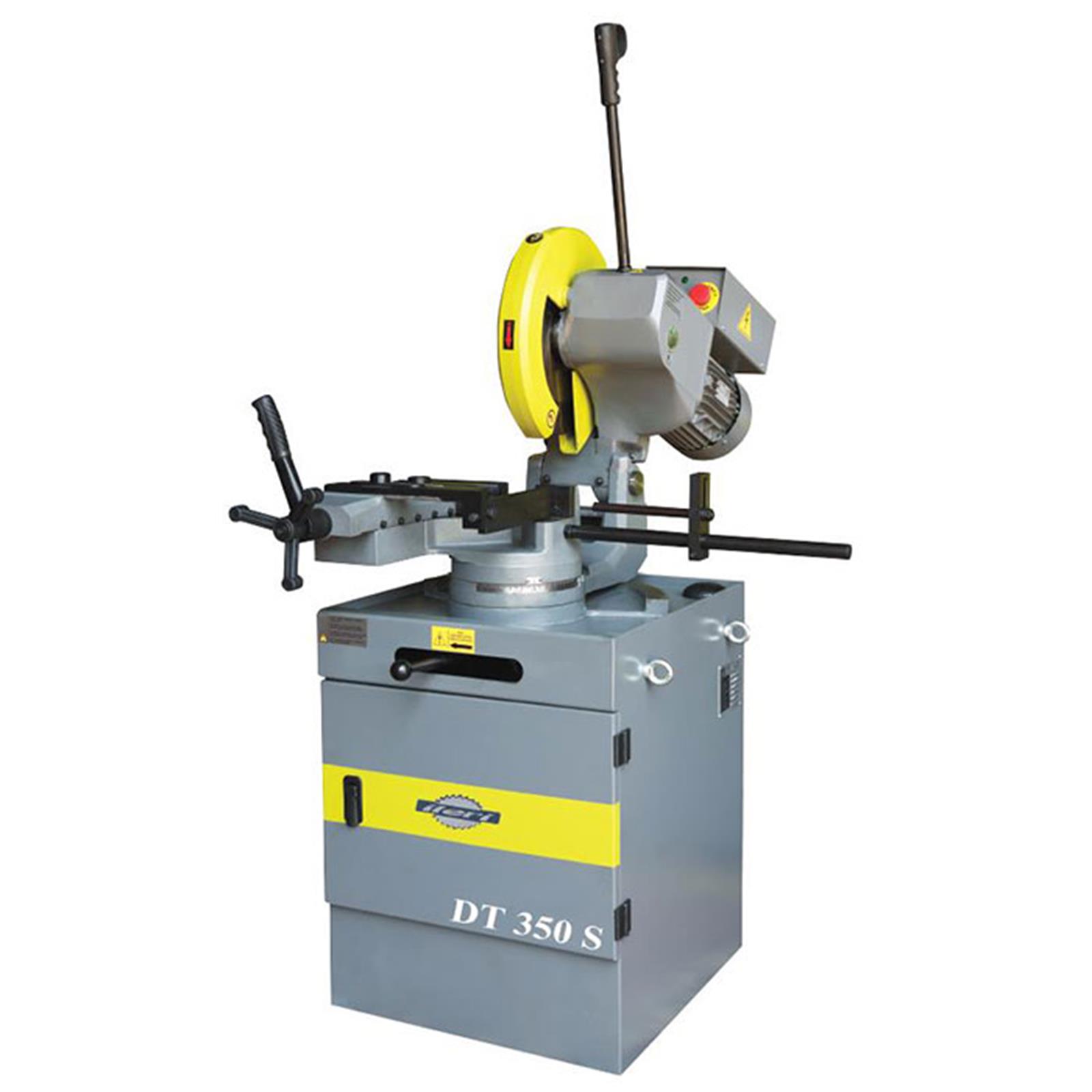

İleri Teknik DT 350S Manual Circular Saw Machine (İleri Teknik DT 350S Manual Circular Saw Machine)

Compact, pedestal mounted, manual circular cut-off saws, operated by a hand lever, offer easy mitre cutting for the workshop or toolroom

• Manually operated clamp for material vice
• Low voltage start/stop trigger switch within the pull down hand grip
• Miter capabilities 45 degrees left and 45 degrees right
• Double split vice to grip material on both sides of the material
• Self centering of vice optimizes cutting position
• Adjustable bar stop 500mm



Cutting Capacity

Maximum Saw Diameter	350 mm
Saw Angle	90°                             +/- 45°
Round Material Diameter (max.)	115 mm                      110 mm
Square Material (max.)	100 x 100 mm           90 x 90 mm
Rectangular Material (Max.)	120 x 80 mm             90 x 90 mm

Main Voltage	400 V
Control Voltage	24 V
Installed Power	4,7 kW
Current	1, 85 A
Saw Engine	1,3 - 1,8 kW
Boron Oil Pump	0,06 kW
Saw Speed	45 / 80 Dev. / Dak.
Angle Rotation	90°  / +/- 45°

Saw Diameter	350 mm
Saw Bore Diameter	32 mm
Pin Holes	2 x diameter 11
TiN Coating	Medium Hard Steel
TiCn Coating	High Hardness Steel
TiAIN Coating	Stainless steel

Most	600 mm
Size	1000 mm
Height	1400 mm
Net weight	210 Kg
Gross weight	230 Kg
