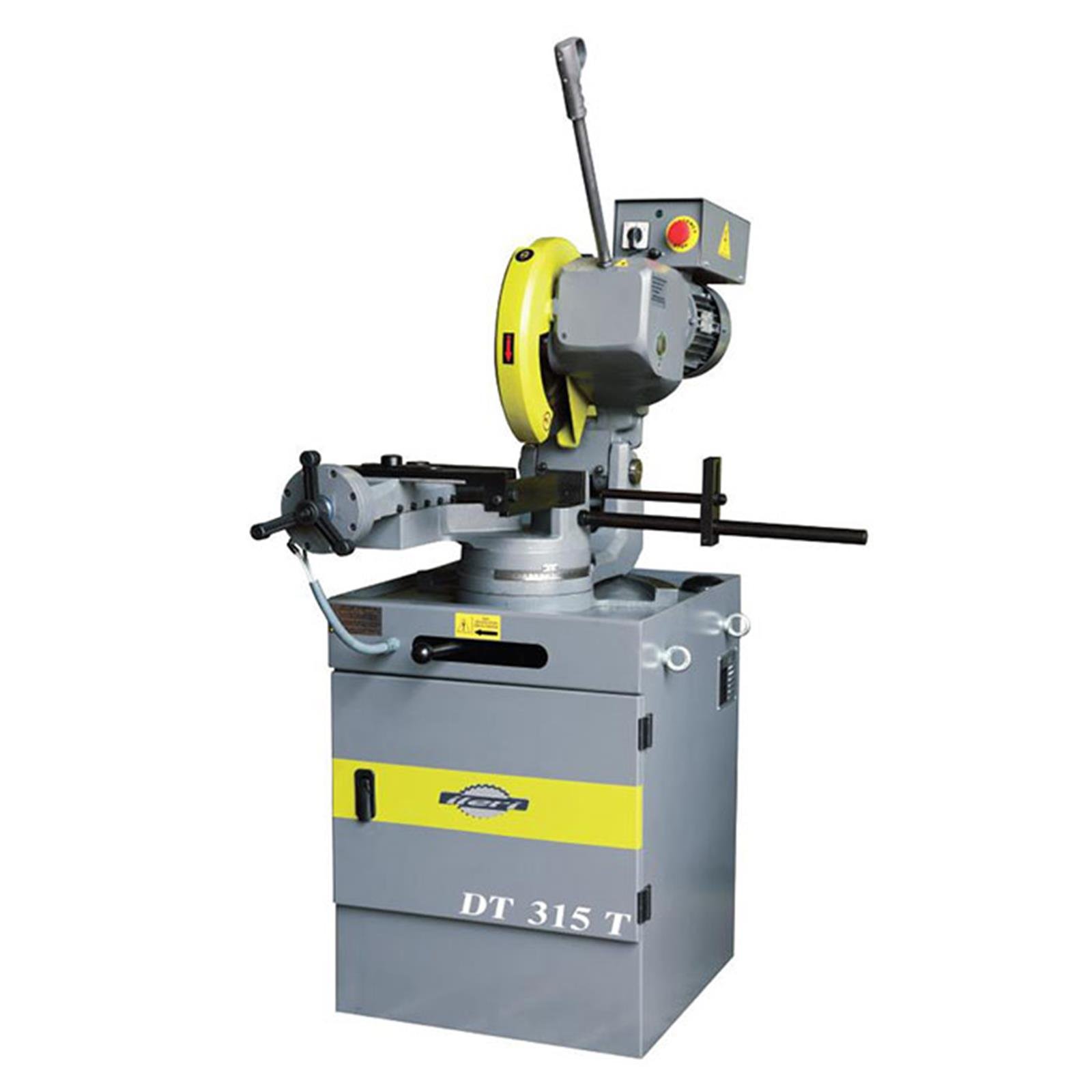

İleri Teknik DT 315T Manual With Power Vice Circular Saw Machine (İleri Teknik DT 315T Manual With Power Vice Circul)

Compact, pull down manual circular saw with powered material clamping and operated by a hand lever, offer easy mitre cutting for the workshop or toolroom

• Air-operated clamp for material vice
• Low voltage start/stop trigger switch within the pull down hand grip
• Miter capabilities 45 degrees left and 45 degrees right
• Double split vice to grip material on both sides of the material
• Self centering of vice optimizes cutting position
• Two cutting speeds



Cutting Capacity

Maximum Saw Diameter	315 mm
Saw Angle	90°                         +/- 45°
Round Material Diameter (max.)	105 mm                  90 mm
Square Material (max.)	85 x 85 mm           80 x 80mm
Rectangular Material (Max.)	120 x 60 mm         90 x 60 mm

Main Voltage	400 V
Control Voltage	24 V
Installed Power	4,7  kW
Current	1, 85 A
Saw Engine	1,3 - 1,8 kW
Boron Oil Pump	0,06 kW
Saw Speed	45 / 90Dev. / Dak.
Angle Rotation	90°  / +/- 45°

Saw Diameter	315 mm
Saw Bore Diameter	32 mm
Pin Holes	2 x Çap 11
TiN Coating	Medium Hard Steel
TiCn Coating	High Stiffness Steel
TiAIN Coating	Stainless steel

Most	600 mm
Size	1000 mm
Height	1400 mm
Net weight	200 Kg
Gross weight	220 Kg
