Lathes

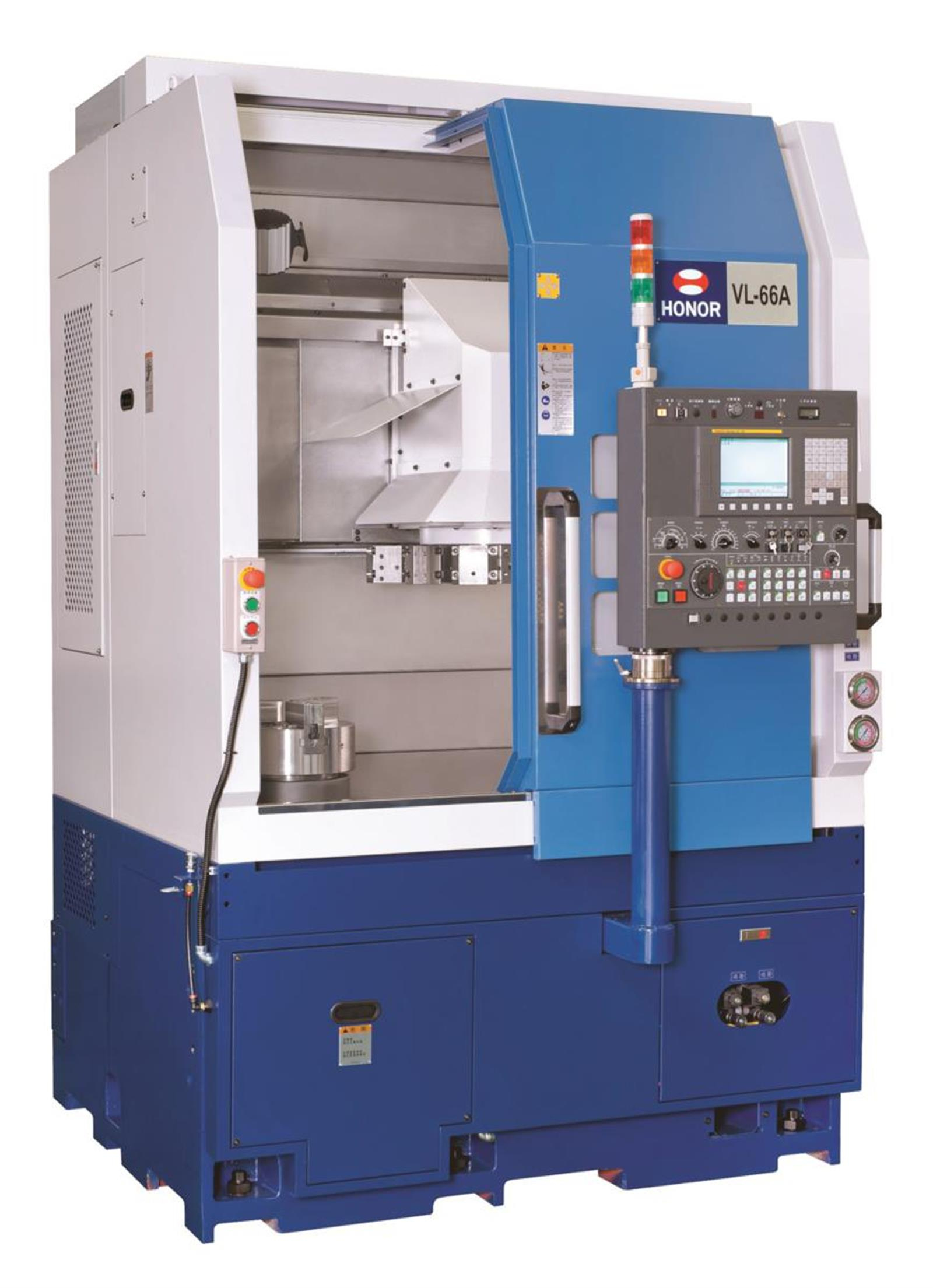

High Speed Vertical Lathes
The spindle is equipped with a wide range motor αip40, providing high output power and twice torque bigger than a general one. With rigidity and stability, the model is suitable for customer’s demand on intelligent manufacturing and a better yield rate.
Complete splash guard
Hydraulic 3-jaw chuck and rotary cylinder.(VL-46/66/86)
Manual 4-jaw chuck.(VL-100)
Hydraulic power unit
Soft jaws for hydraulic chuck.(VL-46/66/86)
Automatic lubrication system
Heat exchanger for electrical cabinet
Safety glass for front door
Foot switch for hydraulic chuck
Working light
Warning light.(R/Y/G)

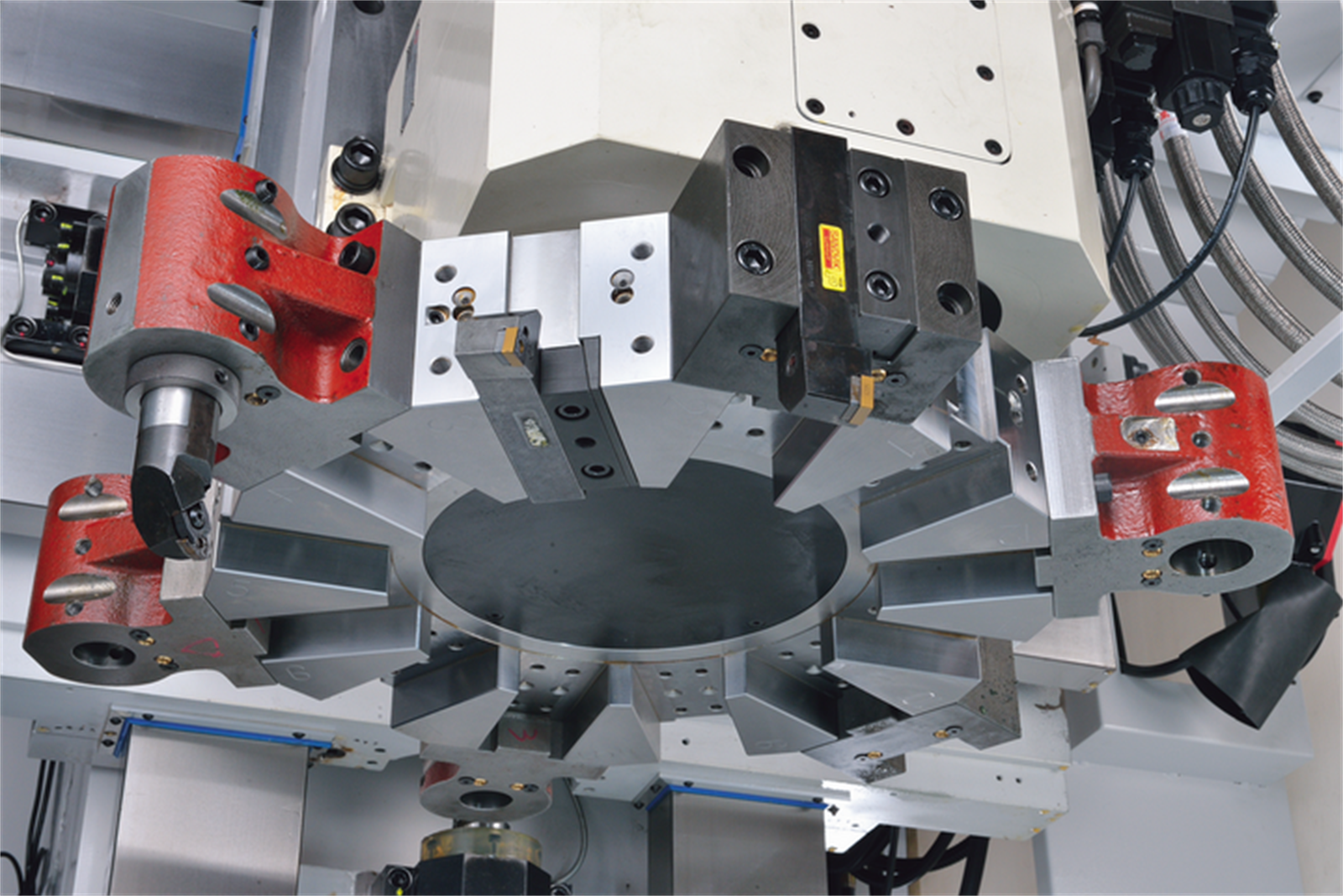

Coolant through turret
Coolant system with coolant tank and bed wash down system
Hand tool sets with tool box
Leveling bolts & seat pads
Chip conveyor.(Hinge type)
Chip trolley.
Spindle orientation
Manual of operation & maintenance
Manual of electrical & hydraulic circuit diagram
Workpiece counter.(CNC controller)
Hydraulic chuck and rotary cylinder.(VL-100)
Manual chuck.(VL-86 series)
Spindle motor upgrade.
High & low pressure chucking.
Auto door.(Automatic opening & closing of main door)
Air conditioner for electrical cabinet.
Power transformer.
Oli skimmer.(Disc type)
Oil mist collector.
Counter display for each insert.
Double cutting tools.
Tool presetter.
Workpiece probe
Dual speed gearbox for the spindle motor.
Chuck position sensor.
Tool holder.
Hard jaw of chuck.
High pressure coolant through turret.
Chip conveyor.(scraper type)
CNC controller 31i seriec.
Manual guide I.
Siemens controller
CE certificate.
Tooling.
Jig & fixture.
Turnkey project.

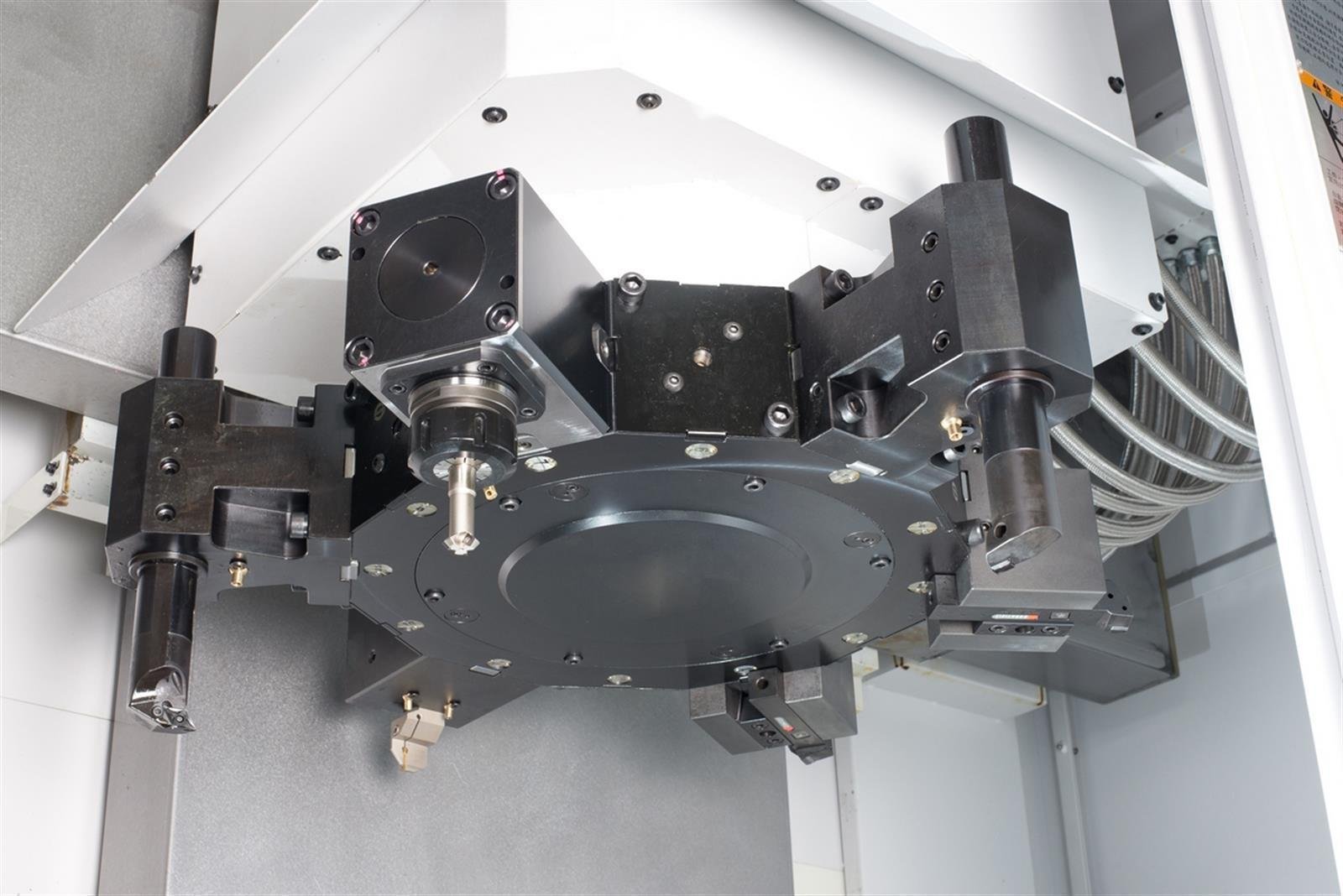

Servo turret.
X/Z axis encoder.
Full splash guard
| Spec./Model |
unit |
VL-66M |
| Max. swing dia. : |
mm |
800 |
(31.4") |
| Max. turning dia. : |
mm |
700 |
(27.5") |
| Max. turning height : |
mm |
650 |
(25.5") |
| Chuck dia. : |
mm |
457 |
(18") |
| Spindle speed : |
rpm |
25-2,000 |
| Number of tool position : |
pcs |
12 |
| Max. workpiece weight : |
kgs |
650 |
