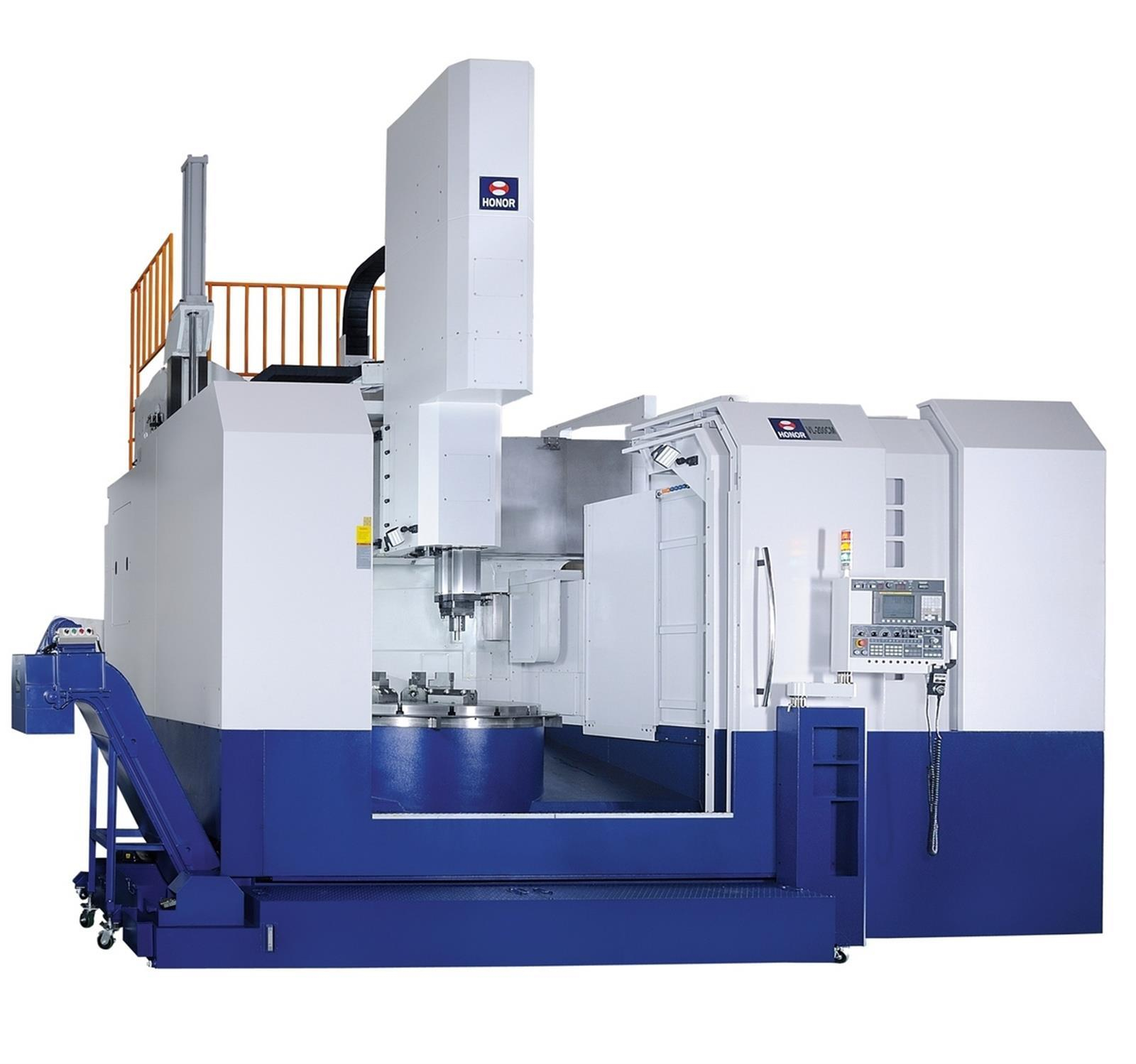

Honor Seiki VL-66CM Heavy Duty Series (VL-66CM)

High-grade Meehanite casting for column and bed designed with box structure to reduce vibration. Also with Box way, the model has high rigidity and stability, which provides excellent machining efficiency for tough materials, especially for the Aerospace industry.

Complete splash guard
Hydraulic 3-jaw chuck & cylinder, size as spec.(VL-66/VL-86)
Table with manual 4-jaw chuck as spec.(VL-100)
Hydraulic chuck soft jaw x 1 set.(VL-66/VL-86)
Footswitch for hydraulic chuck.
Hydraulic power unit.
Protection door.
Automatic lubrication system.
Working light.
Warning light.(R/Y/G)
Workpiece counter.(CNC controller)
Coolant system with tank.
Coolant bed wash down system.
Heat exchanger for electrical cabinet.
Hand tool set with toolbox.
Leveling bolts & seat pads
Chip conveyor.(Hinge type)
Chip trolley.
Spindle orientation
VL-100C, 100CM fixed type crossrail.
Manual of operation & maintenance.
Manual of electrical & hydraulic circuit diagram.

Hydraulic chuck & cylinder, size selections.(VL-100)
Higher power motor.
Air conditioner for electrical cabinet.(C type)
Table with manual 4-jaw chuck as spec. (VL-66/VL-86)
Power transformer.(external)
Oil skimmer.(Disk type)
Tool holder base.
Other tool holder & special tool holder.
Tool presetter.
Workpiece probe
Linear encoder of X/Z axis.
High & low pressure chucking.
Lubricant chiller for spindle bearing & gear.
Extend vertical travel.(Z axis)
Hard jaw for hydraulic chuck.
Hing pressure coolant through tool holder.
Dual gearbox for live tool spindle
Chip conveyor, scraper type.
Manual guide I.
CE certificate.
Tooling
Jig & fixture
Turnkey project.
Siemens controller.

Spec./Model	unit	VL-66CM
Max. swing dia. :	mm	850(33.4")
Max. turning dia. :	mm	850(33.4")
Max. turning height :	mm	650(25.5")
Live spindle speed :	rpm	50-2,250
Number of tool position :	pcs	12
Max. workpiece weight :	kgs	1,5
