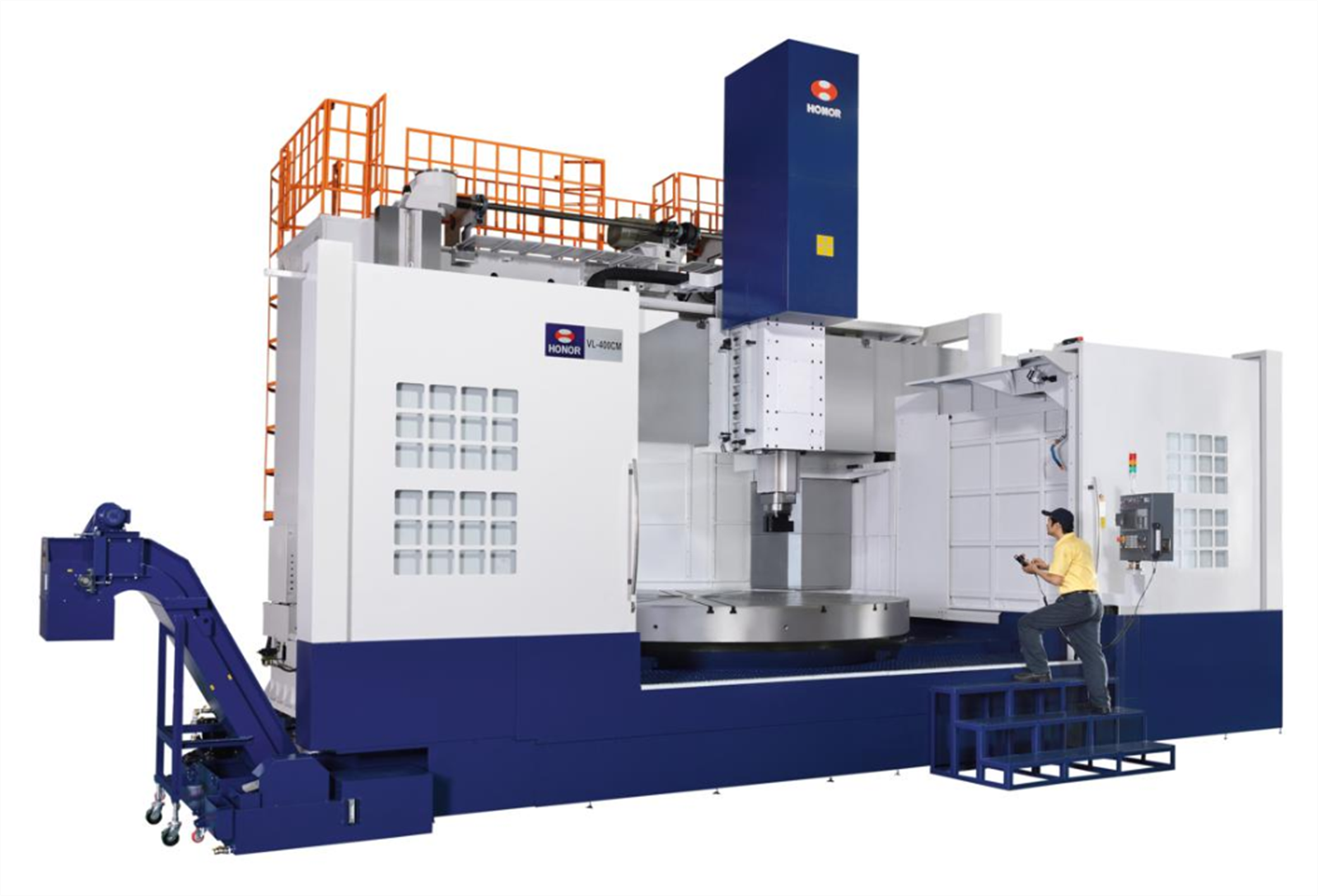

Honor Seiki VL-600C Large Vertical Lathe (VL-600C)

Designed with a wide span column, box way, and Honor patented Solid lock tool clamping mechanism, the model has great performance in turning huge size workpieces and harden material, especially for the Windpower industry. The optional dual spindles model has highly improved the machining efficiency.

Complete splash guard.
Hydraulic power unit.
Table with manual 8-jaw chuck.
Protection door.
Automatic lubriccation system.
Working light.
Warning light(R/Y/G).
Workpiece counter (CNC controller).
Coolant system with tank.
Coolant bed wash down system.
Heat exchanger for electrical cabinet.
Hand tool sets with toolbox.
Leveling bolts & seat pads.
Chip conveyor (Hinge type).
Chip trolley.
Spindle orientation.
Manual of operation & maintenance.
Manual of electrical & hydraulic circuit diagram.


Hydraulic chuck & cylinder, size selections.
Higher power motor.
Air conditioner for electrical cabinet (Standard for CM series)
Power transformer (external).
Oil skimmer (Disk type).
Tool holder base.
Other tool holder & special tool holder.
Tool presetter.
Workpiece probe
Linear encoder of X/Z axis.
High & low pressure chucking.
Lubricant chiller for spindle bearing &gear
Extend vertical travel (Z axis).
Hard jaw for hydraulic chuck.
High-pressure coolant through tool holder.
Dual speed gearbox for tool lice spindle.
Chip conveyor (scraper type).
Manual guide I.
CE certificate.
Tooling
Jig & fixture.
Turnkey project.
Siemens controller.

Spec./Model	unit	VL-600C
Max. swing dia. :	mm	7,000(275.5")
Max. turning dia. :	mm	7,000(275.5")
Max. turning height :	mm	2,600(102.3")
Live spindle speed :	rpm	-
Number of tool position :	pcs	16
Max. workpiece weight :	kgs	100
