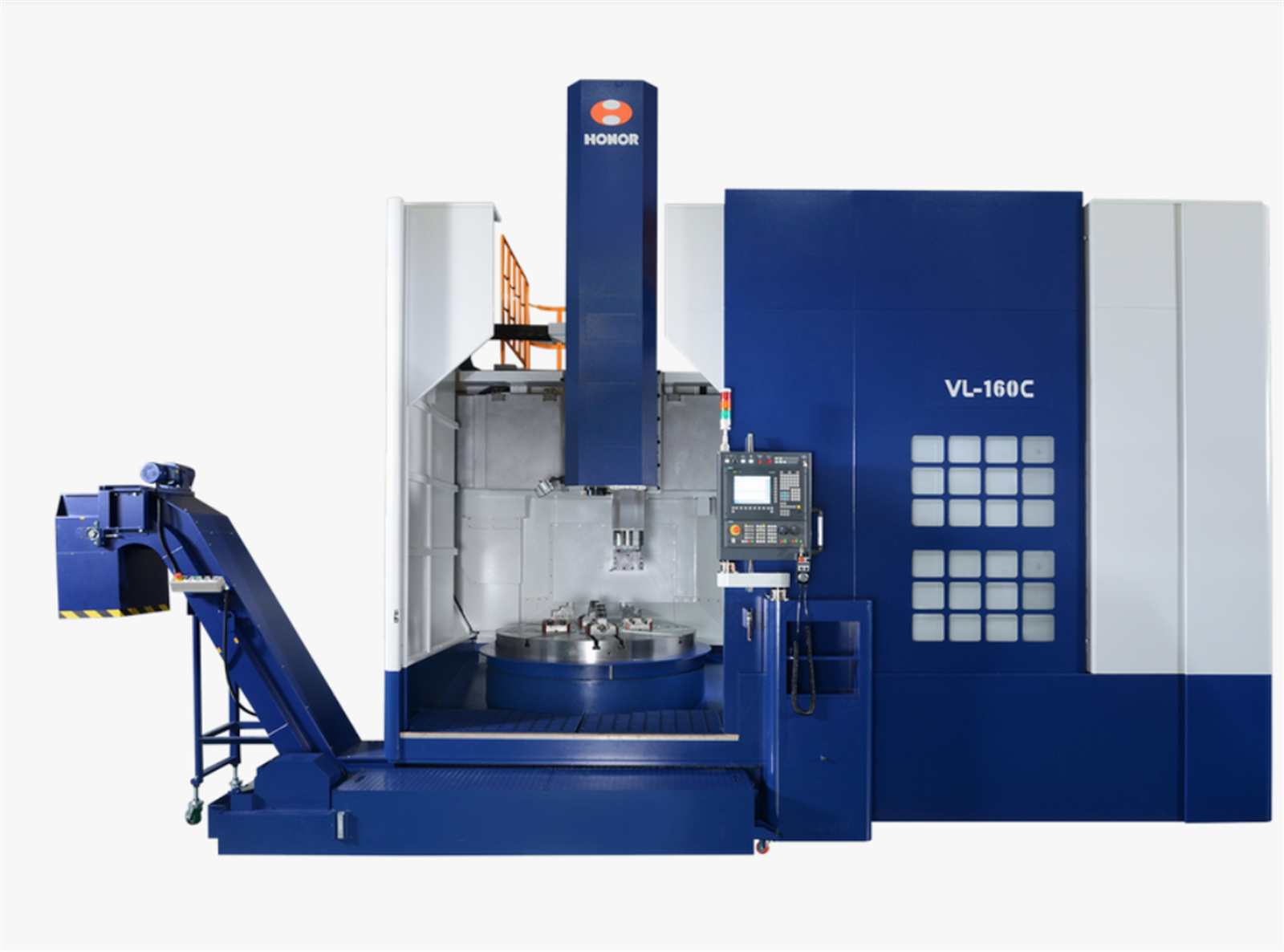

Honor Seiki VL-160C Heavy Duty Series (VL-160C)

High-grade Meehanite casting for column and bed designed with box structure to reduce vibration. Also with Box way, the model has high rigidity and stability, which provides excellent machining efficiency for tough materials, especially for the Aerospace industry.


Complete splash guard.(Top open)
Hydraulic power unit.
Table with manual 4-jaw chuck as spec.
Protection door.
Automatic lubrication system.
Working light.
Warning light.(R/Y/G)
Workpiece counter.(CNC controller)
Coolant system with tank.
Coolant bed wash down system.
Heat exchanger for electrical cabinet.
Hand tool sets with toolbox.
Leveling bolts & seat pads.
Chip conveyor.(Hinge type)
Chip trolley.
Spindle orientation.
Manual of operation & maintenance.
Manual of electrical & hydraulic circuit diagram.
Solid lock clamping system (VL-200/VL-250)


Hydraulic chuck & cylinder, size selections.
Hard jaw for hydraulic chuck.
Hydraulic chuck soft jaw.
High & low pressure chucking
Air conditioner for electrical cabinet.(Standard for CM series)
Power transformer.
Oil skimmer.(Disk type)
Tool holder base.
Other tool holder & special tool holder.
Tool presetter.
Workpiece probe
Linear encoder of X/Z axis
Lubricant chiller for spindle bearing & gear.
Extend vertical travel.(Z axis)
Extend higher column.
High-pressure coolant through tool holder.
Dual speed gearbox for live tool spindle.
Chip conveyor.(scraper type)
Manual guide I .
CE certificate.
Tooling.
Jig & fixture.
Turnkey project.
Siemens controller.
Grinding function

Spec./Model	unit	VL-160C
Max. swing dia. :	mm	2,000(78.7")
Max. turning dia. :	mm	2,000(78.7")
Max. turning height :	mm	1,200(47.2")
Live spindle speed :	rpm	-
Number of tool position :	pcs	12
Max. workpiece weight :	kgs	8
