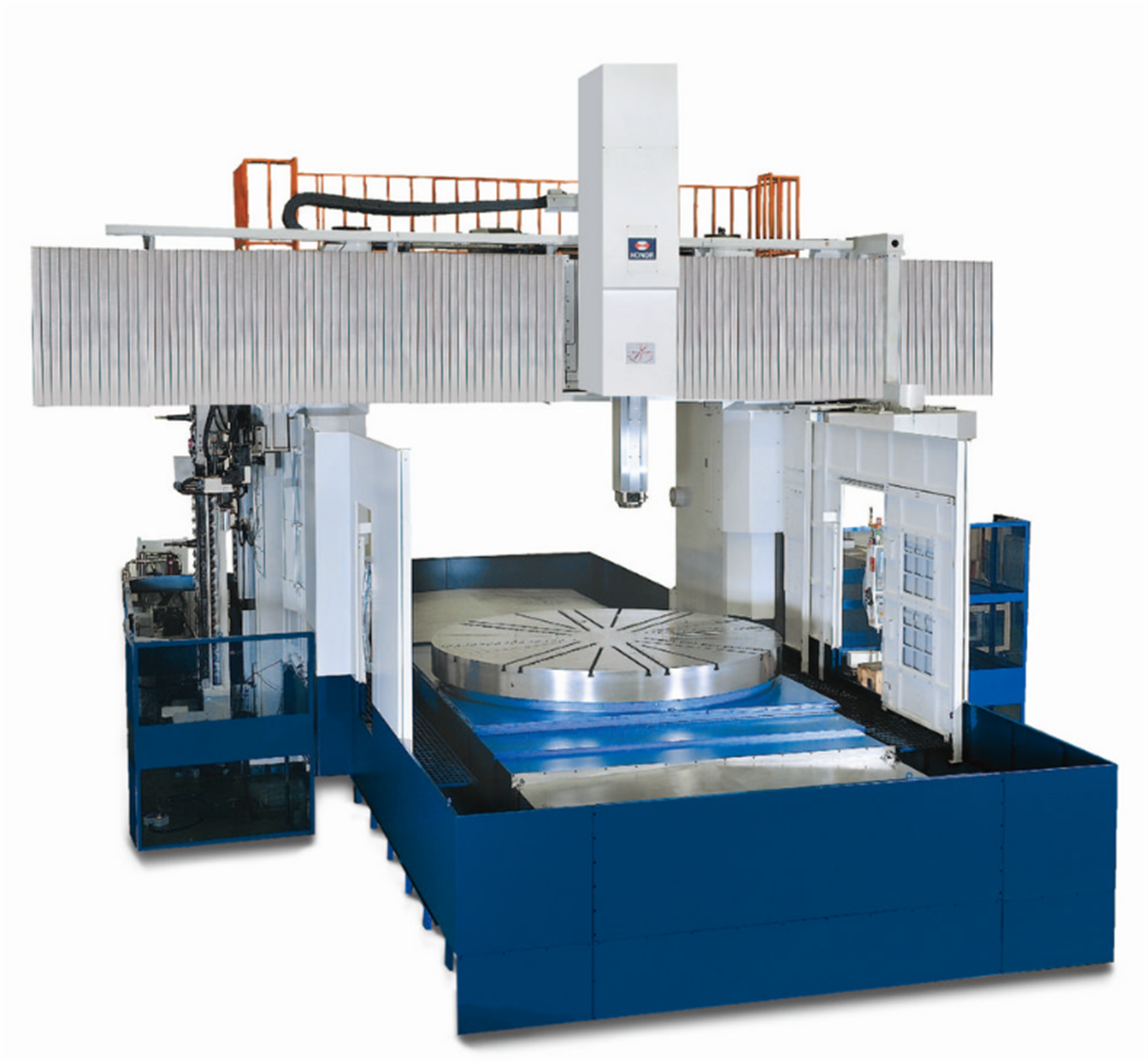

Honor Seiki PL-160CM PL series (with Y axis) (PL-160CM)

High rigidity vertical lathe combined with gantry-type Y-axis mechanism which is able for the machining operation similar to bridge type machining center. Providing flexibility for the demand on multiple machining operations and high precision.

Complete splash guard
Hydraulic power unit
Table with manual 4-jaw chuck as spec.
Protection door
Automatic lubrication system
Lubricant chiller for spindle bearing & gear
Air conditioner for electrical cabinet
Work light
Warning light(R/Y/G)
Workpiece counter(CNC controller)
Coolant system with tank
Coolant bed shower system
Service toolbox & tool kits
Leveling bolts & seat pads
Chip conveyor (Hinge type)
Chip trolley
Spindle orientation
Manual of electrical & hydraulic circuit diagram
Manual of operation & maintenance

Hydraulic chuck & cylinder,size selections
Hydraulic chuck soft jaw x1 set
Foot switch for hydraulic chuck
Power transformer(external)
Oil skimmer(Disk type)
Tool holder base
Other tool holders & special tool holder
Tool presetter inside (Turning dia. is same as table)
Linear encoder of X/Z axis
Extend vertical travel (Z axis)
Hard jaw for hydraulic chuck
High pressure coolant through tool holder
Dual gearbox for live tool spindle
Chip conveyor (scraper type)
Manual guide I
CE certificate
Tooling
Jig & fixture
Turnkey project
Siemens controller

Spec./Model	unit	PL-160CM
Max. swing dia. :	mm	2,000(78.7")
Max. turning dia. :	mm	2,000(78.7")
Max. turning height :	mm	1,000(39.3")
Live spindle speed :	rpm	1-250
Number of tool position :	pcs	R16+L60
Max. workpiece weight :	kgs	8
