Hizmet Him Machine MC 930 Mdf Multi Slicing Machine (Hizmet Him Machine MC 930 Mdf Multi Slicing Machin)

Brand : Hizmet Him Makina

Stock Amount : 0

Est. Delivery Time60-75 Days After Order

Shipment Place Turkiye

Payment Terms% 30 T/T On Order Confirmation, % 70 T/T Before Shipment

Made InTurkey

Min. Order Qty.1 Pcs.

Warranty1 Year

Ask For Offer

Add to Favorites

Add to My Wish List

Compare

Notify me when the price goes down

Notify me when it is in stock

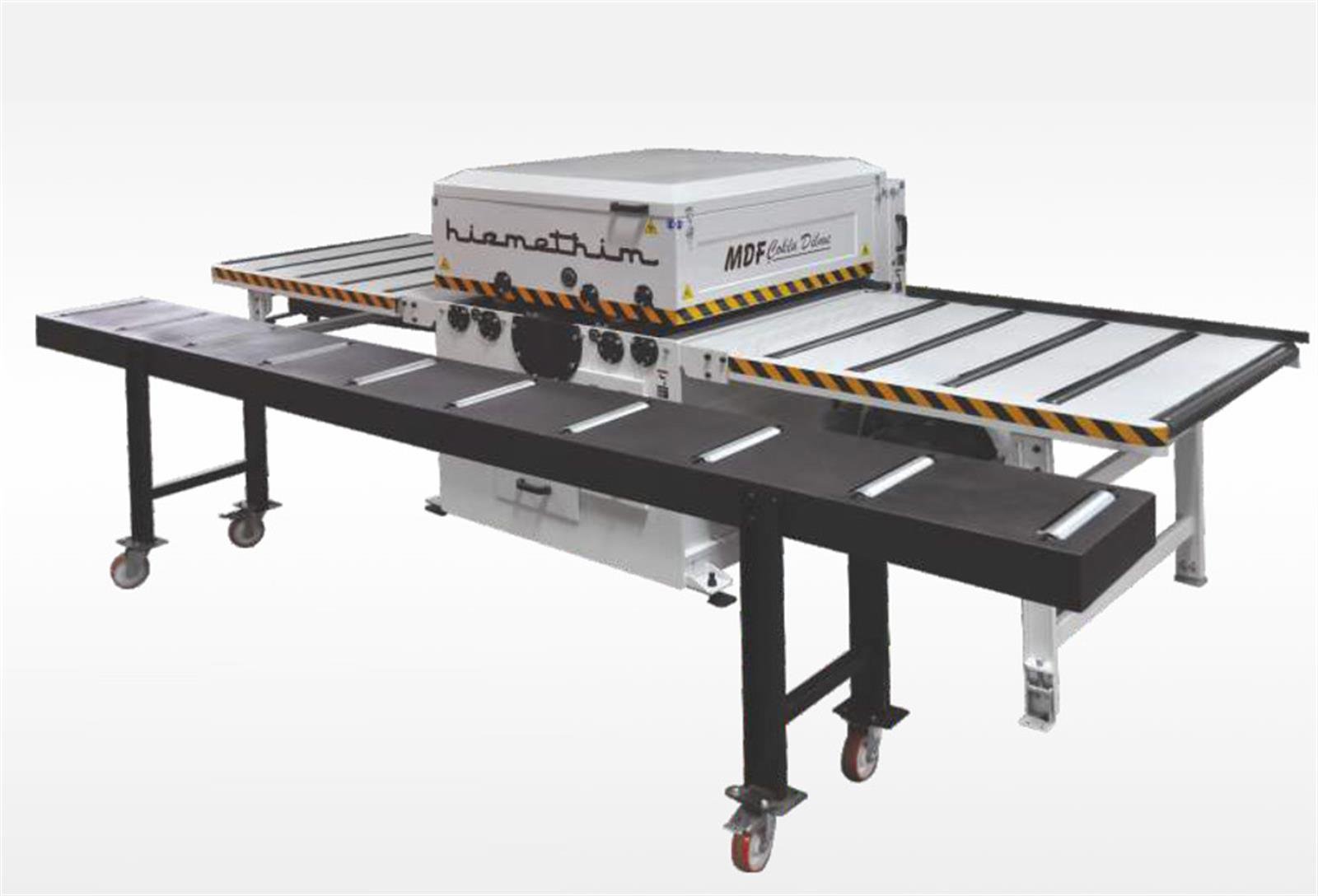

MDF multi-slicing machine is used to slice MDF boards with smoothed surfaces to the desired size.
Since the machine body is an open case, it allows you to easily pass the desired width of the plates.
Cutting Height And Printing Is Automatic, It Does Not Require Any Thickness Adjustment.
The distance between the saws is adjusted manually with aluminum washers.
Speed Adjustment
Automatic Print
Input Output And Side Conveyors
Open Chassis Advantage

TECHNICAL FEATURES
MDF Cutting Range	930 mm
Max Cutting Thickness	50 mm
Minimum MDF Cutting Length	650 mm
Feed Speed Adjustment Range	5-20 Mt/Dk
Feed Speed Adjustment Range	5-20 Mt/Dk
Thrust Motor	0,75 Kw 1410 Devir /Dk. (RPM)
Main Spinde Motor	22 Kw - 380 V
Main Spinde Engine Power	30 HP
Saw Diameter	MAX Ø 250
Saw Shaft Diameter	70 mm
Saw Speed	3500 Devir/Dk (RPM)
Cutting Noise	15
Working Height	900 mm
Operating Noise	80dB
System Air Pressure (W / D / Y)	8 Bar
Working Dimensions (L/W/H)	1360 x 1500 x 1400 mm
Weight	1480 Kg
