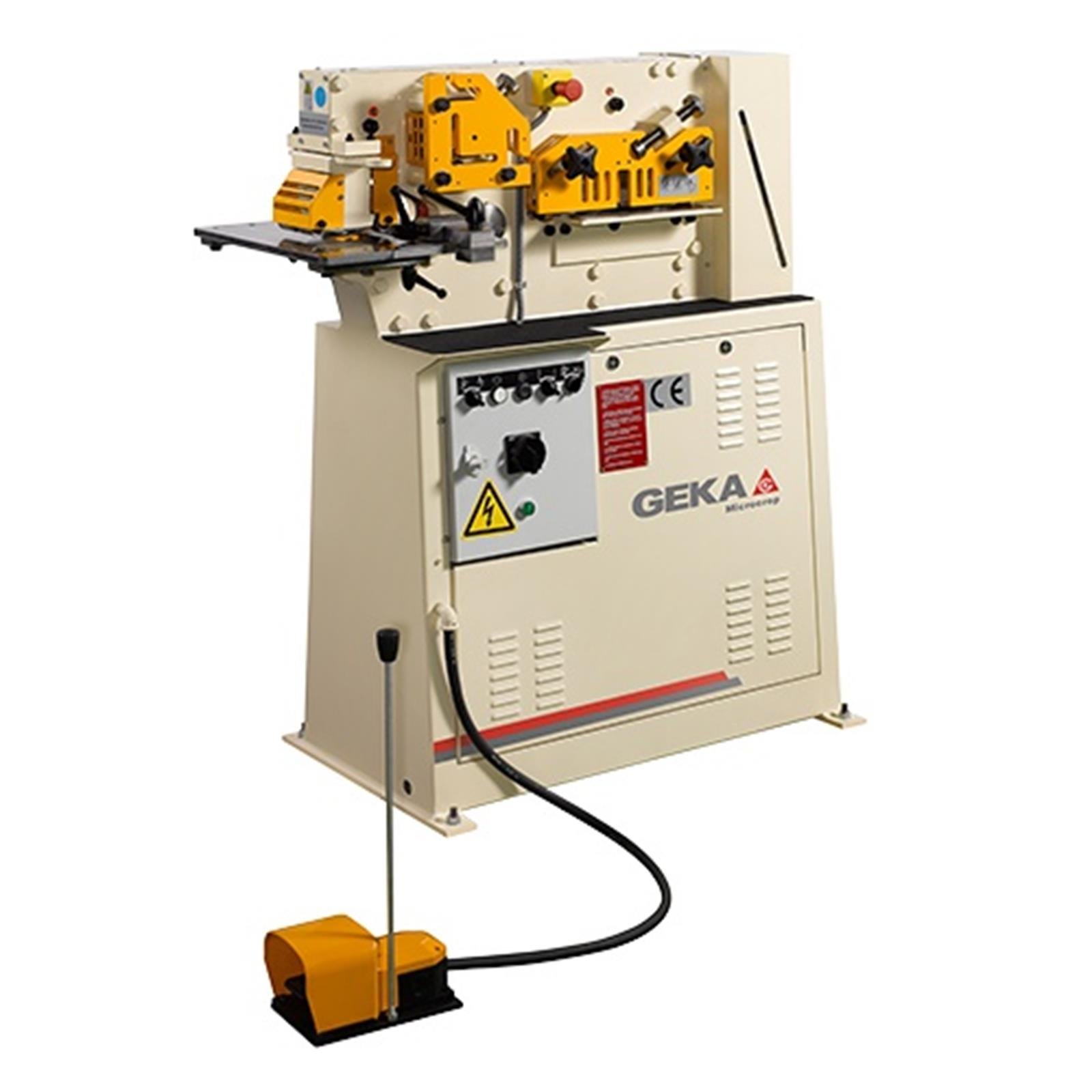

Geka Microcrop 36 Single Cylinder Punching and Shearing Machine (MICROCROP 36)

Microcrop is part of Geka´s one-cylinder punching and shearing machines range. Single cylinder punching machine equipped with three separate working stations for different tasks: punching, shearing flat bars, and cutting angles. Additionally, Microcrop has a rectangular notching optional equipment available to be added to its standard equipment.

Microcrop is one of Geka´s ironworkers that includes within its equipment 3 workstations for the following tasks:

• Punching: Microcrop´s punching station can operate at a maximum punching power of 36 tons and has a maximum capacity of Ø 28×10 mm. This punching station has a monoblock body and a sandwich structure. Its punch can be quickly changed and has various off-set punches available for punching over small angles. Some other additional features of this geka machine punching station are:
  • Blade-holder adjuster
  • Adjustable stripper
  • Security protection
  • Accurate positioning table with removable front for F punching, leg down.
• Shearing of Flat Bars: Microcrop´s shearing station can shear over a diameter of 350×6 mm or 200×13 mm. This plate cutting station is provided with adjustable blades for the shearing of flat bars. It also has a material clamping guide.
• Shearing of Angles: This angle cutting station can cut at angles of 45º or 90º It can do angle cutting at 90º over a surface up to 80x80x8 mm. At 45º it can do angle cutting over a surface up to 50x50x6 mm.

The specifications of the Microcrop are detailed in the following table:

The specifications of the Microcrop are detailed in the following table:
FEATURES	MICROCROP
Punching Power	36 Ton
Maximum capacity	Ø 28×10 mm
Flat Bars Shearing	350×6 mm
	200×13 mm
Angle Cutting 90º	80x80x8 mm
Angle Cutting 45º	50x50x6 mm





• Capacities based on a material resistance of 45 Kg/mm2.
• GEKA may change technical specifications, equipment and photographs of models, as well as any other information contained herein.
• Technical characteristics valid except for typographical errors or omissions.





	Blades for Round Bars shearing with minimum deformation: Add this equipment to Microcrop’s standard equipment if you need to do round bars shearing reducing deformation as much as possible.
	Rectangular Notching: If you want to implement notching tasks in Microcrop you will be interested in this equipment.
	Punching equipment up to Ø 36×8 mm: You can amplify the maximum punching capacity for your Microcrop by adding this equipment to this Geka machinery.
	Electric Stop.
