Geka G MODEL PP Series of Portable Punching Machines (Geka G MODEL PP Series of Portable Punching Machin)

Geka´s portable punching machines have been designed so that the user can move them. There can be various reasons for this mobility need such as optimizing the space or moving it from one location to another one with ease. This punching machines can punch flat bars and profiles and have a power of 55 tons.

• G Model: performs punching tasks over flat bars and structural profiles.

Portable Punching Machines with a punching power of 55 Tons. Enough Power for punching or marking Steel Pieces.

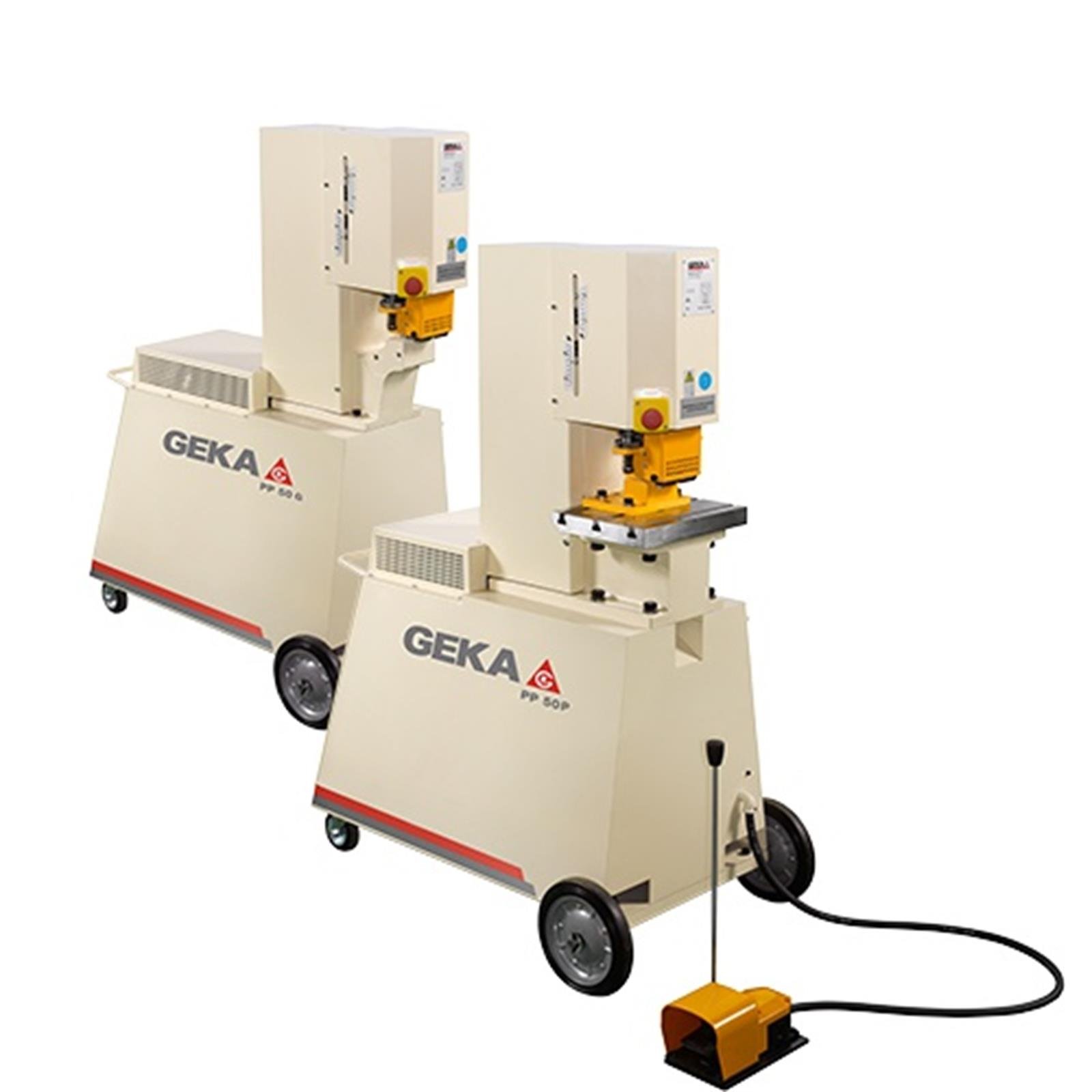

The PP series consists of two portable punching machines. They are portable because they stand over a set of 4 wheels that give these punching machines the ability to be moved with ease.

One of Geka´s portable punching machines series model. It has been designed for doing punching tasks over flat bars and structural profiles.



A pressure Marking station of 40 characters is available. It can do punches with a depth of up to 1 mm deep. If you want to know more about this optional equipment, please contact Geka.

In the following table you will be able to observe the capacities of the primary features of the machines within this portable punching machines series.

FEATURES	G MODEL
Punching Power	55 Ton
Maximum Capacity	Ø 28 x 10 mm
Throat Depth	130 mm
Motor Power	3 KW
Strokes per minute (on 20mm. stroke)	23
Maximum stroke	30 mm

• Capacities based on a material resistance of 45 Kg/mm2.
• GEKA may change technical specifications, equipment and photographs of models, as well as any other information contained herein.
• Technical characteristics valid except for typographical errors or omissions.
