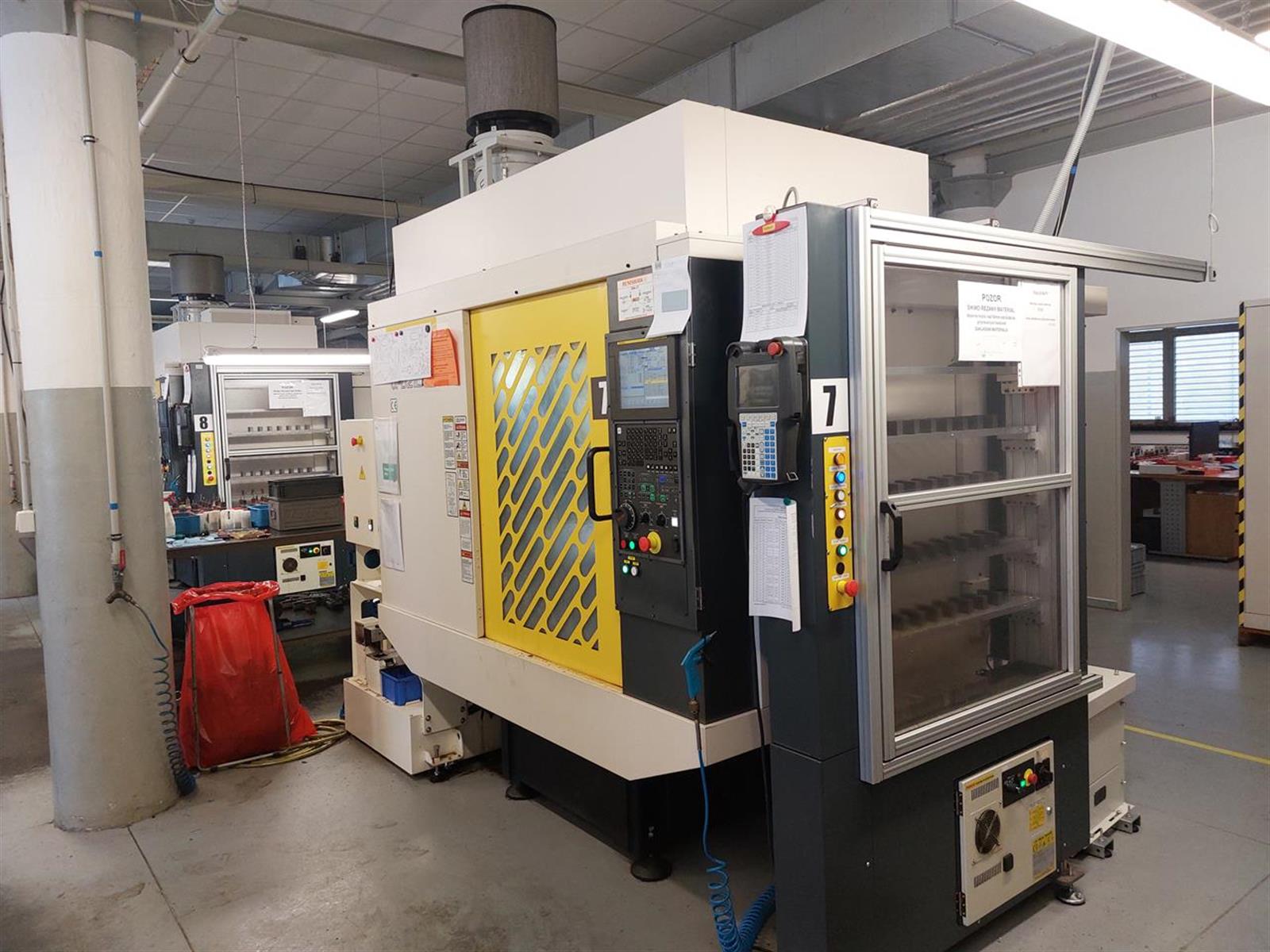

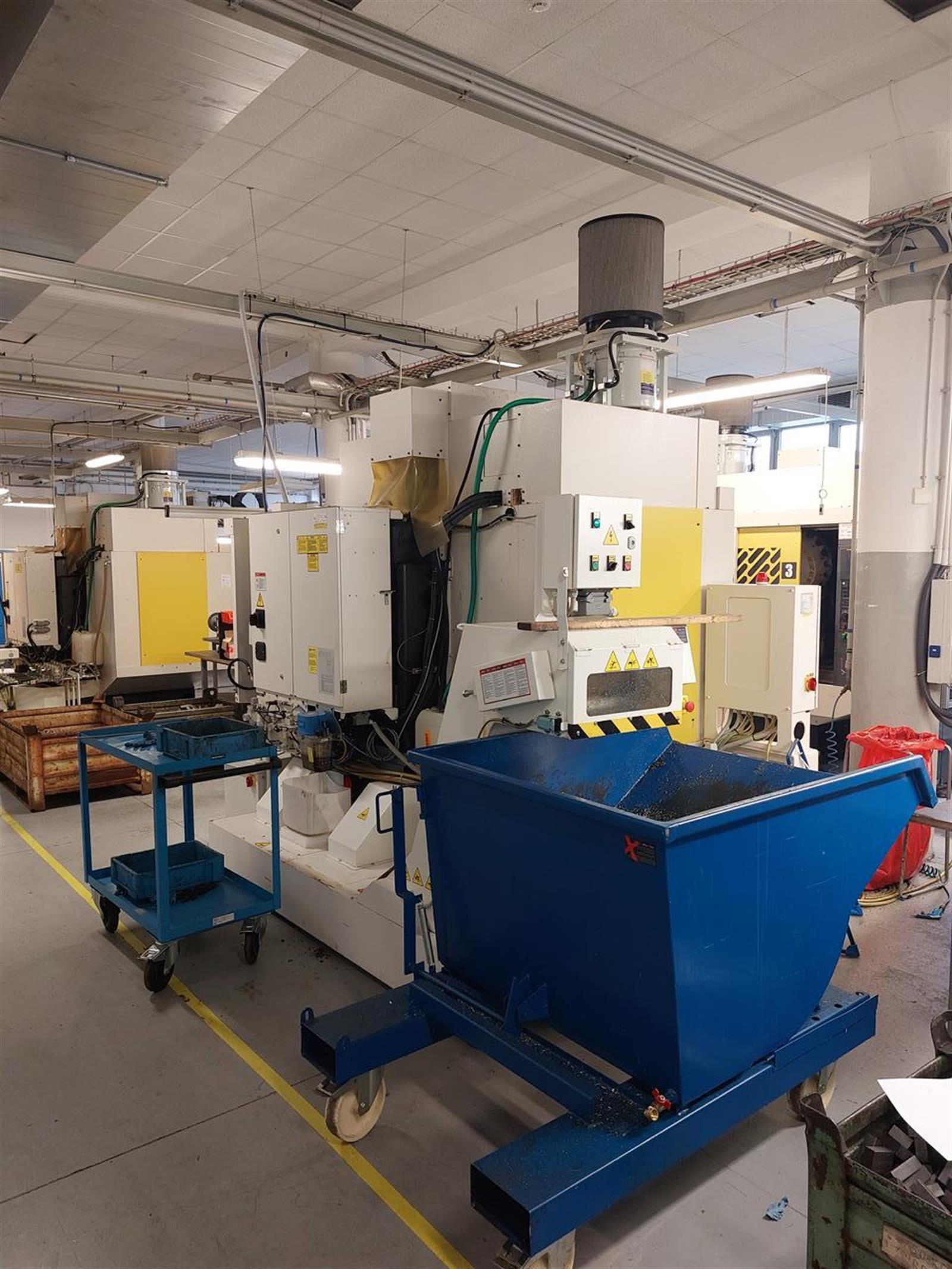

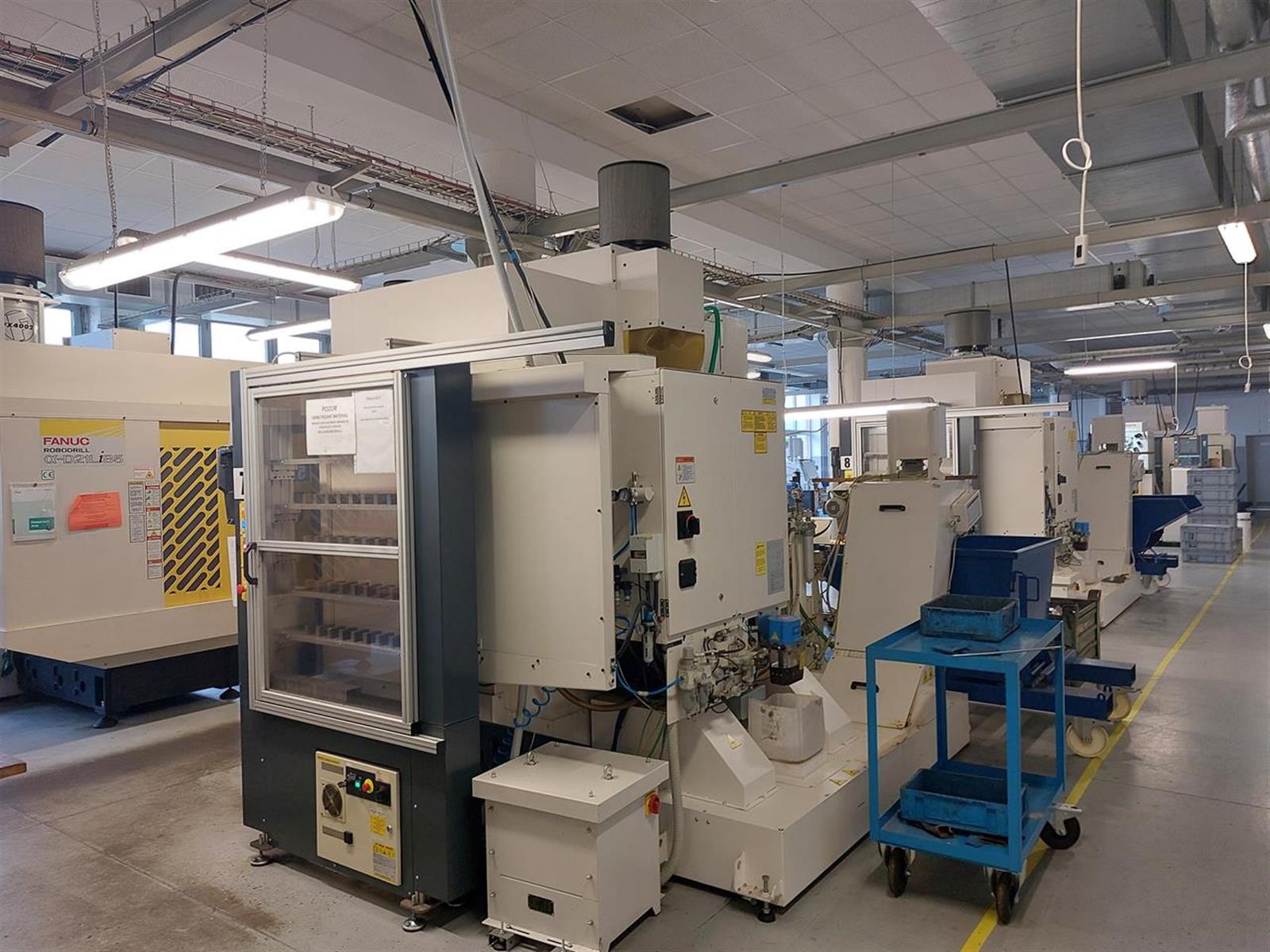

Fanuc Robodrill D21 Machining center - vertical (Fanuc Robodrill D21 Machining center - vertical)

Type: Robodrill D21
Producer: Fanuc
Made in: 2018
Characteristic:
Control system: Fanuc Series 31i-B5
Length of the working table: 850 mm
Width of the working table: 410 mm
Maximum table load (evenly distributed): 300 kg
Number of tools in the magazine: 21 pcs
Maximum rotary speed of the vertical spindle: 100-10.000 1/min
Minimum distance of the spindle from the table: 250 mm
Maximum distance of the spindle from the table: 580 mm
X-Axis travels: 700 mm
Y-Axis travels: 400 mm
Z-Axis travels: 330 mm
Tool diameter: 80 mm
Max. tool weight: 2 kg
Max. tool lenght: 250 mm
Number of T-slots in the table: 3 pcs
Machine height: 2393 mm
Machine length: 2200 mm
Machine width: 2040 mm
Machine weight: 2000 kg
Equipment:
FANUC LR Mate 200iD manipulator

Axis X	700 mm
Axis Y	400 mm
Axis Z	330 mm
Rotary table (4th axis)	no
Type of CNC	Fanuc Series 31i-B5
Table length	850 mm
Table width	410 mm
Max. part weight	2 kg
Number of tool pockets	21
Spindle taper
Max. spindle speed	24000 rpm
Spindle motor power	7.5 kW
-------------------
Length x width x height	2200.0 × 2040.0 × 2393.0
Weight	2000 kg
Worked hours
Hours under power
State	good
At local norms	---------
Status	under power
Datasheet	Fanuc Robodrill D21MiA5
