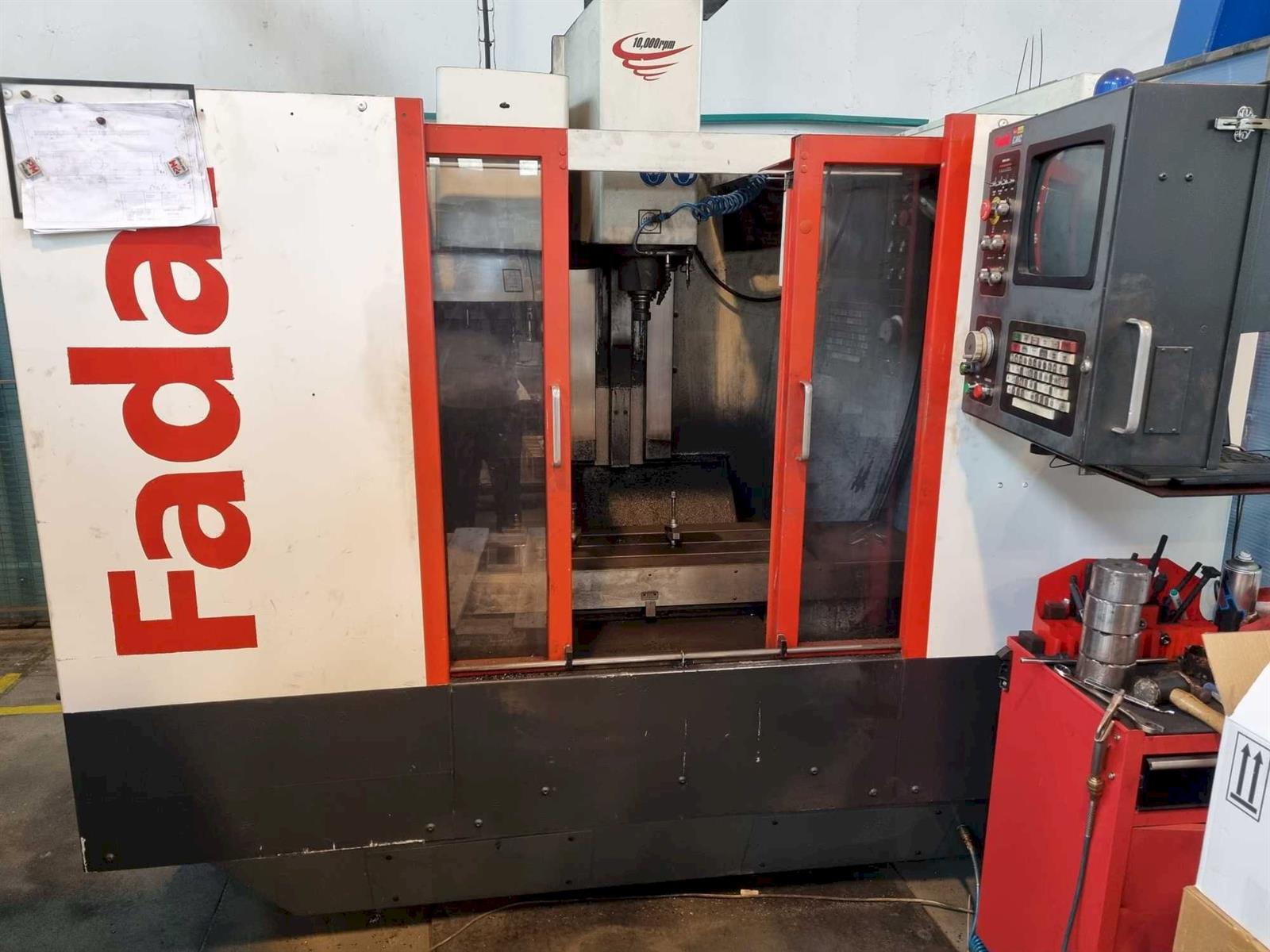

FADAL VMC 3016 Machining center - vertical (FADAL VMC 3016 Machining center - vertical)

This FADAL VMC 3016 Vertical Machining Center was manufactured in 2001. Equipped with a FADAL CNC control unit. This 3 axis machine can operate with a speed up to 10000 rpm. It presents good working condition.

Machine width: 2514 mm
Machine depth: 2718 mm
Machine height: 2007 mm
Machine weight: 3900 kg
Brand: Fadal
Number of spindles: 1
Spindle speed range: 10000
Number of axis: 3
X-Axis Movement: 762 mm
Y-Axis Movement: 406 mm
Z-Axis Movement: 508 mm
Workpiece weight: 900 kg
Table area: 900 x 406 mm
Tools in storage: 21
Type of tool holder: 40

Axis X	762 mm
Axis Y	406 mm
Axis Z	508 mm
Rotary table (4th axis)	no
Type of CNC	Fadal
Table length	900 mm
Table width	406 mm
Max. part weight	900 kg
Number of tool pockets	21
Spindle taper	40
Max. spindle speed	10000 rpm
Spindle motor power	11.2 kW
-------------------
Length x width x height	2718.0 × 2514.0 × 2007.0
Weight	3900 kg
Worked hours
Hours under power
State	good
At local norms	---------
Status
Datasheet	Fadal VMC 3016
