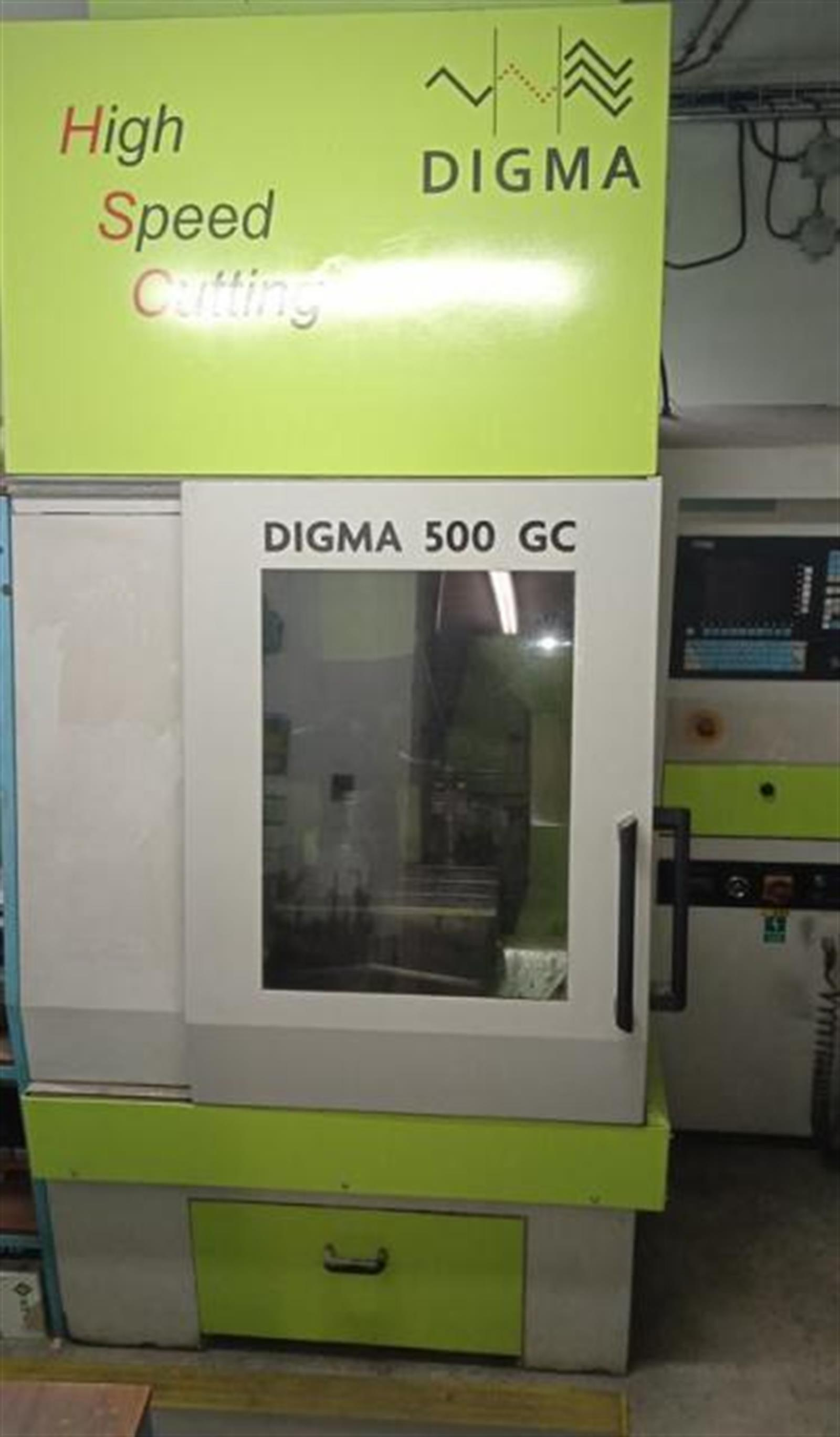

Exeron Digma 500 GC 5AX Machining center - vertical (Exeron Digma 500 GC 5AX Machining center-vertical)

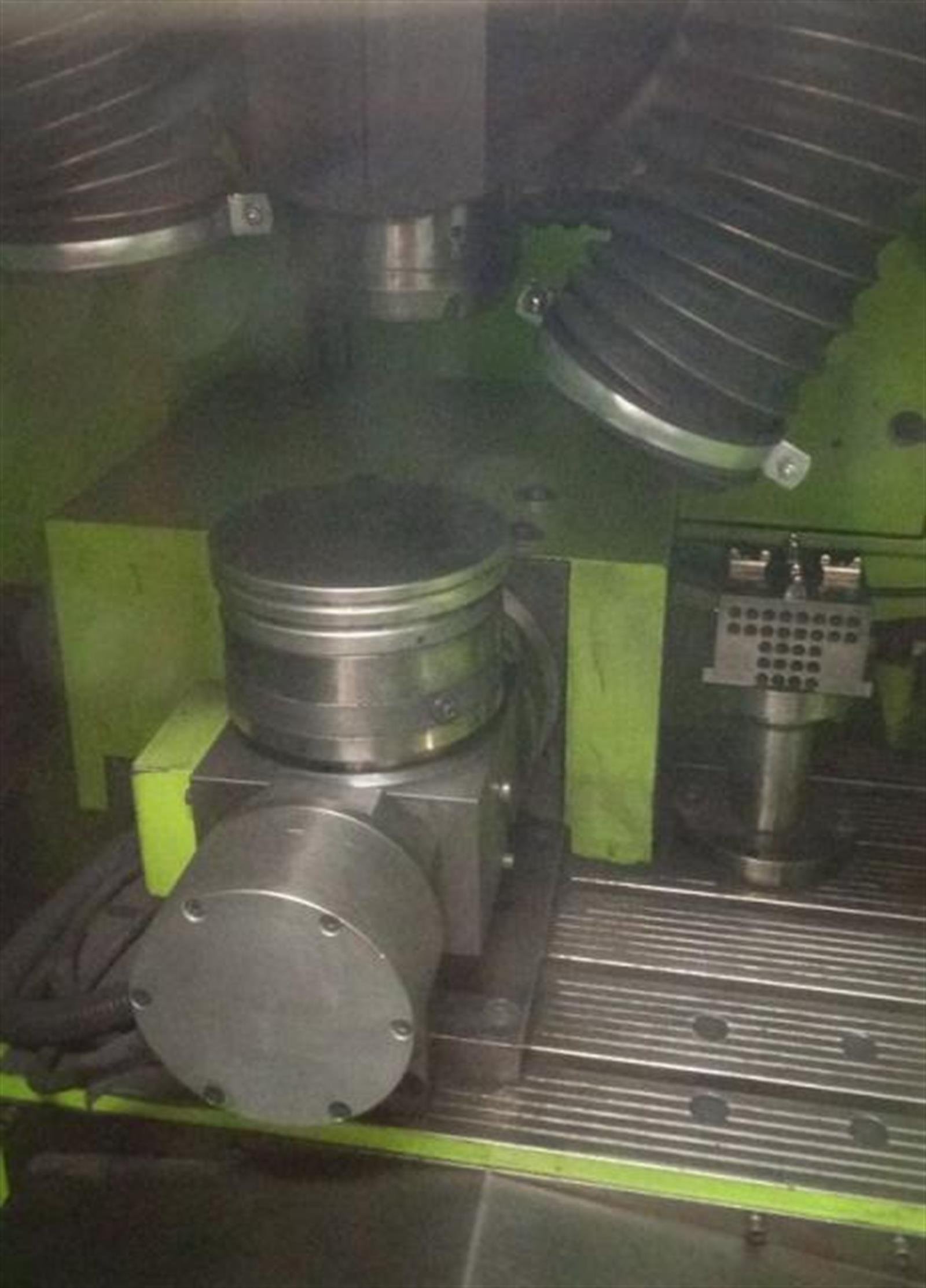

The machine is in good technical condition. Table size 500 x 500 mm Axis travel 500 x 500 x 500 mm On the table B-axis divider: -15° to +90°, C-axis 360° Control system Heidenhain atek HS plus We will supply post-processors for cadcam Worknc Magazine for 16 tools Spindle ibag – 42,000 revolutions, used up to 18,000 HSK E40 Workpiece probe Blum Tool probe - Laser Blum Erowa clamping on the divider, fixture also on Erowa outside the divider Graphite electrodes were milled on the machine The machine has water mist cooling Tools, graphite dust extraction by agreement Dimensions 3000 x 2300 x 2800 mm Upon prior agreement, the possibility of a tour in progress.

Axis X	500 mm
Axis Y	500 mm
Axis Z	500 mm
Rotary table (4th axis)	no

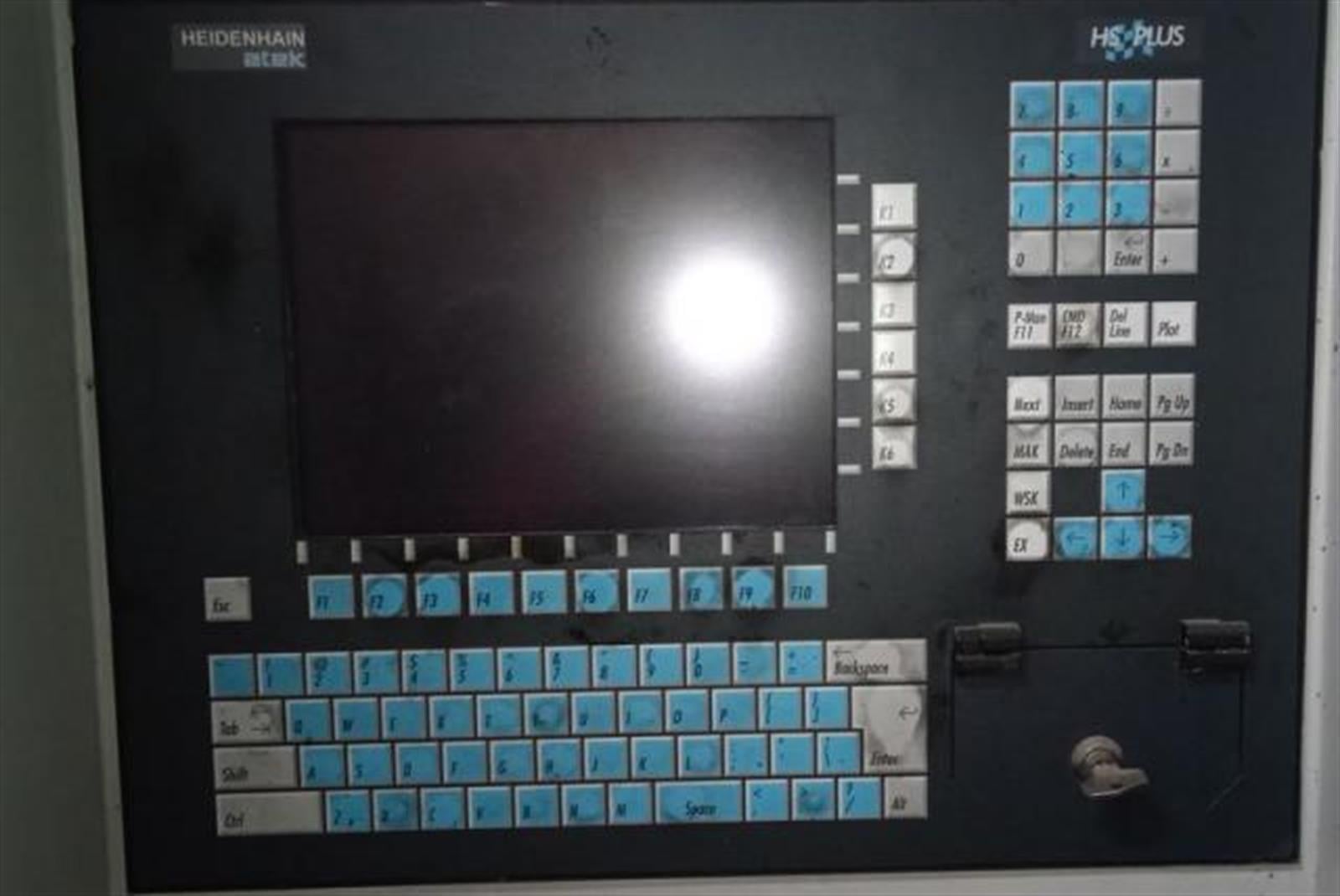

Type of CNC	Heidenhain atek HS plus
Table length	500 mm
Table width	500 mm

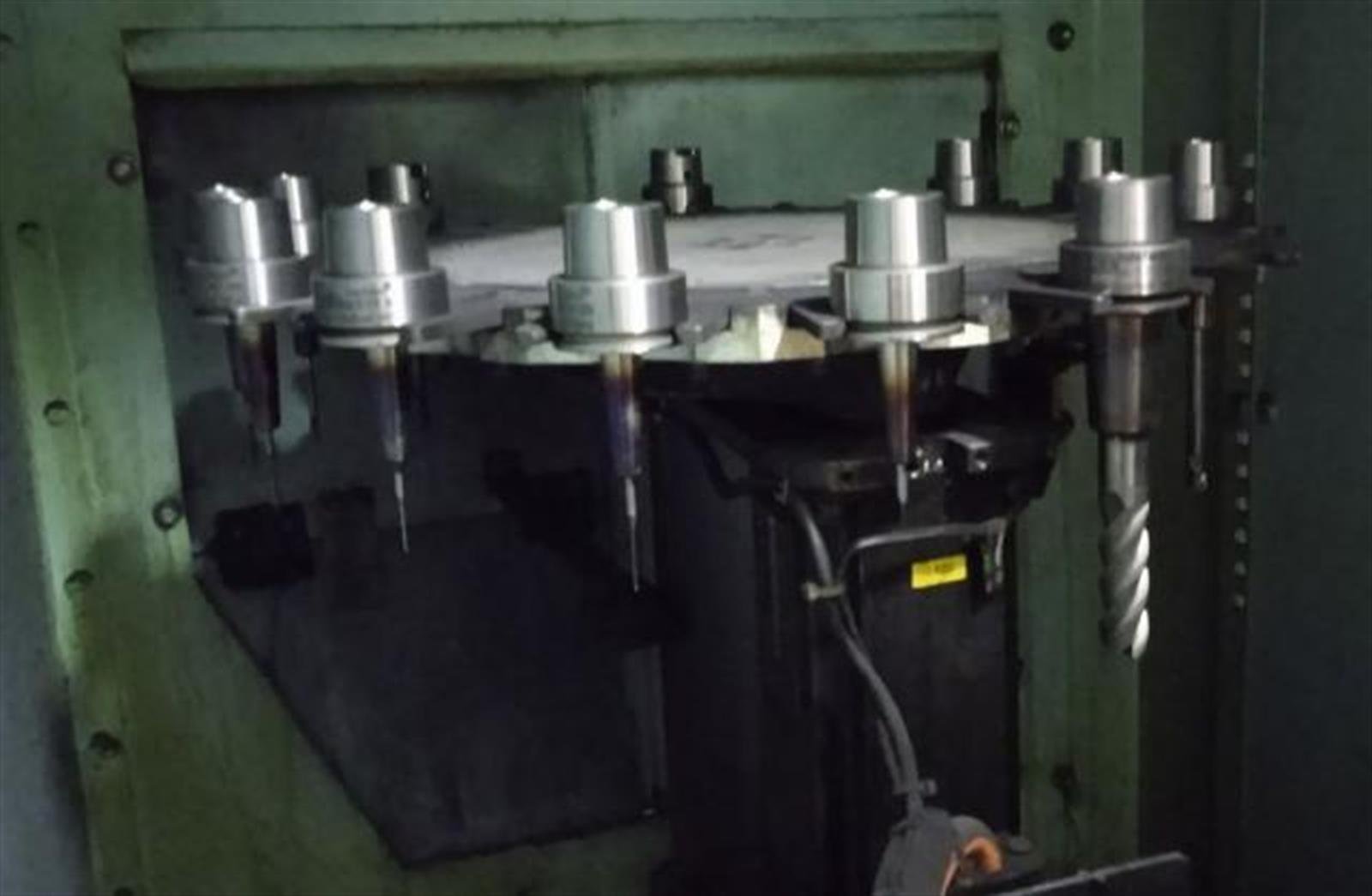

Number of tool pockets	16
Spindle taper	HSK E40
Max. spindle speed	42000 rpm
-------------------
Length x width x height	3000.0 × 2300.0 × 2800.0
Worked hours
Hours under power
State	good
At local norms	yes
Status	visible
